HC-Cargo Startmotor

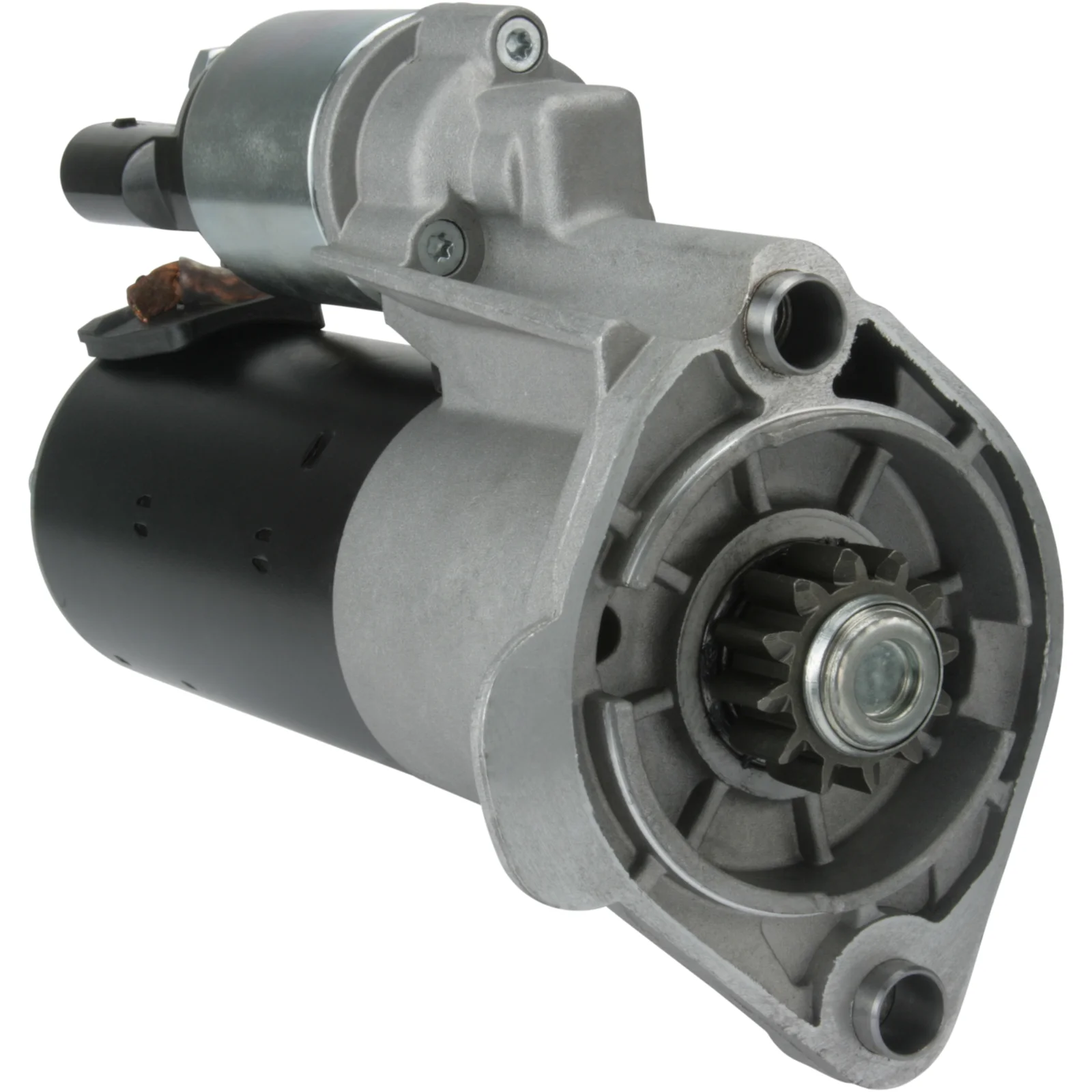

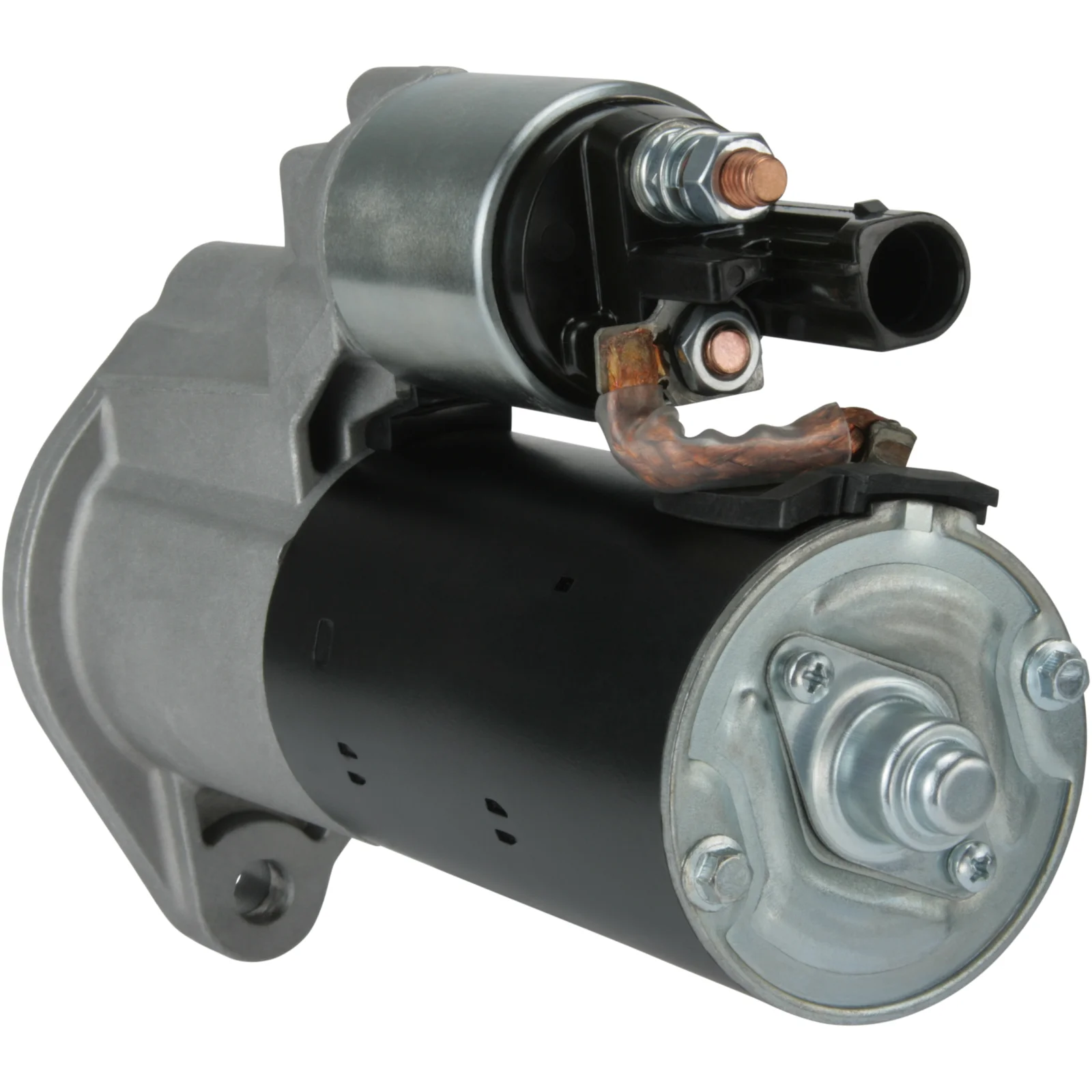

HC-Cargo Startmotor
Varenr.: F032115736

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 2.2, No./tannhjul: 12, Rotasjon: CW

Beskrivelse

HC-Cargo Startmotor 12V - 2.2kW, 12k

Spenningsnivå: 12
kW: 2.2
Festebrakett: 76,20
Drevavstand: 12,50
Festebor 1 mm: 11,00
Avstand/bak: 209,00
Avstand/frem: 18,00
Nummer/tennene: 12
B+: M8
Posisjon/50: 15
Terminal 50: Plugg
Kullgirdetypen: GR
Avstand mm: 109,50
Rotasjon: med urviseren
Total lengde mm: 240,00
Startmotortype: Start/Stopp
Produsentinfo: BN
Antall/festebor: 2 (1)

Filer

Spesifikasjon

B+ M8
No./teeth 12
Mount. flange 76.20
No./mount. holes 2 (1)
Position/50 15
Prod. info BN
Rotation CW
Dist./back 209.00
Dist./front 18.00
Drive dist. 12.50
Gear type GR
Starter type Start/Stop
kW 2.2
Terminal 50 Plug
Voltage 12
Total length 240.00 mm
Dist. 109.50 mm
Mount. hole 1 11.00 mm

  • OEM
    F032115736, HVW906906070, HVW9069060700, HVW906906130, HVW9069061300, RGO 115736, 0001 153 013, 0001 153 019, 2H0 911 023H, 2H0 911 023K, 2H0911023H, 2H0911023K, 2H0911023KX, 2HO911023K, 1986S00872, 115736, 0001153013, 0001153014, 0001153019, 0001153020

  • Konkurrentreferens
    CST10557, S0625S, 8EA011613-081, 25-5032, 300.924.122, 311.409.122, 31383N, 255348, 11090414, 42000926

  • Bilmärken
    VW

  • NormaliseratArtNr
    cst10557, f032115736, hvw906906070, hvw9069060700, hvw906906130, hvw9069061300, rgo115736, s0625s, 2h0911023h, 2h0911023k, 2h0911023kx, 2ho911023k, 8ea011613081, 1986s00872, 31383n, 115736, 255032, 255348, 0001153013, 0001153014, 0001153019, 0001153020, 11090414, 42000926, 300924122, 311409122

  • Passar modeller
    VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CNEA Body: Pick Up From date: 01-11-2011 Fuel: Diesel Approved: Yes
    VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CNFB Type description: S1B Body: Platform / Chassis From date: 01-09-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
    VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CSHA Body: Pick Up From date: 01-11-2011 Fuel: Diesel Approved: Yes
    VW Model: Amarok Model series: Amarok Model type: BiTDI 4motion Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CNEA Type description: S1B, S6B, S7B Body: Platform/Chassis From date: 01-09-2011 To date: 01-07-2019 Fuel: Diesel Approved: Yes
    VW Model: Amarok Model series: Amarok Model type: BiTDI Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CNEA Type description: S1B, S6B, S7B Body: Platform/Chassis From date: 01-09-2011 To date: 01-07-2019 Fuel: Diesel Approved: Yes
    VW Model: Amarok Model series: Amarok Type of engine: TDI Size of motor: 2.0 Brand of engine: CDBA Type description: S1B, S6B, S7B Body: Platform/Chassis From date: 01-09-2011 To date: 01-10-2013 Fuel: Diesel Approved: Yes
    VW Model: Amarok Model series: Amarok Type of engine: TDI Size of motor: 2.0 Brand of engine: CNFB Type description: S1B, S6B, S7B Body: Platform/Chassis From date: 01-09-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CKUB Type description: 2E_ Body: Bus From date: 01-11-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CKUB Type description: 2E_ Body: Van From date: 01-07-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CKUB Type description: 2F_ Body: Platform / Chassis From date: 01-11-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CSNA Type description: 2E_ Body: Bus From date: 01-11-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CSNA Type description: 2E_ Body: Van From date: 01-07-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CSNA Type description: 2F_ Body: Platform / Chassis From date: 01-11-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.0 Brand of engine: CKTC Type description: 2E_ Body: Bus From date: 01-05-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.0 Brand of engine: CKTC Type description: 2E_ Body: Van From date: 01-05-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.0 Brand of engine: CKTC Type description: 2F_ Body: Platform / Chassis From date: 01-05-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.0 Brand of engine: CKUB Type description: 2F_ Body: Platform / Chassis From date: 01-07-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.0 Brand of engine: CSNA Type description: 2F_ Body: Platform / Chassis From date: 01-07-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    VW Series: AMAROK Flak/chassi Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CNEA/CSHA Year: 09.11-07.19
    VW Series: AMAROK Flak/chassi Model: 2.0 BiTDI Engine volume: 2.0 Engine type: CNEA, CSHA Year: 05.12-10.16
    VW Series: AMAROK FLAK/CHASSI Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CNFB Year: 09.11-10.16
    VW Series: AMAROK FLAK/CHASSI Model: 2.0 TDI Engine volume: 2.0 Engine type: CDBA / CNFA Year: 09.11-10.13
    VW Series: AMAROK Flak/chassi Model: 2.0 TDI Engine volume: 2.0 Engine type: CNFB Year: 09.11-10.16
    VW Series: Amarok Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CNEA/CSHA Year: 11.11-05.22
    VW Series: CRAFTER 30-35 BUSS Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CKUB / CSNA Year: 11.11-12.16
    VW Series: CRAFTER 30-50 FLAK Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CKUB / CSNA Year: 11.11-12.16
    VW Series: CRAFTER 30-50 SKÅP Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CKUB / CSNA Year: 07.11-12.16
    VW Trucks & Vans Series: Crafter 30-35 Buss Model: 2.0 TDI Engine volume: 2.0 Engine type: CKTC Year: 05.11-12.16
    VW Trucks & Vans Series: Crafter 30-50 Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CKTC Year: 05.11-12.16
    VW Trucks & Vans Series: Crafter 30-50 Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CKUB/CSNA Year: 07.11-12.16
    VW Trucks & Vans Series: Crafter 30-50 SKÅP Model: 2.0 TDI Engine volume: 2.0 Engine type: CKTC Year: 05.11-12.16
    1 / 7
  • Beskrivelse
    HC-Cargo Startmotor 12V - 2.2kW, 12k

    Spenningsnivå: 12
    kW: 2.2
    Festebrakett: 76,20
    Drevavstand: 12,50
    Festebor 1 mm: 11,00
    Avstand/bak: 209,00
    Avstand/frem: 18,00
    Nummer/tennene: 12
    B+: M8
    Posisjon/50: 15
    Terminal 50: Plugg
    Kullgirdetypen: GR
    Avstand mm: 109,50
    Rotasjon: med urviseren
    Total lengde mm: 240,00
    Startmotortype: Start/Stopp
    Produsentinfo: BN
    Antall/festebor: 2 (1)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 12
    Mount. flange 76.20
    No./mount. holes 2 (1)
    Position/50 15
    Prod. info BN
    Rotation CW
    Dist./back 209.00
    Dist./front 18.00
    Drive dist. 12.50
    Gear type GR
    Starter type Start/Stop
    kW 2.2
    Terminal 50 Plug
    Voltage 12
    Total length 240.00 mm
    Dist. 109.50 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      F032115736, HVW906906070, HVW9069060700, HVW906906130, HVW9069061300, RGO 115736, 0001 153 013, 0001 153 019, 2H0 911 023H, 2H0 911 023K, 2H0911023H, 2H0911023K, 2H0911023KX, 2HO911023K, 1986S00872, 115736, 0001153013, 0001153014, 0001153019, 0001153020

    • Konkurrentreferens
      CST10557, S0625S, 8EA011613-081, 25-5032, 300.924.122, 311.409.122, 31383N, 255348, 11090414, 42000926

    • Bilmärken
      VW

    • NormaliseratArtNr
      cst10557, f032115736, hvw906906070, hvw9069060700, hvw906906130, hvw9069061300, rgo115736, s0625s, 2h0911023h, 2h0911023k, 2h0911023kx, 2ho911023k, 8ea011613081, 1986s00872, 31383n, 115736, 255032, 255348, 0001153013, 0001153014, 0001153019, 0001153020, 11090414, 42000926, 300924122, 311409122

    • Passar modeller
      VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CNEA Body: Pick Up From date: 01-11-2011 Fuel: Diesel Approved: Yes
      VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CNFB Type description: S1B Body: Platform / Chassis From date: 01-09-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
      VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CSHA Body: Pick Up From date: 01-11-2011 Fuel: Diesel Approved: Yes
      VW Model: Amarok Model series: Amarok Model type: BiTDI 4motion Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CNEA Type description: S1B, S6B, S7B Body: Platform/Chassis From date: 01-09-2011 To date: 01-07-2019 Fuel: Diesel Approved: Yes
      VW Model: Amarok Model series: Amarok Model type: BiTDI Type of engine: BiTDI Size of motor: 2.0 Brand of engine: CNEA Type description: S1B, S6B, S7B Body: Platform/Chassis From date: 01-09-2011 To date: 01-07-2019 Fuel: Diesel Approved: Yes
      VW Model: Amarok Model series: Amarok Type of engine: TDI Size of motor: 2.0 Brand of engine: CDBA Type description: S1B, S6B, S7B Body: Platform/Chassis From date: 01-09-2011 To date: 01-10-2013 Fuel: Diesel Approved: Yes
      VW Model: Amarok Model series: Amarok Type of engine: TDI Size of motor: 2.0 Brand of engine: CNFB Type description: S1B, S6B, S7B Body: Platform/Chassis From date: 01-09-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-35 Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CKUB Type description: 2E_ Body: Bus From date: 01-11-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-35 Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CKUB Type description: 2E_ Body: Van From date: 01-07-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-35 Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CKUB Type description: 2F_ Body: Platform / Chassis From date: 01-11-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-35 Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CSNA Type description: 2E_ Body: Bus From date: 01-11-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-35 Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CSNA Type description: 2E_ Body: Van From date: 01-07-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-35 Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CSNA Type description: 2F_ Body: Platform / Chassis From date: 01-11-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.0 Brand of engine: CKTC Type description: 2E_ Body: Bus From date: 01-05-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.0 Brand of engine: CKTC Type description: 2E_ Body: Van From date: 01-05-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.0 Brand of engine: CKTC Type description: 2F_ Body: Platform / Chassis From date: 01-05-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.0 Brand of engine: CKUB Type description: 2F_ Body: Platform / Chassis From date: 01-07-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.0 Brand of engine: CSNA Type description: 2F_ Body: Platform / Chassis From date: 01-07-2011 To date: 01-12-2016 Fuel: Diesel Approved: Yes
      VW Series: AMAROK Flak/chassi Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CNEA/CSHA Year: 09.11-07.19
      VW Series: AMAROK Flak/chassi Model: 2.0 BiTDI Engine volume: 2.0 Engine type: CNEA, CSHA Year: 05.12-10.16
      VW Series: AMAROK FLAK/CHASSI Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CNFB Year: 09.11-10.16
      VW Series: AMAROK FLAK/CHASSI Model: 2.0 TDI Engine volume: 2.0 Engine type: CDBA / CNFA Year: 09.11-10.13
      VW Series: AMAROK Flak/chassi Model: 2.0 TDI Engine volume: 2.0 Engine type: CNFB Year: 09.11-10.16
      VW Series: Amarok Model: 2.0 BiTDI 4motion Engine volume: 2.0 Engine type: CNEA/CSHA Year: 11.11-05.22
      VW Series: CRAFTER 30-35 BUSS Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CKUB / CSNA Year: 11.11-12.16
      VW Series: CRAFTER 30-50 FLAK Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CKUB / CSNA Year: 11.11-12.16
      VW Series: CRAFTER 30-50 SKÅP Model: 2.0 TDI 4MOTION Engine volume: 2.0 Engine type: CKUB / CSNA Year: 07.11-12.16
      VW Trucks & Vans Series: Crafter 30-35 Buss Model: 2.0 TDI Engine volume: 2.0 Engine type: CKTC Year: 05.11-12.16
      VW Trucks & Vans Series: Crafter 30-50 Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CKTC Year: 05.11-12.16
      VW Trucks & Vans Series: Crafter 30-50 Flak Model: 2.0 TDI Engine volume: 2.0 Engine type: CKUB/CSNA Year: 07.11-12.16
      VW Trucks & Vans Series: Crafter 30-50 SKÅP Model: 2.0 TDI Engine volume: 2.0 Engine type: CKTC Year: 05.11-12.16
      1 / 7
