- Startmotor
-

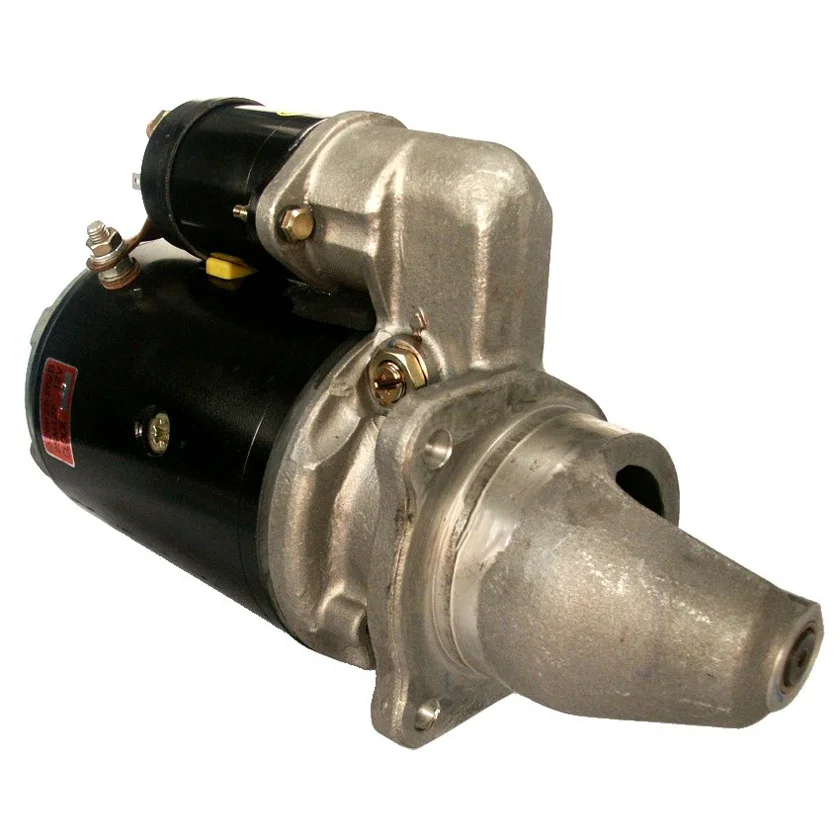

HC-Cargo Startmotor
- Startmotor
-
HC-Cargo Startmotor
Varenr.: F032112660
HC-Cargo Startmotor
Spenningsregulator: 12, kW: 2.8, No./tenner: 10, Rotasjon: CW
Beskrivelse
Spenning: 12
kW: 2,8
Montasje flens: 89,00
Drivningsavstand: 48,00
Montasjehull 3 mm: 10,50
Montasjehull 2 mm: 10,50
Montasjehull 1 mm: 10,50
Avstand/bak: 227,00
Avstand/frem: 96,00
Ant./tenner: 10
B+: M10
Posisjon/B+: 60
Posisjon/50: 5
Terminal 50: 6,30
Gaffeltype: DD
Avstand 2: 90,00
Avstand 3: 127,00
Avstand mm: 90,00
Rotasjon: medur (CW)
Total lengde mm: 333,00
Drevtype: Stål
Prod. info: BN
Vanntett: Nei
Oljeseilet: Nei
Antall/montasjehull: 3 (0)
kW: 2,8
Montasje flens: 89,00
Drivningsavstand: 48,00
Montasjehull 3 mm: 10,50
Montasjehull 2 mm: 10,50
Montasjehull 1 mm: 10,50
Avstand/bak: 227,00
Avstand/frem: 96,00
Ant./tenner: 10
B+: M10
Posisjon/B+: 60
Posisjon/50: 5
Terminal 50: 6,30
Gaffeltype: DD
Avstand 2: 90,00
Avstand 3: 127,00
Avstand mm: 90,00
Rotasjon: medur (CW)
Total lengde mm: 333,00
Drevtype: Stål
Prod. info: BN
Vanntett: Nei
Oljeseilet: Nei
Antall/montasjehull: 3 (0)
Filer
Spesifikasjon
| B+ | M10 |
|---|---|
| No./teeth | 10 |
| Mount. flange | 89.00 |
| Oil sealed | No |
| No./mount. holes | 3 (0) |
| Position/50 | 5 |
| Position/B+ | 60 |
| Prod. info | BN |
| Dist. 2 | 90.00 |
| Dist. 3 | 127.00 |
| Rotation | CW |
| Dist./back | 227.00 |
| Dist./front | 96.00 |
| Drive dist. | 48.00 |
| Drive type | Steel |
| Gear type | DD |
| kW | 2.8 |
| Terminal 50 | 6.30 |
| Voltage | 12 |
| Total length | 333.00 mm |
| Waterproof | No |
| Dist. | 90.00 mm |
| Mount. hole 3 | 10.50 mm |
| Mount. hole 2 | 10.50 mm |
| Mount. hole 1 | 10.50 mm |
-
OEM
AZE4217, AZJ3364, cs106, F032112660, 11.131.038, 11.132.010, 10965R93, 26336, 26428, 26428a, 26433, 27508, 27508a, 27508b, 27508d, 27556, 27575, 27586, 27604, 403300R92, 529965ex, 529965R92, 529965R93, 537140R94, 537140R95, 1107862, 1107867, 0001359045, 0001359069, 0001362310, 0001367042, 3575730, 3575730RX, 3675130, 3675130RX, 20500240, 26925262B, 63227508 -
Konkurrentreferens
CST10337, CST21171, CST60145, drs1140, drs5040, DRS5040N, IS1018, IS1315, LES0341, lrs00240, MS152, MS170, S0752S, S0803S, S4053, S9284(LETRIKA), S9284S, STR25014, 2-2303-LU, 8EA015642-531, 8ea725963-001, 25-0198, 88-15.040, 540.507.103, 685.001.102, 4001, 4275, 4275R, 6600N, 6600R, 10106, 16984, 16984N, 17077, 17077N, 33391, 33395, 436072, 11015040, 0986015040, 0986015047 -
NormaliseratArtNr
aze4217, azj3364, cs106, cst10337, cst21171, cst60145, drs1140, drs5040, drs5040n, f032112660, is1018, is1315, les0341, lrs00240, ms152, ms170, s0752s, s0803s, s4053, s9284letrika, s9284s, str25014, 8ea015642531, 8ea725963001, 4001, 4275, 4275r, 6600n, 6600r, 10106, 10965r93, 16984, 16984n, 17077, 17077n, 22303lu, 26336, 26428, 26428a, 26433, 27508, 27508a, 27508b, 27508d, 27556, 27575, 27586, 27604, 33391, 33395, 250198, 403300r92, 436072, 529965ex, 529965r92, 529965r93, 537140r94, 537140r95, 1107862, 1107867, 0001359045, 0001359069, 0001362310, 0001367042, 3575730, 3575730rx, 3675130, 3675130rx, 8815040, 11015040, 11131038, 11132010, 20500240, 26925262b, 63227508, 540507103, 685001102, 0986015040, 0986015047 -
Passar modeller
Case Model: 400 Series Model series: 454 From date: 01-01-1972 Approved: Yes Case Model: 400 Series Model series: 474 Approved: Yes Case Model: 400 Series Model series: 484 From date: 01-01-1982 Fuel: Gasoline Approved: Yes Case Model: 400 Series Model series: 485 From date: 01-01-1989 To date: 01-01-1993 Fuel: Diesel Approved: Yes Case Model: 4000 Series Model series: 4200 From date: 01-01-1993 Approved: Yes Case Model: 500 Series Model series: 574 From date: 01-01-1972 Approved: Yes Case Model: 500 Series Model series: 580 Model type: C,D Brand of engine: 188D,207D From date: 01-01-1983 To date: 01-01-1988 Fuel: Diesel Approved: Yes Case Model: 500 Series Model series: 584 From date: 01-01-1982 Fuel: Gasoline Approved: Yes Case Model: 500 Series Model series: 585 From date: 01-01-1982 Fuel: Gasoline Approved: Yes Case Model: 600 Series Model series: 674 From date: 01-01-1972 Approved: Yes Case Model: 600 Series Model series: 684 From date: 01-01-1982 Fuel: Gasoline Approved: Yes Case Model: 600 Series Model series: 685 From date: 01-01-1982 Fuel: Gasoline Approved: Yes Case Model: 700 Series Model series: 784 From date: 01-01-1982 Fuel: Gasoline Approved: Yes Case Model: 700 Series Model series: 785 From date: 01-01-1982 Fuel: Gasoline Approved: Yes Case Model: 800 Series Model series: 884 Approved: Yes Case Model: 800 Series Model series: 885 From date: 01-01-1972 To date: 01-01-1983 Approved: Yes Case Model: 800 Series Model series: 895 Approved: Yes Case Model: 900 Series Model series: 995 Approved: Yes Case Model: Various Models Model series: Various Models Approved: Yes Cummins Model: C30 D5 P Model series: C30 D5 P Model type: Generator Sets Brand of engine: S325 Approved: Yes Cummins Model: C35 D5 P Model series: C35 D5 P Model type: Generator Sets Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 1035 DI Model series: MF 1035 DI Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 241 DI Mahashakti Model series: MF 241 DI Mahashakti Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 241 DI Planetary Plus Model series: MF 241 DI Planetary Plus Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 245 DI Model series: MF 245 DI Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 250-2 Model series: MF 250-2 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 250-4 Model series: MF 250-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 255-2 Model series: MF 255-2 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 255-4 Model series: MF 255-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 265-2 Model series: MF 265-2 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 265-4 Model series: MF 265-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 275-2 Model series: MF 275-2 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 275-4 Model series: MF 275-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 283-2 Model series: MF 283-2 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 283-4 Model series: MF 283-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 290-4 Model series: MF 290-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 292-4 Model series: MF 292-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 297-4 Model series: MF 297-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 298 Model series: MF 298 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 299 Model series: MF 299 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 5245 DI Model series: MF 5245 DI Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 680 Model series: MF 680 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 7250 DI Model series: MF 7250 DI Model type: Ag Tractors Brand of engine: S325 Approved: Yes New Holland Model: 3037 Model series: 3037 Model type: Ag Tractors Brand of engine: S325 Approved: Yes New Holland Model: 3130 Model series: 3130 Model type: Ag Tractors Brand of engine: S325 Approved: Yes New Holland Model: 3230 Model series: 3230 Model type: Ag Tractors Brand of engine: S325 Approved: Yes New Holland Model: 3600 Model series: 3600 Model type: Ag Tractors Brand of engine: S325 Approved: Yes New Holland Model: 4010 Model series: 4010 Model type: Ag Tractors Brand of engine: S325 Approved: Yes New Holland Model: 4510 Model series: 4510 Model type: Ag Tractors Brand of engine: S325 Approved: Yes 1 / 10
-
Beskrivelse
Spenning: 12
kW: 2,8
Montasje flens: 89,00
Drivningsavstand: 48,00
Montasjehull 3 mm: 10,50
Montasjehull 2 mm: 10,50
Montasjehull 1 mm: 10,50
Avstand/bak: 227,00
Avstand/frem: 96,00
Ant./tenner: 10
B+: M10
Posisjon/B+: 60
Posisjon/50: 5
Terminal 50: 6,30
Gaffeltype: DD
Avstand 2: 90,00
Avstand 3: 127,00
Avstand mm: 90,00
Rotasjon: medur (CW)
Total lengde mm: 333,00
Drevtype: Stål
Prod. info: BN
Vanntett: Nei
Oljeseilet: Nei
Antall/montasjehull: 3 (0)Filer
-
Spesifikasjon
B+ M10 No./teeth 10 Mount. flange 89.00 Oil sealed No No./mount. holes 3 (0) Position/50 5 Position/B+ 60 Prod. info BN Dist. 2 90.00 Dist. 3 127.00 Rotation CW Dist./back 227.00 Dist./front 96.00 Drive dist. 48.00 Drive type Steel Gear type DD kW 2.8 Terminal 50 6.30 Voltage 12 Total length 333.00 mm Waterproof No Dist. 90.00 mm Mount. hole 3 10.50 mm Mount. hole 2 10.50 mm Mount. hole 1 10.50 mm -
Kjøretøymatching
-
OEM
AZE4217, AZJ3364, cs106, F032112660, 11.131.038, 11.132.010, 10965R93, 26336, 26428, 26428a, 26433, 27508, 27508a, 27508b, 27508d, 27556, 27575, 27586, 27604, 403300R92, 529965ex, 529965R92, 529965R93, 537140R94, 537140R95, 1107862, 1107867, 0001359045, 0001359069, 0001362310, 0001367042, 3575730, 3575730RX, 3675130, 3675130RX, 20500240, 26925262B, 63227508 -
Konkurrentreferens
CST10337, CST21171, CST60145, drs1140, drs5040, DRS5040N, IS1018, IS1315, LES0341, lrs00240, MS152, MS170, S0752S, S0803S, S4053, S9284(LETRIKA), S9284S, STR25014, 2-2303-LU, 8EA015642-531, 8ea725963-001, 25-0198, 88-15.040, 540.507.103, 685.001.102, 4001, 4275, 4275R, 6600N, 6600R, 10106, 16984, 16984N, 17077, 17077N, 33391, 33395, 436072, 11015040, 0986015040, 0986015047 -
NormaliseratArtNr
aze4217, azj3364, cs106, cst10337, cst21171, cst60145, drs1140, drs5040, drs5040n, f032112660, is1018, is1315, les0341, lrs00240, ms152, ms170, s0752s, s0803s, s4053, s9284letrika, s9284s, str25014, 8ea015642531, 8ea725963001, 4001, 4275, 4275r, 6600n, 6600r, 10106, 10965r93, 16984, 16984n, 17077, 17077n, 22303lu, 26336, 26428, 26428a, 26433, 27508, 27508a, 27508b, 27508d, 27556, 27575, 27586, 27604, 33391, 33395, 250198, 403300r92, 436072, 529965ex, 529965r92, 529965r93, 537140r94, 537140r95, 1107862, 1107867, 0001359045, 0001359069, 0001362310, 0001367042, 3575730, 3575730rx, 3675130, 3675130rx, 8815040, 11015040, 11131038, 11132010, 20500240, 26925262b, 63227508, 540507103, 685001102, 0986015040, 0986015047 -
Passar modeller
Case Model: 400 Series Model series: 454 From date: 01-01-1972 Approved: Yes Case Model: 400 Series Model series: 474 Approved: Yes Case Model: 400 Series Model series: 484 From date: 01-01-1982 Fuel: Gasoline Approved: Yes Case Model: 400 Series Model series: 485 From date: 01-01-1989 To date: 01-01-1993 Fuel: Diesel Approved: Yes Case Model: 4000 Series Model series: 4200 From date: 01-01-1993 Approved: Yes Case Model: 500 Series Model series: 574 From date: 01-01-1972 Approved: Yes Case Model: 500 Series Model series: 580 Model type: C,D Brand of engine: 188D,207D From date: 01-01-1983 To date: 01-01-1988 Fuel: Diesel Approved: Yes Case Model: 500 Series Model series: 584 From date: 01-01-1982 Fuel: Gasoline Approved: Yes Case Model: 500 Series Model series: 585 From date: 01-01-1982 Fuel: Gasoline Approved: Yes Case Model: 600 Series Model series: 674 From date: 01-01-1972 Approved: Yes Case Model: 600 Series Model series: 684 From date: 01-01-1982 Fuel: Gasoline Approved: Yes Case Model: 600 Series Model series: 685 From date: 01-01-1982 Fuel: Gasoline Approved: Yes Case Model: 700 Series Model series: 784 From date: 01-01-1982 Fuel: Gasoline Approved: Yes Case Model: 700 Series Model series: 785 From date: 01-01-1982 Fuel: Gasoline Approved: Yes Case Model: 800 Series Model series: 884 Approved: Yes Case Model: 800 Series Model series: 885 From date: 01-01-1972 To date: 01-01-1983 Approved: Yes Case Model: 800 Series Model series: 895 Approved: Yes Case Model: 900 Series Model series: 995 Approved: Yes Case Model: Various Models Model series: Various Models Approved: Yes Cummins Model: C30 D5 P Model series: C30 D5 P Model type: Generator Sets Brand of engine: S325 Approved: Yes Cummins Model: C35 D5 P Model series: C35 D5 P Model type: Generator Sets Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 1035 DI Model series: MF 1035 DI Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 241 DI Mahashakti Model series: MF 241 DI Mahashakti Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 241 DI Planetary Plus Model series: MF 241 DI Planetary Plus Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 245 DI Model series: MF 245 DI Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 250-2 Model series: MF 250-2 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 250-4 Model series: MF 250-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 255-2 Model series: MF 255-2 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 255-4 Model series: MF 255-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 265-2 Model series: MF 265-2 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 265-4 Model series: MF 265-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 275-2 Model series: MF 275-2 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 275-4 Model series: MF 275-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 283-2 Model series: MF 283-2 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 283-4 Model series: MF 283-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 290-4 Model series: MF 290-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 292-4 Model series: MF 292-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 297-4 Model series: MF 297-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 298 Model series: MF 298 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 299 Model series: MF 299 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 5245 DI Model series: MF 5245 DI Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 680 Model series: MF 680 Model type: Ag Tractors Brand of engine: S325 Approved: Yes Massey Ferguson Model: MF 7250 DI Model series: MF 7250 DI Model type: Ag Tractors Brand of engine: S325 Approved: Yes New Holland Model: 3037 Model series: 3037 Model type: Ag Tractors Brand of engine: S325 Approved: Yes New Holland Model: 3130 Model series: 3130 Model type: Ag Tractors Brand of engine: S325 Approved: Yes New Holland Model: 3230 Model series: 3230 Model type: Ag Tractors Brand of engine: S325 Approved: Yes New Holland Model: 3600 Model series: 3600 Model type: Ag Tractors Brand of engine: S325 Approved: Yes New Holland Model: 4010 Model series: 4010 Model type: Ag Tractors Brand of engine: S325 Approved: Yes New Holland Model: 4510 Model series: 4510 Model type: Ag Tractors Brand of engine: S325 Approved: Yes 1 / 10
-
