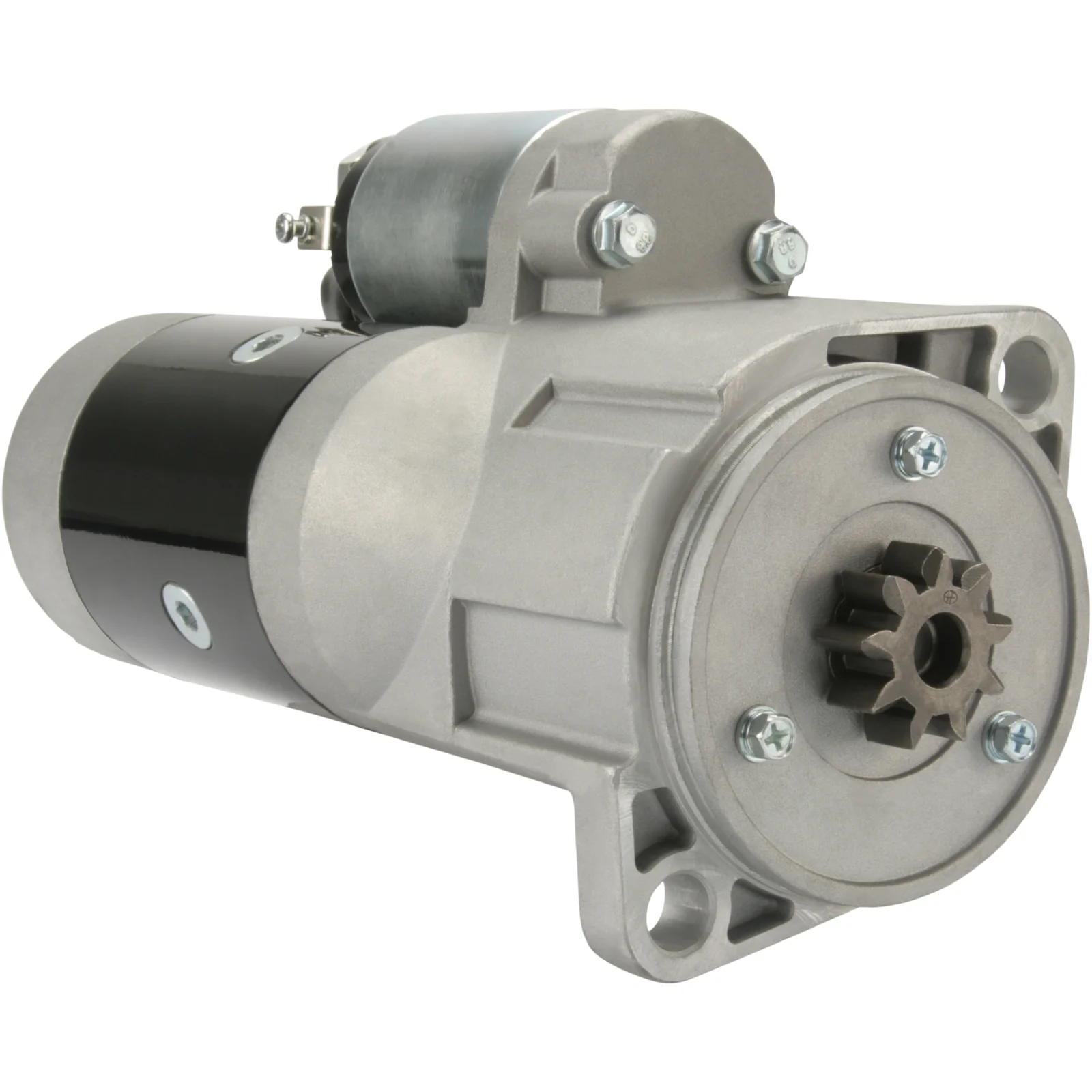

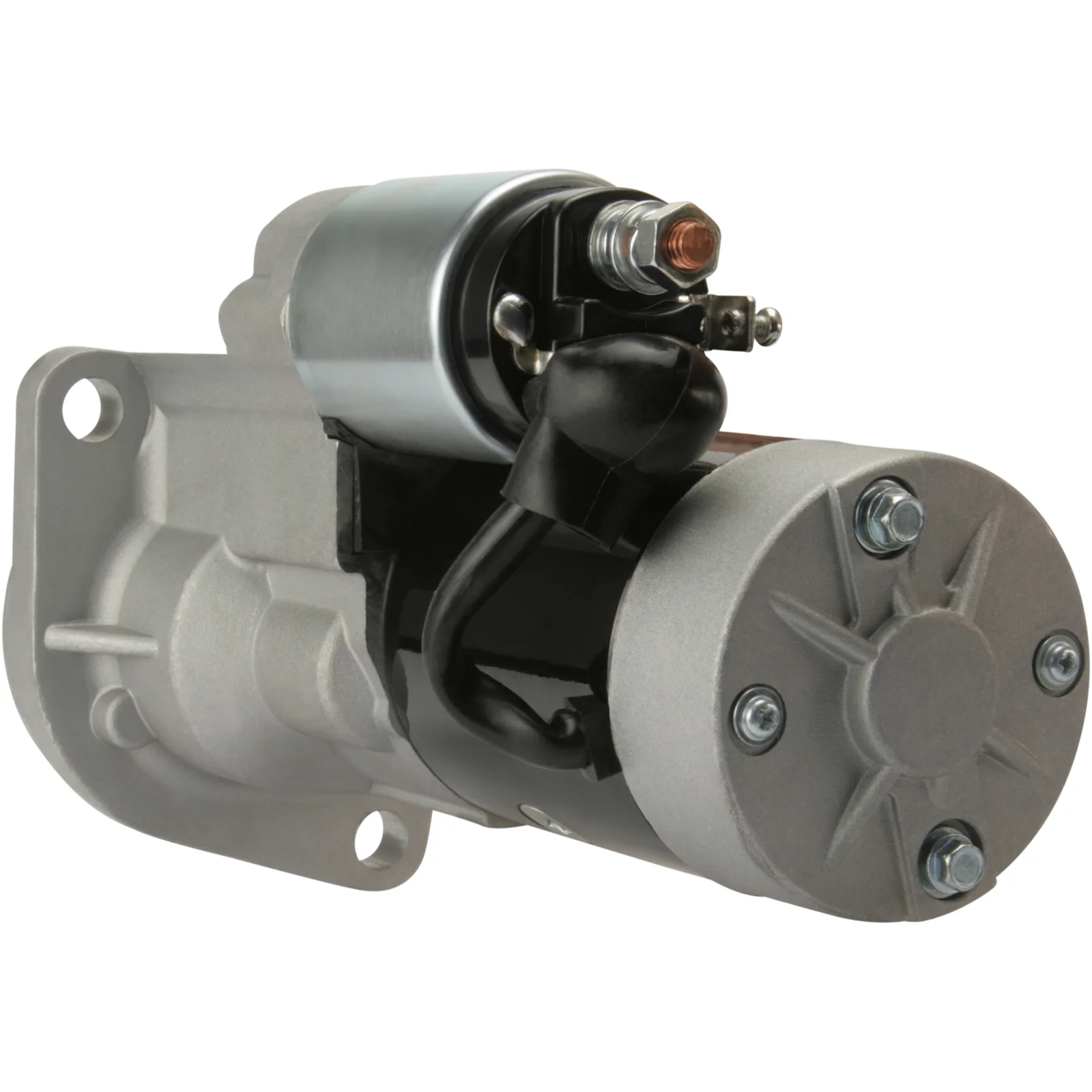

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032112676

HC-Cargo Startmotor

Teknisk info:

Spenningsgiver: 12, kW: 2.2, Antall/tann: 9, Rotasjon: medurs

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 2.2
Monteringsflens: 95,00
Drevavstand: 20,50
Monteringshull 2 mm: 13,50
Monteringshull 1 mm: 13,50
Avstand/bak: 210,00
Avstand/fram: 21,00
Nr./tenner: 9
B+: M8
Posisjon/50: 20
Terminal 50: M4-6,30
Girtype: GR
Avstand mm: 119,50
Rotasjon: med urviseren
Total lengde mm: 231,00
Koplingstype: Våt
Drevtype: Stål
Prod. info: BN
Vanntett: Nei
Oljesealing: Nei
Nr./monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 95.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 20
Clutch type Wet
Prod. info BN
Rotation CW
Dist./back 210.00
Dist./front 21.00
Drive dist. 20.50
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 M4-6.30
Voltage 12
Total length 231.00 mm
Waterproof No
Dist. 119.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    AT211995, F032112676, s13-204, S13-205, S13-404, YM129900-77010, 4TNE98, 129900-77010, 129900-77011, 129900-77040, 1599845, 3114929, 22255566, 40121132, 0399501105

  • Konkurrentreferens
    CST20144, CST21178, CST32157, F042004030, F042200200, F042S04030, LRS01565, MS449, S2041, STR-6016, STR6016, 8EA015642-031, 25-3064, 980.510.092, 8919, 18491, 18491N, 254136, 600051, 11040751

  • NormaliseratArtNr
    at211995, cst20144, cst21178, cst32157, f032112676, f042004030, f042200200, f042s04030, lrs01565, ms449, s13204, s13205, s13404, s2041, str6016, ym12990077010, 4tne98, 8ea015642031, 8919, 18491, 18491n, 253064, 254136, 600051, 1599845, 3114929, 11040751, 22255566, 40121132, 0399501105, 980510092, 12990077010, 12990077011, 12990077040

  • Passar modeller
    Clark Model: C25D Model series: C25D Model type: Forklifts Brand of engine: 4TNE94 Approved: Yes
    Hyster Model: H1.6FT Model series: H1.6FT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H1.6FT/H1.8 FT/H2.0FTS Model series: H1.6FT/H1.8 FT/H2.0FTS Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H2.0FT Model series: H2.0FT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H2.0FT/H2.5FT Model series: H2.0FT/H2.5FT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H2.0FTS Model series: H2.0FTS Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H2.0XT / H2.5XT / H3.0XT Model series: H2.0XT / H2.5XT / H3.0XT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H2.5FT Model series: H2.5FT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H3.0FT Model series: H3.0FT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H30FT, H35FT & H40FTS Model series: H30FT, H35FT & H40FTS Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H40FT Model series: H40FT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H40FT, H50FT, H60FT & H70FT Model series: H40FT, H50FT, H60FT & H70FT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H50CT Model series: H50CT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H50FT Model series: H50FT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H60FT Model series: H60FT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyster Model: H70FT Model series: H70FT Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyundai Model: 25D-9E Model series: 25D-9E Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyundai Model: 30D-9E Model series: 30D-9E Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Hyundai Model: 33D-9E Model series: 33D-9E Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Komatsu Model: Various Models Model series: Various Models From date: 01-01-1988 Approved: Yes
    Manitou Model: MI 15D / MI 18D Model series: MI 15D / MI 18D Model type: Rough Terrain Forklifts Brand of engine: 4TNE92 Approved: Yes
    Manitou Model: MI 20D / MI 25D / MI 30D / MI 35D Model series: MI 20D / MI 25D / MI 30D / MI 35D Model type: Rough Terrain Forklifts Brand of engine: 4TNE92 Approved: Yes
    Yale Model: GP030-040SVX Model series: GP030-040SVX Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Yale Model: GP040-070SVX Model series: GP040-070SVX Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Yale Model: GP040-070VX Model series: GP040-070VX Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Yale Model: GPO30VX Model series: GPO30VX Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Yale Model: GPO30VX, GPO35VX & GP40VX Model series: GPO30VX, GPO35VX & GP40VX Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Yale Model: GPO40VX, GPO50VX, GPO60VX & GPO70VX Model series: GPO40VX, GPO50VX, GPO60VX & GPO70VX Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Yale Model: GPO50VX & GPO60VX Model series: GPO50VX & GPO60VX Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Yale Model: VERACITOR VX SER. 16-20 Model series: VERACITOR VX SER. 16-20 Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Yale Model: VERACITOR VX SER. 20-35 Model series: VERACITOR VX SER. 20-35 Model type: Forklifts Brand of engine: 4TNE92 Approved: Yes
    Yanmar Model: Engine Model series: Various Models Brand of engine: 4TNE84 Fuel: Diesel Approved: Yes
