Varenr.: F032113662

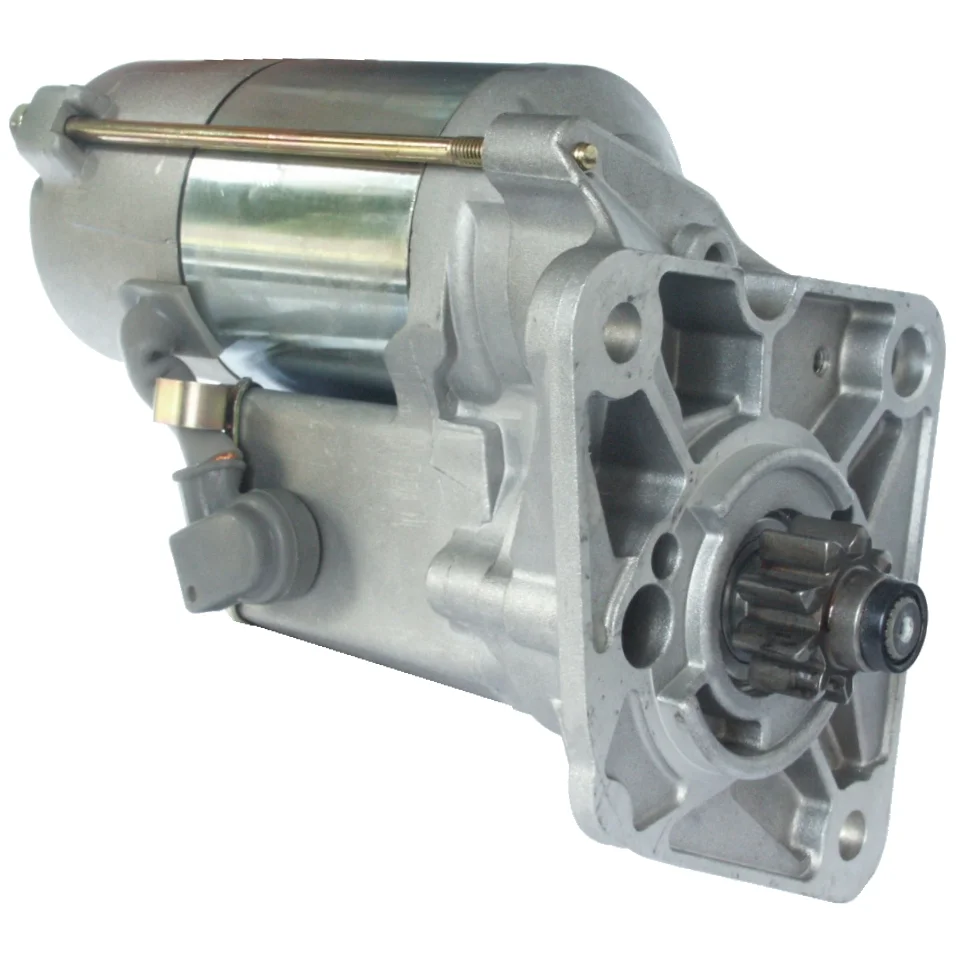

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 2,0, Ant./tenner: 9, Rotasjon: CW

Beskrivelse

Spenningsverdi: 12
kW: 2.0
Koblingsflens: 66.00
Drevavstand: 21.00
Koblingshull 3 mm: 11.20
Koblingshull 2 mm: 12.00
Koblingshull 1 mm: 11.20
Avstand/rygg: 126.50
Avstand/frontal: 33.00
Antall/tannhjul: 9
B+: M8
Posisjon/50: 50
Terminal 50: 6.30
Gavl type: GR
Avstand 2: 145.00
Avstand 3: 102.50
Avstand mm: 102.50
Rotasjon: CW
Total lengde mm: 220.00
Drevtype: Steel
Prod. info: BN
Vannavstøtende: Nei
Oljetett: Nei
Antall/koblingshull: 3 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 66.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 50
Prod. info BN
Dist. 2 145.00
Dist. 3 102.50
Rotation CW
Dist./back 126.50
Dist./front 33.00
Drive dist. 21.00
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 6.30
Voltage 12
Total length 220.00 mm
Waterproof No
Dist. 102.50 mm
Mount. hole 3 11.20 mm
Mount. hole 2 12.00 mm
Mount. hole 1 11.20 mm

  • OEM
    cs1242, F032113662, nad101240, RGO 113662, 1986S00957, 228000-7220

  • Konkurrentreferens
    CST40135, DENDSN600, DRS3718, DSN600, F042000039, F042S00039, S6007, STR-5027, STR5027, STR70069, 8EA011610-141, 25-2489, 314.023.092, 3657, 31212N, 31212R, 101242, 104795, 220599, 220599A, 458378, 8080097, 8213347, 11022760, 20510171, 42022760, 0986022760, 944280800970

  • NormaliseratArtNr
    cs1242, cst40135, dendsn600, drs3718, dsn600, f032113662, f042000039, f042s00039, nad101240, rgo113662, s6007, str5027, str70069, 8ea011610141, 1986s00957, 3657, 31212n, 31212r, 101242, 104795, 220599, 220599a, 252489, 458378, 8080097, 8213347, 11022760, 20510171, 42022760, 314023092, 0986022760, 2280007220, 944280800970

  • Passar modeller
    Land Rover Model: Defender Model series: Defender Model type: 4WD Size of motor: 2.5 Brand of engine: 10P Type description: LD From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Defender Model series: Defender Model type: 4WD Size of motor: 2.5 Brand of engine: 15P Type description: LD From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 10P Type description: LD Body: Convertible From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 10P Type description: LD_ Body: Pick Up From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 14P Type description: LD Body: Convertible From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 15P Type description: LD Body: Convertible From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery II Model series: Discovery II Model type: 4x4 Size of motor: 2.5 Brand of engine: 10P Type description: LJ, LT From date: 01-11-1998 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Type of engine: TD Size of motor: 2.5 Brand of engine: 15 P From date: 01-11-1998 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsverdi: 12
    kW: 2.0
    Koblingsflens: 66.00
    Drevavstand: 21.00
    Koblingshull 3 mm: 11.20
    Koblingshull 2 mm: 12.00
    Koblingshull 1 mm: 11.20
    Avstand/rygg: 126.50
    Avstand/frontal: 33.00
    Antall/tannhjul: 9
    B+: M8
    Posisjon/50: 50
    Terminal 50: 6.30
    Gavl type: GR
    Avstand 2: 145.00
    Avstand 3: 102.50
    Avstand mm: 102.50
    Rotasjon: CW
    Total lengde mm: 220.00
    Drevtype: Steel
    Prod. info: BN
    Vannavstøtende: Nei
    Oljetett: Nei
    Antall/koblingshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 66.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 50
    Prod. info BN
    Dist. 2 145.00
    Dist. 3 102.50
    Rotation CW
    Dist./back 126.50
    Dist./front 33.00
    Drive dist. 21.00
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 6.30
    Voltage 12
    Total length 220.00 mm
    Waterproof No
    Dist. 102.50 mm
    Mount. hole 3 11.20 mm
    Mount. hole 2 12.00 mm
    Mount. hole 1 11.20 mm
  • Kjøretøymatching

    • OEM
      cs1242, F032113662, nad101240, RGO 113662, 1986S00957, 228000-7220

    • Konkurrentreferens
      CST40135, DENDSN600, DRS3718, DSN600, F042000039, F042S00039, S6007, STR-5027, STR5027, STR70069, 8EA011610-141, 25-2489, 314.023.092, 3657, 31212N, 31212R, 101242, 104795, 220599, 220599A, 458378, 8080097, 8213347, 11022760, 20510171, 42022760, 0986022760, 944280800970

    • NormaliseratArtNr
      cs1242, cst40135, dendsn600, drs3718, dsn600, f032113662, f042000039, f042s00039, nad101240, rgo113662, s6007, str5027, str70069, 8ea011610141, 1986s00957, 3657, 31212n, 31212r, 101242, 104795, 220599, 220599a, 252489, 458378, 8080097, 8213347, 11022760, 20510171, 42022760, 314023092, 0986022760, 2280007220, 944280800970

    • Passar modeller
      Land Rover Model: Defender Model series: Defender Model type: 4WD Size of motor: 2.5 Brand of engine: 10P Type description: LD From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      Land Rover Model: Defender Model series: Defender Model type: 4WD Size of motor: 2.5 Brand of engine: 15P Type description: LD From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 10P Type description: LD Body: Convertible From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 10P Type description: LD_ Body: Pick Up From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 14P Type description: LD Body: Convertible From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 15P Type description: LD Body: Convertible From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery II Model series: Discovery II Model type: 4x4 Size of motor: 2.5 Brand of engine: 10P Type description: LJ, LT From date: 01-11-1998 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Type of engine: TD Size of motor: 2.5 Brand of engine: 15 P From date: 01-11-1998 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      1 / 2
