Varenr.: F032112322

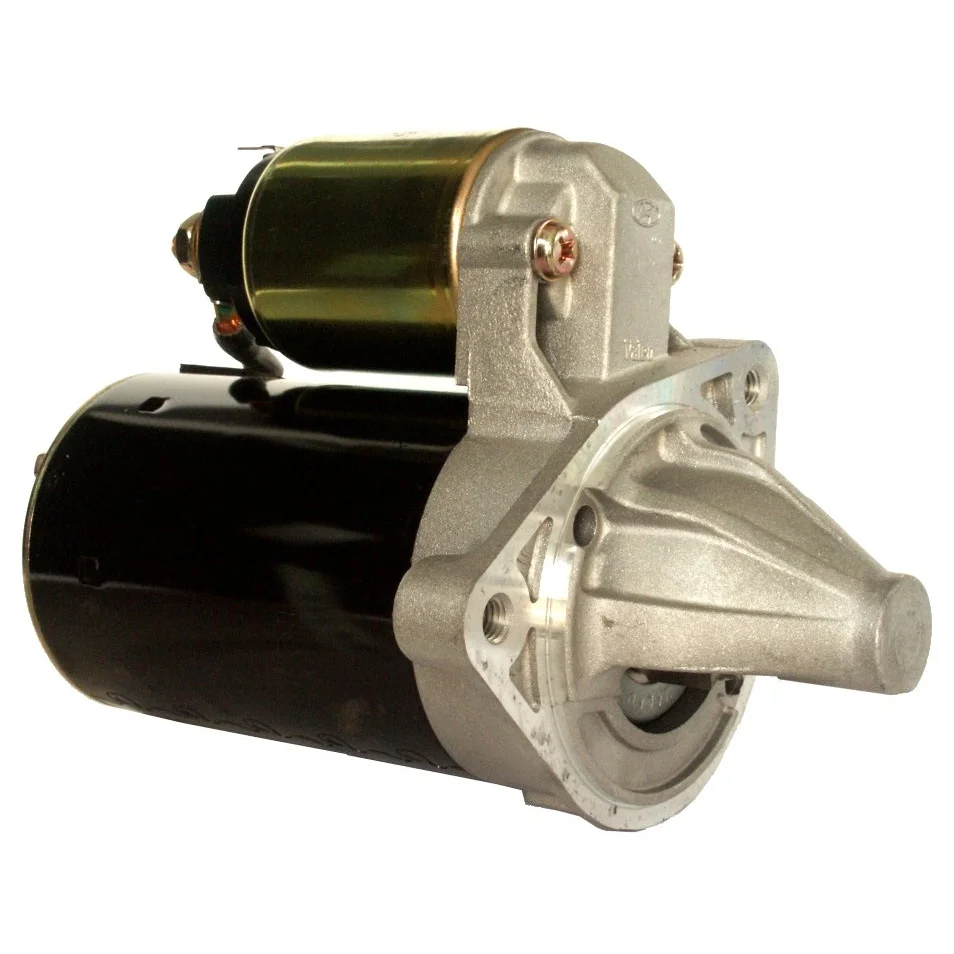

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 0.8, Ant./tenner: 8, Rotasjon: CW

Beskrivelse

Hyundai Startmotor 12V-0.8kW 12V - 0.8kW, 8k Hyundai Accent & Elantra kun automat! Getz automat - enkelte modeller! Matrix 1.6 automat! For Yourex produkt bestilling 91-228-2511

Spenning: 12
kW: 0.8
Festeb saadell: 75.00
Kjedeavstand: 14.00
Avstand/bak: 135.00
Avstand/frem: 49.00
Ant./tenner: 8
B+: M8
Posisjon/50: 60
Terminal 50: 6.30
Kjetttype: DD
Avstand mm: 93.50
Rotasjon: med urviseren
Total lengde mm: 187.50
Koplingsype: Tørr
Drivningstype: Stål
Prod. info: BN
Vanntett: Nei
Oljeforseglet: Nei
Ant./festebor: 2 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 8
Mount. flange 75.00
Oil sealed No
No./mount. holes 2 (2)
Position/50 60
Clutch type Dry
Prod. info BN
Rotation CW
Dist./back 135.00
Dist./front 49.00
Drive dist. 14.00
Drive type Steel
Gear type DD
kW 0.8
Terminal 50 6.30
Voltage 12
Total length 187.50 mm
Waterproof No
Dist. 93.50 mm

  • OEM
    F032112322, js1303, M56290, RGO 112322, TM000 A10401, TM000 A37001, TM000A31001, TM000A37001, 0986 022 601, 1986S01153, 36100-02500, 36100-02511, 36100-02550, 36100-02555, 36100-02560, 36100-02800, 112322, 1195248

  • Konkurrentreferens
    CST32100, CST32132, DRS3708, DRS3708N, DRS3708X, F032US0068, F042200004, F042202010, F042S07016, F042S0H154, J5210503, LES0095, LRS01453, S3107(VALEO), S3107S, S3134(VALEO), S9404S, STR-4614, 8EA011610-761, 8EA738101-001, 25-2384, 326.036.082, 9555, 32453N, 105059, 201116, 201303, 220348, 220348A, 438101, 600083, 600244, 600725, 726076, 726876, 8070503, 8213263, 11040677, 063522611, 0986022601, 063522611010, 944280705030

  • Bilmärken
    Hyundai, Kia

  • NormaliseratArtNr
    cst32100, cst32132, drs3708, drs3708n, drs3708x, f032112322, f032us0068, f042200004, f042202010, f042s07016, f042s0h154, j5210503, js1303, les0095, lrs01453, m56290, rgo112322, s3107s, s3107valeo, s3134valeo, s9404s, str4614, tm000a10401, tm000a31001, tm000a37001, 8ea011610761, 8ea738101001, 1986s01153, 9555, 32453n, 105059, 112322, 201116, 201303, 220348, 220348a, 252384, 438101, 600083, 600244, 600725, 726076, 726876, 1195248, 8070503, 8213263, 11040677, 063522611, 326036082, 0986022601, 3610002500, 3610002511, 3610002550, 3610002555, 3610002560, 3610002800, 063522611010, 944280705030

  • Passar modeller
    Hyundai Model: Atos Model series: Atos Size of motor: 0.8 Brand of engine: G4HA Type description: MX Body: Hatchback Fuel: Petrol Approved: Yes
    Hyundai Model: Atos Model series: Atos Size of motor: 1.1 Brand of engine: G4HG Type description: MX Body: MPV From date: 01-08-2003 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Hyundai Model: Atos Model series: Atos Type of engine: i Size of motor: 1.0 Brand of engine: G4HC Body: MPV From date: 01-02-1998 To date: 01-12-2000 Fuel: Gasoline Approved: Yes
    Hyundai Model: Atos Model series: Atos Type of engine: i Size of motor: 1.0 Brand of engine: G4HC-E Type description: MX Body: MPV From date: 01-03-2001 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
    Hyundai Model: Getz Model series: Getz Size of motor: 1.1 Brand of engine: G4HD Type description: TB Body: Hatchback From date: 01-09-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Hyundai Model: Getz Model series: Getz Size of motor: 1.1 Brand of engine: G4HD Type description: TB Body: Hatchback From date: 01-09-2005 To date: 01-06-2009 Fuel: Gasoline Approved: Yes
    Hyundai Model: i10 Model series: i10 Size of motor: 1.1 Brand of engine: G4HG Body: Hatchback From date: 01-01-2008 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Hyundai Model: i10 Model series: i10 Size of motor: 1.1 Brand of engine: G4HG Body: Hatchback From date: 01-04-2011 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Hyundai Model: i10 Model series: i10 Size of motor: 1.1 Brand of engine: G4HG Body: Hatchback From date: 01-12-2007 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Hyundai Model: i10 Model series: i10 Size of motor: 1.1 Brand of engine: G4HG Type description: PA Body: Hatchback From date: 01-01-2009 To date: 01-12-2013 Fuel: LPG Approved: Yes
    Hyundai Model: i10 Model series: i10 Size of motor: 1.1 Brand of engine: G4HG Type description: PA Body: Hatchback From date: 01-11-2008 To date: 01-12-2013 Fuel: Petrol Approved: Yes
    Hyundai Series: Accent II (LC) Model: 1.6 A/T Engine volume: 1.6 Engine type: G4ED-G Year: 12.02-12.05
    Hyundai Series: Atos Model: 1.0i Engine volume: 1.0 Engine type: G4HC Year: 02.98-06.01
    Hyundai Series: Atos Model: 1.0i Engine volume: 1.0 Engine type: G4HC-E Year: 07.01-12.03
    Hyundai Series: Atos Prime Model: 1.0i Engine volume: 1.0 Engine type: G4HC Year: 09.99-06.01
    Hyundai Series: Atos Prime Model: 1.0i Engine volume: 1.0 Engine type: G4HC-E Year: 03.01-
    Hyundai Series: Atos Prime Model: 1.1 Engine volume: 1.1 Engine type: G4HD Year: 06.03-
    Hyundai Series: Getz Model: 1.1 Engine volume: 1.1 Engine type: G4HD Year: 06.09-
    Hyundai Series: i10 Model: 1.1 Engine volume: 1.1 Engine type: G4HG Year: 03.08-
    Hyundai Series: Matrix Model: 1.6 AUT Engine volume: 1.6 Engine type: G4ED-G Year: 09.03-10.08
    Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G4HE Type description: BA Body: Hatchback From date: 01-04-2004 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G4HE Type description: BA Body: Hatchback From date: 01-09-2007 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.1 Brand of engine: G4HG Type description: BA Body: Hatchback From date: 01-04-2004 Fuel: Gasoline Approved: Yes
    Kia Series: Picanto (SA) Model: 1.0 Engine volume: 1.0 Engine type: G4HE Year: 09.05-09.08
    Kia Series: Picanto (SA) Model: 1.1 Engine volume: 1.1 Engine type: G4HG Year: 04.04-
