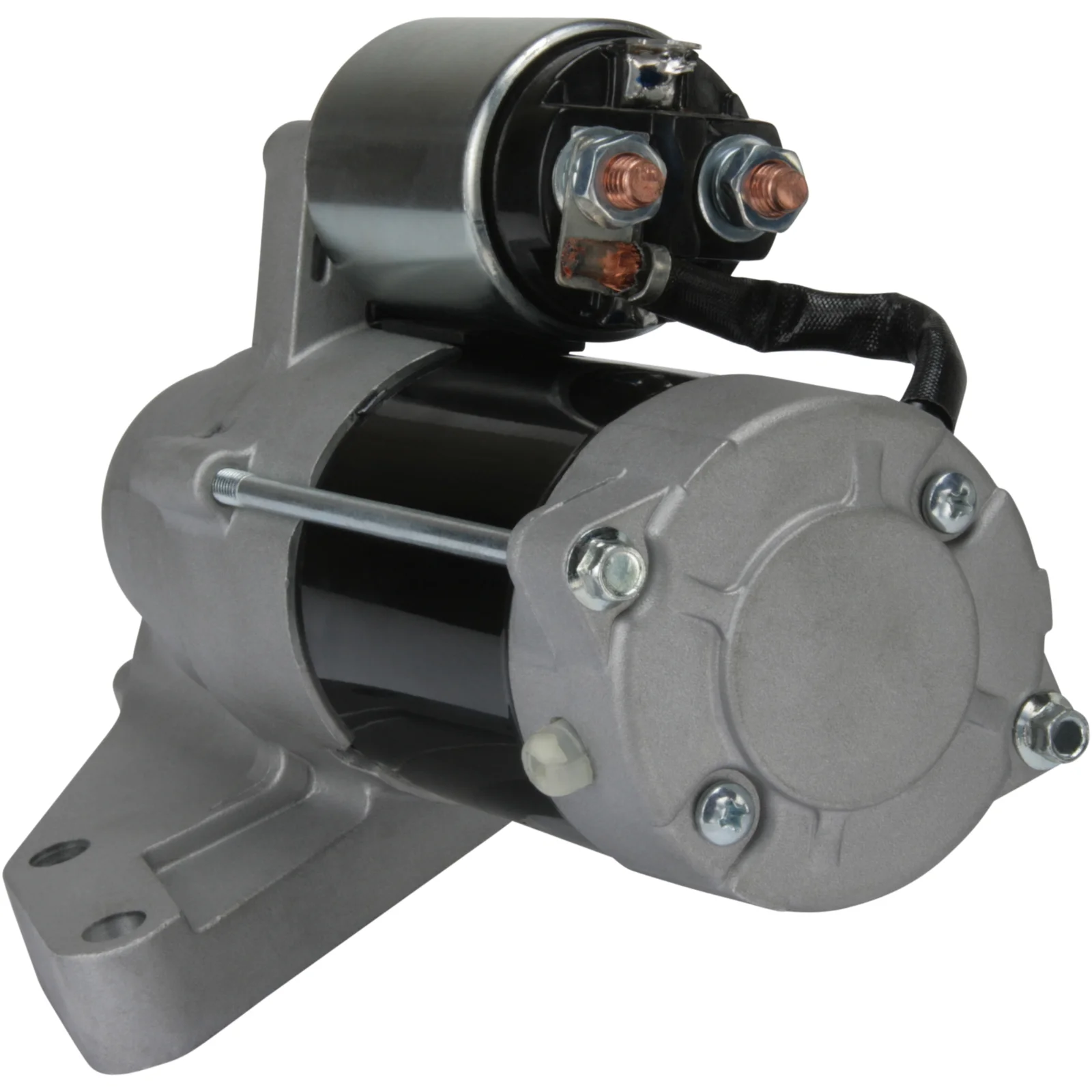

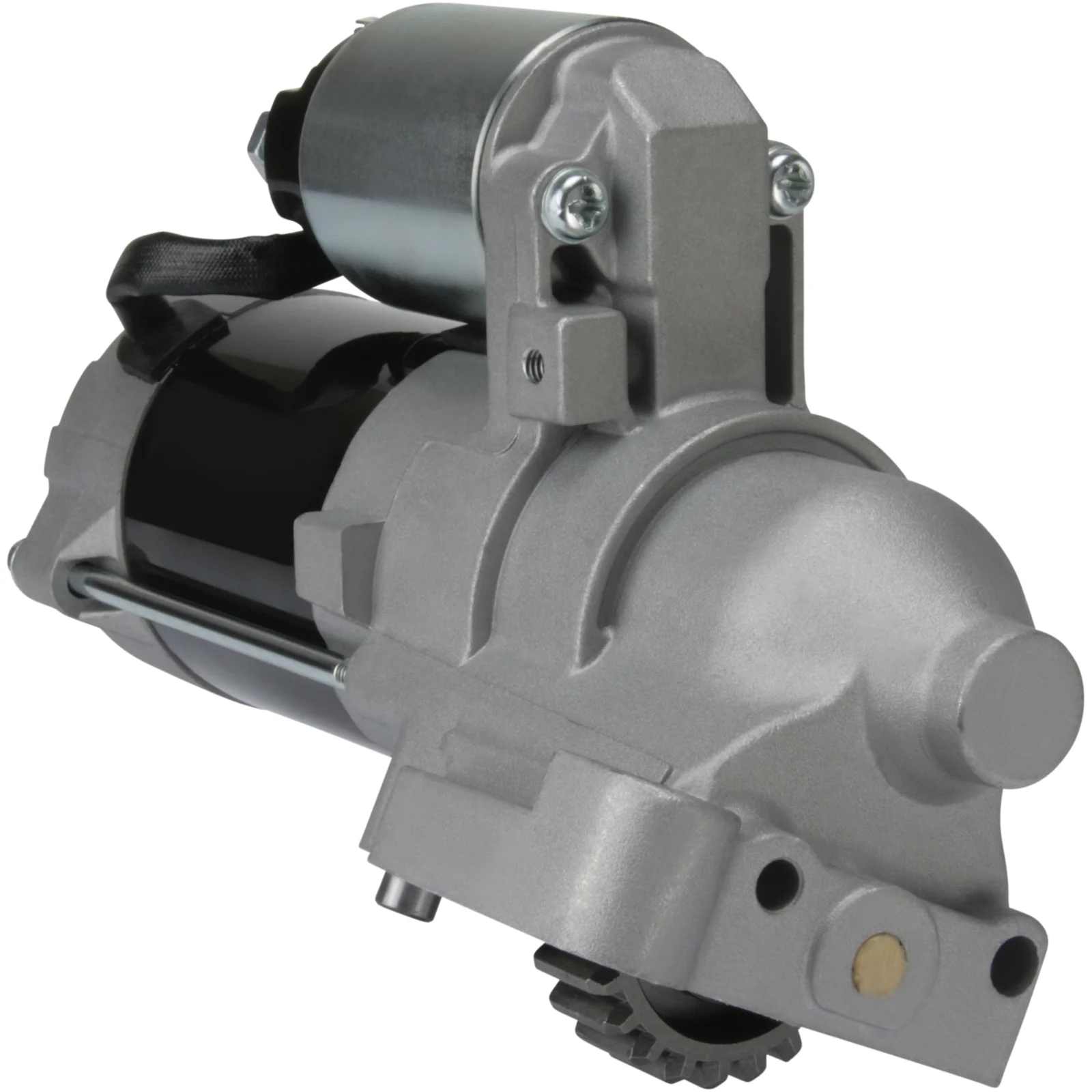

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114217

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 2,0, Antall./tenner: 22, Rotasjon: CCW

Beskrivelse

Spenning: 12
kW: 2.0
Drevavstand: 42.00
Festeboring 3 mm: 10.50
Festeboring 2 mm: 10.50
Festeboring 1 mm: 10.50
Avstand/bak: 155.00
Avstand/forside: 77.00
Antall./tenner: 22
B+: M8
Posisjon/50: 60
Terminal 50: 6.30
Gavl type: GR
Avstand 2: 165.50
Avstand 3: 43.00
Avstand mm: 133.00
Rotasjon: Mot klokka
Total lengde mm: 232.00
Prod. info: BN
Antall./festeboringer: 3 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 22
No./mount. holes 3 (0)
Position/50 60
Prod. info BN
Dist. 2 165.50
Dist. 3 43.00
Rotation CCW
Dist./back 155.00
Dist./front 77.00
Drive dist. 42.00
Gear type GR
kW 2.0
Terminal 50 6.30
Voltage 12
Total length 232.00 mm
Dist. 133.00 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    cs1460, F032114217, M001T93071, M001T93171ZC, M001T93371, M001T93371ZC, M001T93571, M1T93071, M1T93171, M1T93171ZC, M1T93371, M1T93371ZC, M1T93571, RGO 114217, 1810a062, 1810A143, 05033440AA, 05033440AC, 5033440AA, 5033440AC, 050033440AC

  • Konkurrentreferens
    CST35213, DRS0126, DRS0126N, lrs02253, S5143, 8EA011611-911, 8EA738259-211, 25-3424, 326.050.222, 9687, 33253N, 101460, 106852, 107050, 220788, 220788A, 458774, 8080353, 11040771, 0986024710

  • NormaliseratArtNr
    cs1460, cst35213, drs0126, drs0126n, f032114217, lrs02253, m001t93071, m001t93171zc, m001t93371, m001t93371zc, m001t93571, m1t93071, m1t93171, m1t93171zc, m1t93371, m1t93371zc, m1t93571, rgo114217, s5143, 8ea011611911, 8ea738259211, 1810a062, 1810a143, 9687, 33253n, 101460, 106852, 107050, 220788, 220788a, 253424, 458774, 05033440aa, 05033440ac, 5033440aa, 5033440ac, 8080353, 11040771, 050033440ac, 326050222, 0986024710

  • Passar modeller
    Dodge Model: Avenger Model series: Avenger Type of engine: CRD Size of motor: 2.0 Brand of engine: ECD From date: 01-06-2007 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Dodge Model: Caliber Model series: Caliber Type of engine: CRD Size of motor: 2.0 Brand of engine: ECD Body: Hatchback From date: 01-06-2006 To date: 01-11-2011 Fuel: Diesel Approved: Yes
    Dodge Model: Caliber Model series: Caliber Type of engine: CRD Size of motor: 2.0 Brand of engine: ECD Body: MPV From date: 01-06-2006 Fuel: Diesel Approved: Yes
    Dodge Model: Caliber Model series: Caliber Type of engine: CRD Size of motor: 2.0 Brand of engine: ECE Body: MPV From date: 01-06-2006 Fuel: Diesel Approved: Yes
    Dodge Model: Caliber Model series: Caliber Type of engine: Diesel Size of motor: 2.0 Brand of engine: ECD Body: Hatchback From date: 01-06-2006 To date: 01-11-2011 Fuel: Diesel Approved: Yes
    Dodge Model: Journey Model series: Journey Type of engine: CRD Size of motor: 2.0 Brand of engine: ECE Body: MPV From date: 01-06-2008 Fuel: Diesel Approved: Yes
    Dodge Model: Journey Model series: Journey Van Type of engine: CRD Size of motor: 2.0 Brand of engine: ECE Type description: JC Body: Van From date: 01-06-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Jeep Model: Compass Model series: Compass Model type: 4x4 Type of engine: CRD Size of motor: 2.0 Brand of engine: ECD Type description: MK49 Body: Closed Off-Road Vehicle From date: 01-02-2007 Fuel: Diesel Approved: Yes
    Jeep Model: Patriot Model series: Patriot Model type: 4x4 Type of engine: CRD Size of motor: 2.0 Brand of engine: ECD Type description: MK74 Body: Closed Off-Road Vehicle From date: 01-02-2007 To date: 01-12-2017 Fuel: Diesel Approved: Yes
    Jeep Model: Patriot Model series: Patriot Type of engine: TD Size of motor: 2.0 Brand of engine: ECD From date: 01-02-2007 To date: 01-12-2017 Fuel: Diesel Approved: Yes
    Jeep Model: Patriot Model series: Patriot Type of engine: TD Size of motor: 2.0 Brand of engine: ECE From date: 01-02-2007 To date: 01-12-2017 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Grandis Model series: Grandis Type of engine: Di-D Size of motor: 2.0 Brand of engine: BSY Type description: NA8W Body: MPV From date: 01-09-2005 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Grandis Model series: Grandis Type of engine: Di-D Size of motor: 2.0 Brand of engine: BWC Body: MPV From date: 01-02-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Lancer Model series: Lancer Type of engine: Di-D Size of motor: 2.0 Brand of engine: BKD Type description: CY/Z_A From date: 01-01-2008 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Lancer Model series: Lancer Type of engine: Di-D Size of motor: 2.0 Brand of engine: BKD Type description: CY8A Body: Hatchback From date: 01-06-2008 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Lancer Model series: Lancer Type of engine: Di-D Size of motor: 2.0 Brand of engine: BWC Type description: CY/Z_A From date: 01-01-2008 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Lancer Model series: Lancer Type of engine: Di-D Size of motor: 2.0 Brand of engine: BWC Type description: CY8A Body: Hatchback From date: 01-06-2008 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Type of engine: CRDi Size of motor: 2.0 Brand of engine: BSY Type description: CW_W Body: Box Body / Estate From date: 01-12-2006 To date: 01-06-2010 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Type of engine: Di-D Size of motor: 2.0 Brand of engine: BSY Type description: CW8W Body: SUV From date: 01-02-2007 To date: 01-11-2012 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spenning: 12
    kW: 2.0
    Drevavstand: 42.00
    Festeboring 3 mm: 10.50
    Festeboring 2 mm: 10.50
    Festeboring 1 mm: 10.50
    Avstand/bak: 155.00
    Avstand/forside: 77.00
    Antall./tenner: 22
    B+: M8
    Posisjon/50: 60
    Terminal 50: 6.30
    Gavl type: GR
    Avstand 2: 165.50
    Avstand 3: 43.00
    Avstand mm: 133.00
    Rotasjon: Mot klokka
    Total lengde mm: 232.00
    Prod. info: BN
    Antall./festeboringer: 3 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 22
    No./mount. holes 3 (0)
    Position/50 60
    Prod. info BN
    Dist. 2 165.50
    Dist. 3 43.00
    Rotation CCW
    Dist./back 155.00
    Dist./front 77.00
    Drive dist. 42.00
    Gear type GR
    kW 2.0
    Terminal 50 6.30
    Voltage 12
    Total length 232.00 mm
    Dist. 133.00 mm
    Mount. hole 3 10.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Kjøretøymatching

    • OEM
      cs1460, F032114217, M001T93071, M001T93171ZC, M001T93371, M001T93371ZC, M001T93571, M1T93071, M1T93171, M1T93171ZC, M1T93371, M1T93371ZC, M1T93571, RGO 114217, 1810a062, 1810A143, 05033440AA, 05033440AC, 5033440AA, 5033440AC, 050033440AC

    • Konkurrentreferens
      CST35213, DRS0126, DRS0126N, lrs02253, S5143, 8EA011611-911, 8EA738259-211, 25-3424, 326.050.222, 9687, 33253N, 101460, 106852, 107050, 220788, 220788A, 458774, 8080353, 11040771, 0986024710

    • NormaliseratArtNr
      cs1460, cst35213, drs0126, drs0126n, f032114217, lrs02253, m001t93071, m001t93171zc, m001t93371, m001t93371zc, m001t93571, m1t93071, m1t93171, m1t93171zc, m1t93371, m1t93371zc, m1t93571, rgo114217, s5143, 8ea011611911, 8ea738259211, 1810a062, 1810a143, 9687, 33253n, 101460, 106852, 107050, 220788, 220788a, 253424, 458774, 05033440aa, 05033440ac, 5033440aa, 5033440ac, 8080353, 11040771, 050033440ac, 326050222, 0986024710

    • Passar modeller
      Dodge Model: Avenger Model series: Avenger Type of engine: CRD Size of motor: 2.0 Brand of engine: ECD From date: 01-06-2007 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      Dodge Model: Caliber Model series: Caliber Type of engine: CRD Size of motor: 2.0 Brand of engine: ECD Body: Hatchback From date: 01-06-2006 To date: 01-11-2011 Fuel: Diesel Approved: Yes
      Dodge Model: Caliber Model series: Caliber Type of engine: CRD Size of motor: 2.0 Brand of engine: ECD Body: MPV From date: 01-06-2006 Fuel: Diesel Approved: Yes
      Dodge Model: Caliber Model series: Caliber Type of engine: CRD Size of motor: 2.0 Brand of engine: ECE Body: MPV From date: 01-06-2006 Fuel: Diesel Approved: Yes
      Dodge Model: Caliber Model series: Caliber Type of engine: Diesel Size of motor: 2.0 Brand of engine: ECD Body: Hatchback From date: 01-06-2006 To date: 01-11-2011 Fuel: Diesel Approved: Yes
      Dodge Model: Journey Model series: Journey Type of engine: CRD Size of motor: 2.0 Brand of engine: ECE Body: MPV From date: 01-06-2008 Fuel: Diesel Approved: Yes
      Dodge Model: Journey Model series: Journey Van Type of engine: CRD Size of motor: 2.0 Brand of engine: ECE Type description: JC Body: Van From date: 01-06-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      Jeep Model: Compass Model series: Compass Model type: 4x4 Type of engine: CRD Size of motor: 2.0 Brand of engine: ECD Type description: MK49 Body: Closed Off-Road Vehicle From date: 01-02-2007 Fuel: Diesel Approved: Yes
      Jeep Model: Patriot Model series: Patriot Model type: 4x4 Type of engine: CRD Size of motor: 2.0 Brand of engine: ECD Type description: MK74 Body: Closed Off-Road Vehicle From date: 01-02-2007 To date: 01-12-2017 Fuel: Diesel Approved: Yes
      Jeep Model: Patriot Model series: Patriot Type of engine: TD Size of motor: 2.0 Brand of engine: ECD From date: 01-02-2007 To date: 01-12-2017 Fuel: Diesel Approved: Yes
      Jeep Model: Patriot Model series: Patriot Type of engine: TD Size of motor: 2.0 Brand of engine: ECE From date: 01-02-2007 To date: 01-12-2017 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Grandis Model series: Grandis Type of engine: Di-D Size of motor: 2.0 Brand of engine: BSY Type description: NA8W Body: MPV From date: 01-09-2005 To date: 01-03-2010 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Grandis Model series: Grandis Type of engine: Di-D Size of motor: 2.0 Brand of engine: BWC Body: MPV From date: 01-02-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Lancer Model series: Lancer Type of engine: Di-D Size of motor: 2.0 Brand of engine: BKD Type description: CY/Z_A From date: 01-01-2008 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Lancer Model series: Lancer Type of engine: Di-D Size of motor: 2.0 Brand of engine: BKD Type description: CY8A Body: Hatchback From date: 01-06-2008 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Lancer Model series: Lancer Type of engine: Di-D Size of motor: 2.0 Brand of engine: BWC Type description: CY/Z_A From date: 01-01-2008 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Lancer Model series: Lancer Type of engine: Di-D Size of motor: 2.0 Brand of engine: BWC Type description: CY8A Body: Hatchback From date: 01-06-2008 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Type of engine: CRDi Size of motor: 2.0 Brand of engine: BSY Type description: CW_W Body: Box Body / Estate From date: 01-12-2006 To date: 01-06-2010 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Type of engine: Di-D Size of motor: 2.0 Brand of engine: BSY Type description: CW8W Body: SUV From date: 01-02-2007 To date: 01-11-2012 Fuel: Diesel Approved: Yes
      1 / 4
