- Startmotor
-

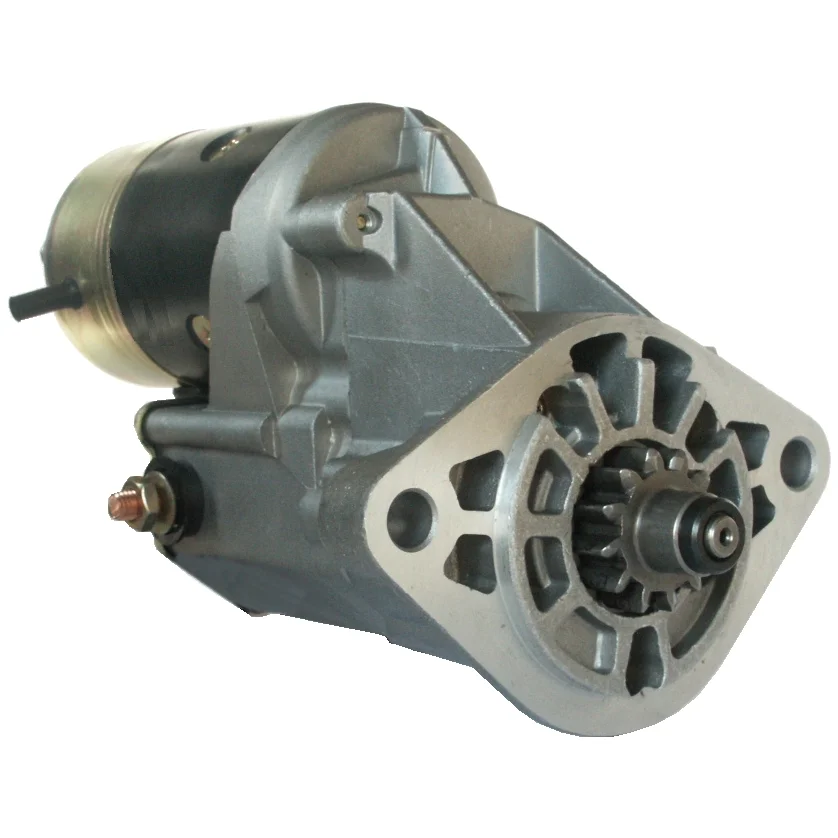

HC-Cargo Startmotor
- Startmotor
-
HC-Cargo Startmotor
Varenr.: F032113239
HC-Cargo Startmotor
Spenning: 12, kW: 2.5, Antall/tenner: 12, Rotasjon: Medur, klokke
Beskrivelse
Gladningsspenning: 12
kW: 2,5
Festebransje: 91,00
Driveavstand: 15,50
Festeboring 2 mm: 13,50
Festeboring 1 mm: 13,50
Avstand/bak: 258,00
Avstand/frem: 36,00
Nr./tenner: 12
B+: M10
Posisjon/50: 25
Terminal 50: M5
Gadgetyp: GR
Avstand mm: 142,50
Rotasjon: med urviseren
Total lengde mm: 299,00
Driveart: Stål
Prod. info: BN
Vanntett: Nei
Oljelukket: Nei
Nr./festeboringer: 2 (0)
kW: 2,5
Festebransje: 91,00
Driveavstand: 15,50
Festeboring 2 mm: 13,50
Festeboring 1 mm: 13,50
Avstand/bak: 258,00
Avstand/frem: 36,00
Nr./tenner: 12
B+: M10
Posisjon/50: 25
Terminal 50: M5
Gadgetyp: GR
Avstand mm: 142,50
Rotasjon: med urviseren
Total lengde mm: 299,00
Driveart: Stål
Prod. info: BN
Vanntett: Nei
Oljelukket: Nei
Nr./festeboringer: 2 (0)
Filer
Spesifikasjon
| B+ | M10 |
|---|---|
| No./teeth | 12 |
| Mount. flange | 91.00 |
| Oil sealed | No |
| No./mount. holes | 2 (0) |
| Position/50 | 25 |
| Prod. info | BN |
| Rotation | CW |
| Dist./back | 258.00 |
| Dist./front | 36.00 |
| Drive dist. | 15.50 |
| Drive type | Steel |
| Gear type | GR |
| kW | 2.5 |
| Terminal 50 | M5 |
| Voltage | 12 |
| Total length | 299.00 mm |
| Waterproof | No |
| Dist. | 142.50 mm |
| Mount. hole 2 | 13.50 mm |
| Mount. hole 1 | 13.50 mm |
-
OEM
F032113239, 1986S00975, 1986S01396, 28100-17010, 28100-17040, 28100-17060, 28100-17090, 28100-17091, 128000-8640, 128000-8641, 228000-1610, 228000-1611, 228000-5990, 228000-5992, 428000-0520, 428000-0521 -
Konkurrentreferens
CST40208, CST40226, F042000079, F042S00079, GA24610, J5212119, s-8568, S6390S, S6404S, snd0120, STR-6081, STR6081, 2-2239-ND, 25-1408, 91-29-5316, 335.029.122, 335.039.122, 335.057.122, 18197, 18197N, 30254R, 254253, 8213839, 11040252 -
NormaliseratArtNr
cst40208, cst40226, f032113239, f042000079, f042s00079, ga24610, j5212119, s6390s, s6404s, s8568, snd0120, str6081, 1986s00975, 1986s01396, 18197, 18197n, 22239nd, 30254r, 251408, 254253, 8213839, 11040252, 91295316, 335029122, 335039122, 335057122, 1280008640, 1280008641, 2280001610, 2280001611, 2280005990, 2280005992, 2810017010, 2810017040, 2810017060, 2810017090, 2810017091, 4280000520, 4280000521 -
Passar modeller
Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 100 Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-FTE Type description: J10 From date: 01-01-1998 To date: 01-08-2007 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 4WD Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-TE From date: 01-04-1996 To date: 01-12-2002 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 4x4 Type of engine: Diesel Size of motor: 4.0 Brand of engine: 2H Type description: _J7_ From date: 01-11-1984 To date: 01-01-1990 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 4x4 Type of engine: TD Size of motor: 2.8 Brand of engine: 3L Type description: _J7_ From date: 01-04-1990 To date: 01-03-1996 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 4x4 Type of engine: TD Size of motor: 4.0 Type description: _J7_ From date: 01-01-1997 To date: 01-08-2001 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 80 4x4 Size of motor: 2.4 Brand of engine: 22R Type description: _J8_ From date: 01-01-1990 To date: 01-05-1993 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 80 FRT-Top 4WD Size of motor: 3.5 Brand of engine: 1PZ Type description: _J8_ From date: 01-01-1990 To date: 01-08-1992 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 90 4WD Type of engine: TD Size of motor: 4.2 Type description: _J9_ From date: 01-08-1999 To date: 01-08-2001 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 90 Size of motor: 2.7 Type description: _J9_ From date: 01-06-1995 To date: 01-08-2002 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 90 Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-TE Type description: _J9_ From date: 01-04-1995 To date: 01-07-2000 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: FRT-Top 4WD Size of motor: 3.5 Brand of engine: 1PZ Type description: _J7_ From date: 01-01-1990 To date: 01-12-1994 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: GX 90 Custom 4WD Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-T Type description: _J8_ From date: 01-01-1990 To date: 01-09-1991 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 2.4 Brand of engine: 22R Type description: RJ70,73 From date: 01-11-1984 To date: 01-05-1993 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 2.4 Brand of engine: 22RE From date: 01-12-1988 To date: 01-12-1996 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 2.4 Type description: HJ60 From date: 01-01-1987 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 2.7 Brand of engine: 2TR-FE Type description: J12 From date: 01-11-2003 To date: 01-02-2010 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.4 Brand of engine: 3B From date: 01-01-1982 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.4 Brand of engine: 3B From date: 01-01-1983 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.4 Brand of engine: 3B Type description: BJ60LG-MK From date: 01-01-1984 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.4 Brand of engine: 3B Type description: BJ60LG-MK From date: 01-01-1985 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.4 Brand of engine: 3B Type description: BJ60LV-KK From date: 01-01-1981 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.4 Type description: J12 From date: 01-09-2002 To date: 01-08-2004 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.9 Brand of engine: F Body: Pick Up From date: 01-03-1969 To date: 01-01-1975 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.9 Brand of engine: F From date: 01-01-1973 To date: 01-01-1973 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.9 Brand of engine: F From date: 01-01-1974 To date: 01-01-1974 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.9 Brand of engine: F Type description: FJ40, FJ43, FJ45, FJ From date: 01-03-1969 To date: 01-01-1975 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.9 Brand of engine: FJ From date: 01-01-1969 To date: 01-01-1972 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.9 From date: 01-01-1965 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.9 From date: 01-01-1966 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.9 From date: 01-01-1967 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.9 From date: 01-01-1968 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.0 Brand of engine: 1GR-FE From date: 01-12-2002 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.0 Brand of engine: 3F Type description: FJ62_V From date: 01-11-1984 To date: 01-08-1987 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.0 Brand of engine: 3F-E From date: 01-01-1988 To date: 01-01-1992 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.0 Brand of engine: 3F-E From date: 01-01-1990 To date: 01-10-1992 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.0 Brand of engine: 3F-E From date: 01-08-1987 To date: 01-12-1992 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.0 Type description: J12 From date: 01-09-2002 To date: 01-08-2010 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Brand of engine: 2F Body: Pick Up From date: 01-01-1975 To date: 01-04-1986 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Brand of engine: 2F From date: 01-01-1975 To date: 01-01-1977 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Brand of engine: 2F From date: 01-01-1978 To date: 01-01-1978 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Brand of engine: 2F From date: 01-01-1979 To date: 01-01-1987 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Brand of engine: 2F Type description: FJ40_V, FJ43_ FJ45_V From date: 01-01-1975 To date: 01-04-1986 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Brand of engine: 2F Type description: FJ60 From date: 01-10-1981 To date: 01-01-1988 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ42 From date: 01-01-1981 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ42 From date: 01-01-1983 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ42 From date: 01-01-1984 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ60 From date: 01-01-1981 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ60 From date: 01-01-1982 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ60 From date: 01-01-1983 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ60 From date: 01-01-1984 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ60 From date: 01-01-1985 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ70 From date: 01-01-1985 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ70 From date: 01-01-1986 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ70 From date: 01-01-1987 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: HJ60 From date: 01-01-1986 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.5 Brand of engine: 1FZ-FE From date: 01-01-1993 To date: 01-01-1995 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.5 Brand of engine: 1FZ-FE From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.7 Brand of engine: 2UZ-FE From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.7 Brand of engine: 2UZ-FE From date: 01-01-1999 To date: 01-01-2001 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.7 Brand of engine: 2UZ-FE From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.7 Brand of engine: 2UZ-FE From date: 01-01-2003 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.7 Brand of engine: 2UZ-FE From date: 01-01-2004 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.7 Brand of engine: 2UZ-FE From date: 01-01-2005 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.7 Brand of engine: 2UZ-FE From date: 01-01-2006 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.7 Brand of engine: 2UZ-FE From date: 01-01-2007 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.7 Brand of engine: 2UZ-FE From date: 01-02-2002 To date: 01-08-2007 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 5.7 Brand of engine: 3UR-FE From date: 01-01-2008 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: 24V Size of motor: 4.5 Brand of engine: 1FZ-FE Type description: FZJ80 From date: 01-08-1992 To date: 01-12-1997 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: D-4D Size of motor: 3.0 Brand of engine: 1KD-FTV From date: 01-09-2002 To date: 01-08-2009 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: D-4D Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: J12 From date: 01-07-2004 To date: 01-08-2009 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: D-4D Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: J12 From date: 01-09-2002 To date: 01-12-2010 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: D-4D Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: _J9_ From date: 01-08-2000 To date: 01-08-2002 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: LJ70 From date: 01-11-1984 To date: 01-10-1985 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 2.6 Brand of engine: H Type description: HJ45_P Body: Pick Up From date: 01-01-1975 To date: 01-07-1980 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.4 Brand of engine: 3B Type description: BJ42_V, BJ45_V, BJ46 From date: 01-08-1980 To date: 01-10-1984 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.4 Brand of engine: 3B Type description: BJ45_P Body: Pick Up From date: 01-08-1980 To date: 01-10-1984 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.4 Brand of engine: 3B Type description: BJ60_V From date: 01-10-1981 To date: 01-08-1987 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.4 Brand of engine: 3B Type description: BJ70LV-MRW From date: 01-11-1984 To date: 01-12-1996 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.6 Brand of engine: H Type description: HJ45_V From date: 01-04-1979 To date: 01-07-1980 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.0 Brand of engine: 2H From date: 01-10-1982 To date: 01-12-1989 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.0 Brand of engine: 2H Type description: HJ47_P Body: Pick Up From date: 01-08-1980 To date: 01-10-1984 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.0 Brand of engine: 2H Type description: HJ47_V From date: 01-08-1980 To date: 01-10-1984 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.0 Brand of engine: 2H Type description: HJ60 From date: 01-01-1982 To date: 01-12-1985 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.0 Brand of engine: 2H Type description: HJ60 From date: 01-10-1981 To date: 01-01-1988 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.2 Brand of engine: 1H-Z Type description: HZJ80_ From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Type description: LJ70 From date: 01-01-1990 To date: 01-05-1993 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Type description: LJ70,73 From date: 01-10-1985 To date: 01-05-1990 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Type description: LJ77 Body: Convertible From date: 01-07-1990 To date: 01-05-1996 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-T Body: Convertible From date: 01-05-1993 To date: 01-05-1996 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 3.4 Brand of engine: 13BT Type description: BJ71_V From date: 01-10-1985 To date: 01-08-1986 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.0 Brand of engine: 12HT Type description: HJ61 From date: 01-10-1985 To date: 01-12-1989 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1H-Z Type description: HZJ7_V From date: 01-01-1990 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-FT Type description: HDJ80 From date: 01-01-1995 To date: 01-12-1997 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-10-1992 To date: 01-12-1997 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: V8 32V Size of motor: 4.7 Brand of engine: 2UZ-FE From date: 01-01-1998 To date: 01-08-2007 Fuel: Gasoline Approved: Yes Toyota Model: P Series Model series: PZJ75 Body: Pick Up Approved: Yes 1 / 20
-
Beskrivelse
Gladningsspenning: 12
kW: 2,5
Festebransje: 91,00
Driveavstand: 15,50
Festeboring 2 mm: 13,50
Festeboring 1 mm: 13,50
Avstand/bak: 258,00
Avstand/frem: 36,00
Nr./tenner: 12
B+: M10
Posisjon/50: 25
Terminal 50: M5
Gadgetyp: GR
Avstand mm: 142,50
Rotasjon: med urviseren
Total lengde mm: 299,00
Driveart: Stål
Prod. info: BN
Vanntett: Nei
Oljelukket: Nei
Nr./festeboringer: 2 (0)Filer
-
Spesifikasjon
B+ M10 No./teeth 12 Mount. flange 91.00 Oil sealed No No./mount. holes 2 (0) Position/50 25 Prod. info BN Rotation CW Dist./back 258.00 Dist./front 36.00 Drive dist. 15.50 Drive type Steel Gear type GR kW 2.5 Terminal 50 M5 Voltage 12 Total length 299.00 mm Waterproof No Dist. 142.50 mm Mount. hole 2 13.50 mm Mount. hole 1 13.50 mm -
Kjøretøymatching
-
OEM
F032113239, 1986S00975, 1986S01396, 28100-17010, 28100-17040, 28100-17060, 28100-17090, 28100-17091, 128000-8640, 128000-8641, 228000-1610, 228000-1611, 228000-5990, 228000-5992, 428000-0520, 428000-0521 -
Konkurrentreferens
CST40208, CST40226, F042000079, F042S00079, GA24610, J5212119, s-8568, S6390S, S6404S, snd0120, STR-6081, STR6081, 2-2239-ND, 25-1408, 91-29-5316, 335.029.122, 335.039.122, 335.057.122, 18197, 18197N, 30254R, 254253, 8213839, 11040252 -
NormaliseratArtNr
cst40208, cst40226, f032113239, f042000079, f042s00079, ga24610, j5212119, s6390s, s6404s, s8568, snd0120, str6081, 1986s00975, 1986s01396, 18197, 18197n, 22239nd, 30254r, 251408, 254253, 8213839, 11040252, 91295316, 335029122, 335039122, 335057122, 1280008640, 1280008641, 2280001610, 2280001611, 2280005990, 2280005992, 2810017010, 2810017040, 2810017060, 2810017090, 2810017091, 4280000520, 4280000521 -
Passar modeller
Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 100 Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-FTE Type description: J10 From date: 01-01-1998 To date: 01-08-2007 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 4WD Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-TE From date: 01-04-1996 To date: 01-12-2002 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 4x4 Type of engine: Diesel Size of motor: 4.0 Brand of engine: 2H Type description: _J7_ From date: 01-11-1984 To date: 01-01-1990 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 4x4 Type of engine: TD Size of motor: 2.8 Brand of engine: 3L Type description: _J7_ From date: 01-04-1990 To date: 01-03-1996 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 4x4 Type of engine: TD Size of motor: 4.0 Type description: _J7_ From date: 01-01-1997 To date: 01-08-2001 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 80 4x4 Size of motor: 2.4 Brand of engine: 22R Type description: _J8_ From date: 01-01-1990 To date: 01-05-1993 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 80 FRT-Top 4WD Size of motor: 3.5 Brand of engine: 1PZ Type description: _J8_ From date: 01-01-1990 To date: 01-08-1992 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 90 4WD Type of engine: TD Size of motor: 4.2 Type description: _J9_ From date: 01-08-1999 To date: 01-08-2001 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 90 Size of motor: 2.7 Type description: _J9_ From date: 01-06-1995 To date: 01-08-2002 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 90 Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-TE Type description: _J9_ From date: 01-04-1995 To date: 01-07-2000 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: FRT-Top 4WD Size of motor: 3.5 Brand of engine: 1PZ Type description: _J7_ From date: 01-01-1990 To date: 01-12-1994 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Model type: GX 90 Custom 4WD Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-T Type description: _J8_ From date: 01-01-1990 To date: 01-09-1991 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 2.4 Brand of engine: 22R Type description: RJ70,73 From date: 01-11-1984 To date: 01-05-1993 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 2.4 Brand of engine: 22RE From date: 01-12-1988 To date: 01-12-1996 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 2.4 Type description: HJ60 From date: 01-01-1987 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 2.7 Brand of engine: 2TR-FE Type description: J12 From date: 01-11-2003 To date: 01-02-2010 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.4 Brand of engine: 3B From date: 01-01-1982 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.4 Brand of engine: 3B From date: 01-01-1983 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.4 Brand of engine: 3B Type description: BJ60LG-MK From date: 01-01-1984 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.4 Brand of engine: 3B Type description: BJ60LG-MK From date: 01-01-1985 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.4 Brand of engine: 3B Type description: BJ60LV-KK From date: 01-01-1981 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.4 Type description: J12 From date: 01-09-2002 To date: 01-08-2004 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.9 Brand of engine: F Body: Pick Up From date: 01-03-1969 To date: 01-01-1975 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.9 Brand of engine: F From date: 01-01-1973 To date: 01-01-1973 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.9 Brand of engine: F From date: 01-01-1974 To date: 01-01-1974 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.9 Brand of engine: F Type description: FJ40, FJ43, FJ45, FJ From date: 01-03-1969 To date: 01-01-1975 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.9 Brand of engine: FJ From date: 01-01-1969 To date: 01-01-1972 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.9 From date: 01-01-1965 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.9 From date: 01-01-1966 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.9 From date: 01-01-1967 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 3.9 From date: 01-01-1968 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.0 Brand of engine: 1GR-FE From date: 01-12-2002 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.0 Brand of engine: 3F Type description: FJ62_V From date: 01-11-1984 To date: 01-08-1987 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.0 Brand of engine: 3F-E From date: 01-01-1988 To date: 01-01-1992 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.0 Brand of engine: 3F-E From date: 01-01-1990 To date: 01-10-1992 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.0 Brand of engine: 3F-E From date: 01-08-1987 To date: 01-12-1992 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.0 Type description: J12 From date: 01-09-2002 To date: 01-08-2010 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Brand of engine: 2F Body: Pick Up From date: 01-01-1975 To date: 01-04-1986 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Brand of engine: 2F From date: 01-01-1975 To date: 01-01-1977 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Brand of engine: 2F From date: 01-01-1978 To date: 01-01-1978 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Brand of engine: 2F From date: 01-01-1979 To date: 01-01-1987 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Brand of engine: 2F Type description: FJ40_V, FJ43_ FJ45_V From date: 01-01-1975 To date: 01-04-1986 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Brand of engine: 2F Type description: FJ60 From date: 01-10-1981 To date: 01-01-1988 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ42 From date: 01-01-1981 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ42 From date: 01-01-1983 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ42 From date: 01-01-1984 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ60 From date: 01-01-1981 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ60 From date: 01-01-1982 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ60 From date: 01-01-1983 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ60 From date: 01-01-1984 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ60 From date: 01-01-1985 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ70 From date: 01-01-1985 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ70 From date: 01-01-1986 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: BJ70 From date: 01-01-1987 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Type description: HJ60 From date: 01-01-1986 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.5 Brand of engine: 1FZ-FE From date: 01-01-1993 To date: 01-01-1995 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.5 Brand of engine: 1FZ-FE From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.7 Brand of engine: 2UZ-FE From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.7 Brand of engine: 2UZ-FE From date: 01-01-1999 To date: 01-01-2001 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.7 Brand of engine: 2UZ-FE From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.7 Brand of engine: 2UZ-FE From date: 01-01-2003 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.7 Brand of engine: 2UZ-FE From date: 01-01-2004 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.7 Brand of engine: 2UZ-FE From date: 01-01-2005 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.7 Brand of engine: 2UZ-FE From date: 01-01-2006 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.7 Brand of engine: 2UZ-FE From date: 01-01-2007 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.7 Brand of engine: 2UZ-FE From date: 01-02-2002 To date: 01-08-2007 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 5.7 Brand of engine: 3UR-FE From date: 01-01-2008 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: 24V Size of motor: 4.5 Brand of engine: 1FZ-FE Type description: FZJ80 From date: 01-08-1992 To date: 01-12-1997 Fuel: Gasoline Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: D-4D Size of motor: 3.0 Brand of engine: 1KD-FTV From date: 01-09-2002 To date: 01-08-2009 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: D-4D Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: J12 From date: 01-07-2004 To date: 01-08-2009 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: D-4D Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: J12 From date: 01-09-2002 To date: 01-12-2010 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: D-4D Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: _J9_ From date: 01-08-2000 To date: 01-08-2002 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: LJ70 From date: 01-11-1984 To date: 01-10-1985 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 2.6 Brand of engine: H Type description: HJ45_P Body: Pick Up From date: 01-01-1975 To date: 01-07-1980 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.4 Brand of engine: 3B Type description: BJ42_V, BJ45_V, BJ46 From date: 01-08-1980 To date: 01-10-1984 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.4 Brand of engine: 3B Type description: BJ45_P Body: Pick Up From date: 01-08-1980 To date: 01-10-1984 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.4 Brand of engine: 3B Type description: BJ60_V From date: 01-10-1981 To date: 01-08-1987 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.4 Brand of engine: 3B Type description: BJ70LV-MRW From date: 01-11-1984 To date: 01-12-1996 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.6 Brand of engine: H Type description: HJ45_V From date: 01-04-1979 To date: 01-07-1980 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.0 Brand of engine: 2H From date: 01-10-1982 To date: 01-12-1989 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.0 Brand of engine: 2H Type description: HJ47_P Body: Pick Up From date: 01-08-1980 To date: 01-10-1984 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.0 Brand of engine: 2H Type description: HJ47_V From date: 01-08-1980 To date: 01-10-1984 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.0 Brand of engine: 2H Type description: HJ60 From date: 01-01-1982 To date: 01-12-1985 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.0 Brand of engine: 2H Type description: HJ60 From date: 01-10-1981 To date: 01-01-1988 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.2 Brand of engine: 1H-Z Type description: HZJ80_ From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Type description: LJ70 From date: 01-01-1990 To date: 01-05-1993 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Type description: LJ70,73 From date: 01-10-1985 To date: 01-05-1990 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Type description: LJ77 Body: Convertible From date: 01-07-1990 To date: 01-05-1996 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-T Body: Convertible From date: 01-05-1993 To date: 01-05-1996 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 3.4 Brand of engine: 13BT Type description: BJ71_V From date: 01-10-1985 To date: 01-08-1986 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.0 Brand of engine: 12HT Type description: HJ61 From date: 01-10-1985 To date: 01-12-1989 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1H-Z Type description: HZJ7_V From date: 01-01-1990 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-FT Type description: HDJ80 From date: 01-01-1995 To date: 01-12-1997 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-10-1992 To date: 01-12-1997 Fuel: Diesel Approved: Yes Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: V8 32V Size of motor: 4.7 Brand of engine: 2UZ-FE From date: 01-01-1998 To date: 01-08-2007 Fuel: Gasoline Approved: Yes Toyota Model: P Series Model series: PZJ75 Body: Pick Up Approved: Yes 1 / 20
-
