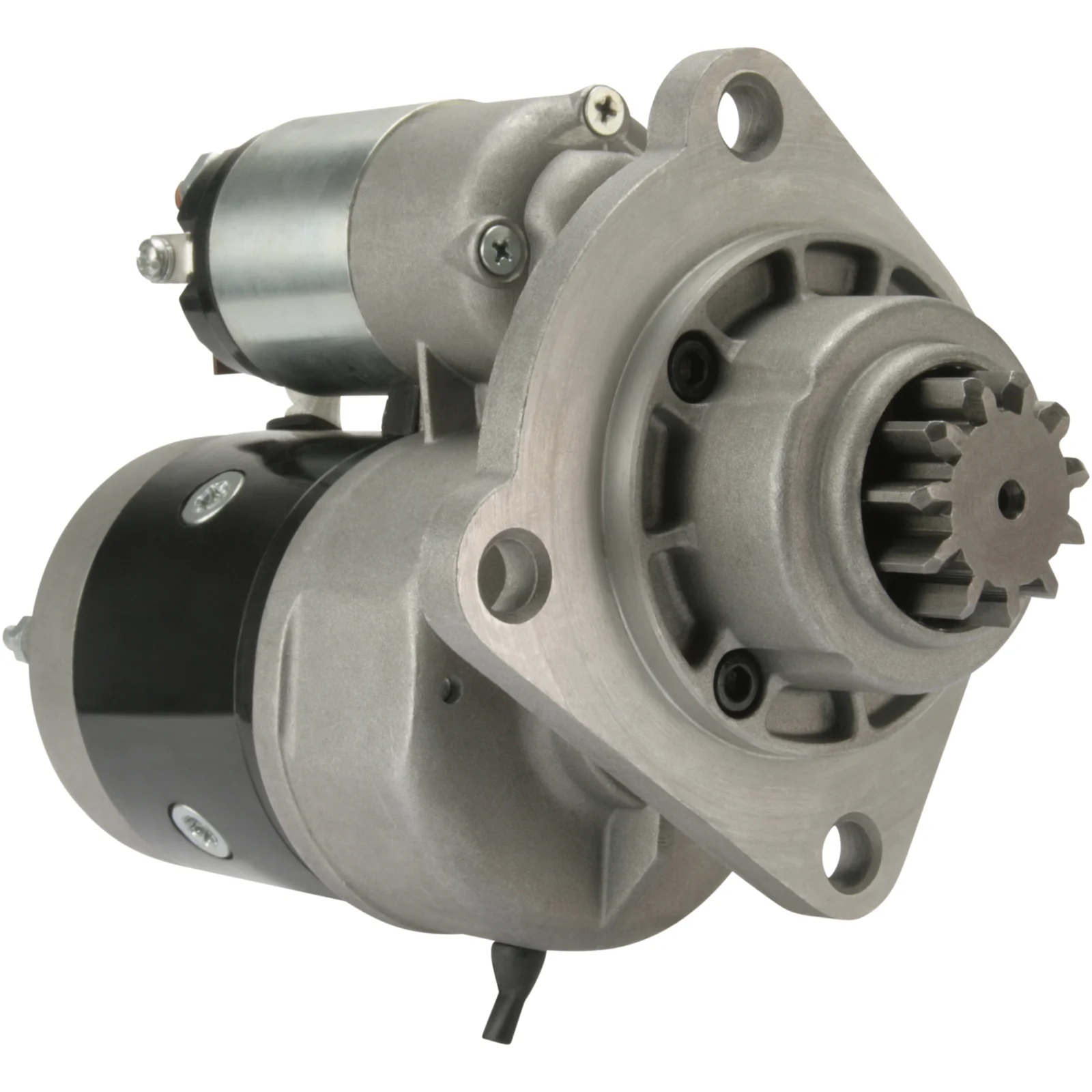

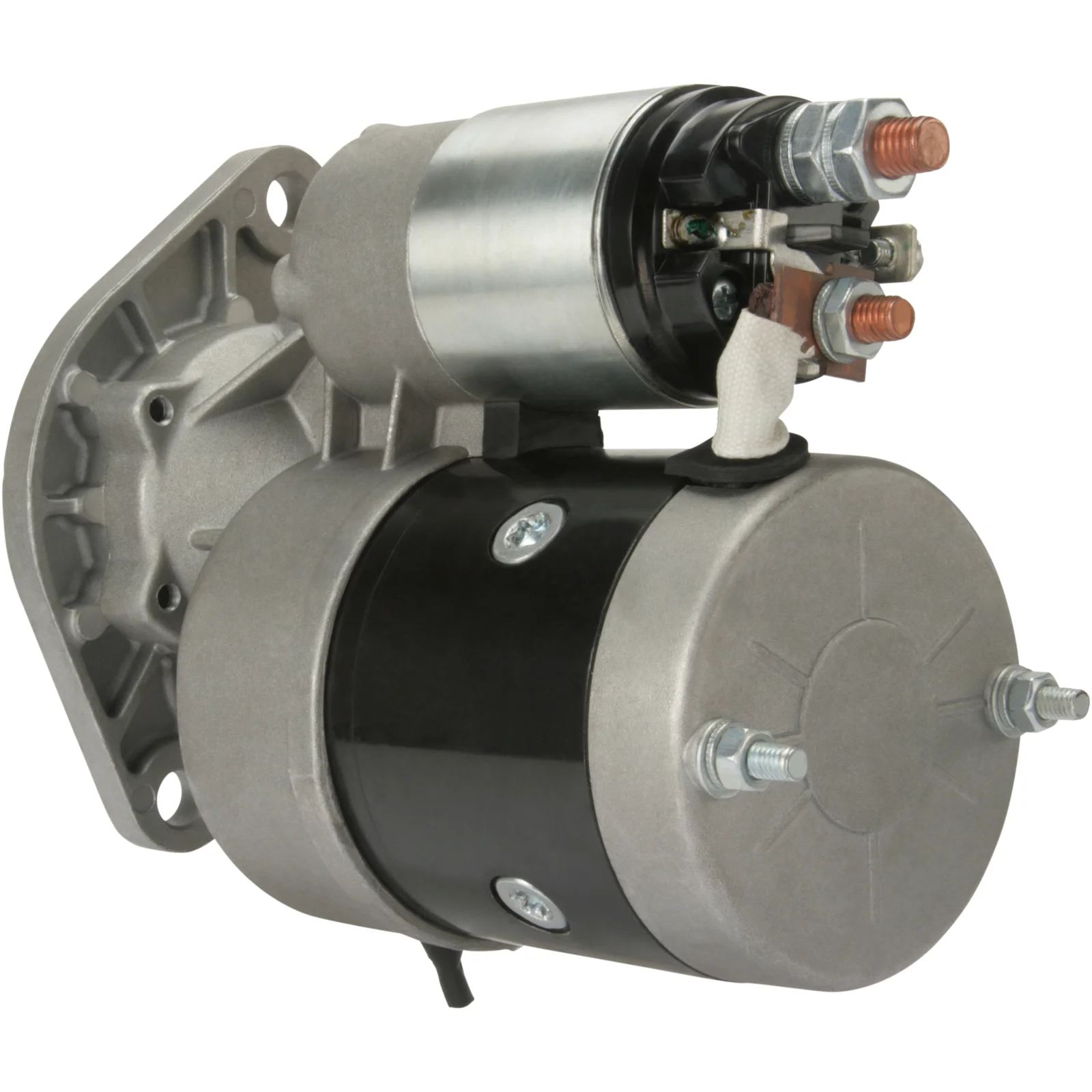

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114254

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 2.7, No./tenner: 10, Rotasjon: medsols

Beskrivelse

Spenning: 12
kW: 2.7
Monteringsflens: 89.00
Drivestrekning: 49.50
Monteringshull 3 mm: 11.30
Monteringshull 2 mm: 11.00
Monteringshull 1 mm: 11.00
Strekk / bak: 190.00
Strekk / foran: 49.50
Nr./tenner: 10
B+: 9.70
Posisjon/50: 45
Terminal 50: Plugg
Girtype: GR
Strekk 2: 90.00
Strekk 3: 127.00
Strekk mm: 90.00
Rotasjon: H.C. (medurs)
Total lengde mm: 237.00
Nr./monteringshull: 3 (0)

Filer

Spesifikasjon

B+ 9.70
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 45
Dist. 2 90.00
Dist. 3 127.00
Rotation CW
Dist./back 190.00
Dist./front 49.50
Drive dist. 49.50
Gear type GR
kW 2.7
Terminal 50 Plug
Voltage 12
Total length 237.00 mm
Dist. 90.00 mm
Mount. hole 3 11.30 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZF4909, azj3247, azj3405, D45070088, F032114254, VPF7197, 11.130.710, 11.130.897, 11.131.249, 11.139.198, 9142722, 45070088, 836640940, 836640949, 836662073, 142000090700

  • Konkurrentreferens
    IS0897, IS9496, MS1001, MS91, S9222(LETRIKA), 800.004.103

  • NormaliseratArtNr
    azf4909, azj3247, azj3405, d45070088, f032114254, is0897, is9496, ms1001, ms91, s9222letrika, vpf7197, 9142722, 11130710, 11130897, 11131249, 11139198, 45070088, 800004103, 836640940, 836640949, 836662073, 142000090700

  • Passar modeller
    Balkancar Model: Various Models Model series: Various Models Approved: Yes
    Chang Feng (Liebao) Model: 3300 Series Model series: 3320 From date: 01-01-1992 Approved: Yes
    Dronningborg Model: Various Models Model series: Various Models Approved: Yes
    Sampo-Rosenlew Model: Various Models Model series: Various Models Approved: Yes
    Ursus Model: C Model series: C360 Approved: Yes
    Ursus Model: C Model series: C385 Approved: Yes
    Valtra Model: 500 Series Model series: 505 Size of motor: 3.3 From date: 01-08-1982 Fuel: Diesel Approved: Yes
    Valtra Model: 600 Series Model series: 605 Size of motor: 3.3 From date: 01-08-1982 Fuel: Diesel Approved: Yes
    Valtra Model: 700 Series Model series: 705 Size of motor: 4.4 From date: 01-08-1982 Fuel: Diesel Approved: Yes
    Valtra Model: 800 Series Model series: 805 Size of motor: 4.4 From date: 01-08-1982 Fuel: Diesel Approved: Yes
    Valtra Model: 8000 Series Model series: 8050 Brand of engine: 620DS From date: 01-01-1996 Fuel: Diesel Approved: Yes
    Valtra Model: 8000 Series Model series: 8150 Brand of engine: 620DS From date: 01-01-1996 Fuel: Diesel Approved: Yes
    Valtra Model: 8000 Series Model series: 8450 Brand of engine: 620DW From date: 01-01-1996 Fuel: Diesel Approved: Yes
    Valtra Model: 8000 Series Model series: 8550 Brand of engine: 634DS From date: 01-01-1998 Fuel: Diesel Approved: Yes
    Valtra Model: 8000 Series Model series: 8750 Brand of engine: 634DA From date: 01-01-1996 Fuel: Diesel Approved: Yes
    Valtra Model: 8000 Series Model series: 8750 Brand of engine: 634DS From date: 01-01-1996 Fuel: Diesel Approved: Yes
    Valtra Model: 8000 Series Model series: 8950 Brand of engine: 634DS From date: 01-01-1998 Fuel: Diesel Approved: Yes
    Zetor Model: 3000 Series Model series: 3321 From date: 01-01-1997 Approved: Yes
    Zetor Model: 3000 Series Model series: 3340 From date: 01-01-1992 Approved: Yes
    Zetor Model: 3000 Series Model series: 3341 From date: 01-01-1997 Approved: Yes
    Zetor Model: 4000 Series Model series: 4320 From date: 01-01-1992 Approved: Yes
    Zetor Model: 4000 Series Model series: 4321 From date: 01-01-1997 Approved: Yes
    Zetor Model: 4000 Series Model series: 4340 From date: 01-01-1992 Approved: Yes
    Zetor Model: 4000 Series Model series: 4341 From date: 01-01-1997 Approved: Yes
    Zetor Model: 4000 Series Model series: 4718 From date: 01-01-1974 To date: 01-01-1981 Approved: Yes
    Zetor Model: 5000 Series Model series: 5011 From date: 01-01-1981 To date: 01-01-1985 Approved: Yes
    Zetor Model: 5000 Series Model series: 5320 From date: 01-01-1992 Approved: Yes
    Zetor Model: 5000 Series Model series: 5321 From date: 01-01-1997 Approved: Yes
    Zetor Model: 5000 Series Model series: 5340 From date: 01-01-1992 Approved: Yes
    Zetor Model: 5000 Series Model series: 5341 From date: 01-01-1997 Approved: Yes
    Zetor Model: 6000 Series Model series: 6320 From date: 01-01-1992 Approved: Yes
    Zetor Model: 6000 Series Model series: 6321 From date: 01-01-1997 Approved: Yes
    Zetor Model: 6000 Series Model series: 6340 From date: 01-01-1992 Approved: Yes
    Zetor Model: 6000 Series Model series: 6341 From date: 01-01-1997 Approved: Yes
    Zetor Model: 7000 Series Model series: 7245 Size of motor: 3.6 From date: 01-01-1984 To date: 01-01-2003 Approved: Yes
    Zetor Model: 7000 Series Model series: 7320 From date: 01-01-1992 Fuel: Diesel Approved: Yes
    Zetor Model: 7000 Series Model series: 7321 From date: 01-01-1992 Fuel: Diesel Approved: Yes
    Zetor Model: 7000 Series Model series: 7340 From date: 01-01-1992 Fuel: Diesel Approved: Yes
    Zetor Model: 7000 Series Model series: 7341 From date: 01-01-1997 Fuel: Diesel Approved: Yes
    Zetor Model: 7000 Series Model series: 7745 Size of motor: 3.9 From date: 01-01-1988 To date: 01-01-2003 Fuel: Diesel Approved: Yes
