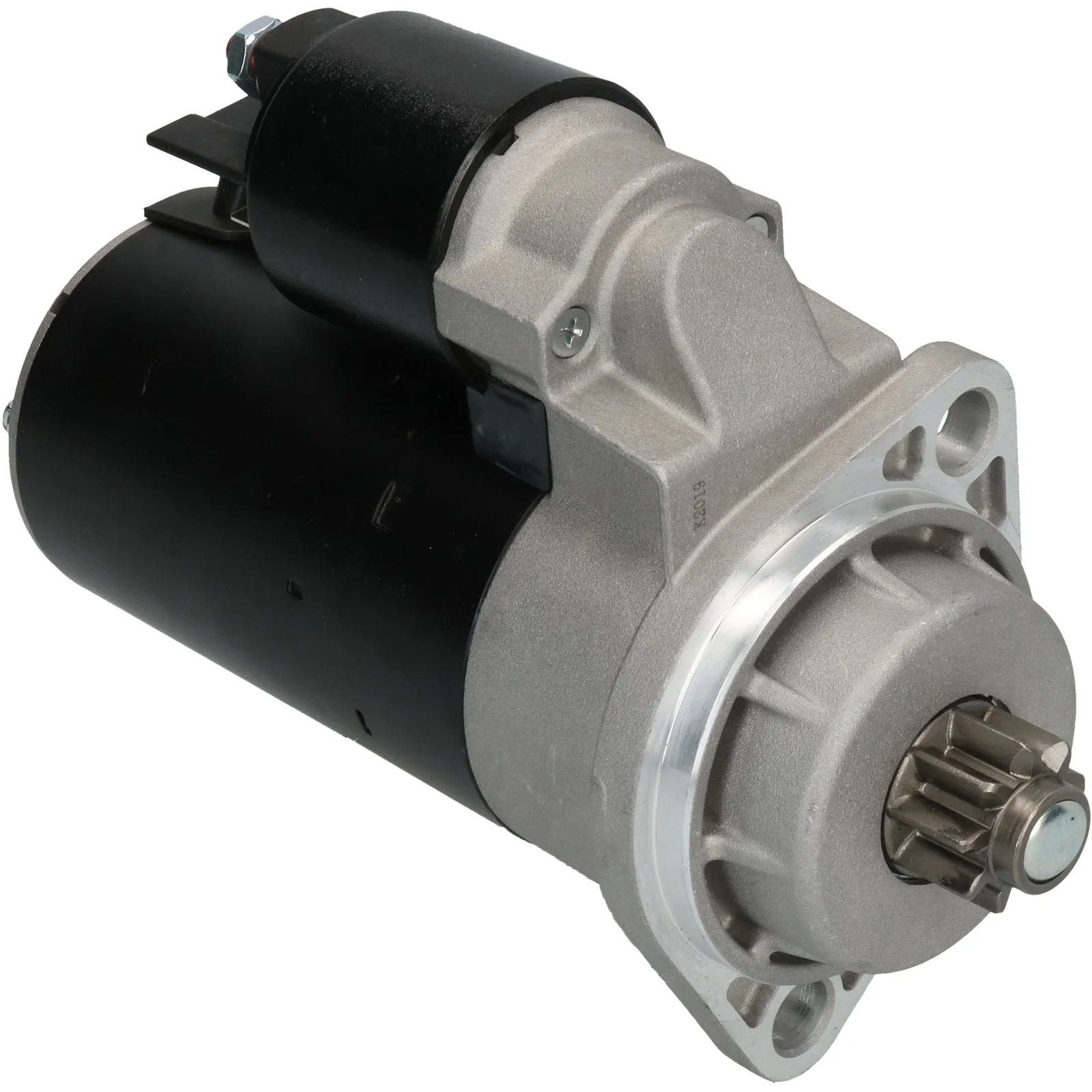

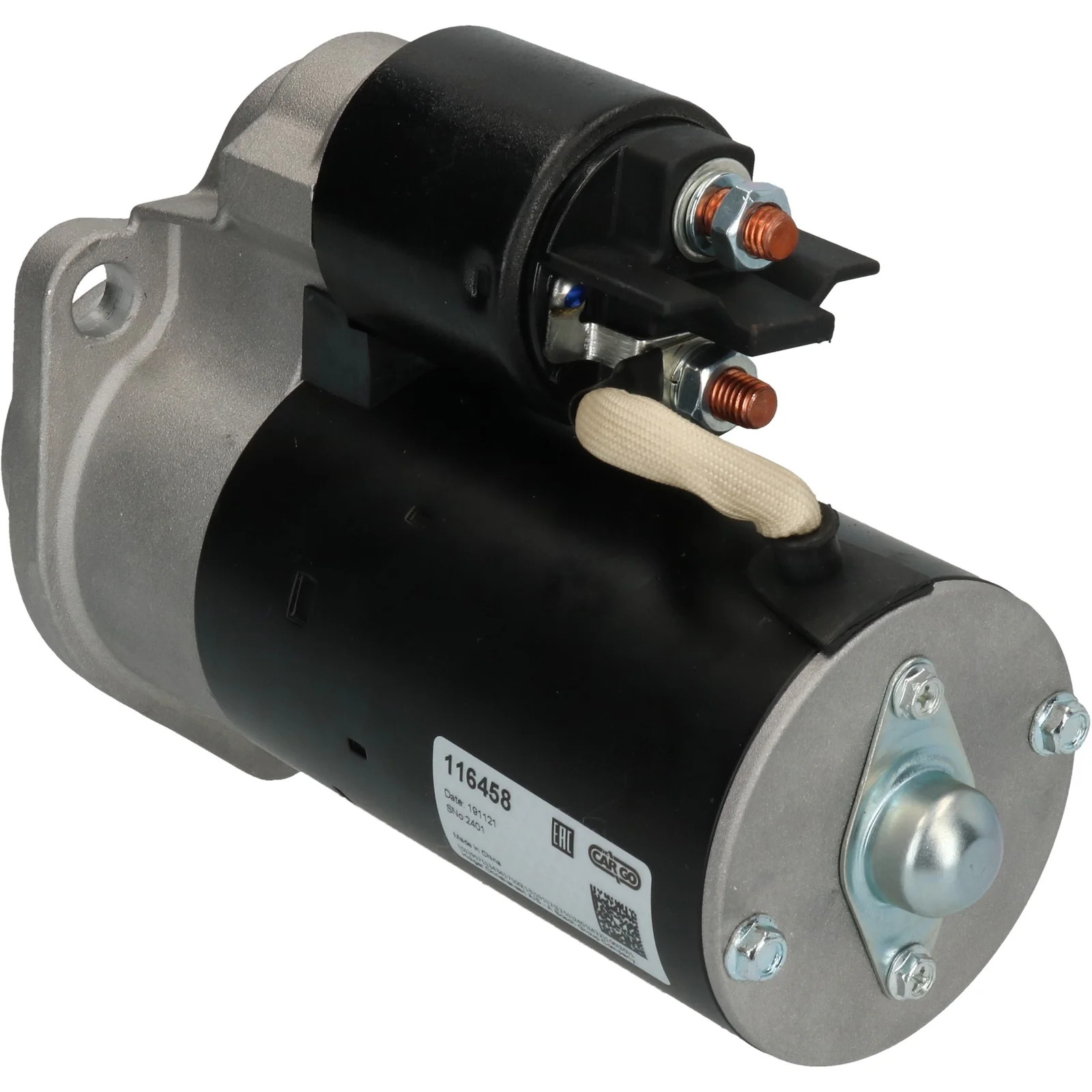

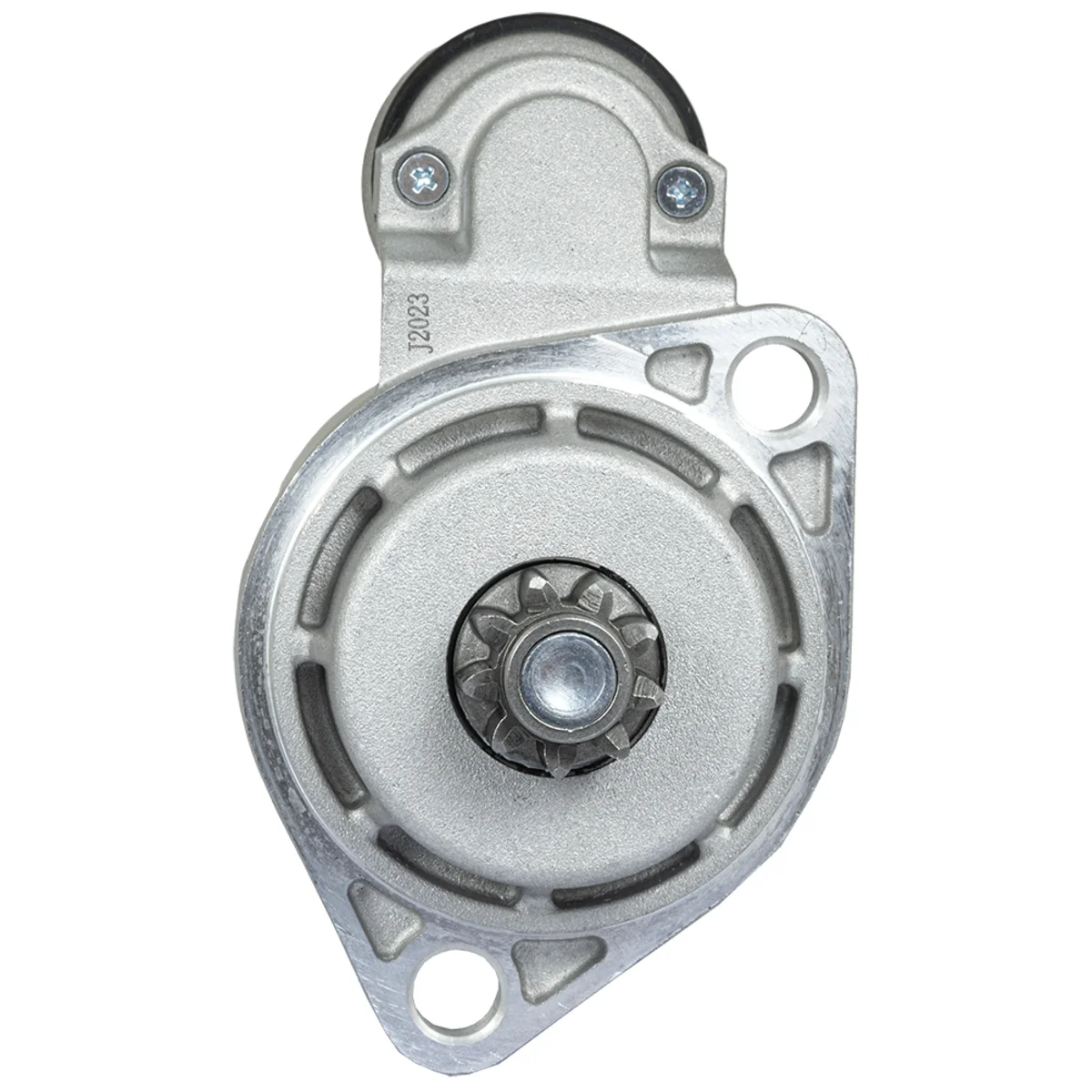

HC-Cargo Startmotor
HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116458

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 2,0, Ant./tenner: 9, Rotasjon: CW

Beskrivelse

HC-Cargo Startmotor 12V-2.0kW, 9k 12V - 2.0kW, 9k. A - 82,5 mm, B - 41 mm

Spenningsspenning: 12
kW: 2,0
Monteringsflens: 82,50
Drivelsesavstand: 40,50
Monteringshull 2 mm: 11,00
Monteringshull 1 mm: 11,00
Avstand/bak: 177,00
Avstand/frem: 45,00
Antall/tannhjul: 9
B+: M8
Posisjon/B+: 60
Posisjon/50: 15
Terminal 50: 6,30
Gevertype: GR
Avstand mm: 102,50
Rotasjon: med urviseren
Total lengde mm: 233,50
Drevingstype: Stål
Prod. info: BN
Vanntett: Nei
Olje forseglet: Nei
Antall/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Position/B+ 60
Prod. info BN
Rotation CW
Dist./back 177.00
Dist./front 45.00
Drive dist. 40.50
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 6.30
Voltage 12
Total length 233.50 mm
Waterproof No
Dist. 102.50 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZE 2606, AZE 2657, AZE 2663, AZE2606, aze2663, F032116458, MS 432, 11.130.923, 11.131.528, 91-216-0923, 1150, 11130 923, 11131 496, 11131 528, 116458, 05726001, 05728551, 50495900, 50495901, 72736060, 504959010733

  • Konkurrentreferens
    CST21118, DRS0266, is1150, MS432, S9200(LETRIKA), S9200S, 25-4043, 8096

  • Bilmärken
    Atlas-Copco, Bomag, Hatz, Wacker Neuson

  • NormaliseratArtNr
    aze2606, aze2657, aze2663, cst21118, drs0266, f032116458, is1150, ms432, s9200letrika, s9200s, 1150, 8096, 116458, 254043, 05726001, 05728551, 11130923, 11131496, 11131528, 50495900, 50495901, 72736060, 912160923, 504959010733

  • Passar modeller
    Hatz Model: Engine Model series: Engine Brand of engine: 1D81 Fuel: Diesel Approved: Yes
    Hatz Series: 1 D 90 V
    Hatz Series: 1 D 90 W
    Hatz Series: 4 HZXL
  • Beskrivelse
    HC-Cargo Startmotor 12V-2.0kW, 9k 12V - 2.0kW, 9k. A - 82,5 mm, B - 41 mm

    Spenningsspenning: 12
    kW: 2,0
    Monteringsflens: 82,50
    Drivelsesavstand: 40,50
    Monteringshull 2 mm: 11,00
    Monteringshull 1 mm: 11,00
    Avstand/bak: 177,00
    Avstand/frem: 45,00
    Antall/tannhjul: 9
    B+: M8
    Posisjon/B+: 60
    Posisjon/50: 15
    Terminal 50: 6,30
    Gevertype: GR
    Avstand mm: 102,50
    Rotasjon: med urviseren
    Total lengde mm: 233,50
    Drevingstype: Stål
    Prod. info: BN
    Vanntett: Nei
    Olje forseglet: Nei
    Antall/monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 15
    Position/B+ 60
    Prod. info BN
    Rotation CW
    Dist./back 177.00
    Dist./front 45.00
    Drive dist. 40.50
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 6.30
    Voltage 12
    Total length 233.50 mm
    Waterproof No
    Dist. 102.50 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      AZE 2606, AZE 2657, AZE 2663, AZE2606, aze2663, F032116458, MS 432, 11.130.923, 11.131.528, 91-216-0923, 1150, 11130 923, 11131 496, 11131 528, 116458, 05726001, 05728551, 50495900, 50495901, 72736060, 504959010733

    • Konkurrentreferens
      CST21118, DRS0266, is1150, MS432, S9200(LETRIKA), S9200S, 25-4043, 8096

    • Bilmärken
      Atlas-Copco, Bomag, Hatz, Wacker Neuson

    • NormaliseratArtNr
      aze2606, aze2657, aze2663, cst21118, drs0266, f032116458, is1150, ms432, s9200letrika, s9200s, 1150, 8096, 116458, 254043, 05726001, 05728551, 11130923, 11131496, 11131528, 50495900, 50495901, 72736060, 912160923, 504959010733

    • Passar modeller
      Hatz Model: Engine Model series: Engine Brand of engine: 1D81 Fuel: Diesel Approved: Yes
      Hatz Series: 1 D 90 V
      Hatz Series: 1 D 90 W
      Hatz Series: 4 HZXL
