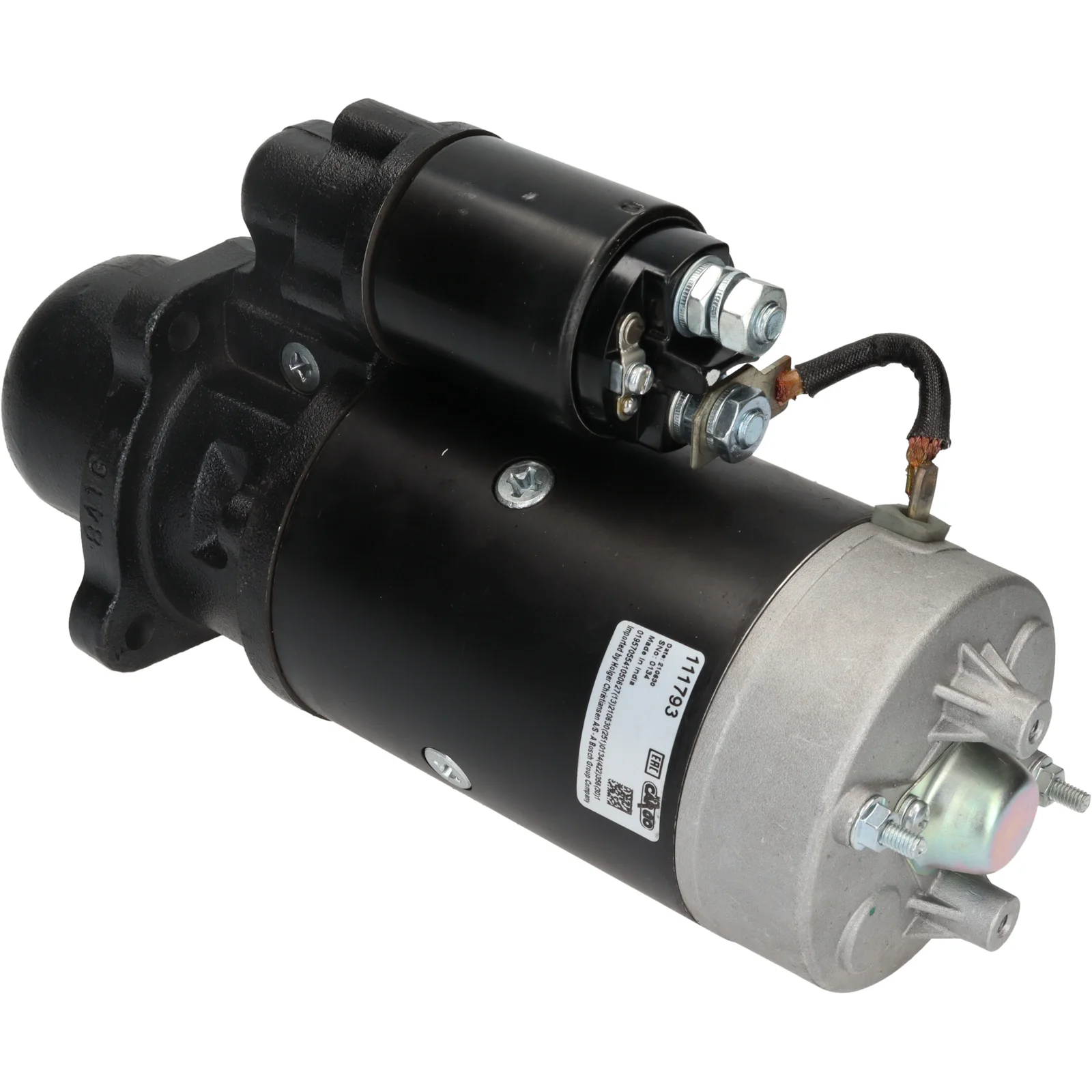

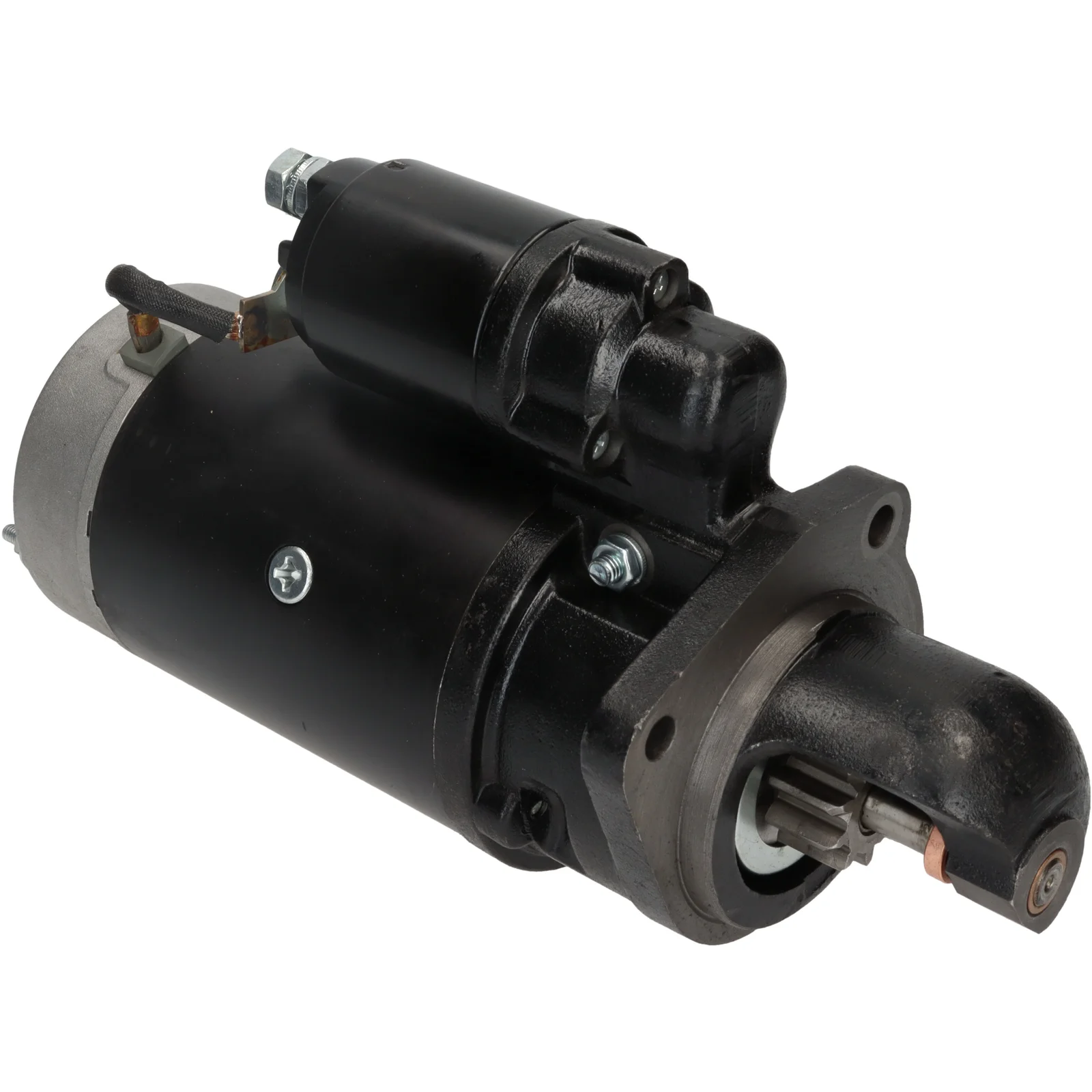

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032111793

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, Effekt: 3,0kW, Antall tann: 10, Rotasjon: CW

Beskrivelse

Perkins/Caterpillar Start 12V-3.0kW 12V - 3.0kW, 10k For Yourex produktordre 91-441-7076

Spenning: 12
kW: 3.0
Monteringsflens: 89.00
Driveavstand: 28.50
Monteringshull 3 mm: 11.00
Monteringshull 2 mm: 11.00
Monteringshull 1 mm: 11.00
Avstand/bak: 263.00
Avstand/frampå: 77.50
Antall/tenner: 10
B+: M10
Posisjon/50: 45
Terminal 50: M4
Geværtype: DD
Avstand 2: 127.00
Avstand 3: 90.00
Avstand mm: 90.00
Rotasjon: CW
Total lengde mm: 342.00
Koblingstype: Tørr
Drive type: Stål
Produktinfo: BN
Vannbestandig: Nei
Oljelås: Nei
Antall/monteringshull: 3 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 45
Clutch type Dry
Prod. info BN
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 263.00
Dist./front 77.50
Drive dist. 28.50
Drive type Steel
Gear type DD
kW 3.0
Terminal 50 M4
Voltage 12
Total length 342.00 mm
Waterproof No
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    cs1123, F032111793, RGO 111793, T 10 08224, 0001 367 076, 11.131.065, 100-8224, 1986S10082, 2873 D202, 2873d201, 2873D202, 111793, 241232, 465471, 481034, 504786, 598012, 0001359020, 0001359088, 0001359117, 0001367017, 0001367048, 0001367076, 3737270, 19024261, 700719635

  • Konkurrentreferens
    CST10298, drs4740, DRS7750, LRS01075, LRS04111, MS617OF, MS643OF, S0198, STR22048, STR22064, 8ea737585-001, 25-0373, 25-5274, 638.012.102, 700.516.103, 4581, 17257, 17257N, 18386, 33573, 101123, 254167, 11017750, 42017750, 943352256, 0986012770, 0986017750

  • Bilmärken
    Caterpillar, Perkins Engines

  • NormaliseratArtNr
    cs1123, cst10298, drs4740, drs7750, f032111793, lrs01075, lrs04111, ms617of, ms643of, rgo111793, s0198, str22048, str22064, t1008224, 8ea737585001, 1986s10082, 2873d201, 2873d202, 4581, 17257, 17257n, 18386, 33573, 101123, 111793, 241232, 250373, 254167, 255274, 465471, 481034, 504786, 598012, 1008224, 0001359020, 0001359088, 0001359117, 0001367017, 0001367048, 0001367076, 3737270, 11017750, 11131065, 19024261, 42017750, 638012102, 700516103, 700719635, 943352256, 0986012770, 0986017750

  • Passar modeller
    Caterpillar Model: Various Models Model series: Various Models Approved: Yes
    Caterpillar Series: Telehandler Model: TH 103
    Caterpillar Series: Telehandler Model: TH 62, TH 63
    Caterpillar Series: Telehandler Model: TH 82, TH 83
    Caterpillar Series: Tool carriers Model: TH 63 Engine type: 3054 (Perkins) Year: 01.95-
    Perkins Engines Model: 1004-4
    Perkins Engines Model: 1006-4
    Volvo Model: F Series Model series: F 406 Size of motor: 3.9 Brand of engine: D39B Body: Platform / Chassis From date: 01-09-1975 To date: 01-02-1986 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Perkins/Caterpillar Start 12V-3.0kW 12V - 3.0kW, 10k For Yourex produktordre 91-441-7076

    Spenning: 12
    kW: 3.0
    Monteringsflens: 89.00
    Driveavstand: 28.50
    Monteringshull 3 mm: 11.00
    Monteringshull 2 mm: 11.00
    Monteringshull 1 mm: 11.00
    Avstand/bak: 263.00
    Avstand/frampå: 77.50
    Antall/tenner: 10
    B+: M10
    Posisjon/50: 45
    Terminal 50: M4
    Geværtype: DD
    Avstand 2: 127.00
    Avstand 3: 90.00
    Avstand mm: 90.00
    Rotasjon: CW
    Total lengde mm: 342.00
    Koblingstype: Tørr
    Drive type: Stål
    Produktinfo: BN
    Vannbestandig: Nei
    Oljelås: Nei
    Antall/monteringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 45
    Clutch type Dry
    Prod. info BN
    Dist. 2 127.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 263.00
    Dist./front 77.50
    Drive dist. 28.50
    Drive type Steel
    Gear type DD
    kW 3.0
    Terminal 50 M4
    Voltage 12
    Total length 342.00 mm
    Waterproof No
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      cs1123, F032111793, RGO 111793, T 10 08224, 0001 367 076, 11.131.065, 100-8224, 1986S10082, 2873 D202, 2873d201, 2873D202, 111793, 241232, 465471, 481034, 504786, 598012, 0001359020, 0001359088, 0001359117, 0001367017, 0001367048, 0001367076, 3737270, 19024261, 700719635

    • Konkurrentreferens
      CST10298, drs4740, DRS7750, LRS01075, LRS04111, MS617OF, MS643OF, S0198, STR22048, STR22064, 8ea737585-001, 25-0373, 25-5274, 638.012.102, 700.516.103, 4581, 17257, 17257N, 18386, 33573, 101123, 254167, 11017750, 42017750, 943352256, 0986012770, 0986017750

    • Bilmärken
      Caterpillar, Perkins Engines

    • NormaliseratArtNr
      cs1123, cst10298, drs4740, drs7750, f032111793, lrs01075, lrs04111, ms617of, ms643of, rgo111793, s0198, str22048, str22064, t1008224, 8ea737585001, 1986s10082, 2873d201, 2873d202, 4581, 17257, 17257n, 18386, 33573, 101123, 111793, 241232, 250373, 254167, 255274, 465471, 481034, 504786, 598012, 1008224, 0001359020, 0001359088, 0001359117, 0001367017, 0001367048, 0001367076, 3737270, 11017750, 11131065, 19024261, 42017750, 638012102, 700516103, 700719635, 943352256, 0986012770, 0986017750

    • Passar modeller
      Caterpillar Model: Various Models Model series: Various Models Approved: Yes
      Caterpillar Series: Telehandler Model: TH 103
      Caterpillar Series: Telehandler Model: TH 62, TH 63
      Caterpillar Series: Telehandler Model: TH 82, TH 83
      Caterpillar Series: Tool carriers Model: TH 63 Engine type: 3054 (Perkins) Year: 01.95-
      Perkins Engines Model: 1004-4
      Perkins Engines Model: 1006-4
      Volvo Model: F Series Model series: F 406 Size of motor: 3.9 Brand of engine: D39B Body: Platform / Chassis From date: 01-09-1975 To date: 01-02-1986 Fuel: Diesel Approved: Yes
      1 / 2
