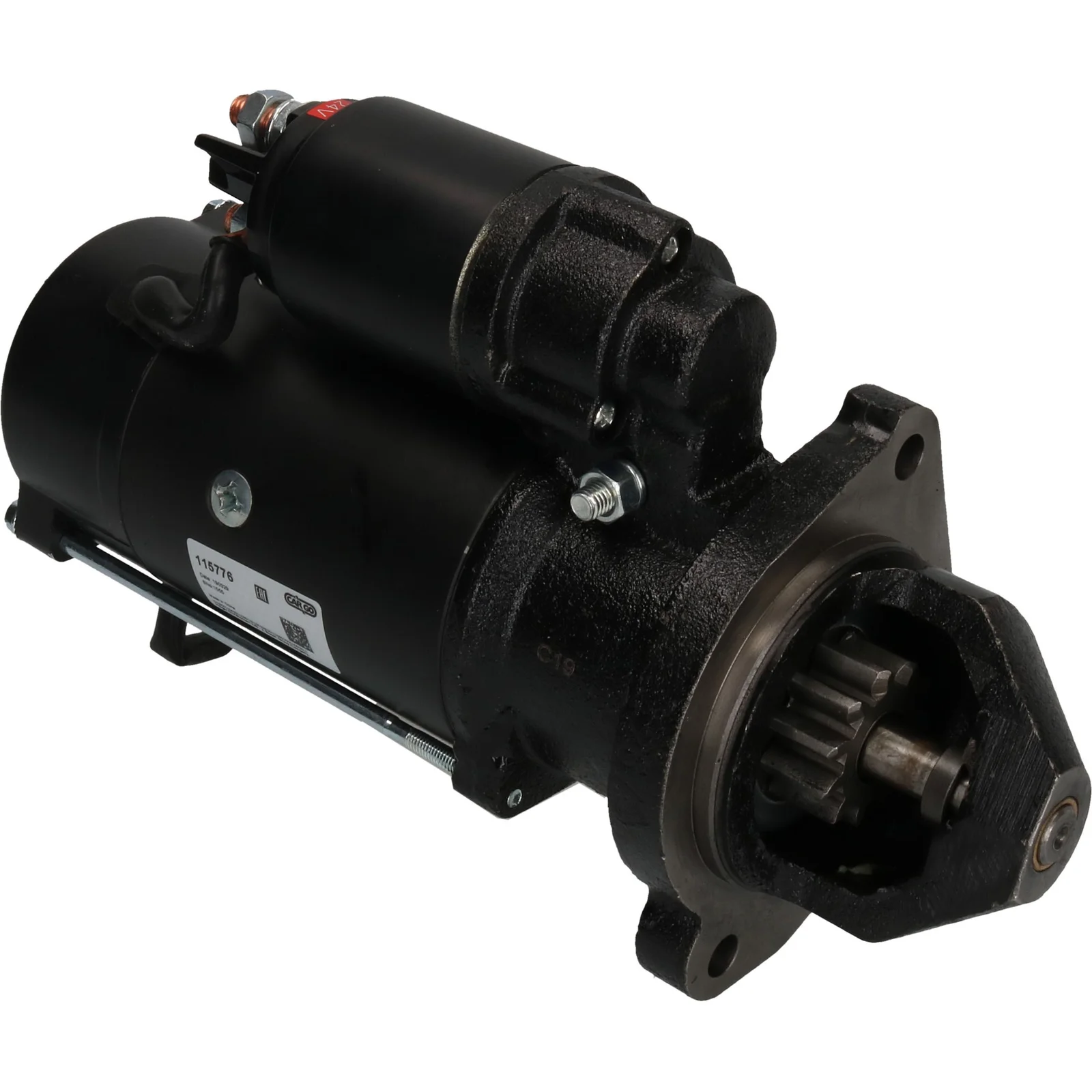

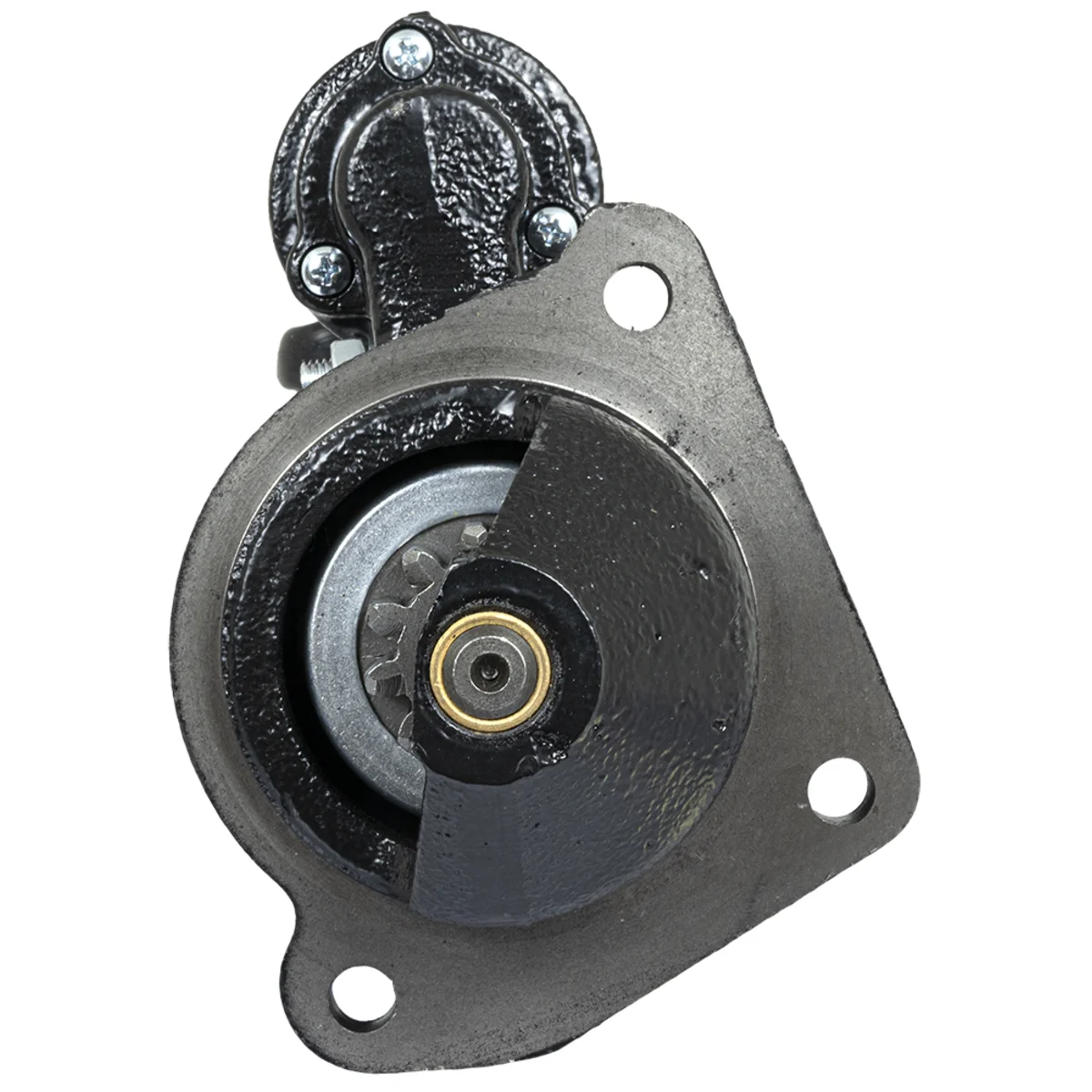

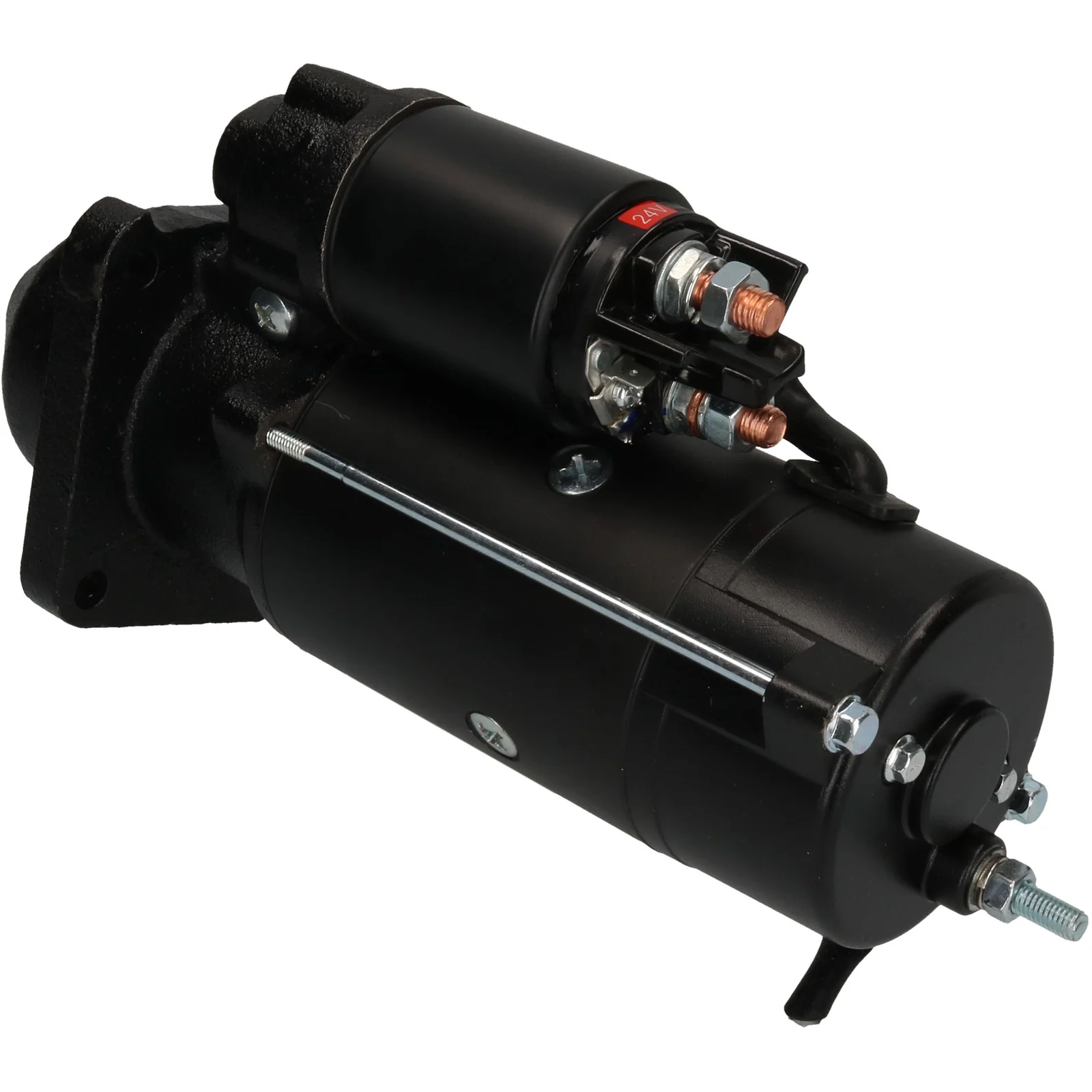

HC-Cargo Startmotor
HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032115776

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 24, kW: 4.0, Ant./tenner: 11, Roter.: CW

Beskrivelse

HC-Cargo Startmotor 24V-4.0kW 24V - 4.0kW, 11k, (B-) A - 89mm, B - 21mm

Volt: 24
kW: 4.0
Feste festebolt: 89.00
Drevavstand: 20.00
Feste hull-diameter 3 mm: 11.20
Feste hull-diameter 2 mm: 11.20
Feste hull-diameter 1 mm: 11.20
Avstand/bak: 250.00
Avstand/frampå: 68.50
Nummervisser tenner: 11
B+: M10
Posisjon/B+: 60
Gjengetykkelse mm: 24.00
Posisjon/50: 45
Terminal 50: M4-6.30
Geværtype: GR
Avstand 2: 90.00
Avstand 3: 127.00
Avstand mm: 90.00
Rotasjon: medur
Posisjon/b-: 28
B-: M8
Total lengde mm: 352.00
Antall/festehull: 3 (0)

Filer

Spesifikasjon

B+ M10
B- M8
No./teeth 11
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 45
Position/b- 28
Position/B+ 60
Dist. 2 90.00
Dist. 3 127.00
Rotation CW
Dist./back 250.00
Dist./front 68.50
Drive dist. 20.00
Gear type GR
kW 4.0
Terminal 50 M4-6.30
Voltage 24
Total length 352.00 mm
Dist. 90.00 mm
Thread length 24.00 mm
Mount. hole 3 11.20 mm
Mount. hole 2 11.20 mm
Mount. hole 1 11.20 mm

  • OEM
    AZF 4267, AZF 4338, AZF4211, AZF4225, AZF4267, AZF4579, F032115776, RGO115776, 11.131.303, 11.131.805, 11.131.849, 11.131.995, 11.132.230, 91-260-1106, 320-09023, 320-09033, 320-09347, 320-09453, 320-A9080, 320-A9453, 320/09023, 320/09033, 320/09347, 320/A9080, 1106, 11131 995, 11132 230, 115776

  • Konkurrentreferens
    CST21617, IS1106, MS5, S9097, S9097(LETRIKA), 701.512.113, 33415N

  • Bilmärken
    JCB

  • NormaliseratArtNr
    azf4211, azf4225, azf4267, azf4338, azf4579, cst21617, f032115776, is1106, ms5, rgo115776, s9097, s9097letrika, 320a9080, 320a9453, 1106, 33415n, 115776, 11131303, 11131805, 11131849, 11131995, 11132230, 32009023, 32009033, 32009347, 32009453, 701512113, 912601106

  • Passar modeller
    GEAX Model: DTC80 Model series: JCB JS160NLC Size of motor: 4.4 Approved: Yes
    GEAX Model: EK110CFA Model series: JCB JS210LC Size of motor: 4.8 Approved: Yes
    GEAX Model: EK110P Model series: JCB JS210LC Size of motor: 4.8 Approved: Yes
    GEAX Model: EK60CFA Model series: JCB JS130NLC Size of motor: 4.4 Approved: Yes
    GEAX Model: EK60D Model series: JCB JS130NL/NLC Size of motor: 4.4 Approved: Yes
    GEAX Model: EK60P Model series: JCB JS130NL/NLC Size of motor: 4.4 Approved: Yes
    GEAX Model: EK90CFA Model series: JCB JS160NLC Size of motor: 4.4 Approved: Yes
    GEAX Model: EK90D Model series: JCB JS160NLC Size of motor: 4.4 Approved: Yes
    GEAX Model: EK90P Model series: JCB JS160NLC Size of motor: 4.4 Approved: Yes
    JCB Model: DIESELMAX Model series: NA,TC,TCA Size of motor: 4.4 Approved: Yes
    JCB Model: DIESELMAX Model series: TC,TCA Size of motor: 4.4 Approved: Yes
    JCB Model: DIESELMAX Model series: TCA Size of motor: 4.8 Approved: Yes
    JCB Model: ECOMAX Model series: TCAE Size of motor: 4.4 Approved: Yes
    JCB Model: ECOMAX Model series: TCAE Size of motor: 4.8 Approved: Yes
    JCB Model: EXCAVATORS Model series: JS130NL/NLC Size of motor: 4.4 Approved: Yes
    JCB Model: EXCAVATORS Model series: JS210LC Size of motor: 4.8 Approved: Yes
    JCB Model: EXCAVATORS Model series: JS220 Approved: Yes
    JCB Model: EXCAVATORS Model series: JS235 Approved: Yes
    JCB Series: 411 Model: Wheel loader Engine type: JCB 444
    JCB Series: 412 S Model: Wheel loader Engine type: JCB
    JCB Series: 416 Model: Wheel Loader Engine type: JCB Year: 01.06-
    JCB Series: 4CX M Model: Backhoe-Loader, Military
