Varenr.: F032112006

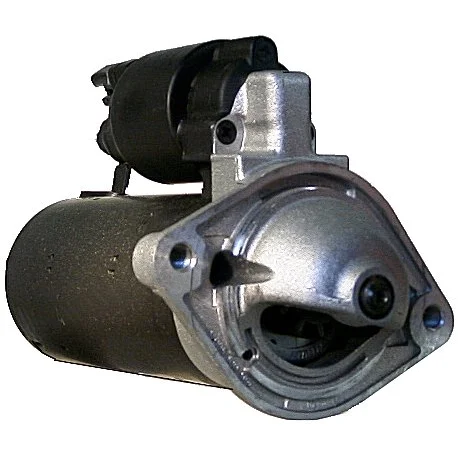

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 2,0, Ant./tenner: 9, Rotasjon: CW

Beskrivelse

Spenningsf.eks.: 12
kW: 2.0
Monteringsflens: 74.00
Drevavstand: 3.50
Avstand/tilbaketrekking: 207.50
Avstand/frem: 42.00
Antall/tenner: 9
B+: M8
Posisjon/B+: 20
Posisjon/50: 60
Terminal 50: 4.80
Geartype: GR
Avstand mm: 114.50
Rotasjon: med klokken
Total lengde mm: 250.50
Drevtype: Stål
Prod. info: BN
Vanntett: Nei
Olje forseglet: Nei
Antall/monteringshull: 2 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 74.00
Oil sealed No
No./mount. holes 2 (2)
Position/50 60
Position/B+ 20
Prod. info BN
Rotation CW
Dist./back 207.50
Dist./front 42.00
Drive dist. 3.50
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 4.80
Voltage 12
Total length 250.50 mm
Waterproof No
Dist. 114.50 mm

  • OEM
    F032112006, js1135, RGO 112006, 28100-0b010, 28100-0b020, 28100-0g010, 28100-0G020, 428000-0720, 1019852, 1057811, 0001109034, 0001110132, 0001218766, 7275964

  • Konkurrentreferens
    CST10113, CST40302, DENDSN950, drs7500, DRS8680, DRS8680X, DSN950, F042202533, F042S00274, J5212117, J5212124, LRS02099, lrt00182, QS2272, S0020, S0020PR, S0471, S6249(DENSO), S6258S, SR598X, STR-8284, STR50147, 8EA011350-491, 8EA011610-631, 8ea737543-001, 25-2096, 25-2477, 335.061.102, 335.089.092, 4174N, 4174R, 4568, 9521, 31183N, 31184N, 31184R, 104580, 201067, 201135, 220094, 220094A, 438440, 438441, 458260, 458514, 726122, 726922, 8017500, 8018680, 11040607, 0986017500, 0986017503, 0986018680, 063280077010, 063521101320, 944280175000, 944280186800

  • NormaliseratArtNr
    cst10113, cst40302, dendsn950, drs7500, drs8680, drs8680x, dsn950, f032112006, f042202533, f042s00274, j5212117, j5212124, js1135, lrs02099, lrt00182, qs2272, rgo112006, s0020, s0020pr, s0471, s6249denso, s6258s, sr598x, str50147, str8284, 8ea011350491, 8ea011610631, 8ea737543001, 4174n, 4174r, 4568, 9521, 31183n, 31184n, 31184r, 104580, 201067, 201135, 220094, 220094a, 252096, 252477, 281000b010, 281000b020, 281000g010, 281000g020, 438440, 438441, 458260, 458514, 726122, 726922, 1019852, 1057811, 0001109034, 0001110132, 0001218766, 7275964, 8017500, 8018680, 11040607, 335061102, 335089092, 0986017500, 0986017503, 0986018680, 4280000720, 063280077010, 063521101320, 944280175000, 944280186800

  • Passar modeller
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T22 Body: Estate From date: 01-10-1999 To date: 01-02-2003 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T22 Body: Hatchback From date: 01-10-1999 To date: 01-02-2003 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T22 From date: 01-10-1999 To date: 01-02-2003 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T25 Body: Estate From date: 01-04-2003 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T25 Body: Hatchback From date: 01-04-2003 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T25 From date: 01-04-2003 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _T22_ From date: 01-09-2002 To date: 01-02-2003 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: TD Size of motor: 2.0 Brand of engine: 2C-TE Body: Estate From date: 01-09-1997 To date: 01-02-2003 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: TD Size of motor: 2.0 Brand of engine: 2C-TE Body: Hatchback From date: 01-09-1997 To date: 01-02-2003 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: TD Size of motor: 2.0 Brand of engine: 2C-TE From date: 01-09-1997 To date: 01-02-2003 Fuel: Diesel Approved: Yes
    Toyota Model: Carina Model series: Carina E Type of engine: TD Size of motor: 2.0 Brand of engine: 2C-T Type description: CT190 Body: Estate From date: 01-01-1996 To date: 01-09-1997 Fuel: Diesel Approved: Yes Manufacture type: sportswago
    Toyota Model: Carina Model series: Carina E Type of engine: TD Size of motor: 2.0 Brand of engine: 2C-T Type description: CT190 Body: Hatchback From date: 01-01-1996 To date: 01-09-1997 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12 Body: MPV From date: 01-01-2002 To date: 01-05-2004 Fuel: Diesel Approved: Yes Manufacture type: verso
    Toyota Model: Corolla Model series: Corolla Model type: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: ZER_, ZZE_ Body: MPV From date: 01-04-2004 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12_, 12J_ Body: Estate From date: 01-01-2002 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12_, 12J_ Body: Hatchback From date: 01-01-2002 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12J_, _E12T_ Body: Estate From date: 01-04-2004 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12U_, _E12J_ Body: Hatchback From date: 01-05-2003 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12_, _E12T_ From date: 01-01-2002 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spenningsf.eks.: 12
    kW: 2.0
    Monteringsflens: 74.00
    Drevavstand: 3.50
    Avstand/tilbaketrekking: 207.50
    Avstand/frem: 42.00
    Antall/tenner: 9
    B+: M8
    Posisjon/B+: 20
    Posisjon/50: 60
    Terminal 50: 4.80
    Geartype: GR
    Avstand mm: 114.50
    Rotasjon: med klokken
    Total lengde mm: 250.50
    Drevtype: Stål
    Prod. info: BN
    Vanntett: Nei
    Olje forseglet: Nei
    Antall/monteringshull: 2 (2)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    Oil sealed No
    No./mount. holes 2 (2)
    Position/50 60
    Position/B+ 20
    Prod. info BN
    Rotation CW
    Dist./back 207.50
    Dist./front 42.00
    Drive dist. 3.50
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 4.80
    Voltage 12
    Total length 250.50 mm
    Waterproof No
    Dist. 114.50 mm
  • Kjøretøymatching

    • OEM
      F032112006, js1135, RGO 112006, 28100-0b010, 28100-0b020, 28100-0g010, 28100-0G020, 428000-0720, 1019852, 1057811, 0001109034, 0001110132, 0001218766, 7275964

    • Konkurrentreferens
      CST10113, CST40302, DENDSN950, drs7500, DRS8680, DRS8680X, DSN950, F042202533, F042S00274, J5212117, J5212124, LRS02099, lrt00182, QS2272, S0020, S0020PR, S0471, S6249(DENSO), S6258S, SR598X, STR-8284, STR50147, 8EA011350-491, 8EA011610-631, 8ea737543-001, 25-2096, 25-2477, 335.061.102, 335.089.092, 4174N, 4174R, 4568, 9521, 31183N, 31184N, 31184R, 104580, 201067, 201135, 220094, 220094A, 438440, 438441, 458260, 458514, 726122, 726922, 8017500, 8018680, 11040607, 0986017500, 0986017503, 0986018680, 063280077010, 063521101320, 944280175000, 944280186800

    • NormaliseratArtNr
      cst10113, cst40302, dendsn950, drs7500, drs8680, drs8680x, dsn950, f032112006, f042202533, f042s00274, j5212117, j5212124, js1135, lrs02099, lrt00182, qs2272, rgo112006, s0020, s0020pr, s0471, s6249denso, s6258s, sr598x, str50147, str8284, 8ea011350491, 8ea011610631, 8ea737543001, 4174n, 4174r, 4568, 9521, 31183n, 31184n, 31184r, 104580, 201067, 201135, 220094, 220094a, 252096, 252477, 281000b010, 281000b020, 281000g010, 281000g020, 438440, 438441, 458260, 458514, 726122, 726922, 1019852, 1057811, 0001109034, 0001110132, 0001218766, 7275964, 8017500, 8018680, 11040607, 335061102, 335089092, 0986017500, 0986017503, 0986018680, 4280000720, 063280077010, 063521101320, 944280175000, 944280186800

    • Passar modeller
      Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T22 Body: Estate From date: 01-10-1999 To date: 01-02-2003 Fuel: Diesel Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T22 Body: Hatchback From date: 01-10-1999 To date: 01-02-2003 Fuel: Diesel Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T22 From date: 01-10-1999 To date: 01-02-2003 Fuel: Diesel Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T25 Body: Estate From date: 01-04-2003 To date: 01-11-2008 Fuel: Diesel Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T25 Body: Hatchback From date: 01-04-2003 To date: 01-11-2008 Fuel: Diesel Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T25 From date: 01-04-2003 To date: 01-11-2008 Fuel: Diesel Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _T22_ From date: 01-09-2002 To date: 01-02-2003 Fuel: Diesel Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: TD Size of motor: 2.0 Brand of engine: 2C-TE Body: Estate From date: 01-09-1997 To date: 01-02-2003 Fuel: Diesel Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: TD Size of motor: 2.0 Brand of engine: 2C-TE Body: Hatchback From date: 01-09-1997 To date: 01-02-2003 Fuel: Diesel Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: TD Size of motor: 2.0 Brand of engine: 2C-TE From date: 01-09-1997 To date: 01-02-2003 Fuel: Diesel Approved: Yes
      Toyota Model: Carina Model series: Carina E Type of engine: TD Size of motor: 2.0 Brand of engine: 2C-T Type description: CT190 Body: Estate From date: 01-01-1996 To date: 01-09-1997 Fuel: Diesel Approved: Yes Manufacture type: sportswago
      Toyota Model: Carina Model series: Carina E Type of engine: TD Size of motor: 2.0 Brand of engine: 2C-T Type description: CT190 Body: Hatchback From date: 01-01-1996 To date: 01-09-1997 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Model type: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12 Body: MPV From date: 01-01-2002 To date: 01-05-2004 Fuel: Diesel Approved: Yes Manufacture type: verso
      Toyota Model: Corolla Model series: Corolla Model type: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: ZER_, ZZE_ Body: MPV From date: 01-04-2004 To date: 01-03-2009 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12_, 12J_ Body: Estate From date: 01-01-2002 To date: 01-02-2007 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12_, 12J_ Body: Hatchback From date: 01-01-2002 To date: 01-12-2006 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12J_, _E12T_ Body: Estate From date: 01-04-2004 To date: 01-02-2007 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12U_, _E12J_ Body: Hatchback From date: 01-05-2003 To date: 01-02-2007 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12_, _E12T_ From date: 01-01-2002 To date: 01-12-2006 Fuel: Diesel Approved: Yes
      1 / 4
