Varenr.: F032111069

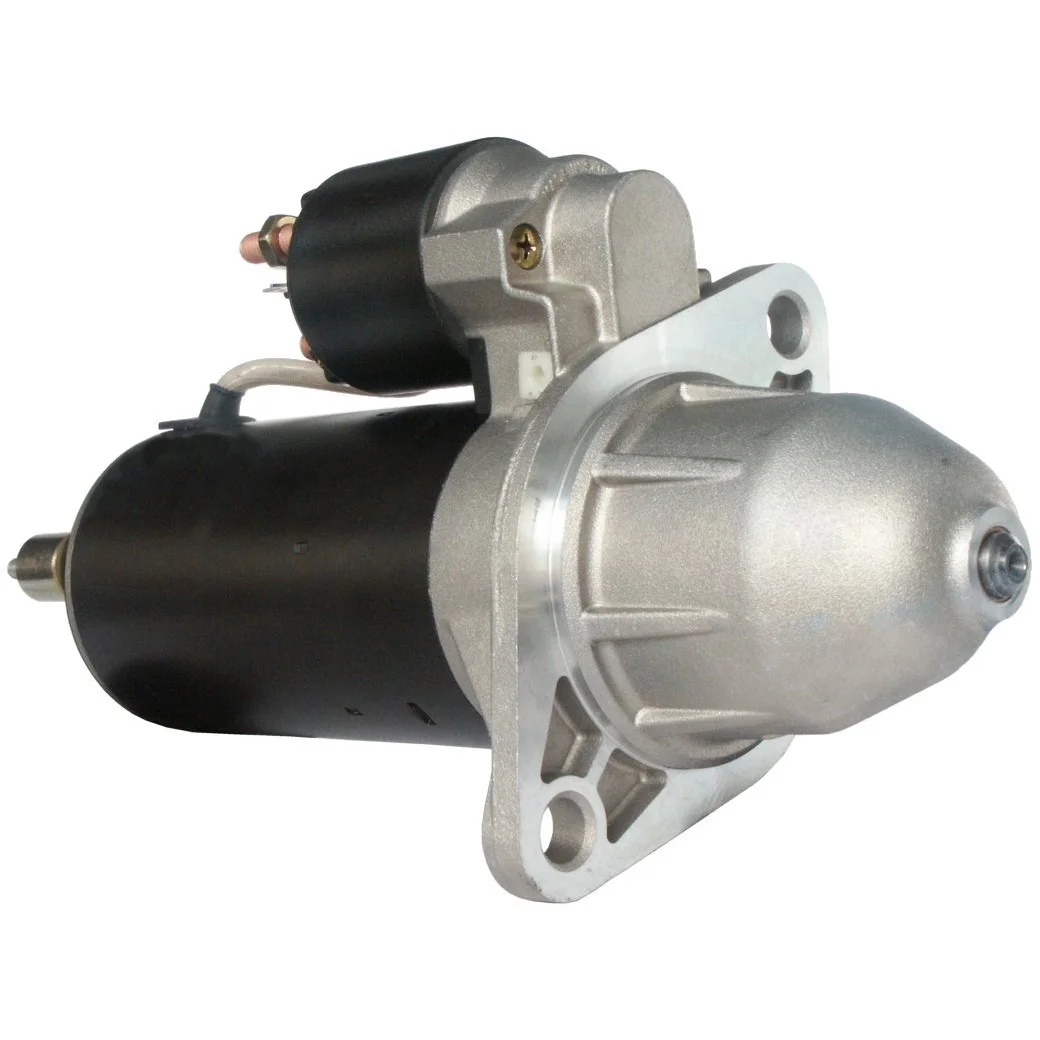

HC-Cargo Startmotor

Teknisk info:

Spenningsgiver: 12, kW: 1.7, No./tenner: 9, Rotasjon: CCW

Beskrivelse

VW Startmotor 12V-1,7kW 12V - 1,7kW, 9t, CCW For Yourex produktordre 91-620-1335

Spenning: 12
kW: 1,7
Monteringsflens: 82,50
Drivets avstand: 42,50
Monteringshull 2 mm: 11,00
Monteringshull 1 mm: 11,00
Avstand/bak: 194,00
Avstand/frem: 80,50
Antall/tenner: 9
B+: M8
Gjenge lengde mm: 12,50
Posisjon/50: 15
Terminal 50: 6,30
Gavltype: GR
Avstand mm: 127,00
Rotasjon: CCW
Total lengde mm: 290,00
Drevtype: Stål
Produktinfo: BN
Vanntett: Nei
Oljeforseglet: Nei
Antall/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Prod. info BN
Rotation CCW
Dist./back 194.00
Dist./front 80.50
Drive dist. 42.50
Drive type Steel
Gear type GR
kW 1.7
Terminal 50 6.30
Voltage 12
Total length 290.00 mm
Waterproof No
Dist. 127.00 mm
Thread length 12.50 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    A0061513201, aze2540, aze2577, cs358, F032111069, RGO 111069, 0001 110 009, 0001 110 010, 0001 317 006, 0001 317 011, 0001 317 012, 0001 317 016, 0001 317 017, 11.130.772, 11.130.910, 0986 010 940, 0986 013 350, 111069, 0001110009, 0001110010, 0001310013, 0001317006, 0001317011, 0001317012, 0001317016, 0001317017, 1516726R, 1516749R, 0061513201, 068911023d, 068911023j, 068911023m

  • Konkurrentreferens
    CST10146, CST10241, drs0940, drs3350, F042S0H013, FRS629, is0772, lrs00564, lrs00662, MS285, MSR511, QS1468, S0014, SR28X, STR-H013, STR50015, vs342, vs343, 2-1361-BO, 2-1362-BO, 8EA011611-161, 8ea726058-001, 8ea726106-001, 25-0428, 25-1441, 41-10.940, 41-13.350, 311.023.092, 311.050.092, 1573, 1600, 3640, 10358, 11407, 11531, 12174R-1G, 16961, 17068, 17068N, 17068R, 201063, 220355, 220355A, 433334, 433336, 8010940, 8013350, 11010940, 11013350, 42317017, 943251675, 943251701, 0986010940, 0986010947, 0986013350

  • Bilmärken
    VW

  • NormaliseratArtNr
    a0061513201, aze2540, aze2577, cs358, cst10146, cst10241, drs0940, drs3350, f032111069, f042s0h013, frs629, is0772, lrs00564, lrs00662, ms285, msr511, qs1468, rgo111069, s0014, sr28x, str50015, strh013, vs342, vs343, 8ea011611161, 8ea726058001, 8ea726106001, 1573, 1600, 3640, 10358, 11407, 11531, 12174r1g, 16961, 17068, 17068n, 17068r, 21361bo, 21362bo, 111069, 201063, 220355, 220355a, 250428, 251441, 433334, 433336, 0001110009, 0001110010, 0001310013, 0001317006, 0001317011, 0001317012, 0001317016, 0001317017, 1516726r, 1516749r, 4110940, 4113350, 8010940, 8013350, 11010940, 11013350, 11130772, 11130910, 42317017, 0061513201, 068911023d, 068911023j, 068911023m, 311023092, 311050092, 943251675, 943251701, 0986010940, 0986010947, 0986013350

  • Passar modeller
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Type of engine: TD Size of motor: 1.6 Brand of engine: JX Body: Bus From date: 01-03-1986 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Type of engine: TD Size of motor: 1.6 Brand of engine: JX Body: Platform / Chassis From date: 01-03-1986 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Type of engine: TD Size of motor: 1.6 Brand of engine: JX Body: Van From date: 01-03-1986 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: Diesel Size of motor: 1.6 Brand of engine: CS Body: Bus From date: 01-01-1981 To date: 01-07-1987 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: Diesel Size of motor: 1.6 Brand of engine: CS Body: Platform / Chassis From date: 01-01-1981 To date: 01-07-1987 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: Diesel Size of motor: 1.6 Brand of engine: CS Body: Van From date: 01-01-1981 To date: 01-07-1987 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: Diesel Size of motor: 1.7 Brand of engine: KY Body: Bus From date: 01-10-1986 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: Diesel Size of motor: 1.7 Brand of engine: KY Body: Platform / Chassis From date: 01-07-1989 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: Diesel Size of motor: 1.7 Brand of engine: KY Body: Van From date: 01-08-1984 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: TD Size of motor: 1.6 Brand of engine: JX Body: Bus From date: 01-08-1984 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: TD Size of motor: 1.6 Brand of engine: JX Body: Platform / Chassis From date: 01-10-1984 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: TD Size of motor: 1.6 Brand of engine: JX Body: Van From date: 01-10-1984 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Vanagon Model series: Vanagon Model type: Campmobile Size of motor: 1.6 Brand of engine: CS From date: 01-01-1982 To date: 01-01-1982 Fuel: Diesel Approved: Yes
    VW Model: Vanagon Model series: Vanagon Model type: Campmobile Size of motor: 1.6 Brand of engine: CS From date: 01-01-1983 To date: 01-01-1983 Fuel: Diesel Approved: Yes
    VW Model: Vanagon Model series: Vanagon Size of motor: 1.6 Brand of engine: CS From date: 01-01-1982 To date: 01-01-1982 Fuel: Diesel Approved: Yes
    VW Model: Vanagon Model series: Vanagon Size of motor: 1.6 Brand of engine: CS From date: 01-01-1983 To date: 01-01-1983 Fuel: Diesel Approved: Yes
    VW Trucks & Vans Series: Transporter III Model: 1.6 D Engine volume: 1.6 Engine type: CS Year: 01.81-07.87
    VW Trucks & Vans Series: Transporter III Model: 1.6 D Turbo Engine volume: 1.6 Engine type: JX Year: 10.84-07.92
    VW Trucks & Vans Series: Transporter III Model: 1.6 D Turbo Syncro Engine volume: 1.6 Engine type: JX Year: 03.86-07.92
    VW Trucks & Vans Series: Transporter III Model: 1.7 D Engine volume: 1.7 Engine type: KY Year: 07.89-07.92
    VW Trucks & Vans Series: Transporter III Buss Model: 1.6 D Engine volume: 1.6 Engine type: CS Year: 08.84-07.87
    VW Trucks & Vans Series: Transporter III Buss Model: 1.6 D Turbo Engine volume: 1.6 Engine type: JX Year: 08.84-07.92
    VW Trucks & Vans Series: Transporter III Buss Model: 1.6 D Turbo Syncro Engine volume: 1.6 Engine type: JX Year: 03.86-07.92
    VW Trucks & Vans Series: Transporter III Buss Model: 1.7 D Engine volume: 1.7 Engine type: KY Year: 10.86-07.92
