Varenr.: F032111904

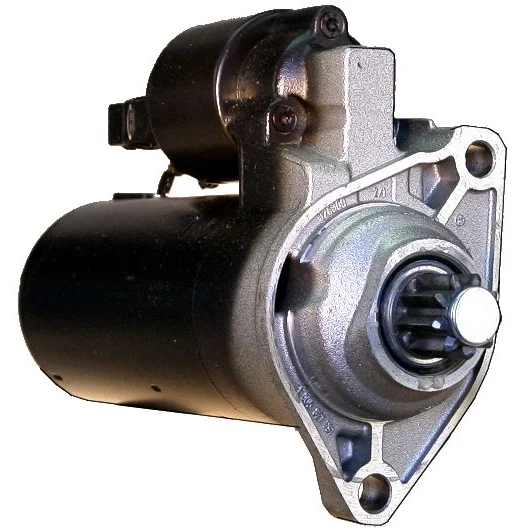

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 1.8, Antall/tann: 9, Rotasjon: CCW

Beskrivelse

Spenning: 12
kW: 1.8
Monteringsflens: 66,00
Drevavstand: 46,50
Monteringshull 2 mm: 11,00
Monteringshull 1 mm: 11,00
Avstand/bak: 195,50
Avstand/frem: 50,50
Antall/tenner: 9
B+: M8
Posisjon/50: 15
Terminal 50: 4,80
Gavltype: GR
Avstand mm: 110,50
Rotasjon: CCW
Total lengde mm: 247,00
Drevtype: Stål
Prod. info: BN
Vanntett: Nei
Olje-sirkulert: Nei
Merknader: Bosch 0001124026/24 har monteringsbeslaghull på 12 mm.
Antall/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 66.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Prod. info BN
Remarks Bosch 0001124026/24 has 12 mm bracket hole.
Rotation CCW
Dist./back 195.50
Dist./front 50.50
Drive dist. 46.50
Drive type Steel
Gear type GR
kW 1.8
Terminal 50 4.80
Voltage 12
Total length 247.00 mm
Waterproof No
Dist. 110.50 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZE2665, cs988, F032111904, RGO 111904, 11.139.439, 0001124007, 0001124008, 0001124011, 0001124012, 0001124022, 0001124023, 0001124024, 0001124025, 0001124026, 0001124027, 0001125003, 0001127022, 085911023a, 085911023AX, 085911023k, 085911023L, 085911023M, 085911023MX

  • Konkurrentreferens
    BSO7284, CST10157, drs7450, DRS7450N, DRS8930, F042202507, F042S02164, IS9432, lrt00172, MS125, MSN2109, QS2417, S0094, S0765S, STR-2240, STR50012, 8EA011350-431, 8EA011610-591, 8ea737237-001, 25-2106, 311.062.092, 3836, 4440, 10988, 31227N, 103650, 106240, 106241, 201070, 220130, 220130A, 458492, 458934, 726818, 726850, 8017450, 11017450, 11018930, 20510172, 42017450, 063521240, 0986017450, 063521240220, 063521240260, 943253107010, 944280174500

  • NormaliseratArtNr
    aze2665, bso7284, cs988, cst10157, drs7450, drs7450n, drs8930, f032111904, f042202507, f042s02164, is9432, lrt00172, ms125, msn2109, qs2417, rgo111904, s0094, s0765s, str2240, str50012, 8ea011350431, 8ea011610591, 8ea737237001, 3836, 4440, 10988, 31227n, 103650, 106240, 106241, 201070, 220130, 220130a, 252106, 458492, 458934, 726818, 726850, 0001124007, 0001124008, 0001124011, 0001124012, 0001124022, 0001124023, 0001124024, 0001124025, 0001124026, 0001124027, 0001125003, 0001127022, 8017450, 11017450, 11018930, 11139439, 20510172, 42017450, 063521240, 085911023a, 085911023ax, 085911023k, 085911023l, 085911023m, 085911023mx, 311062092, 0986017450, 063521240220, 063521240260, 943253107010, 944280174500

  • Passar modeller
    Seat Model: Arosa Model series: Arosa Type of engine: SDi Size of motor: 1.7 Brand of engine: AKU Body: Hatchback From date: 01-08-1997 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    VW Model: Lupo Model series: Lupo Type of engine: SDi Size of motor: 1.7 Brand of engine: AKU Body: Hatchback From date: 01-09-1998 To date: 01-07-2005 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.9 Brand of engine: 1Y Type description: 6KV2 From date: 01-01-1996 To date: 01-10-1996 Fuel: Diesel Approved: Yes Manufacture type: Classic
    VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.9 Brand of engine: AEF Body: Hatchback From date: 01-10-1994 To date: 01-10-1999 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.9 Brand of engine: AEF Body: Hatchback From date: 01-10-1999 To date: 01-09-2001 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.9 Brand of engine: AGD Body: Hatchback From date: 01-10-1994 To date: 01-10-1999 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.9 Brand of engine: AGD Type description: 6N1 From date: 01-07-1996 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: SDi Size of motor: 1.7 Brand of engine: AHG Body: Hatchback From date: 01-08-1997 To date: 01-10-1999 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: SDi Size of motor: 1.7 Brand of engine: AHG Type description: 6N_ Body: Hatchback From date: 01-04-1997 To date: 01-10-1999 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: SDi Size of motor: 1.7 Brand of engine: AKU Body: Hatchback From date: 01-08-1997 To date: 01-10-1999 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: SDi Size of motor: 1.7 Brand of engine: AKU Body: Hatchback From date: 01-10-1999 To date: 01-09-2001 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: SDi Size of motor: 1.9 Brand of engine: AGD Type description: 6N1 Body: Hatchback From date: 01-07-1996 To date: 01-10-1999 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: SDi Size of motor: 1.9 Brand of engine: AGD Type description: 6N2 Body: Hatchback From date: 01-10-1999 To date: 01-09-2001 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: SDi Size of motor: 1.9 Brand of engine: ASX Type description: 6N2 Body: Hatchback From date: 01-10-1999 To date: 01-09-2001 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Spenning: 12
    kW: 1.8
    Monteringsflens: 66,00
    Drevavstand: 46,50
    Monteringshull 2 mm: 11,00
    Monteringshull 1 mm: 11,00
    Avstand/bak: 195,50
    Avstand/frem: 50,50
    Antall/tenner: 9
    B+: M8
    Posisjon/50: 15
    Terminal 50: 4,80
    Gavltype: GR
    Avstand mm: 110,50
    Rotasjon: CCW
    Total lengde mm: 247,00
    Drevtype: Stål
    Prod. info: BN
    Vanntett: Nei
    Olje-sirkulert: Nei
    Merknader: Bosch 0001124026/24 har monteringsbeslaghull på 12 mm.
    Antall/monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 66.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 15
    Prod. info BN
    Remarks Bosch 0001124026/24 has 12 mm bracket hole.
    Rotation CCW
    Dist./back 195.50
    Dist./front 50.50
    Drive dist. 46.50
    Drive type Steel
    Gear type GR
    kW 1.8
    Terminal 50 4.80
    Voltage 12
    Total length 247.00 mm
    Waterproof No
    Dist. 110.50 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      AZE2665, cs988, F032111904, RGO 111904, 11.139.439, 0001124007, 0001124008, 0001124011, 0001124012, 0001124022, 0001124023, 0001124024, 0001124025, 0001124026, 0001124027, 0001125003, 0001127022, 085911023a, 085911023AX, 085911023k, 085911023L, 085911023M, 085911023MX

    • Konkurrentreferens
      BSO7284, CST10157, drs7450, DRS7450N, DRS8930, F042202507, F042S02164, IS9432, lrt00172, MS125, MSN2109, QS2417, S0094, S0765S, STR-2240, STR50012, 8EA011350-431, 8EA011610-591, 8ea737237-001, 25-2106, 311.062.092, 3836, 4440, 10988, 31227N, 103650, 106240, 106241, 201070, 220130, 220130A, 458492, 458934, 726818, 726850, 8017450, 11017450, 11018930, 20510172, 42017450, 063521240, 0986017450, 063521240220, 063521240260, 943253107010, 944280174500

    • NormaliseratArtNr
      aze2665, bso7284, cs988, cst10157, drs7450, drs7450n, drs8930, f032111904, f042202507, f042s02164, is9432, lrt00172, ms125, msn2109, qs2417, rgo111904, s0094, s0765s, str2240, str50012, 8ea011350431, 8ea011610591, 8ea737237001, 3836, 4440, 10988, 31227n, 103650, 106240, 106241, 201070, 220130, 220130a, 252106, 458492, 458934, 726818, 726850, 0001124007, 0001124008, 0001124011, 0001124012, 0001124022, 0001124023, 0001124024, 0001124025, 0001124026, 0001124027, 0001125003, 0001127022, 8017450, 11017450, 11018930, 11139439, 20510172, 42017450, 063521240, 085911023a, 085911023ax, 085911023k, 085911023l, 085911023m, 085911023mx, 311062092, 0986017450, 063521240220, 063521240260, 943253107010, 944280174500

    • Passar modeller
      Seat Model: Arosa Model series: Arosa Type of engine: SDi Size of motor: 1.7 Brand of engine: AKU Body: Hatchback From date: 01-08-1997 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      VW Model: Lupo Model series: Lupo Type of engine: SDi Size of motor: 1.7 Brand of engine: AKU Body: Hatchback From date: 01-09-1998 To date: 01-07-2005 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.9 Brand of engine: 1Y Type description: 6KV2 From date: 01-01-1996 To date: 01-10-1996 Fuel: Diesel Approved: Yes Manufacture type: Classic
      VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.9 Brand of engine: AEF Body: Hatchback From date: 01-10-1994 To date: 01-10-1999 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.9 Brand of engine: AEF Body: Hatchback From date: 01-10-1999 To date: 01-09-2001 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.9 Brand of engine: AGD Body: Hatchback From date: 01-10-1994 To date: 01-10-1999 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.9 Brand of engine: AGD Type description: 6N1 From date: 01-07-1996 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: SDi Size of motor: 1.7 Brand of engine: AHG Body: Hatchback From date: 01-08-1997 To date: 01-10-1999 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: SDi Size of motor: 1.7 Brand of engine: AHG Type description: 6N_ Body: Hatchback From date: 01-04-1997 To date: 01-10-1999 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: SDi Size of motor: 1.7 Brand of engine: AKU Body: Hatchback From date: 01-08-1997 To date: 01-10-1999 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: SDi Size of motor: 1.7 Brand of engine: AKU Body: Hatchback From date: 01-10-1999 To date: 01-09-2001 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: SDi Size of motor: 1.9 Brand of engine: AGD Type description: 6N1 Body: Hatchback From date: 01-07-1996 To date: 01-10-1999 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: SDi Size of motor: 1.9 Brand of engine: AGD Type description: 6N2 Body: Hatchback From date: 01-10-1999 To date: 01-09-2001 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: SDi Size of motor: 1.9 Brand of engine: ASX Type description: 6N2 Body: Hatchback From date: 01-10-1999 To date: 01-09-2001 Fuel: Diesel Approved: Yes
      1 / 3
