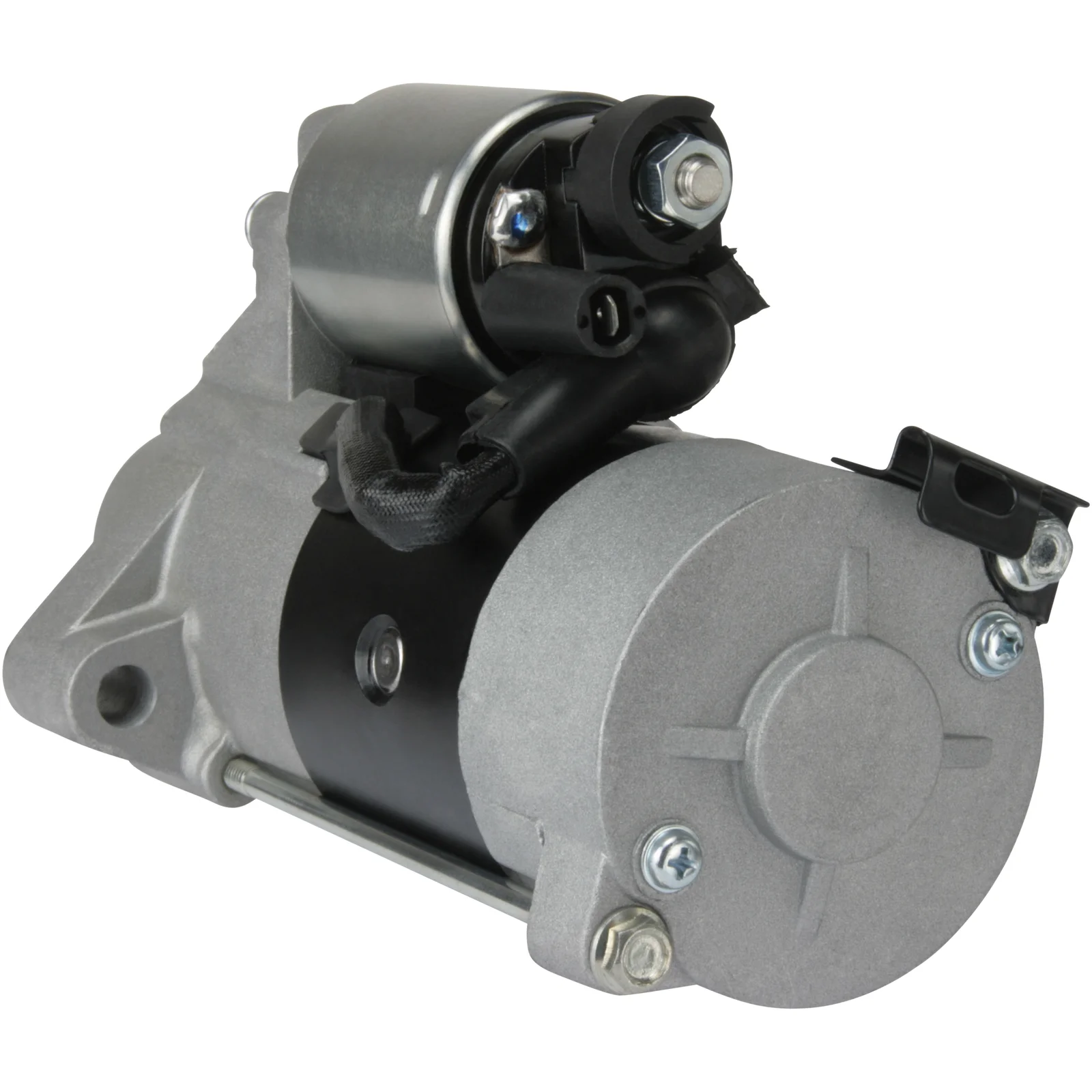

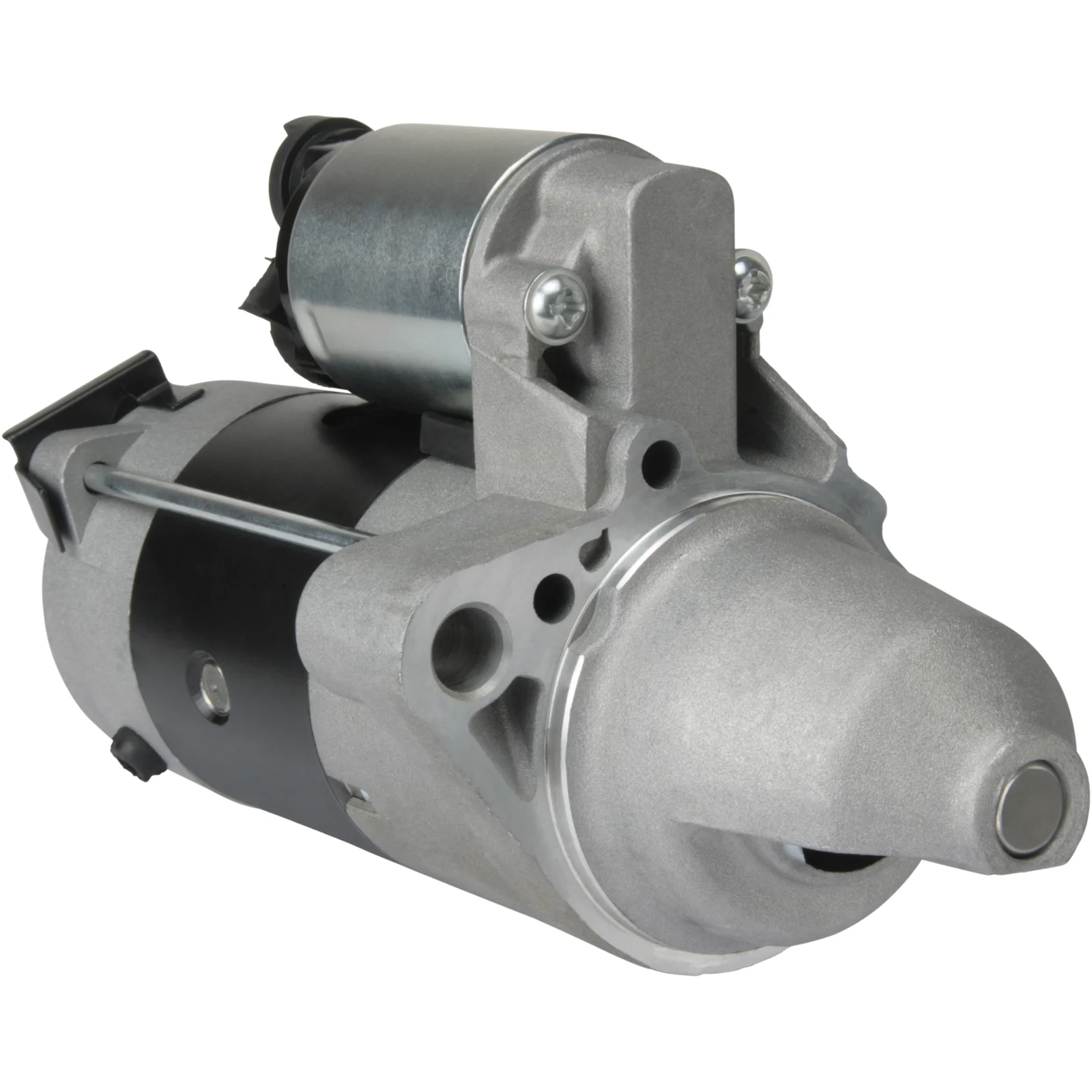

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032115327

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 2,0, Ant./tenner: 9, Rotasjon: CW

Beskrivelse

Spenning: 12
kW: 2.0
Monteringsflens: 75.00
Driveavstand: 33.00
Monteringshull 2 mm: 13.00
Monteringshull 1 mm: 11.00
Avstand/bak: 170.00
Avstand/frem: 69.00
Ant./tenner: 9
B+: M8
Terminal 50: 6.30
Gavl type: GR
Avstand mm: 110.00
Rotasjon: Klokkes. (CW)
Total lengde mm: 241.00
Prod. info: BN
Ant./monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 75.00
No./mount. holes 2 (0)
Prod. info BN
Rotation CW
Dist./back 170.00
Dist./front 69.00
Drive dist. 33.00
Gear type GR
kW 2.0
Terminal 50 6.30
Voltage 12
Total length 241.00 mm
Dist. 110.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 11.00 mm

  • OEM
    cs1427, F032115327, M002T85671, M002T85672, M2T85671, m2t85672, MHG020, MHG023, RGO 115327, 31200-rbd-e01

  • Konkurrentreferens
    CST35252, DRS0084, S5056, 8EA012527-631, 8EA738259-081, 25-3402, 120.551.092, 9633, 33230, 33230N, 101427, 220763, 220763A, 11040764, 0986028040

  • NormaliseratArtNr
    cs1427, cst35252, drs0084, f032115327, m002t85671, m002t85672, m2t85671, m2t85672, mhg020, mhg023, rgo115327, s5056, 8ea012527631, 8ea738259081, 9633, 31200rbde01, 33230, 33230n, 101427, 220763, 220763a, 253402, 11040764, 120551092, 0986028040

  • Passar modeller
    Honda Model: Accord Model series: Accord Type of engine: DTDi Size of motor: 2.2 Brand of engine: N22A1 Type description: CL_, CM_ From date: 01-01-2004 To date: 01-05-2008 Fuel: Diesel Approved: Yes
    Honda Model: Accord Model series: Accord Type of engine: DTDi Size of motor: 2.2 Brand of engine: N22A1 Type description: CM_ Body: Estate From date: 01-01-2004 To date: 01-05-2008 Fuel: Diesel Approved: Yes Manufacture type: TOURER
    Honda Model: CR-V Model series: CR-V Type of engine: CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: RD_ Body: SUV From date: 01-02-2005 To date: 01-09-2006 Fuel: Diesel Approved: Yes
    Honda Model: FR-V Model series: FR-V Type of engine: i CTDi Size of motor: 2.2 Brand of engine: N22A1 Body: Hatchback From date: 01-07-2005 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenning: 12
    kW: 2.0
    Monteringsflens: 75.00
    Driveavstand: 33.00
    Monteringshull 2 mm: 13.00
    Monteringshull 1 mm: 11.00
    Avstand/bak: 170.00
    Avstand/frem: 69.00
    Ant./tenner: 9
    B+: M8
    Terminal 50: 6.30
    Gavl type: GR
    Avstand mm: 110.00
    Rotasjon: Klokkes. (CW)
    Total lengde mm: 241.00
    Prod. info: BN
    Ant./monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 75.00
    No./mount. holes 2 (0)
    Prod. info BN
    Rotation CW
    Dist./back 170.00
    Dist./front 69.00
    Drive dist. 33.00
    Gear type GR
    kW 2.0
    Terminal 50 6.30
    Voltage 12
    Total length 241.00 mm
    Dist. 110.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      cs1427, F032115327, M002T85671, M002T85672, M2T85671, m2t85672, MHG020, MHG023, RGO 115327, 31200-rbd-e01

    • Konkurrentreferens
      CST35252, DRS0084, S5056, 8EA012527-631, 8EA738259-081, 25-3402, 120.551.092, 9633, 33230, 33230N, 101427, 220763, 220763A, 11040764, 0986028040

    • NormaliseratArtNr
      cs1427, cst35252, drs0084, f032115327, m002t85671, m002t85672, m2t85671, m2t85672, mhg020, mhg023, rgo115327, s5056, 8ea012527631, 8ea738259081, 9633, 31200rbde01, 33230, 33230n, 101427, 220763, 220763a, 253402, 11040764, 120551092, 0986028040

    • Passar modeller
      Honda Model: Accord Model series: Accord Type of engine: DTDi Size of motor: 2.2 Brand of engine: N22A1 Type description: CL_, CM_ From date: 01-01-2004 To date: 01-05-2008 Fuel: Diesel Approved: Yes
      Honda Model: Accord Model series: Accord Type of engine: DTDi Size of motor: 2.2 Brand of engine: N22A1 Type description: CM_ Body: Estate From date: 01-01-2004 To date: 01-05-2008 Fuel: Diesel Approved: Yes Manufacture type: TOURER
      Honda Model: CR-V Model series: CR-V Type of engine: CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: RD_ Body: SUV From date: 01-02-2005 To date: 01-09-2006 Fuel: Diesel Approved: Yes
      Honda Model: FR-V Model series: FR-V Type of engine: i CTDi Size of motor: 2.2 Brand of engine: N22A1 Body: Hatchback From date: 01-07-2005 Fuel: Diesel Approved: Yes
