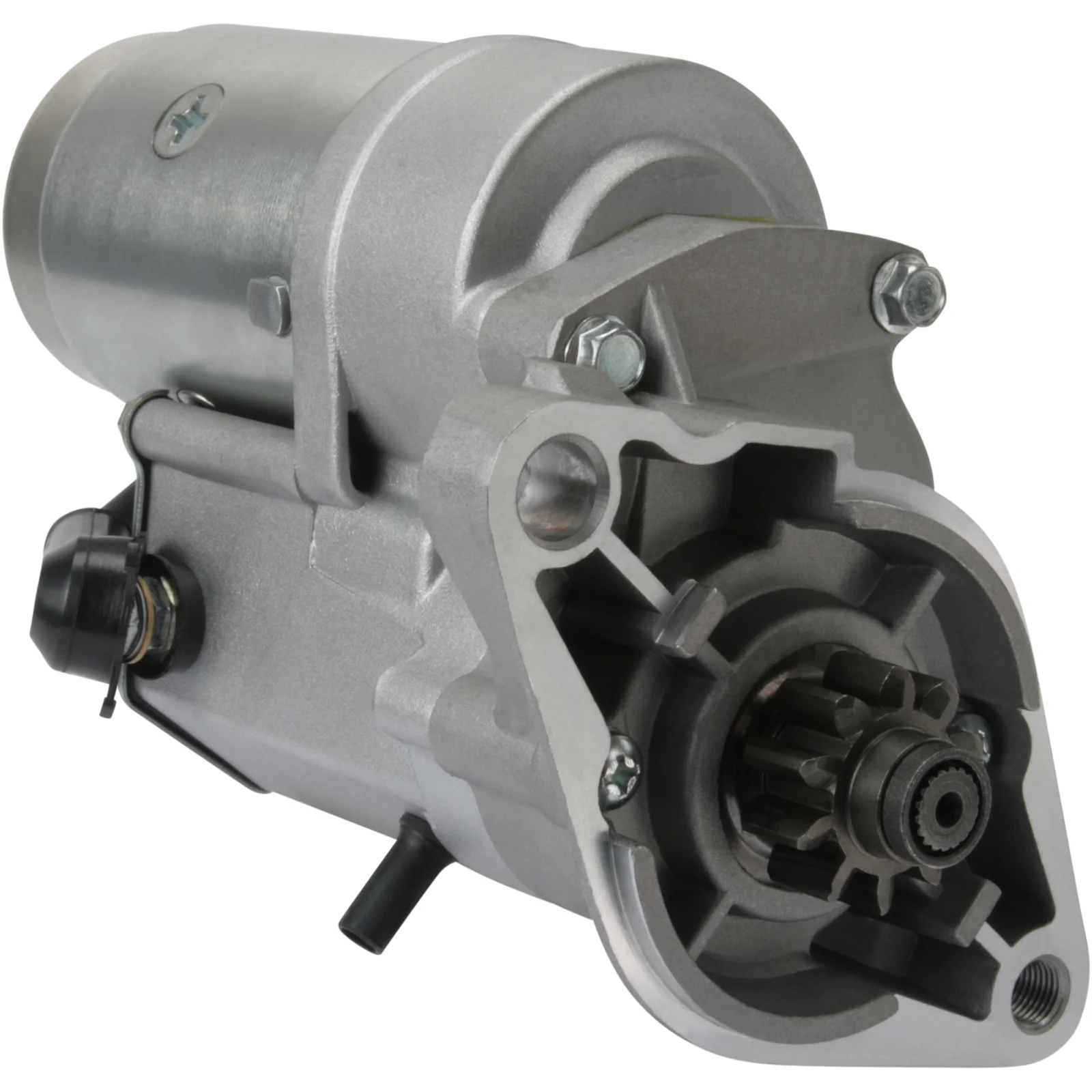

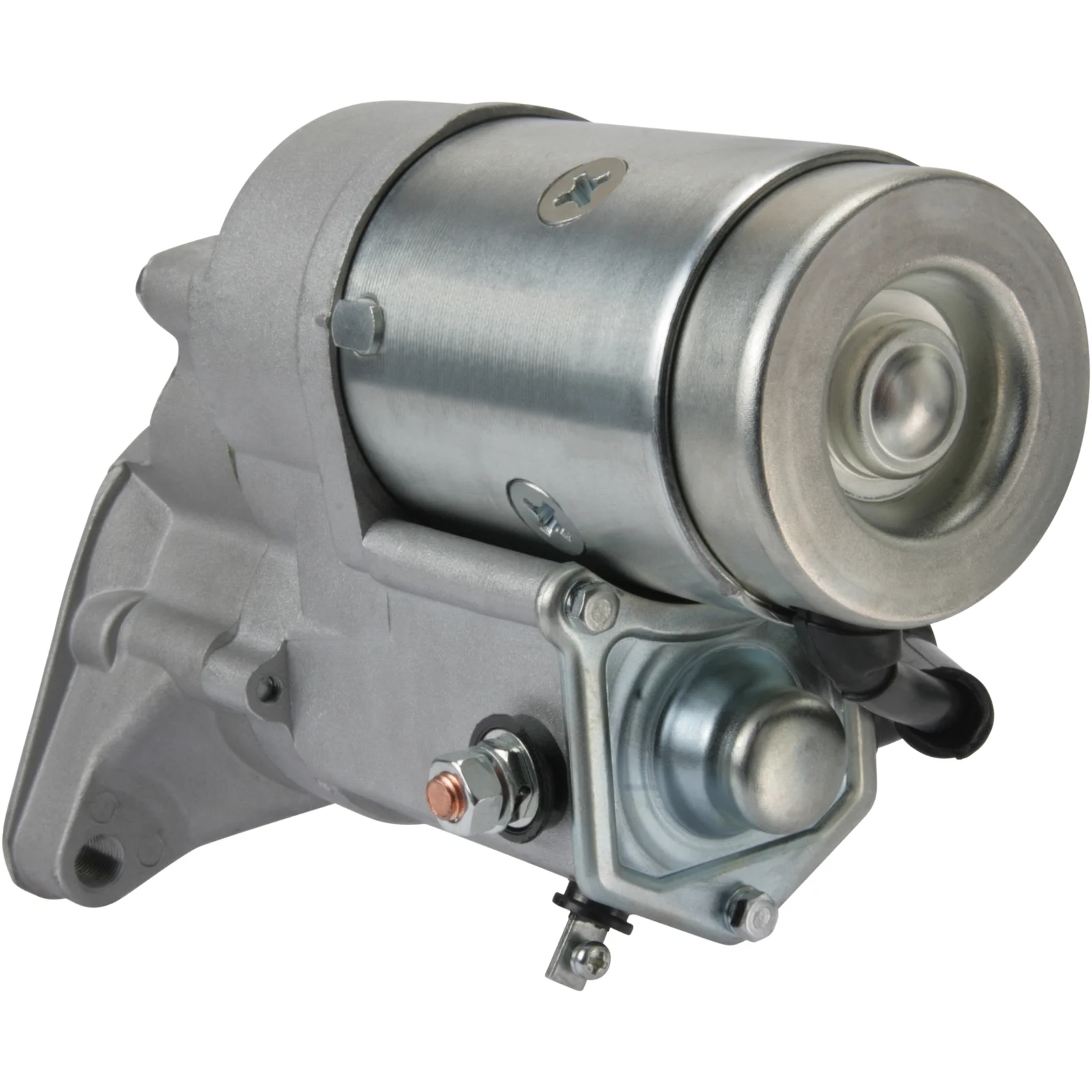

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032112336

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 2.0, Ant./tenner: 10, Rotasjon: CW

Beskrivelse

Spenning: 12
kW: 2,0
Festningsflens: 82,50
Drevavstand: 15,50
Festningshull 2 mm: 12,70
Avstand/rygg: 157,00
Avstand/forside: 28,50
Nr./tenner: 10
B+: M8
Posisjon/50: 5
Terminal 50: M5
Gavltype: GR
Drev. mm: 135,00
Rotasjon: med klokken
Total lengde mm: 230,00
Koplingstype: Våt
Drevtype: Stål
Prod. info: BN
Vanntett: Nei
Oljeforseglet: Nei
Nr./festningshull: 2 (1)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (1)
Position/50 5
Clutch type Wet
Prod. info BN
Rotation CW
Dist./back 157.00
Dist./front 28.50
Drive dist. 15.50
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 M5
Voltage 12
Total length 230.00 mm
Waterproof No
Dist. 135.00 mm
Mount. hole 2 12.70 mm

  • OEM
    F032112336, js1089, RGO 112336, 28100-05030, 28100-54270, 28100-54310, 28100-54340, 28100-54380, 28100-54400, 28100-54410, 28100-54460, 228000-0640, 228000-2120, 228000-2121, 228000-2122, 228000-2123, 228000-2124, 228000-2680, 228000-2682, 228000-2690, 228000-6611, 228000-6612, 228000-6613, 228000-6614, 228000-8150, 228000-8970, 228000-8971, 228000-8972, 228000-9030, 228000-9031, 228000-9032

  • Konkurrentreferens
    CST40294, F042000040, F042000041, F042200203, F042S00040, LES0276, lrs00741, LRS02085, S6044, STR-5028, STR5028, 8EA012527-231, 8ea737420-001, 25-1432, 25-2267, 335.049.112, 335.078.112, 4530, 18151N, 33085, 33085N, 201089, 220524, 220524A, 438509, 458894, 8213299, 0986024340

  • NormaliseratArtNr
    cst40294, f032112336, f042000040, f042000041, f042200203, f042s00040, js1089, les0276, lrs00741, lrs02085, rgo112336, s6044, str5028, 8ea012527231, 8ea737420001, 4530, 18151n, 33085, 33085n, 201089, 220524, 220524a, 251432, 252267, 438509, 458894, 8213299, 335049112, 335078112, 0986024340, 2280000640, 2280002120, 2280002121, 2280002122, 2280002123, 2280002124, 2280002680, 2280002682, 2280002690, 2280006611, 2280006612, 2280006613, 2280006614, 2280008150, 2280008970, 2280008971, 2280008972, 2280009030, 2280009031, 2280009032, 2810005030, 2810054270, 2810054310, 2810054340, 2810054380, 2810054400, 2810054410, 2810054460

  • Passar modeller
    Toyota Model: Dyna Model series: Dyna 100 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: LH80 From date: 01-01-1984 To date: 01-05-1995 Fuel: Diesel Approved: Yes
    Toyota Model: Dyna Model series: Dyna 100 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: LY100 From date: 01-05-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Dyna Model series: Dyna 150 Type of engine: Diesel Size of motor: 2.8 Brand of engine: 3L Type description: LY61 From date: 01-08-1985 To date: 01-05-1995 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Size of motor: 2.4 Brand of engine: 2RZ-E Type description: H18, 22 Body: Bus From date: 01-08-1995 To date: 01-04-1998 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Type description: H18, 22 Body: Van From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Size of motor: 2.4 Brand of engine: 2RZ-E Body: Bus From date: 01-08-1995 To date: 01-04-1998 Fuel: Gasoline Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Bus From date: 01-08-1989 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Bus From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Van From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: LH102 Body: Bus From date: 01-08-1989 To date: 01-08-1995 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: _H10_ Body: Van From date: 01-08-1989 To date: 01-08-2004 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Body: Bus From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Body: Van From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Van Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-T Type description: _H1_ Body: Van From date: 01-08-1996 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4WD Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Body: Pick Up From date: 01-08-1998 To date: 01-01-2002 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4x4 Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-TE From date: 01-08-1989 To date: 01-11-1998 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Pickup Model type: 4WD Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: _N_, KZN1_, VZN1_ Body: Pickup From date: 01-04-1992 To date: 01-08-1997 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Pickup Model type: 4WD Type of engine: Diesel Size of motor: 3.0 Brand of engine: 5L Type description: _N1_ Body: Pickup From date: 01-10-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Pickup Type of engine: Diesel Size of motor: 2.8 Brand of engine: 3L Type description: _N1_ Body: Pickup From date: 01-10-1997 To date: 01-06-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Pick Up From date: 01-03-1995 To date: 01-08-1997 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: IN108 Body: Pick Up From date: 01-10-1991 To date: 01-07-1997 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Type description: LJ70 From date: 01-01-1990 To date: 01-05-1993 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Type description: LJ77 Body: Convertible From date: 01-07-1990 To date: 01-05-1996 Fuel: Diesel Approved: Yes
    Toyota Model: Tacoma Model series: Tacoma Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: _N1_ Body: Pickup From date: 01-08-1997 To date: 01-08-2001 Fuel: Diesel Approved: Yes
