Varenr.: F032111637

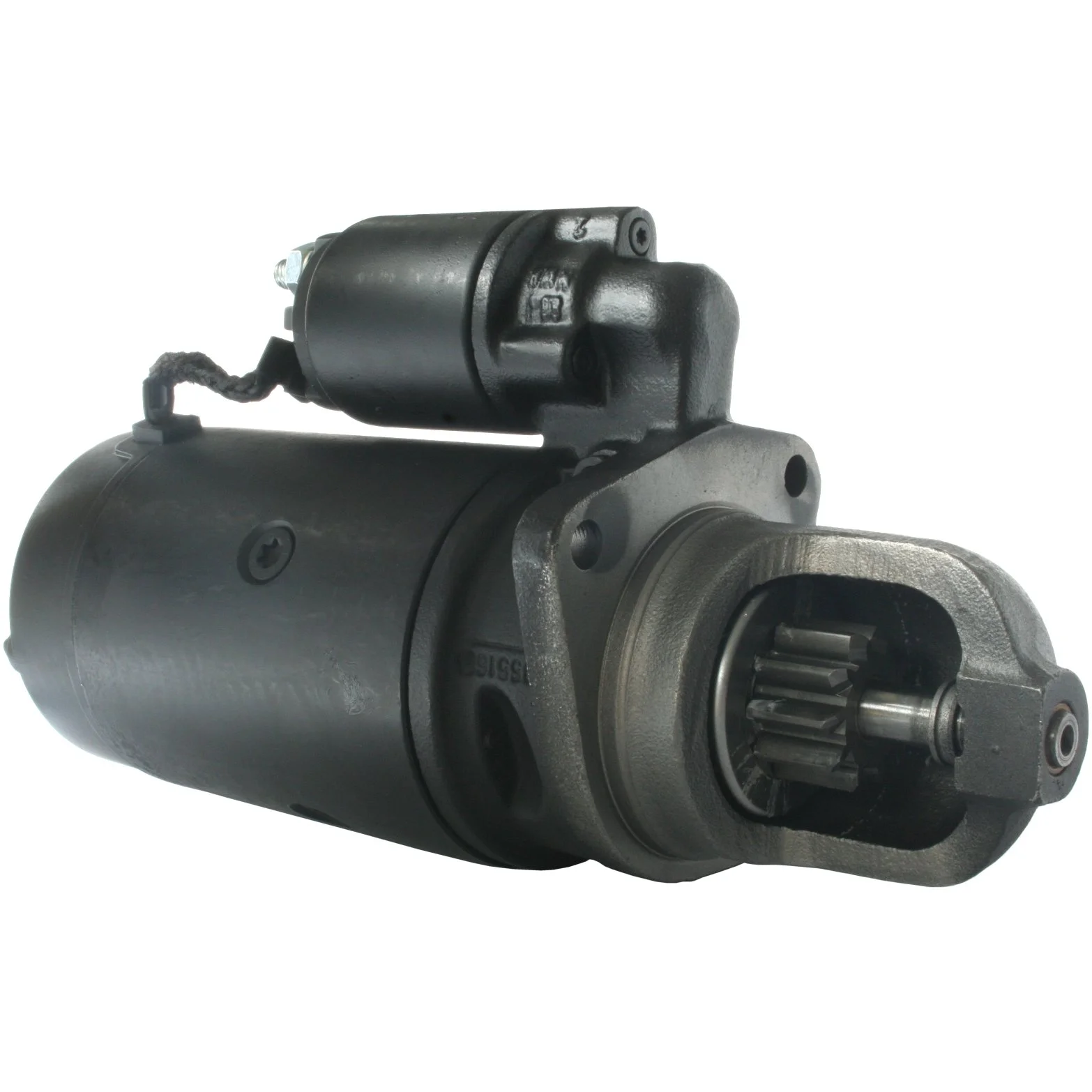

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 24, kW: 4.0, Antall/tenner: 10, Rotasjon: Medurs

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 24
kW: 4,0
Monteringsflens: 89,00
Drevavstand: 48,00
Monteringshull 3 mm: 11,00
Monteringshull 2 mm: 11,00
Monteringshull 1 mm: 11,00
Avstand/bak: 236,00
Avstand/frem: 96,00
Antall/tenner: 10
B+: M10
Posisjon/50: 45
Terminal 50: M4
Girtype: DD/GR
Avstand 2: 127,00
Avstand 3: 90,00
Avstand, mm: 90,00
Roterer: CW
Total lengde mm: 341,00
Drevetype: Stål
Prod. info: BN
Vannavvisende: Nei
Olje forseglet: Nei
Antall/monteringshull: 3 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 45
Prod. info BN
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 236.00
Dist./front 96.00
Drive dist. 48.00
Drive type Steel
Gear type DD/GR
kW 4.0
Terminal 50 M4
Voltage 24
Total length 341.00 mm
Waterproof No
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    cs388, F032111637, 249915, 391617, 511188, 653721, 0001360026, 0001360058, 0001368034

  • Konkurrentreferens
    CST10705, drs1380, lrs00962, S0235, S0674S, STR22087, 8ea726136-001, 45-0178, 45-1431, 88-11.380, 646.005.104, 1561, 10388, 33404, 220725, 220725A, 455614, 11011380, 943252290, 0986011380, 943252290010

  • NormaliseratArtNr
    cs388, cst10705, drs1380, f032111637, lrs00962, s0235, s0674s, str22087, 8ea726136001, 1561, 10388, 33404, 220725, 220725a, 249915, 391617, 450178, 451431, 455614, 511188, 653721, 0001360026, 0001360058, 0001368034, 8811380, 11011380, 646005104, 943252290, 0986011380, 943252290010

  • Passar modeller
    DAF Model: 65 CF Model series: 65 CF 240 Size of motor: 6.2 Brand of engine: NS177M Body: Platform / Chassis From date: 01-02-1998 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 65 Model series: 65 CF.180 Size of motor: 6.2 Brand of engine: NS133M Body: Platform / Chassis From date: 01-02-1998 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 65 Model series: 65 CF.210 Size of motor: 6.2 Brand of engine: NS156M Body: Platform / Chassis From date: 01-02-1998 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 65 Model series: 65 CF.240 Size of motor: 6.2 Brand of engine: NS177M Body: Platform / Chassis From date: 01-02-1998 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 65 Model series: 65.180 Size of motor: 6.2 Brand of engine: NS133L Body: Platform / Chassis From date: 01-03-1993 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    DAF Model: 65 Model series: 65.210 Size of motor: 6.2 Brand of engine: NS156L Body: Platform / Chassis From date: 01-03-1993 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1100 Size of motor: 5.8 Brand of engine: DD575 Body: Platform / Chassis From date: 01-01-1978 To date: 01-12-1981 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1100 Size of motor: 6.2 Brand of engine: DNTD620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-11-1990 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1200 Size of motor: 5.8 Brand of engine: DD575 Body: Platform / Chassis From date: 01-01-1969 To date: 01-12-1981 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-10-1988 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: DNTD620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: DT615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-02-1990 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1305 Size of motor: 6.2 Brand of engine: DT615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-02-1990 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1400 Size of motor: 5.8 Brand of engine: DD575 Body: Platform / Chassis From date: 01-02-1972 To date: 01-12-1981 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1500 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-08-1991 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1500 Size of motor: 6.2 Brand of engine: DT615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-08-1991 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1500 Size of motor: 6.2 Brand of engine: DT615 Body: Semi-Trailer From date: 01-07-1978 To date: 01-08-1991 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1600 Size of motor: 6.2 Brand of engine: DF615 Body: Dump Truck From date: 01-01-1970 To date: 01-08-1991 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1600 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-01-1970 To date: 01-08-1991 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1600 Size of motor: 6.2 Brand of engine: DT615 Body: Dump Truck From date: 01-01-1973 To date: 01-08-1991 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1600 Size of motor: 6.2 Brand of engine: DT615 Body: General Purpose Vehicle From date: 01-01-1973 To date: 01-08-1991 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1600 Size of motor: 6.2 Brand of engine: DT615 Body: Platform / Chassis From date: 01-01-1973 To date: 01-08-1991 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1600 Size of motor: 6.2 Brand of engine: DT615 Body: Semi-Trailer From date: 01-01-1973 To date: 01-08-1991 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1700 Size of motor: 6.2 Brand of engine: DNS620 Body: Platform / Chassis From date: 01-01-1988 To date: 01-02-1995 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1700 Size of motor: 6.2 Brand of engine: DNTD620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-02-1995 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1700 Size of motor: 6.2 Brand of engine: NT133 Body: Platform / Chassis From date: 01-12-1986 To date: 01-02-1995 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1800 Size of motor: 6.2 Brand of engine: DT615 Body: Dump Truck From date: 01-01-1970 To date: 01-08-1991 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1900 Size of motor: 6.2 Brand of engine: DNS620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-09-1993 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1900 Size of motor: 6.2 Brand of engine: DNS620 Body: Semi-Trailer From date: 01-12-1986 To date: 01-09-1993 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1900 Size of motor: 6.2 Brand of engine: DNT620 Body: Dump Truck From date: 01-12-1986 To date: 01-09-1993 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1900 Size of motor: 6.2 Brand of engine: DNT620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-09-1993 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1900 Size of motor: 6.2 Brand of engine: NT133 Body: Dump Truck From date: 01-12-1986 To date: 01-09-1993 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1900 Size of motor: 6.2 Brand of engine: NT133 Body: Platform / Chassis From date: 01-12-1986 To date: 01-09-1993 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 2100 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-09-1986 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 2105 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-09-1986 Fuel: Diesel Approved: Yes
    1 / 7
  • Beskrivelse
    Spenning: 24
    kW: 4,0
    Monteringsflens: 89,00
    Drevavstand: 48,00
    Monteringshull 3 mm: 11,00
    Monteringshull 2 mm: 11,00
    Monteringshull 1 mm: 11,00
    Avstand/bak: 236,00
    Avstand/frem: 96,00
    Antall/tenner: 10
    B+: M10
    Posisjon/50: 45
    Terminal 50: M4
    Girtype: DD/GR
    Avstand 2: 127,00
    Avstand 3: 90,00
    Avstand, mm: 90,00
    Roterer: CW
    Total lengde mm: 341,00
    Drevetype: Stål
    Prod. info: BN
    Vannavvisende: Nei
    Olje forseglet: Nei
    Antall/monteringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 45
    Prod. info BN
    Dist. 2 127.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 236.00
    Dist./front 96.00
    Drive dist. 48.00
    Drive type Steel
    Gear type DD/GR
    kW 4.0
    Terminal 50 M4
    Voltage 24
    Total length 341.00 mm
    Waterproof No
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      cs388, F032111637, 249915, 391617, 511188, 653721, 0001360026, 0001360058, 0001368034

    • Konkurrentreferens
      CST10705, drs1380, lrs00962, S0235, S0674S, STR22087, 8ea726136-001, 45-0178, 45-1431, 88-11.380, 646.005.104, 1561, 10388, 33404, 220725, 220725A, 455614, 11011380, 943252290, 0986011380, 943252290010

    • NormaliseratArtNr
      cs388, cst10705, drs1380, f032111637, lrs00962, s0235, s0674s, str22087, 8ea726136001, 1561, 10388, 33404, 220725, 220725a, 249915, 391617, 450178, 451431, 455614, 511188, 653721, 0001360026, 0001360058, 0001368034, 8811380, 11011380, 646005104, 943252290, 0986011380, 943252290010

    • Passar modeller
      DAF Model: 65 CF Model series: 65 CF 240 Size of motor: 6.2 Brand of engine: NS177M Body: Platform / Chassis From date: 01-02-1998 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      DAF Model: 65 Model series: 65 CF.180 Size of motor: 6.2 Brand of engine: NS133M Body: Platform / Chassis From date: 01-02-1998 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      DAF Model: 65 Model series: 65 CF.210 Size of motor: 6.2 Brand of engine: NS156M Body: Platform / Chassis From date: 01-02-1998 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      DAF Model: 65 Model series: 65 CF.240 Size of motor: 6.2 Brand of engine: NS177M Body: Platform / Chassis From date: 01-02-1998 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      DAF Model: 65 Model series: 65.180 Size of motor: 6.2 Brand of engine: NS133L Body: Platform / Chassis From date: 01-03-1993 To date: 01-02-1998 Fuel: Diesel Approved: Yes
      DAF Model: 65 Model series: 65.210 Size of motor: 6.2 Brand of engine: NS156L Body: Platform / Chassis From date: 01-03-1993 To date: 01-02-1998 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1100 Size of motor: 5.8 Brand of engine: DD575 Body: Platform / Chassis From date: 01-01-1978 To date: 01-12-1981 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1100 Size of motor: 6.2 Brand of engine: DNTD620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-11-1990 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1200 Size of motor: 5.8 Brand of engine: DD575 Body: Platform / Chassis From date: 01-01-1969 To date: 01-12-1981 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-10-1988 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: DNTD620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-12-1992 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: DT615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-02-1990 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1305 Size of motor: 6.2 Brand of engine: DT615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-02-1990 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1400 Size of motor: 5.8 Brand of engine: DD575 Body: Platform / Chassis From date: 01-02-1972 To date: 01-12-1981 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1500 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-08-1991 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1500 Size of motor: 6.2 Brand of engine: DT615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-08-1991 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1500 Size of motor: 6.2 Brand of engine: DT615 Body: Semi-Trailer From date: 01-07-1978 To date: 01-08-1991 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1600 Size of motor: 6.2 Brand of engine: DF615 Body: Dump Truck From date: 01-01-1970 To date: 01-08-1991 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1600 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-01-1970 To date: 01-08-1991 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1600 Size of motor: 6.2 Brand of engine: DT615 Body: Dump Truck From date: 01-01-1973 To date: 01-08-1991 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1600 Size of motor: 6.2 Brand of engine: DT615 Body: General Purpose Vehicle From date: 01-01-1973 To date: 01-08-1991 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1600 Size of motor: 6.2 Brand of engine: DT615 Body: Platform / Chassis From date: 01-01-1973 To date: 01-08-1991 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1600 Size of motor: 6.2 Brand of engine: DT615 Body: Semi-Trailer From date: 01-01-1973 To date: 01-08-1991 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1700 Size of motor: 6.2 Brand of engine: DNS620 Body: Platform / Chassis From date: 01-01-1988 To date: 01-02-1995 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1700 Size of motor: 6.2 Brand of engine: DNTD620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-02-1995 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1700 Size of motor: 6.2 Brand of engine: NT133 Body: Platform / Chassis From date: 01-12-1986 To date: 01-02-1995 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1800 Size of motor: 6.2 Brand of engine: DT615 Body: Dump Truck From date: 01-01-1970 To date: 01-08-1991 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1900 Size of motor: 6.2 Brand of engine: DNS620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-09-1993 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1900 Size of motor: 6.2 Brand of engine: DNS620 Body: Semi-Trailer From date: 01-12-1986 To date: 01-09-1993 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1900 Size of motor: 6.2 Brand of engine: DNT620 Body: Dump Truck From date: 01-12-1986 To date: 01-09-1993 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1900 Size of motor: 6.2 Brand of engine: DNT620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-09-1993 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1900 Size of motor: 6.2 Brand of engine: NT133 Body: Dump Truck From date: 01-12-1986 To date: 01-09-1993 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1900 Size of motor: 6.2 Brand of engine: NT133 Body: Platform / Chassis From date: 01-12-1986 To date: 01-09-1993 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 2100 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-09-1986 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 2105 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-09-1986 Fuel: Diesel Approved: Yes
      1 / 7
