Varenr.: F032111760

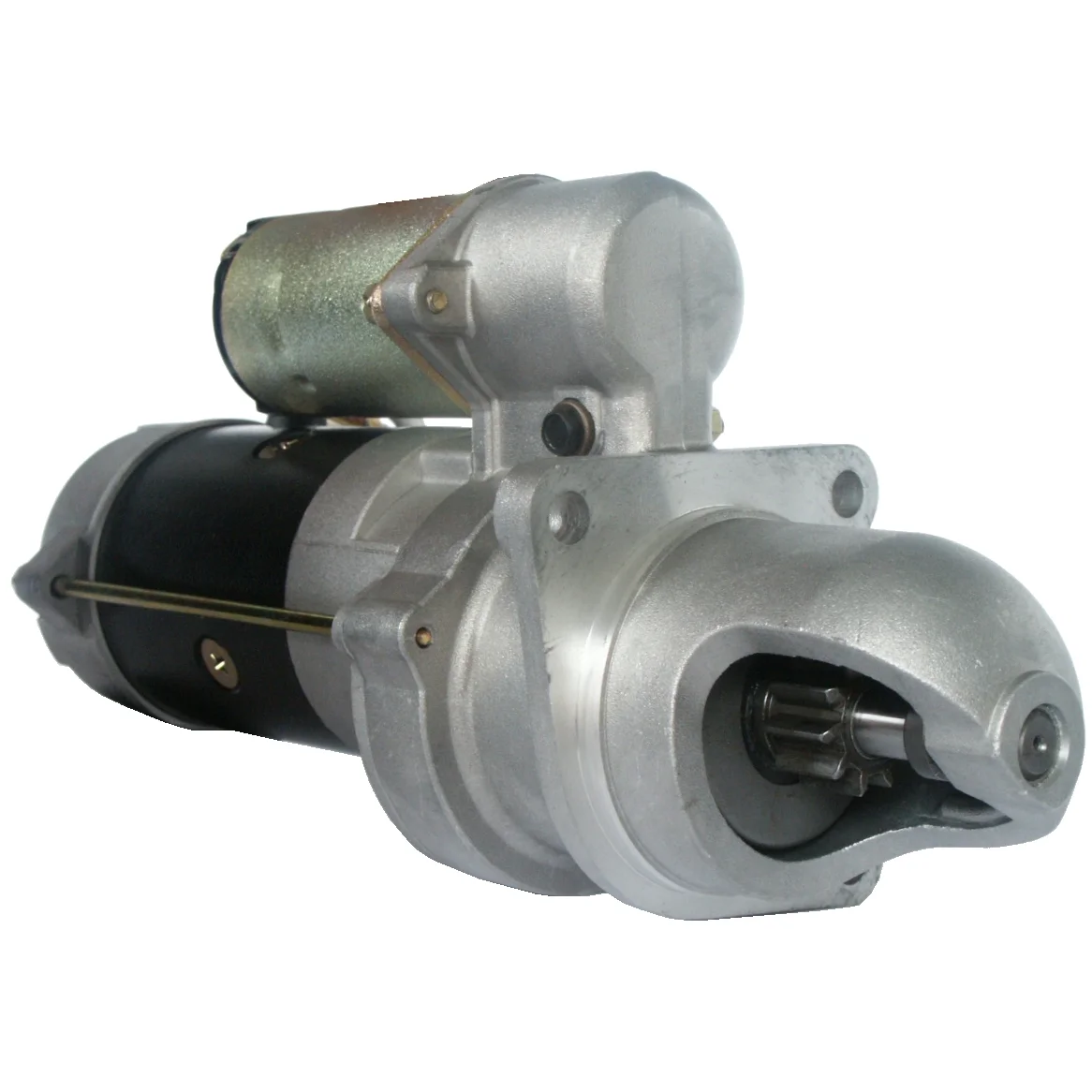

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 24, kW: 4.5, No./tenner: 10, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 24
kW: 4.5
Monteringsflens: 89.00
Drevavstand: 45.00
Monteringshull 3 mm: 11.00
Monteringshull 2 mm: 11.00
Monteringshull 1 mm: 11.00
Avstand/bak: 250.50
Avstand/frem: 88.50
Antall/tannhjul: 10
B+: M10
Posisjon/50: 47
Terminal 50: M5
Gavltype: GR
Avstand 2: 127.00
Avstand 3: 90.00
Avstand mm: 89.00
Rotasjon: med urviseren
Total lengde mm: 339.00
Clutch type: Tørkoppel
Dreietype: Stål
Prod. info: BN
Værbestandig: Nei
Oljetet: Nei
Anmerkninger: Erstatter: 7MT
Antall/monteringshull: 3 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 47
Clutch type Dry
Prod. info BN
Dist. 2 127.00
Remarks Replacing: 7MT
Dist. 3 90.00
Rotation CW
Dist./back 250.50
Dist./front 88.50
Drive dist. 45.00
Drive type Steel
Gear type GR
kW 4.5
Terminal 50 M5
Voltage 24
Total length 339.00 mm
Waterproof No
Dist. 89.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    0-23000-2030, 0-23000-2031, 0-23000-2040, 0-23000-2270, 0-23000-2470, C4929600, F032111760, us857, 323-911, 367520rx, 860318, 1113277, 1113291, 1113594, 1998488, 3604677, 3604677RX, 3675204, 3909914, 3918377, 3918378, 3926932, 8200064, 10455500, 10461283, 10461286, 10461465, 10461468, 10461469, 10461486, 10479616, 10479622, 10479623, 10479655, 10479656

  • Konkurrentreferens
    BSO7195R, BSO7272, CST50653, CST60600, DRS3518, DRS3529, drz5168, F042003112, F042003113, F042S03112, F042S03113, LES0202, LRS02448, MS242, S1007, S9244, S9244(LETRIKA), sn-0087r, STR-7150, STR-7158, STR-7162, STR20001, STR7150, STR7158, STR7162, ts-1602, 8ea732680-001, 50-8416, 50-8421, 50-8434, 90-01-4361, 201-28201, 410-12111, 641.527.103, 641.528.103, 672.021.104, 6574, 6582, 6582N, 6582R, 6592N, 6592R, 6737, 23498A, 60857, 103971, 220601, 220601A, 8213287, 11023450, 0986023450

  • NormaliseratArtNr
    bso7195r, bso7272, c4929600, cst50653, cst60600, drs3518, drs3529, drz5168, f032111760, f042003112, f042003113, f042s03112, f042s03113, les0202, lrs02448, ms242, s1007, s9244, s9244letrika, sn0087r, str20001, str7150, str7158, str7162, ts1602, us857, 8ea732680001, 6574, 6582, 6582n, 6582r, 6592n, 6592r, 6737, 23498a, 60857, 103971, 220601, 220601a, 323911, 367520rx, 508416, 508421, 508434, 860318, 1113277, 1113291, 1113594, 1998488, 3604677, 3604677rx, 3675204, 3909914, 3918377, 3918378, 3926932, 8200064, 8213287, 10455500, 10461283, 10461286, 10461465, 10461468, 10461469, 10461486, 10479616, 10479622, 10479623, 10479655, 10479656, 11023450, 20128201, 41012111, 90014361, 0230002030, 0230002031, 0230002040, 0230002270, 0230002470, 641527103, 641528103, 672021104, 0986023450

  • Passar modeller
    Case Model: Various Models Model series: Various Models Approved: Yes
    Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes
  • Beskrivelse
    Spenning: 24
    kW: 4.5
    Monteringsflens: 89.00
    Drevavstand: 45.00
    Monteringshull 3 mm: 11.00
    Monteringshull 2 mm: 11.00
    Monteringshull 1 mm: 11.00
    Avstand/bak: 250.50
    Avstand/frem: 88.50
    Antall/tannhjul: 10
    B+: M10
    Posisjon/50: 47
    Terminal 50: M5
    Gavltype: GR
    Avstand 2: 127.00
    Avstand 3: 90.00
    Avstand mm: 89.00
    Rotasjon: med urviseren
    Total lengde mm: 339.00
    Clutch type: Tørkoppel
    Dreietype: Stål
    Prod. info: BN
    Værbestandig: Nei
    Oljetet: Nei
    Anmerkninger: Erstatter: 7MT
    Antall/monteringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 47
    Clutch type Dry
    Prod. info BN
    Dist. 2 127.00
    Remarks Replacing: 7MT
    Dist. 3 90.00
    Rotation CW
    Dist./back 250.50
    Dist./front 88.50
    Drive dist. 45.00
    Drive type Steel
    Gear type GR
    kW 4.5
    Terminal 50 M5
    Voltage 24
    Total length 339.00 mm
    Waterproof No
    Dist. 89.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      0-23000-2030, 0-23000-2031, 0-23000-2040, 0-23000-2270, 0-23000-2470, C4929600, F032111760, us857, 323-911, 367520rx, 860318, 1113277, 1113291, 1113594, 1998488, 3604677, 3604677RX, 3675204, 3909914, 3918377, 3918378, 3926932, 8200064, 10455500, 10461283, 10461286, 10461465, 10461468, 10461469, 10461486, 10479616, 10479622, 10479623, 10479655, 10479656

    • Konkurrentreferens
      BSO7195R, BSO7272, CST50653, CST60600, DRS3518, DRS3529, drz5168, F042003112, F042003113, F042S03112, F042S03113, LES0202, LRS02448, MS242, S1007, S9244, S9244(LETRIKA), sn-0087r, STR-7150, STR-7158, STR-7162, STR20001, STR7150, STR7158, STR7162, ts-1602, 8ea732680-001, 50-8416, 50-8421, 50-8434, 90-01-4361, 201-28201, 410-12111, 641.527.103, 641.528.103, 672.021.104, 6574, 6582, 6582N, 6582R, 6592N, 6592R, 6737, 23498A, 60857, 103971, 220601, 220601A, 8213287, 11023450, 0986023450

    • NormaliseratArtNr
      bso7195r, bso7272, c4929600, cst50653, cst60600, drs3518, drs3529, drz5168, f032111760, f042003112, f042003113, f042s03112, f042s03113, les0202, lrs02448, ms242, s1007, s9244, s9244letrika, sn0087r, str20001, str7150, str7158, str7162, ts1602, us857, 8ea732680001, 6574, 6582, 6582n, 6582r, 6592n, 6592r, 6737, 23498a, 60857, 103971, 220601, 220601a, 323911, 367520rx, 508416, 508421, 508434, 860318, 1113277, 1113291, 1113594, 1998488, 3604677, 3604677rx, 3675204, 3909914, 3918377, 3918378, 3926932, 8200064, 8213287, 10455500, 10461283, 10461286, 10461465, 10461468, 10461469, 10461486, 10479616, 10479622, 10479623, 10479655, 10479656, 11023450, 20128201, 41012111, 90014361, 0230002030, 0230002031, 0230002040, 0230002270, 0230002470, 641527103, 641528103, 672021104, 0986023450

    • Passar modeller
      Case Model: Various Models Model series: Various Models Approved: Yes
      Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes
