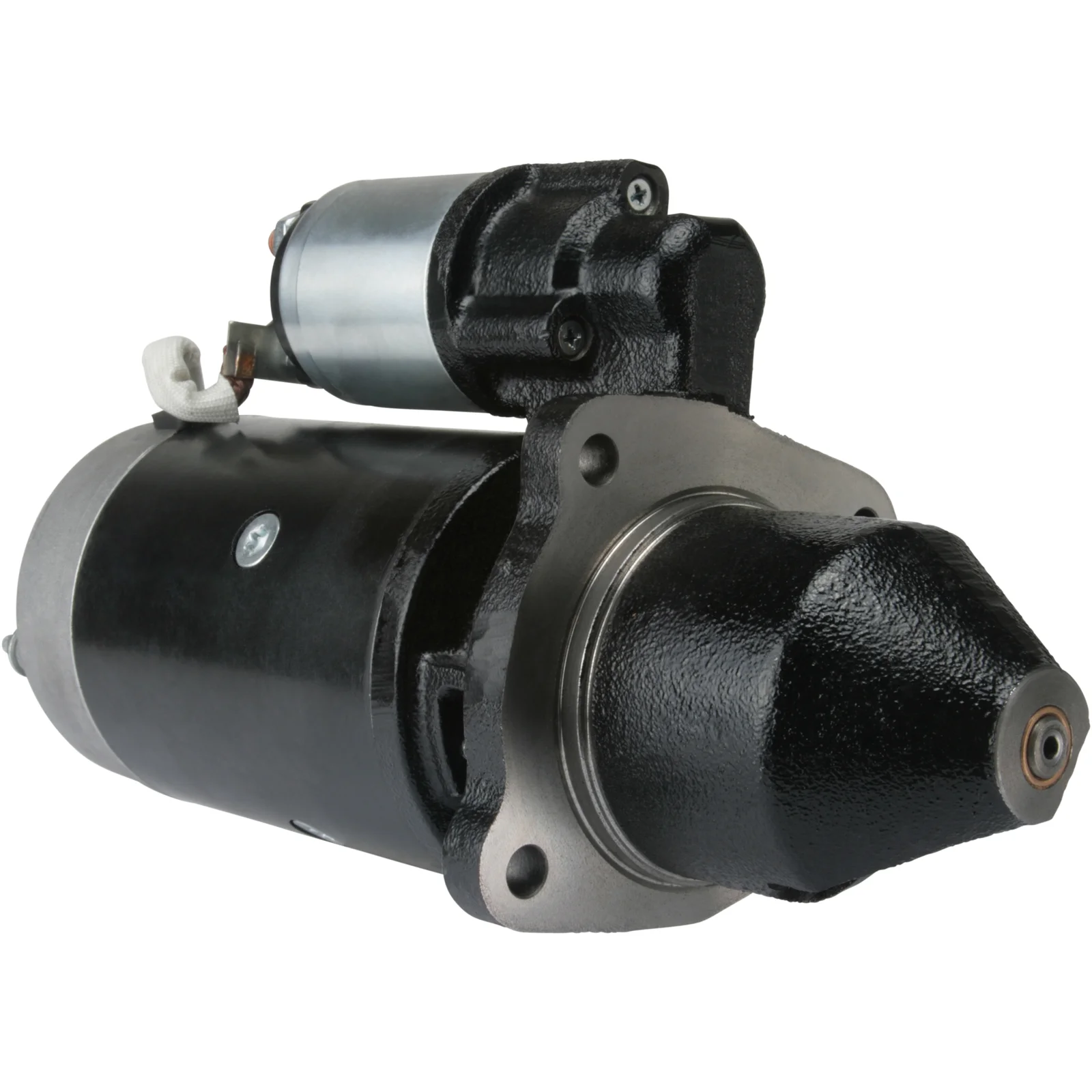

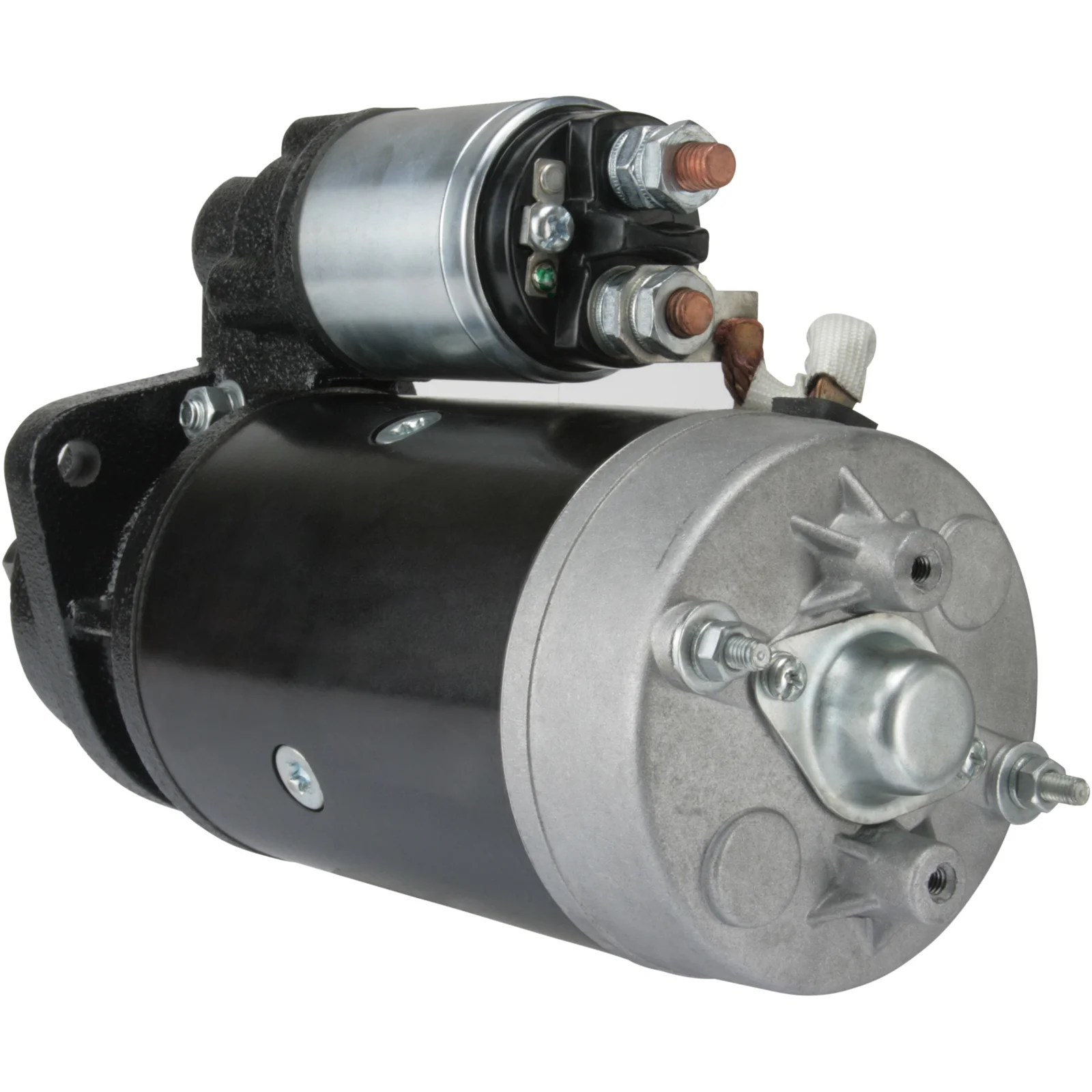

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032112132

HC-Cargo Startmotor

Teknisk info:

Spenning: 24, kW: 4,0, Antall/tann: 9, Rotasjon: CW

Beskrivelse

Start 24V-4.0kW passer for Volvo 24V - 4.0kW, 9k, Oljetettet A - 89mm, B - 48mm For Yourex produkt bestilling 91-600-1137 er Oljetettet!

Volt: 24
kW: 4.0
Monteringsflens: 89.00
Drivemål: 47.00
Monteringshull 3 mm: 11.00
Monteringshull 2 mm: 11.00
Monteringshull 1 mm: 11.00
Mål./bak: 237.00
Mål./frem: 96.00
Ant./tenner: 9
B+: M10
Posisjon/50: 45
Terminal 50: M4
Girtype: DD
Mål. 2: 90.00
Mål. 3: 90.00
Mål. mm: 127.00
Rotasjon: CW
Total lengde mm: 339.00
Drivetype: Stål
Prod. info: BN
Vannavstøtende: Nei
Oljeforseglet: Nei
Info: BOSCH OE 0001360036 ER OIL-SEALED. HC-CARGO 112132 ER IKKE!
Ant./monteringhull: 3 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 9
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 45
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 237.00
Dist./front 96.00
Drive dist. 47.00
Drive type Steel
Gear type DD
Info BOSCH OE 0001360036 IS OIL-SEALED. HC-CARGO 112132 IS NOT!
kW 4.0
Terminal 50 M4
Voltage 24
Total length 339.00 mm
Waterproof No
Dist. 127.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZJ 3277, azj3277, cs726, F032112132, LRS 796, 0001 360 023, 0001 360 036, 0001 368 030, 11.130.766, 91-600-1137, 0766, 0986 011 370, 11130 766, 243007, 0001360023, 0001360036, 0001368030, 3097086M91, 4785541, 4880691, 9004880691

  • Konkurrentreferens
    CST10614, drs1280, DRS1370, DRS1370N, is0766, lrs00796, MS319, S0804S, S9217(LETRIKA), STR50164, 8EA015642-421, 8ea731770-001, 45-0354, 88-11.370, 638.009.094, 4119, 8668, 10726, 19782N, 33898, 103444, 11011370, 0986011370, 0986011373

  • Bilmärken
    Volvo BM / Construction Equipment

  • NormaliseratArtNr
    azj3277, cs726, cst10614, drs1280, drs1370, drs1370n, f032112132, is0766, lrs00796, lrs796, ms319, s0804s, s9217letrika, str50164, 8ea015642421, 8ea731770001, 0766, 4119, 8668, 10726, 19782n, 33898, 103444, 243007, 450354, 0001360023, 0001360036, 0001368030, 3097086m91, 4785541, 4880691, 8811370, 11011370, 11130766, 638009094, 916001137, 0986011370, 0986011373, 9004880691

  • Passar modeller
    Åkerman / AAkermans Series: Grävmaskin Model: H 3, B, MB
    Valtra / Valmet Series: Traktor Model: 615
    Volvo BM / Construction Equipment Series: Grävlastare Model: 6300
    Volvo BM / Construction Equipment Series: Grävlastare Model: EL 70
    Volvo BM / Construction Equipment Series: Grävlastare Model: GM 616B Engine type: D 42
    Volvo BM / Construction Equipment Series: Grävlastare Model: GM 646 Engine type: TD 42
    Volvo BM / Construction Equipment Series: Industrimotor Model: D 45 Year: 06.83-06.94
    Volvo BM / Construction Equipment Series: Lastare Model: 4200 B Engine type: D 45
    Volvo BM / Construction Equipment Series: Lastare Model: 4300 Engine type: TD 42; TD 45
    Volvo BM / Construction Equipment Series: Lastare Model: 4400 Engine type: D 60 A Year: 01.76-06.79
    Volvo BM / Construction Equipment Series: Lastare Model: 4400 Engine volume: 5.5L Engine type: D 60 A Year: 01.76-06.79
    Volvo BM / Construction Equipment Series: Lastare Model: L 50 Engine type: D 45 B; TD 45 B
    Volvo BM / Construction Equipment Series: Lastare Model: L 70 Engine type: TD 45 B
    Volvo BM / Construction Equipment Series: Lastare Model: LM 621 Engine volume: 4.2 Engine type: D 42 A Year: 12.73-06.78
    Volvo BM / Construction Equipment Series: Lastare Model: LM 622 Engine volume: 4.2 Engine type: D 42
    Volvo BM / Construction Equipment Series: Lastare Model: LM 641 Engine volume: 4.2 Engine type: D 42 A Year: 09.70-06.78
    Volvo BM / Construction Equipment Series: Lastare Model: LM 642 Engine type: D 42
    Volvo BM / Construction Equipment Series: Lastare Model: LM 642 Engine type: D 45
    Volvo BM / Construction Equipment Series: Lastare Model: LM 841 Engine volume: 5.0 Engine type: D 50 B Year: 04.72-12.75
    Volvo BM / Construction Equipment Series: Lastare Model: LM 841 Engine volume: 5.5 Engine type: D 60 A Year: 01.76-06.78
    Volvo BM / Construction Equipment Series: Lastare Model: LM 845
    Volvo BM / Construction Equipment Series: Lastare Model: LM 845 Engine volume: 5.0 Engine type: D 50 B Year: 01.71-12.73
    Volvo BM / Construction Equipment Series: Lastare Model: LM 846 Engine volume: 5.0 Engine type: D 50 B Year: 05.72-12.75
    Volvo BM / Construction Equipment Series: Lastare Model: LM 846 Engine volume: 5.5 Engine type: D 60 A Year: 01.76-06.79
    Volvo BM / Construction Equipment Series: Skogsmaskin Model: SM 969 Engine type: D 70 B
    Volvo BM Model: Engine Model series: Engine Brand of engine: D45 From date: 01-06-1983 Fuel: Diesel Approved: Yes
    Volvo BM Model: LM Model series: LM 621 Size of motor: 4.0 Brand of engine: D42A From date: 01-09-1970 To date: 01-06-1978 Fuel: Diesel Approved: Yes
    Volvo BM Model: LM Model series: LM 641 Size of motor: 4.0 Brand of engine: D42A From date: 01-09-1970 To date: 01-06-1978 Fuel: Diesel Approved: Yes
    Volvo BM Model: LM Model series: LM 841 Size of motor: 5.0 Brand of engine: D50B From date: 01-04-1972 To date: 01-05-1975 Fuel: Diesel Approved: Yes
    Volvo BM Model: LM Model series: LM 845 Size of motor: 5.0 Brand of engine: D50B From date: 01-01-1971 To date: 01-12-1973 Fuel: Diesel Approved: Yes
    Volvo BM Model: LM Model series: LM 846 Size of motor: 5.0 Brand of engine: D50B From date: 01-05-1972 To date: 01-12-1975 Fuel: Diesel Approved: Yes
    1 / 7
  • Beskrivelse
    Start 24V-4.0kW passer for Volvo 24V - 4.0kW, 9k, Oljetettet A - 89mm, B - 48mm For Yourex produkt bestilling 91-600-1137 er Oljetettet!

    Volt: 24
    kW: 4.0
    Monteringsflens: 89.00
    Drivemål: 47.00
    Monteringshull 3 mm: 11.00
    Monteringshull 2 mm: 11.00
    Monteringshull 1 mm: 11.00
    Mål./bak: 237.00
    Mål./frem: 96.00
    Ant./tenner: 9
    B+: M10
    Posisjon/50: 45
    Terminal 50: M4
    Girtype: DD
    Mål. 2: 90.00
    Mål. 3: 90.00
    Mål. mm: 127.00
    Rotasjon: CW
    Total lengde mm: 339.00
    Drivetype: Stål
    Prod. info: BN
    Vannavstøtende: Nei
    Oljeforseglet: Nei
    Info: BOSCH OE 0001360036 ER OIL-SEALED. HC-CARGO 112132 ER IKKE!
    Ant./monteringhull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 9
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 45
    Prod. info BN
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 237.00
    Dist./front 96.00
    Drive dist. 47.00
    Drive type Steel
    Gear type DD
    Info BOSCH OE 0001360036 IS OIL-SEALED. HC-CARGO 112132 IS NOT!
    kW 4.0
    Terminal 50 M4
    Voltage 24
    Total length 339.00 mm
    Waterproof No
    Dist. 127.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      AZJ 3277, azj3277, cs726, F032112132, LRS 796, 0001 360 023, 0001 360 036, 0001 368 030, 11.130.766, 91-600-1137, 0766, 0986 011 370, 11130 766, 243007, 0001360023, 0001360036, 0001368030, 3097086M91, 4785541, 4880691, 9004880691

    • Konkurrentreferens
      CST10614, drs1280, DRS1370, DRS1370N, is0766, lrs00796, MS319, S0804S, S9217(LETRIKA), STR50164, 8EA015642-421, 8ea731770-001, 45-0354, 88-11.370, 638.009.094, 4119, 8668, 10726, 19782N, 33898, 103444, 11011370, 0986011370, 0986011373

    • Bilmärken
      Volvo BM / Construction Equipment

    • NormaliseratArtNr
      azj3277, cs726, cst10614, drs1280, drs1370, drs1370n, f032112132, is0766, lrs00796, lrs796, ms319, s0804s, s9217letrika, str50164, 8ea015642421, 8ea731770001, 0766, 4119, 8668, 10726, 19782n, 33898, 103444, 243007, 450354, 0001360023, 0001360036, 0001368030, 3097086m91, 4785541, 4880691, 8811370, 11011370, 11130766, 638009094, 916001137, 0986011370, 0986011373, 9004880691

    • Passar modeller
      Åkerman / AAkermans Series: Grävmaskin Model: H 3, B, MB
      Valtra / Valmet Series: Traktor Model: 615
      Volvo BM / Construction Equipment Series: Grävlastare Model: 6300
      Volvo BM / Construction Equipment Series: Grävlastare Model: EL 70
      Volvo BM / Construction Equipment Series: Grävlastare Model: GM 616B Engine type: D 42
      Volvo BM / Construction Equipment Series: Grävlastare Model: GM 646 Engine type: TD 42
      Volvo BM / Construction Equipment Series: Industrimotor Model: D 45 Year: 06.83-06.94
      Volvo BM / Construction Equipment Series: Lastare Model: 4200 B Engine type: D 45
      Volvo BM / Construction Equipment Series: Lastare Model: 4300 Engine type: TD 42; TD 45
      Volvo BM / Construction Equipment Series: Lastare Model: 4400 Engine type: D 60 A Year: 01.76-06.79
      Volvo BM / Construction Equipment Series: Lastare Model: 4400 Engine volume: 5.5L Engine type: D 60 A Year: 01.76-06.79
      Volvo BM / Construction Equipment Series: Lastare Model: L 50 Engine type: D 45 B; TD 45 B
      Volvo BM / Construction Equipment Series: Lastare Model: L 70 Engine type: TD 45 B
      Volvo BM / Construction Equipment Series: Lastare Model: LM 621 Engine volume: 4.2 Engine type: D 42 A Year: 12.73-06.78
      Volvo BM / Construction Equipment Series: Lastare Model: LM 622 Engine volume: 4.2 Engine type: D 42
      Volvo BM / Construction Equipment Series: Lastare Model: LM 641 Engine volume: 4.2 Engine type: D 42 A Year: 09.70-06.78
      Volvo BM / Construction Equipment Series: Lastare Model: LM 642 Engine type: D 42
      Volvo BM / Construction Equipment Series: Lastare Model: LM 642 Engine type: D 45
      Volvo BM / Construction Equipment Series: Lastare Model: LM 841 Engine volume: 5.0 Engine type: D 50 B Year: 04.72-12.75
      Volvo BM / Construction Equipment Series: Lastare Model: LM 841 Engine volume: 5.5 Engine type: D 60 A Year: 01.76-06.78
      Volvo BM / Construction Equipment Series: Lastare Model: LM 845
      Volvo BM / Construction Equipment Series: Lastare Model: LM 845 Engine volume: 5.0 Engine type: D 50 B Year: 01.71-12.73
      Volvo BM / Construction Equipment Series: Lastare Model: LM 846 Engine volume: 5.0 Engine type: D 50 B Year: 05.72-12.75
      Volvo BM / Construction Equipment Series: Lastare Model: LM 846 Engine volume: 5.5 Engine type: D 60 A Year: 01.76-06.79
      Volvo BM / Construction Equipment Series: Skogsmaskin Model: SM 969 Engine type: D 70 B
      Volvo BM Model: Engine Model series: Engine Brand of engine: D45 From date: 01-06-1983 Fuel: Diesel Approved: Yes
      Volvo BM Model: LM Model series: LM 621 Size of motor: 4.0 Brand of engine: D42A From date: 01-09-1970 To date: 01-06-1978 Fuel: Diesel Approved: Yes
      Volvo BM Model: LM Model series: LM 641 Size of motor: 4.0 Brand of engine: D42A From date: 01-09-1970 To date: 01-06-1978 Fuel: Diesel Approved: Yes
      Volvo BM Model: LM Model series: LM 841 Size of motor: 5.0 Brand of engine: D50B From date: 01-04-1972 To date: 01-05-1975 Fuel: Diesel Approved: Yes
      Volvo BM Model: LM Model series: LM 845 Size of motor: 5.0 Brand of engine: D50B From date: 01-01-1971 To date: 01-12-1973 Fuel: Diesel Approved: Yes
      Volvo BM Model: LM Model series: LM 846 Size of motor: 5.0 Brand of engine: D50B From date: 01-05-1972 To date: 01-12-1975 Fuel: Diesel Approved: Yes
