Varenr.: F032112131

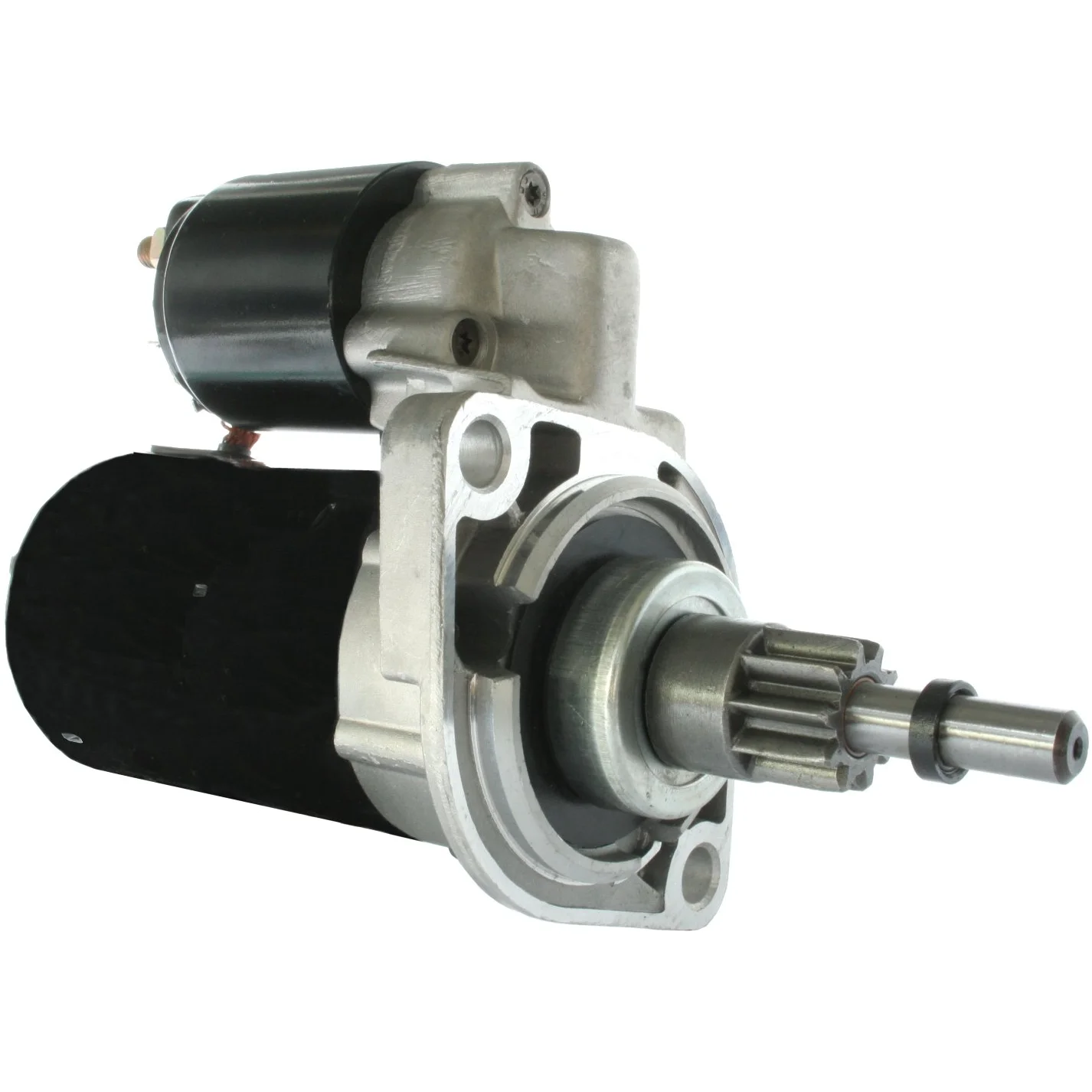

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, Kullbørstesett: 1,4, Antall/tann: 10, Rotasjon: CCW

Beskrivelse

Spenningsnivå: 12
kW: 1.4
Monteringsflens: 76.00
Dreiedybde: 52.00
Monteringshull 2 mm: 12.40
Monteringshull 1 mm: 12.40
Dybde/bak: 140.00
Dybde/frem: 91.00
Antall/tannhjul: 10
B+: M8
Posisjon/15a: 45
Terminal 15a: 6.30
Posisjon/50: 15
Terminal 50: 6.30
Girtype: GR
Dybde mm: 111.00
Rotasjon: Mot klokka
Total lengde mm: 244.00
Drevtype: Stål
Prod. info: BN
Vanntett: Nei
Oljelukket: Nei
Merknader: Bøssing D.E. (clutch house): HC-CARGO 140018.
Antall/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 76.00
Oil sealed No
No./mount. holes 2 (0)
Position/15a 45
Position/50 15
Prod. info BN
Remarks Bushing D.E. (clutch house): HC-CARGO 140018.
Rotation CCW
Dist./back 140.00
Dist./front 91.00
Drive dist. 52.00
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 6.30
Voltage 12
Total length 244.00 mm
Waterproof No
Dist. 111.00 mm
Terminal 15A 6.30 mm
Mount. hole 2 12.40 mm
Mount. hole 1 12.40 mm

  • OEM
    aze2558, cs601, F032112131, RGO 112131, 02a911023d, 02A911023DX, 02a911023e, 02A911023EX, 02A911203, 11.130.845, 0001107003, 0001107004, 0001108076, 0001108077, 9141410

  • Konkurrentreferens
    drs4820, drs6110, F042002018, F042S02018, is0845, lrs00731, MS227, QS1925, S0083, SR0412X, STR-2020, STR2020, 2-1374-BO, 2-1376-BO, 8EA012527-051, 8ea730171-001, 8ea730184-001, 26-1323, 26-1359, 41-14.820, 41-16.110, 311.128.102, 311.129.102, 311.224.102, 3634, 4082, 10601, 10614, 11657, 11690, 16557, 17223, 17223N, 17223R, 220113, 220113A, 438418, 455673, 455942, 8014820, 8016110, 11016110, 42016110, 943251435, 0986014827, 0986016110, 0986016117, 943251435010, 944280161100

  • NormaliseratArtNr
    aze2558, cs601, drs4820, drs6110, f032112131, f042002018, f042s02018, is0845, lrs00731, ms227, qs1925, rgo112131, s0083, sr0412x, str2020, 02a911023d, 02a911023dx, 02a911023e, 02a911023ex, 02a911203, 8ea012527051, 8ea730171001, 8ea730184001, 3634, 4082, 10601, 10614, 11657, 11690, 16557, 17223, 17223n, 17223r, 21374bo, 21376bo, 220113, 220113a, 261323, 261359, 438418, 455673, 455942, 0001107003, 0001107004, 0001108076, 0001108077, 4114820, 4116110, 8014820, 8016110, 9141410, 11016110, 11130845, 42016110, 311128102, 311129102, 311224102, 943251435, 0986014827, 0986016110, 0986016117, 943251435010, 944280161100

  • Passar modeller
    VW Model: Corrado Model series: Corrado Type of engine: 16V Size of motor: 1.8 Brand of engine: KR Body: Coupe From date: 01-04-1989 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Corrado Model series: Corrado Type of engine: G60 Size of motor: 1.8 Brand of engine: PG Body: Coupe From date: 01-09-1988 To date: 01-09-1993 Fuel: Gasoline Approved: Yes
    VW Model: Corrado Model series: Corrado Type of engine: Super Size of motor: 1.8 Brand of engine: PG From date: 01-01-1991 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf II Model type: Syncro Type of engine: G60 Size of motor: 1.8 Brand of engine: 1H Body: Hatchback From date: 01-08-1988 To date: 01-12-1991 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf II Model type: Syncro Type of engine: G60 Size of motor: 1.8 Brand of engine: PG Body: Hatchback From date: 01-08-1988 To date: 01-12-1991 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf II Type of engine: G60 GTi Size of motor: 1.8 Brand of engine: PG Body: Hatchback From date: 01-04-1990 To date: 01-07-1991 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf II Type of engine: GTi 16V Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1990 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
    VW Model: Jetta Model series: Jetta Model type: GLi Type of engine: 16V Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1990 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
    VW Model: Jetta Model series: Jetta Model type: GTX Type of engine: 16V Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1990 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Model type: GL Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1990 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Model type: GL Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1991 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Model type: GT Type of engine: 16V Size of motor: 2.0 Brand of engine: 9A From date: 01-08-1988 To date: 01-09-1993 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Model type: Syncro Size of motor: 2.0 Brand of engine: 2E Type description: 315, 3A5 Body: Box Body / Estate From date: 01-09-1989 To date: 01-10-1993 Fuel: Petrol Approved: Yes
    VW Model: Passat Model series: Passat Model type: Syncro Size of motor: 2.0 Brand of engine: 2E Type description: 3A2, 35I From date: 01-10-1990 To date: 01-08-1996 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Model type: Syncro Size of motor: 2.0 Brand of engine: 2E Type description: 3A5, 35I Body: Estate From date: 01-10-1990 To date: 01-05-1997 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Model type: Syncro Type of engine: G60 Size of motor: 1.8 Brand of engine: PG Body: Estate From date: 01-08-1988 To date: 01-05-1997 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Model type: Syncro Type of engine: G60 Size of motor: 1.8 Brand of engine: PG From date: 01-08-1988 To date: 01-08-1996 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: ABN From date: 01-04-1988 To date: 01-07-1991 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: EZ Type description: 3A5, 35I Body: Estate From date: 01-04-1988 To date: 01-07-1989 Fuel: Gasoline Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: AAM From date: 01-08-1990 To date: 01-08-1996 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: AAM Type description: 315, 3A5 Body: Box Body / Estate From date: 01-10-1993 To date: 01-12-1996 Fuel: Petrol Approved: Yes
    VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: AAM Type description: 3A5, 35 Body: Estate From date: 01-08-1990 To date: 01-05-1997 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: RP From date: 01-02-1988 To date: 01-08-1996 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: RP Type description: 3A5, 35 Body: Estate From date: 01-02-1988 To date: 01-05-1997 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Size of motor: 2.0 Brand of engine: 2E From date: 01-02-1990 To date: 01-08-1996 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Size of motor: 2.0 Brand of engine: 2E Type description: 315, 3A5 Body: Box Body / Estate From date: 01-08-1991 To date: 01-12-1995 Fuel: Petrol Approved: Yes
    VW Model: Passat Model series: Passat Size of motor: 2.0 Brand of engine: 2E Type description: 3A5, 35 Body: Estate From date: 01-02-1990 To date: 01-05-1997 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1990 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: 16V Size of motor: 1.8 Brand of engine: KR Body: Estate From date: 01-04-1988 To date: 01-12-1989 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: 16V Size of motor: 1.8 Brand of engine: KR From date: 01-04-1988 To date: 01-12-1989 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: 16V Size of motor: 2.0 Brand of engine: 9A Type description: 3A5, 35 Body: Estate From date: 01-08-1988 To date: 01-09-1993 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    1 / 7
  • Beskrivelse
    Spenningsnivå: 12
    kW: 1.4
    Monteringsflens: 76.00
    Dreiedybde: 52.00
    Monteringshull 2 mm: 12.40
    Monteringshull 1 mm: 12.40
    Dybde/bak: 140.00
    Dybde/frem: 91.00
    Antall/tannhjul: 10
    B+: M8
    Posisjon/15a: 45
    Terminal 15a: 6.30
    Posisjon/50: 15
    Terminal 50: 6.30
    Girtype: GR
    Dybde mm: 111.00
    Rotasjon: Mot klokka
    Total lengde mm: 244.00
    Drevtype: Stål
    Prod. info: BN
    Vanntett: Nei
    Oljelukket: Nei
    Merknader: Bøssing D.E. (clutch house): HC-CARGO 140018.
    Antall/monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 10
    Mount. flange 76.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/15a 45
    Position/50 15
    Prod. info BN
    Remarks Bushing D.E. (clutch house): HC-CARGO 140018.
    Rotation CCW
    Dist./back 140.00
    Dist./front 91.00
    Drive dist. 52.00
    Drive type Steel
    Gear type GR
    kW 1.4
    Terminal 50 6.30
    Voltage 12
    Total length 244.00 mm
    Waterproof No
    Dist. 111.00 mm
    Terminal 15A 6.30 mm
    Mount. hole 2 12.40 mm
    Mount. hole 1 12.40 mm
  • Kjøretøymatching

    • OEM
      aze2558, cs601, F032112131, RGO 112131, 02a911023d, 02A911023DX, 02a911023e, 02A911023EX, 02A911203, 11.130.845, 0001107003, 0001107004, 0001108076, 0001108077, 9141410

    • Konkurrentreferens
      drs4820, drs6110, F042002018, F042S02018, is0845, lrs00731, MS227, QS1925, S0083, SR0412X, STR-2020, STR2020, 2-1374-BO, 2-1376-BO, 8EA012527-051, 8ea730171-001, 8ea730184-001, 26-1323, 26-1359, 41-14.820, 41-16.110, 311.128.102, 311.129.102, 311.224.102, 3634, 4082, 10601, 10614, 11657, 11690, 16557, 17223, 17223N, 17223R, 220113, 220113A, 438418, 455673, 455942, 8014820, 8016110, 11016110, 42016110, 943251435, 0986014827, 0986016110, 0986016117, 943251435010, 944280161100

    • NormaliseratArtNr
      aze2558, cs601, drs4820, drs6110, f032112131, f042002018, f042s02018, is0845, lrs00731, ms227, qs1925, rgo112131, s0083, sr0412x, str2020, 02a911023d, 02a911023dx, 02a911023e, 02a911023ex, 02a911203, 8ea012527051, 8ea730171001, 8ea730184001, 3634, 4082, 10601, 10614, 11657, 11690, 16557, 17223, 17223n, 17223r, 21374bo, 21376bo, 220113, 220113a, 261323, 261359, 438418, 455673, 455942, 0001107003, 0001107004, 0001108076, 0001108077, 4114820, 4116110, 8014820, 8016110, 9141410, 11016110, 11130845, 42016110, 311128102, 311129102, 311224102, 943251435, 0986014827, 0986016110, 0986016117, 943251435010, 944280161100

    • Passar modeller
      VW Model: Corrado Model series: Corrado Type of engine: 16V Size of motor: 1.8 Brand of engine: KR Body: Coupe From date: 01-04-1989 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
      VW Model: Corrado Model series: Corrado Type of engine: G60 Size of motor: 1.8 Brand of engine: PG Body: Coupe From date: 01-09-1988 To date: 01-09-1993 Fuel: Gasoline Approved: Yes
      VW Model: Corrado Model series: Corrado Type of engine: Super Size of motor: 1.8 Brand of engine: PG From date: 01-01-1991 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
      VW Model: Golf Model series: Golf II Model type: Syncro Type of engine: G60 Size of motor: 1.8 Brand of engine: 1H Body: Hatchback From date: 01-08-1988 To date: 01-12-1991 Fuel: Gasoline Approved: Yes
      VW Model: Golf Model series: Golf II Model type: Syncro Type of engine: G60 Size of motor: 1.8 Brand of engine: PG Body: Hatchback From date: 01-08-1988 To date: 01-12-1991 Fuel: Gasoline Approved: Yes
      VW Model: Golf Model series: Golf II Type of engine: G60 GTi Size of motor: 1.8 Brand of engine: PG Body: Hatchback From date: 01-04-1990 To date: 01-07-1991 Fuel: Gasoline Approved: Yes
      VW Model: Golf Model series: Golf II Type of engine: GTi 16V Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1990 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
      VW Model: Jetta Model series: Jetta Model type: GLi Type of engine: 16V Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1990 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
      VW Model: Jetta Model series: Jetta Model type: GTX Type of engine: 16V Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1990 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Model type: GL Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1990 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Model type: GL Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1991 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Model type: GT Type of engine: 16V Size of motor: 2.0 Brand of engine: 9A From date: 01-08-1988 To date: 01-09-1993 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Model type: Syncro Size of motor: 2.0 Brand of engine: 2E Type description: 315, 3A5 Body: Box Body / Estate From date: 01-09-1989 To date: 01-10-1993 Fuel: Petrol Approved: Yes
      VW Model: Passat Model series: Passat Model type: Syncro Size of motor: 2.0 Brand of engine: 2E Type description: 3A2, 35I From date: 01-10-1990 To date: 01-08-1996 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Model type: Syncro Size of motor: 2.0 Brand of engine: 2E Type description: 3A5, 35I Body: Estate From date: 01-10-1990 To date: 01-05-1997 Fuel: Gasoline Approved: Yes Manufacture type: Variant
      VW Model: Passat Model series: Passat Model type: Syncro Type of engine: G60 Size of motor: 1.8 Brand of engine: PG Body: Estate From date: 01-08-1988 To date: 01-05-1997 Fuel: Gasoline Approved: Yes Manufacture type: Variant
      VW Model: Passat Model series: Passat Model type: Syncro Type of engine: G60 Size of motor: 1.8 Brand of engine: PG From date: 01-08-1988 To date: 01-08-1996 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: ABN From date: 01-04-1988 To date: 01-07-1991 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Size of motor: 1.6 Brand of engine: EZ Type description: 3A5, 35I Body: Estate From date: 01-04-1988 To date: 01-07-1989 Fuel: Gasoline Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: AAM From date: 01-08-1990 To date: 01-08-1996 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: AAM Type description: 315, 3A5 Body: Box Body / Estate From date: 01-10-1993 To date: 01-12-1996 Fuel: Petrol Approved: Yes
      VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: AAM Type description: 3A5, 35 Body: Estate From date: 01-08-1990 To date: 01-05-1997 Fuel: Gasoline Approved: Yes Manufacture type: Variant
      VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: RP From date: 01-02-1988 To date: 01-08-1996 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Size of motor: 1.8 Brand of engine: RP Type description: 3A5, 35 Body: Estate From date: 01-02-1988 To date: 01-05-1997 Fuel: Gasoline Approved: Yes Manufacture type: Variant
      VW Model: Passat Model series: Passat Size of motor: 2.0 Brand of engine: 2E From date: 01-02-1990 To date: 01-08-1996 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Size of motor: 2.0 Brand of engine: 2E Type description: 315, 3A5 Body: Box Body / Estate From date: 01-08-1991 To date: 01-12-1995 Fuel: Petrol Approved: Yes
      VW Model: Passat Model series: Passat Size of motor: 2.0 Brand of engine: 2E Type description: 3A5, 35 Body: Estate From date: 01-02-1990 To date: 01-05-1997 Fuel: Gasoline Approved: Yes Manufacture type: Variant
      VW Model: Passat Model series: Passat Size of motor: 2.0 Brand of engine: 9A From date: 01-01-1990 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: 16V Size of motor: 1.8 Brand of engine: KR Body: Estate From date: 01-04-1988 To date: 01-12-1989 Fuel: Gasoline Approved: Yes Manufacture type: Variant
      VW Model: Passat Model series: Passat Type of engine: 16V Size of motor: 1.8 Brand of engine: KR From date: 01-04-1988 To date: 01-12-1989 Fuel: Gasoline Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: 16V Size of motor: 2.0 Brand of engine: 9A Type description: 3A5, 35 Body: Estate From date: 01-08-1988 To date: 01-09-1993 Fuel: Gasoline Approved: Yes Manufacture type: Variant
