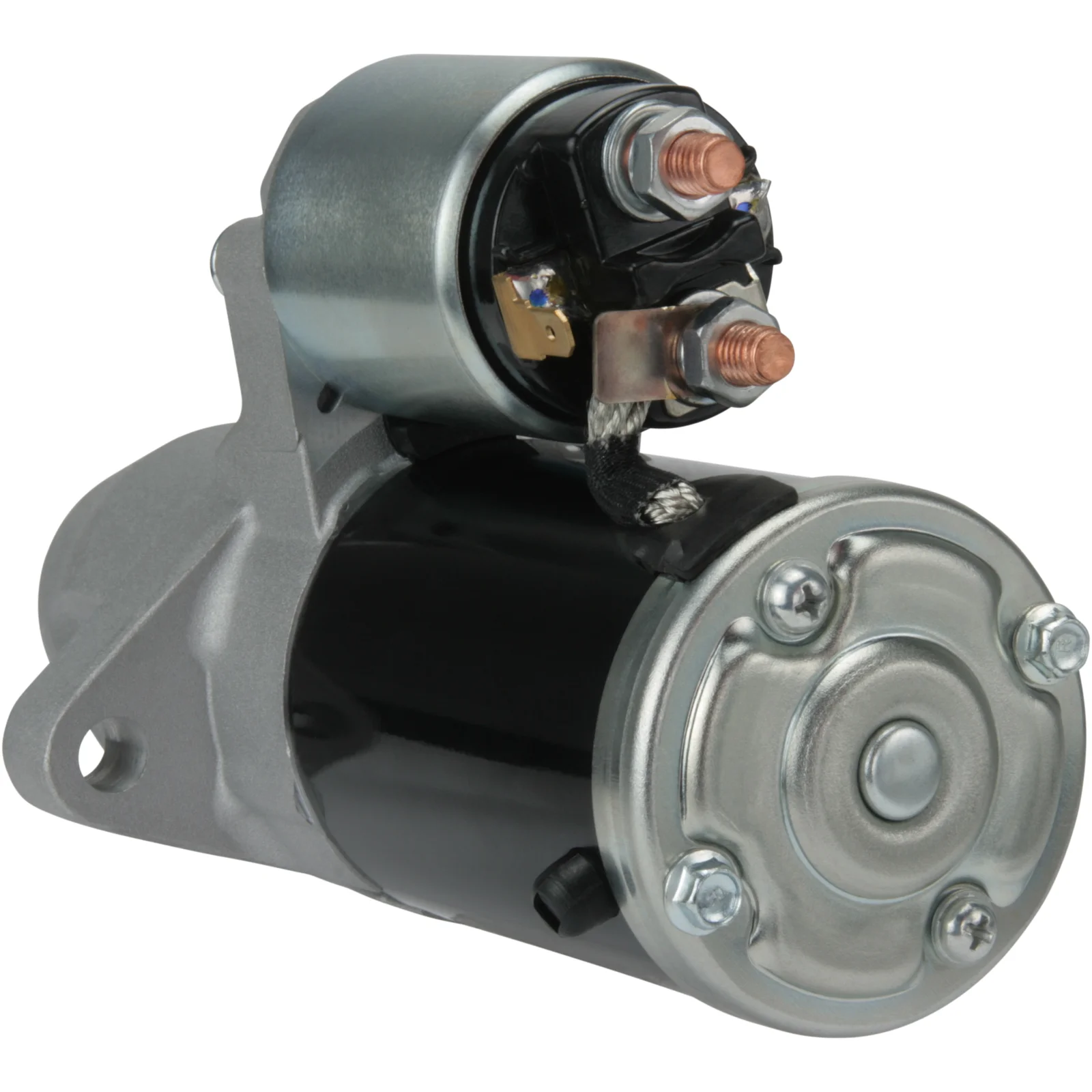

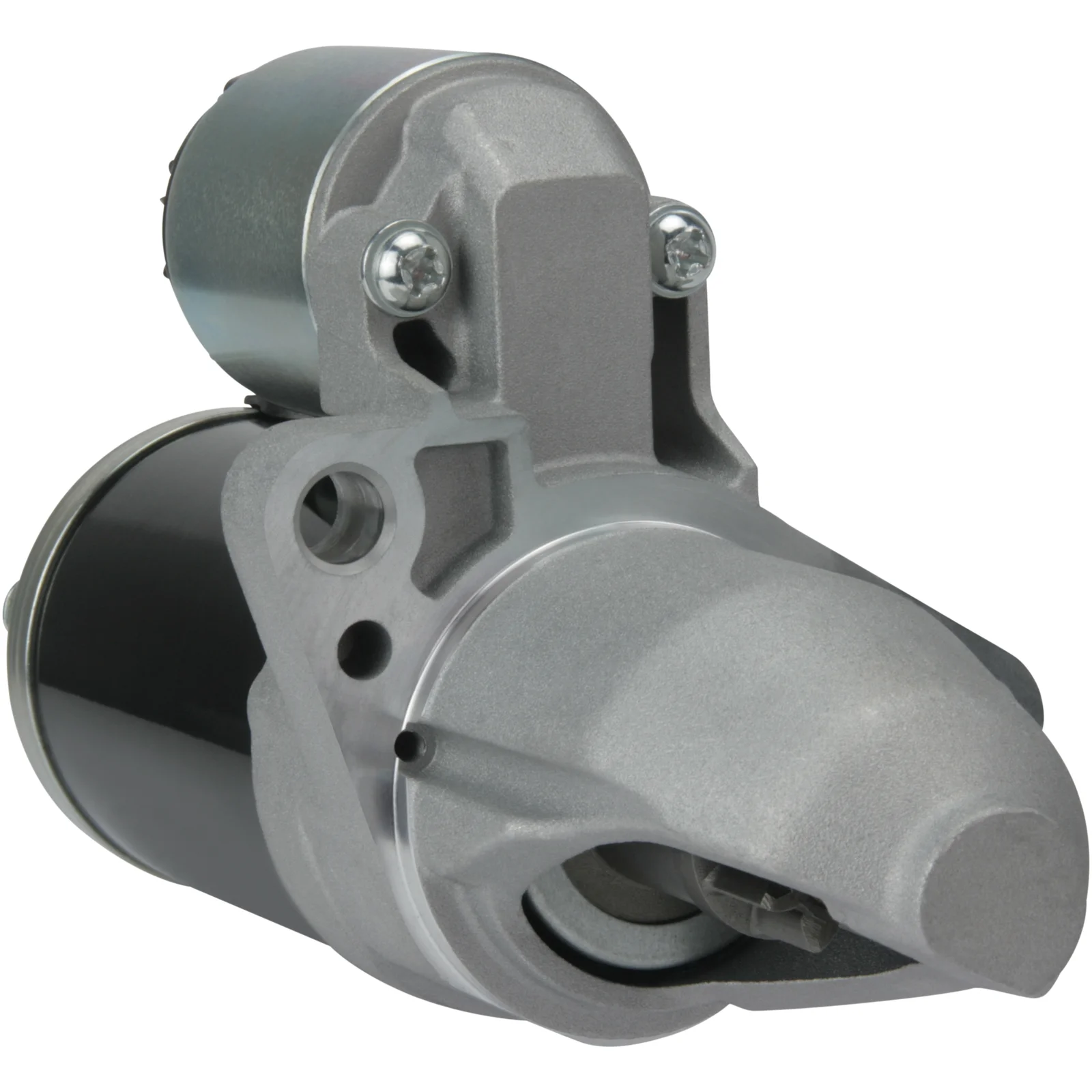

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114487

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 1.0, Antall/tenner: 8, Rotasjon: CCW

Beskrivelse

Spenningsverdi: 12
kW: 1.0
Mønsterflens: 65.00
Driveavstand: 52.00
Monteringshull 2 mm: 11.00
Monteringshull 1 mm: 10.80
Avstand/bak: 131.50
Avstand/frem: 86.00
Nummer/tannhjul: 8
B+: M8
Posisjon/50: 45
Terminal 50: 6.30
Gavetype: DD
Avstand mm: 97.00
Rotasjon: CCW
Total lengde mm: 217.50
Prod. info: BN
Nummer/montasjöhull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 8
Mount. flange 65.00
No./mount. holes 2 (0)
Position/50 45
Prod. info BN
Rotation CCW
Dist./back 131.50
Dist./front 86.00
Drive dist. 52.00
Gear type DD
kW 1.0
Terminal 50 6.30
Voltage 12
Total length 217.50 mm
Dist. 97.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 10.80 mm

  • OEM
    A 132 151 00 01, a1321510001, A1321510001005, cs1452, CS1452, CST35255, DRS0484, F032114487, LRS02552, M000T46171, M000T46171AM, M000T46171ZT, M0T46171, M0T46171AM, m0t46171zt, M0T46171ZT, RGO 114487, S5212, 8EA012528-721, 8EA738259-151, 8EA738259-401, 25-4224, 325.065.082, 550.567.082, 1810a104, 1810A104, 1986S01258, 19624N, 101452, 220896, 220896A, 438425, 458772, 11090211, 42024700, 0986024700, 1321510001

  • Konkurrentreferens
    CST35255, DRS0484, LRS02552, S5212, 8EA012528-721, 8EA738259-151, 8EA738259-401, 25-4224, 325.065.082, 550.567.082, 19624N, 101452, 220896, 220896A, 438425, 458772, 11090211, 42024700, 0986024700

  • Bilmärken
    SMART

  • NormaliseratArtNr
    a1321510001, a1321510001005, cs1452, cst35255, drs0484, f032114487, lrs02552, m000t46171, m000t46171am, m000t46171zt, m0t46171, m0t46171am, m0t46171zt, rgo114487, s5212, 8ea012528721, 8ea738259151, 8ea738259401, 1810a104, 1986s01258, 19624n, 101452, 220896, 220896a, 254224, 438425, 458772, 11090211, 42024700, 325065082, 550567082, 0986024700, 1321510001

  • Passar modeller
    SMART FORTWO Cabrio (451) 1.0 (451.431, 451.480) Engine volume: 1.0 Engine type: M 132.910 Year: 01.07-
    SMART FORTWO Cabrio (451) 1.0 Brabus (451.433) Engine volume: 1.0 Engine type: M 132.930 Year: 01.08-
    SMART FORTWO Cabrio (451) 1.0 Brabus Engine volume: 1.0 Engine type: M 132.930 Year: 04.12-
    SMART FORTWO Cabrio (451) 1.0 Turbo (451.432) Engine volume: 1.0 Engine type: M 132.930 Year: 01.07-
    SMART FORTWO Cabrio (451) 1.0 Turbo Brabus (451.433) Engine volume: 1.0 Engine type: M 132.930 Year: 07.10-
    SMART FORTWO Coupé (451) 1.0 (451.330, 451.334) Engine volume: 1.0 Engine type: M 132.910 Year: 01.07-
    SMART FORTWO Coupé (451) 1.0 (451.331, 451.380) Engine volume: 1.0 Engine type: M 132.910 Year: 01.07-
    SMART FORTWO Coupé (451) 1.0 Brabus (451.333) Engine volume: 1.0 Engine type: M 132.930 Year: 01.08-
    SMART FORTWO Coupé (451) 1.0 Turbo (451.332) Engine volume: 1.0 Engine type: M 132.930 Year: 01.07-
    SMART FORTWO Coupé (451) 1.0 Turbo Brabus (451.333) Engine volume: 1.0 Engine type: M 132.930 Year: 07.10-
