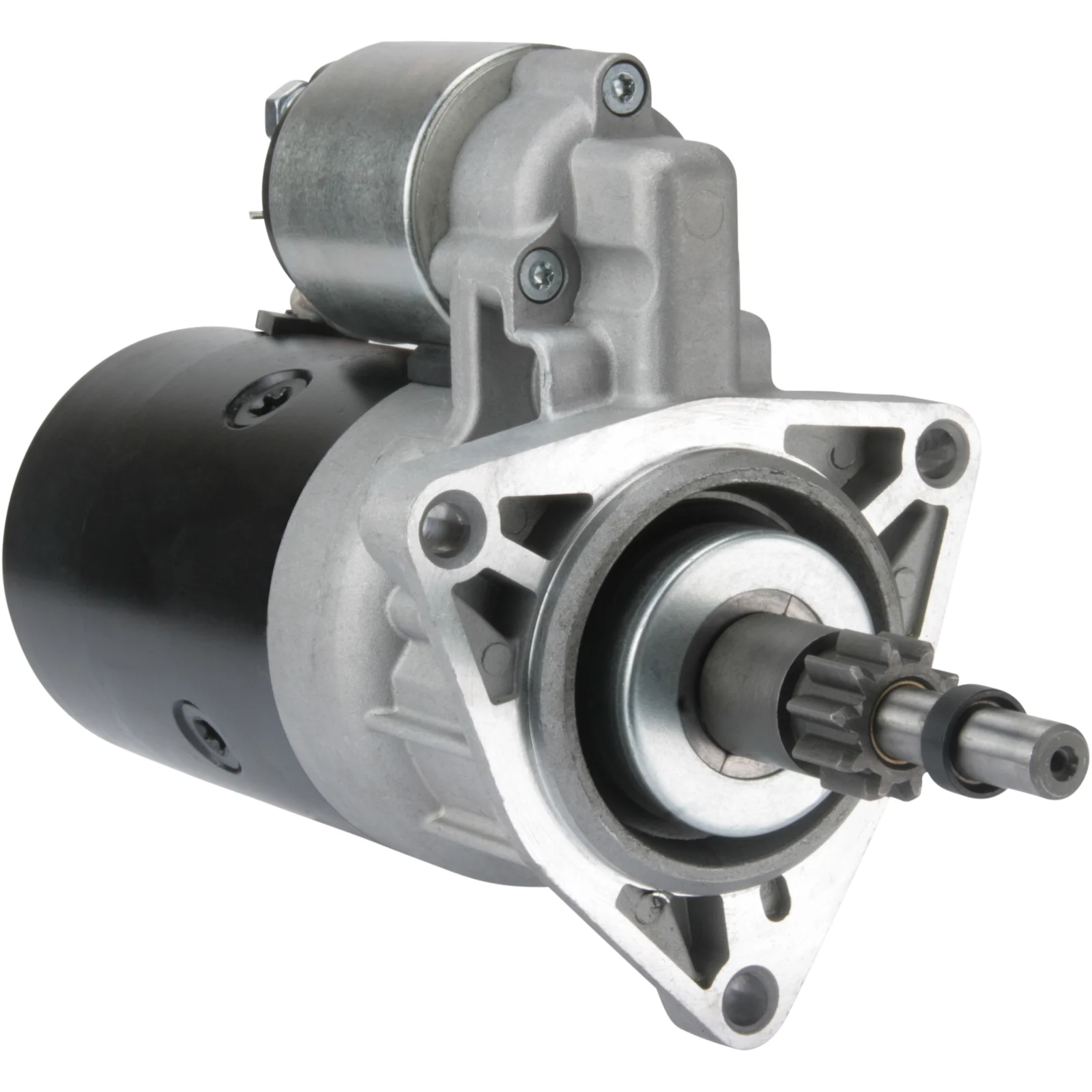

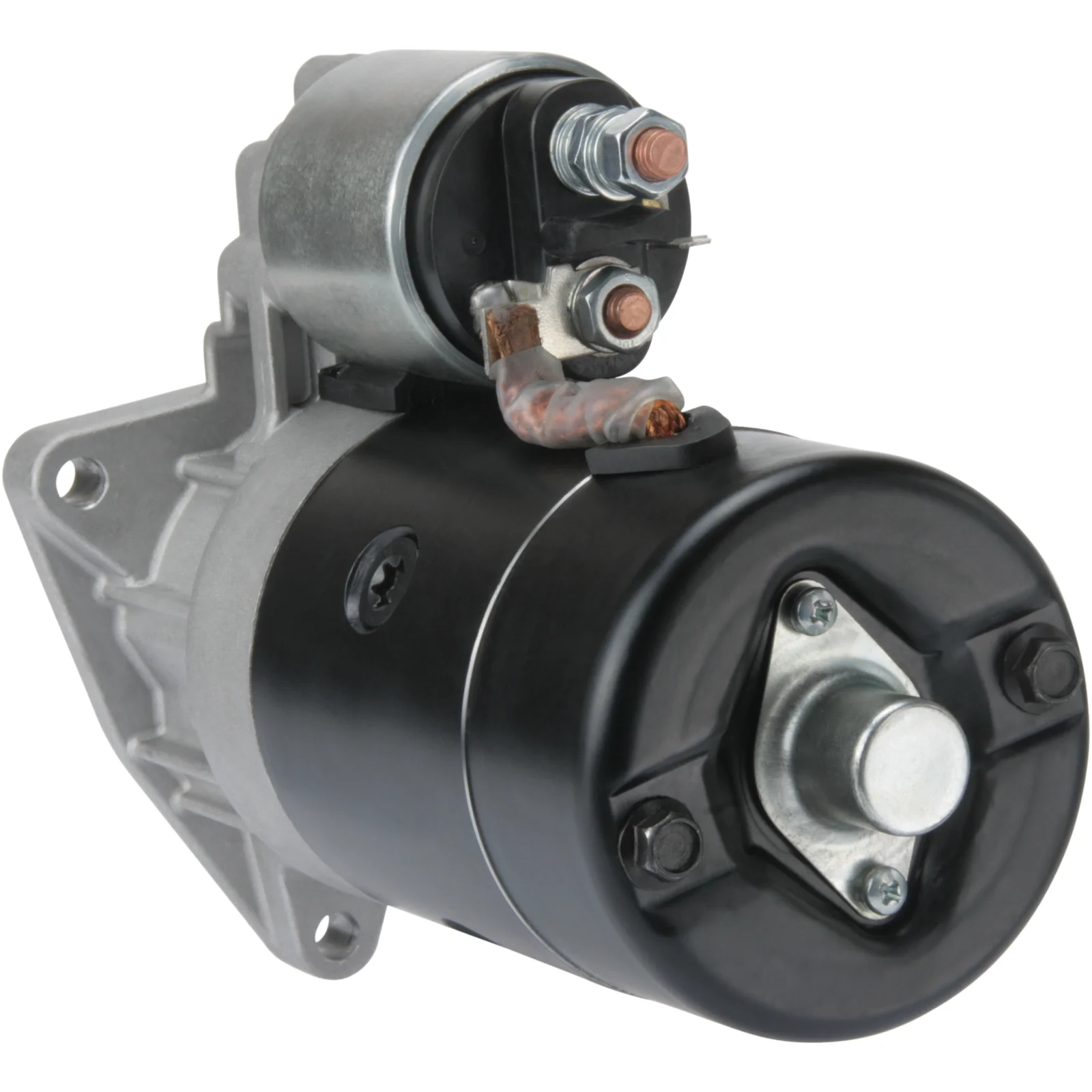

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032112052

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 2,2, Antalltenner: 10, Rotasjon: CCW

Beskrivelse

Spenning: 12
kW: 2.2
Festebrakse: 76.00
Drevavstand: 52.00
Festebore 3 mm: 9.00
Festebore 2 mm: 9.00
Festebore 1 mm: 9.00
Avstand/bak: 192.00
Avstand/frem: 91.00
Nummer/tænder: 10
B+: M8
posisjon/50: 15
Terminal 50: 6.30
Gavltype: GR
Avstand 2: 106.00
Avstand 3: 101.00
Avstand mm: 101.00
Rotasjon: mot klokken
Total lengde mm: 294.00
Drevtype: Stål
Prod. info: BN
Vannbestandig: Nei
Olje forseglet: Nei
Merknader: Bøssing D.E. (clutch house): HC-CARGO 140018.
Nummer/festeborher: 3 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 76.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 15
Prod. info BN
Dist. 2 106.00
Remarks Bushing D.E. (clutch house): HC-CARGO 140018.
Dist. 3 101.00
Rotation CCW
Dist./back 192.00
Dist./front 91.00
Drive dist. 52.00
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 294.00 mm
Waterproof No
Dist. 101.00 mm
Mount. hole 3 9.00 mm
Mount. hole 2 9.00 mm
Mount. hole 1 9.00 mm

  • OEM
    cs599, F032112052, RGO 112052, 02b911023a, 02B911023AX, 0001218116, 0001218117, 1516783R, 9000331427

  • Konkurrentreferens
    CST10357, drs6340, F042S0H037, lrs00893, QS2074, S0142, STR-H037, STR50145, 8EA012526-581, 8ea726223-001, 25-1361, 41-16.340, 311.051.102, 1457, 3812, 9593, 10599, 11719, 17234, 17234N, 201126, 220035, 220035A, 455629, 726111, 726911, 8016340, 11016340, 35259480, 42016340, 943251226, 0986016340, 943251226010, 944280163400

  • NormaliseratArtNr
    cs599, cst10357, drs6340, f032112052, f042s0h037, lrs00893, qs2074, rgo112052, s0142, str50145, strh037, 02b911023a, 02b911023ax, 8ea012526581, 8ea726223001, 1457, 3812, 9593, 10599, 11719, 17234, 17234n, 201126, 220035, 220035a, 251361, 455629, 726111, 726911, 0001218116, 0001218117, 1516783r, 4116340, 8016340, 11016340, 35259480, 42016340, 311051102, 943251226, 0986016340, 9000331427, 943251226010, 944280163400

  • Passar modeller
    VW Model: Eurovan Model series: Eurovan Model type: CL Size of motor: 2.4 Brand of engine: AAB From date: 01-01-1993 Fuel: Diesel Approved: Yes
    VW Model: Eurovan Model series: Eurovan Model type: CV Size of motor: 2.4 Brand of engine: AAB From date: 01-01-1993 To date: 01-01-1994 Fuel: Diesel Approved: Yes
    VW Model: Eurovan Model series: Eurovan Model type: GL Size of motor: 2.4 Brand of engine: AAB From date: 01-01-1993 Fuel: Diesel Approved: Yes
    VW Model: Eurovan Model series: Eurovan Model type: GLS Size of motor: 2.4 Brand of engine: AAB From date: 01-01-1994 To date: 01-01-1995 Fuel: Diesel Approved: Yes
    VW Model: Eurovan Model series: Eurovan Size of motor: 2.4 Brand of engine: AAB From date: 01-01-1993 To date: 01-01-1996 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.8 Brand of engine: AES Type description: 70XD Body: Platform / Chassis From date: 01-05-1996 To date: 01-05-2000 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Bus From date: 01-10-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Platform / Chassis From date: 01-10-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Van From date: 01-10-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Bus From date: 01-09-1990 To date: 01-04-1998 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Platform / Chassis From date: 01-09-1990 To date: 01-04-1998 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Van From date: 01-07-1990 To date: 01-04-1998 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Spenning: 12
    kW: 2.2
    Festebrakse: 76.00
    Drevavstand: 52.00
    Festebore 3 mm: 9.00
    Festebore 2 mm: 9.00
    Festebore 1 mm: 9.00
    Avstand/bak: 192.00
    Avstand/frem: 91.00
    Nummer/tænder: 10
    B+: M8
    posisjon/50: 15
    Terminal 50: 6.30
    Gavltype: GR
    Avstand 2: 106.00
    Avstand 3: 101.00
    Avstand mm: 101.00
    Rotasjon: mot klokken
    Total lengde mm: 294.00
    Drevtype: Stål
    Prod. info: BN
    Vannbestandig: Nei
    Olje forseglet: Nei
    Merknader: Bøssing D.E. (clutch house): HC-CARGO 140018.
    Nummer/festeborher: 3 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 10
    Mount. flange 76.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 15
    Prod. info BN
    Dist. 2 106.00
    Remarks Bushing D.E. (clutch house): HC-CARGO 140018.
    Dist. 3 101.00
    Rotation CCW
    Dist./back 192.00
    Dist./front 91.00
    Drive dist. 52.00
    Drive type Steel
    Gear type GR
    kW 2.2
    Terminal 50 6.30
    Voltage 12
    Total length 294.00 mm
    Waterproof No
    Dist. 101.00 mm
    Mount. hole 3 9.00 mm
    Mount. hole 2 9.00 mm
    Mount. hole 1 9.00 mm
  • Kjøretøymatching

    • OEM
      cs599, F032112052, RGO 112052, 02b911023a, 02B911023AX, 0001218116, 0001218117, 1516783R, 9000331427

    • Konkurrentreferens
      CST10357, drs6340, F042S0H037, lrs00893, QS2074, S0142, STR-H037, STR50145, 8EA012526-581, 8ea726223-001, 25-1361, 41-16.340, 311.051.102, 1457, 3812, 9593, 10599, 11719, 17234, 17234N, 201126, 220035, 220035A, 455629, 726111, 726911, 8016340, 11016340, 35259480, 42016340, 943251226, 0986016340, 943251226010, 944280163400

    • NormaliseratArtNr
      cs599, cst10357, drs6340, f032112052, f042s0h037, lrs00893, qs2074, rgo112052, s0142, str50145, strh037, 02b911023a, 02b911023ax, 8ea012526581, 8ea726223001, 1457, 3812, 9593, 10599, 11719, 17234, 17234n, 201126, 220035, 220035a, 251361, 455629, 726111, 726911, 0001218116, 0001218117, 1516783r, 4116340, 8016340, 11016340, 35259480, 42016340, 311051102, 943251226, 0986016340, 9000331427, 943251226010, 944280163400

    • Passar modeller
      VW Model: Eurovan Model series: Eurovan Model type: CL Size of motor: 2.4 Brand of engine: AAB From date: 01-01-1993 Fuel: Diesel Approved: Yes
      VW Model: Eurovan Model series: Eurovan Model type: CV Size of motor: 2.4 Brand of engine: AAB From date: 01-01-1993 To date: 01-01-1994 Fuel: Diesel Approved: Yes
      VW Model: Eurovan Model series: Eurovan Model type: GL Size of motor: 2.4 Brand of engine: AAB From date: 01-01-1993 Fuel: Diesel Approved: Yes
      VW Model: Eurovan Model series: Eurovan Model type: GLS Size of motor: 2.4 Brand of engine: AAB From date: 01-01-1994 To date: 01-01-1995 Fuel: Diesel Approved: Yes
      VW Model: Eurovan Model series: Eurovan Size of motor: 2.4 Brand of engine: AAB From date: 01-01-1993 To date: 01-01-1996 Fuel: Diesel Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.8 Brand of engine: AES Type description: 70XD Body: Platform / Chassis From date: 01-05-1996 To date: 01-05-2000 Fuel: Gasoline Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Bus From date: 01-10-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Platform / Chassis From date: 01-10-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Van From date: 01-10-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Bus From date: 01-09-1990 To date: 01-04-1998 Fuel: Diesel Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Platform / Chassis From date: 01-09-1990 To date: 01-04-1998 Fuel: Diesel Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Van From date: 01-07-1990 To date: 01-04-1998 Fuel: Diesel Approved: Yes
