Varenr.: F032112439

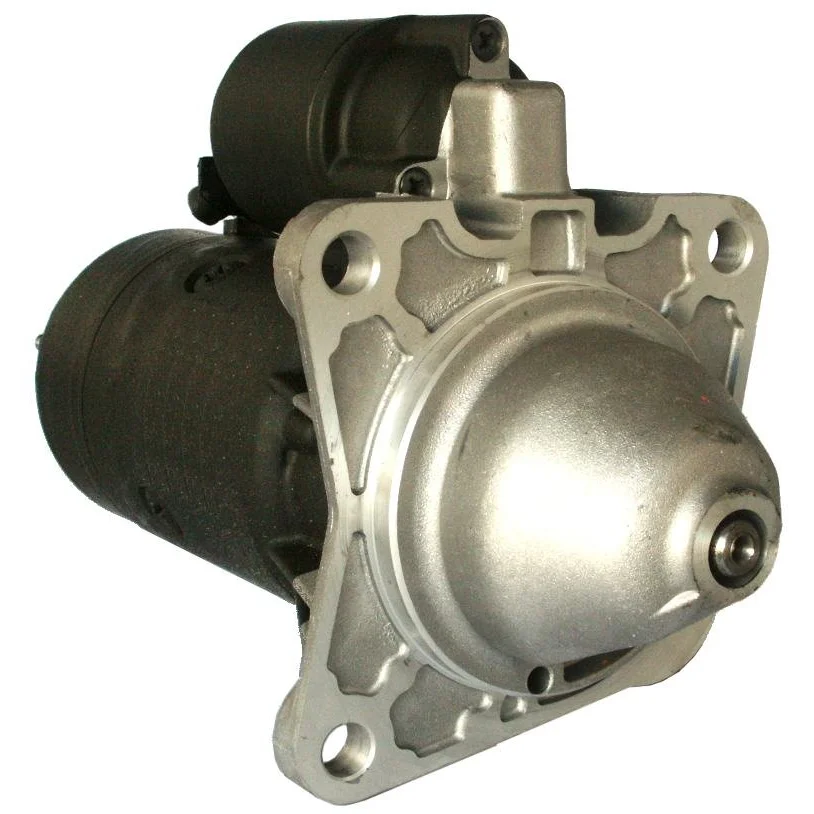

HC-Cargo Startmotor

Teknisk info:

Spenningsgiver: 12, kW: 2.2, Antall/tann: 9, Rotasjon: medurs

Beskrivelse

Spenningsverdi: 12
kW: 2.2
Monteringsflens: 92.00
Drevavstand: 20.50
Monteringshull 3 mm: 12.00
Monteringshull 2 mm: 12.00
Monteringshull 1 mm: 12.00
Avstand/bak: 210.00
Avstand/frem: 62.00
Antall/tannhjul: 9
B+: M8
Posisjon/50: 45
Terminal 50: 6.30
Geværtype: GR
Avstand 2: 102.50
Avstand 3: 102.50
Avstand mm: 145.50
Rotasjon: Høyre (CW)
Total lengde mm: 274.00
Drevtype: Stål
Produsentinfo: BN
Vanntett: Nei
Oljedekkende: Nei
Antall monteringshull: 3 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 92.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 45
Prod. info BN
Dist. 2 102.50
Dist. 3 102.50
Rotation CW
Dist./back 210.00
Dist./front 62.00
Drive dist. 20.50
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 274.00 mm
Waterproof No
Dist. 145.50 mm
Mount. hole 3 12.00 mm
Mount. hole 2 12.00 mm
Mount. hole 1 12.00 mm

  • OEM
    A0051511501, BF5T11001AA, cs1201, err5009, ERR5009A, F032112439, NAD10039, NAD100390, NAD500210, NNN500210, RGO 112439, 1986S00936, 0001109413, 0001109414, 0001218152, 0001218168, 0001218768, 0001218814, 0051511501

  • Konkurrentreferens
    BSO7020, CST10114, drs3084, IS9437, LES0348, lrs00728, MS12, QS1460, S0042, S0537, STR25002, STR54006, vs104, 8EA011610-101, 8EA012528-191, 25-3117, 88-16.210, 339.002.092, 339.017.092, 3677, 11264, 33091N, 33091R, 101201, 103332, 220362, 220362A, 220883, 220883A, 436052, 8212758, 11016210, 35259040, 35259400, 42016210, 944288162, 0986016210, 063522187680, 944288162100

  • NormaliseratArtNr
    a0051511501, bf5t11001aa, bso7020, cs1201, cst10114, drs3084, err5009, err5009a, f032112439, is9437, les0348, lrs00728, ms12, nad10039, nad100390, nad500210, nnn500210, qs1460, rgo112439, s0042, s0537, str25002, str54006, vs104, 8ea011610101, 8ea012528191, 1986s00936, 3677, 11264, 33091n, 33091r, 101201, 103332, 220362, 220362a, 220883, 220883a, 253117, 436052, 0001109413, 0001109414, 0001218152, 0001218168, 0001218768, 0001218814, 8212758, 8816210, 11016210, 35259040, 35259400, 42016210, 0051511501, 339002092, 339017092, 944288162, 0986016210, 063522187680, 944288162100

  • Passar modeller
    Land Rover Model: 110/127 Model series: 110/127 Model type: 4X4 Size of motor: 2.3 Brand of engine: 10H Type description: LDH From date: 01-06-1984 To date: 01-08-1987 Fuel: Petrol Approved: Yes
    Land Rover Model: Defender Model series: Defender Model type: 4WD Size of motor: 2.5 Brand of engine: 10P Type description: LD From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Defender Model series: Defender Model type: 4WD Size of motor: 2.5 Brand of engine: 15P Type description: LD From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 10P Type description: LD Body: Convertible From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 14P Type description: LD Body: Convertible From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 15P Type description: LD Body: Convertible From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Defender Model series: Defender Model type: 90 Type of engine: TDi Size of motor: 2.5 Brand of engine: 11L Type description: LD Body: Convertible From date: 01-08-1990 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Land Rover Model: Defender Model series: Defender Model type: 90 Type of engine: TDi Size of motor: 2.5 Brand of engine: 16L Type description: LD Body: Convertible From date: 01-08-1990 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Land Rover Model: Defender Model series: Defender Model type: 90 Type of engine: TDi Size of motor: 2.5 Brand of engine: 23L Type description: LD Body: Convertible From date: 01-08-1990 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Land Rover Model: Defender Model series: Defender Model type: 90, 110 Type of engine: TDi Size of motor: 2.5 Brand of engine: 11L Type description: LD From date: 01-08-1990 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    Land Rover Model: Defender Model series: Defender Model type: 90, 110 Type of engine: TDi Size of motor: 2.5 Brand of engine: 16L Type description: LD From date: 01-08-1990 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    Land Rover Model: Defender Model series: Defender Model type: 90, 110 Type of engine: TDi Size of motor: 2.5 Brand of engine: 23L Type description: LD From date: 01-08-1990 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    Land Rover Model: Defender Model series: Defender Station Wagon Model type: TD 4x4 (L316) Type of engine: TD Size of motor: 2.5 Brand of engine: 23L Type description: L316 Body: Closed Off-Road Vehicle From date: 01-08-1998 To date: 01-12-2005 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery II Model series: Discovery II Model type: 4x4 Size of motor: 2.5 Brand of engine: 10P Type description: LJ, LT From date: 01-11-1998 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Model type: D 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 19L Type description: LJ Body: Closed Off-Road Vehicle From date: 01-10-1993 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Type of engine: TDi Size of motor: 2.5 Brand of engine: 12L Type description: LJ, LG From date: 01-10-1989 To date: 01-10-1998 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Type of engine: TDi Size of motor: 2.5 Brand of engine: 17L Type description: LJ, LG From date: 01-10-1989 To date: 01-10-1998 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Type of engine: TDi Size of motor: 2.5 Brand of engine: 19L Type description: LJ, LG From date: 01-10-1989 To date: 01-10-1998 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Type of engine: TDi Size of motor: 2.5 Brand of engine: 21L Type description: LJ, LG From date: 01-10-1989 To date: 01-10-1998 Fuel: Diesel Approved: Yes
    Land Rover Model: Land Rover Model series: Land Rover Type of engine: TD Size of motor: 2.5 Brand of engine: 19J Type description: DHMC From date: 01-09-1986 To date: 01-07-1990 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Type of engine: Diesel Size of motor: 2.5 Brand of engine: 256T From date: 01-07-1994 To date: 01-03-2002 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 310 D Type of engine: Diesel Size of motor: 2.5 Brand of engine: OM632.999 Type description: B903 Body: Platform/Chassis From date: 01-09-1996 To date: 01-05-2001 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 310 D Type of engine: Diesel Size of motor: 2.5 Brand of engine: OM632.999 Type description: B903 Body: Van From date: 01-09-1996 To date: 01-05-2001 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 312 D Type of engine: Diesel Size of motor: 2.5 Brand of engine: OM632.997 Type description: B903 Body: Van From date: 01-10-1999 To date: 01-05-2001 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 412 D Model type: 412 D Type of engine: Diesel Size of motor: 2.5 Brand of engine: OM632.998 Type description: B904 Body: Platform/Chassis From date: 01-10-1999 To date: 01-05-2001 Fuel: Diesel Approved: Yes
    1 / 5
  • Beskrivelse
    Spenningsverdi: 12
    kW: 2.2
    Monteringsflens: 92.00
    Drevavstand: 20.50
    Monteringshull 3 mm: 12.00
    Monteringshull 2 mm: 12.00
    Monteringshull 1 mm: 12.00
    Avstand/bak: 210.00
    Avstand/frem: 62.00
    Antall/tannhjul: 9
    B+: M8
    Posisjon/50: 45
    Terminal 50: 6.30
    Geværtype: GR
    Avstand 2: 102.50
    Avstand 3: 102.50
    Avstand mm: 145.50
    Rotasjon: Høyre (CW)
    Total lengde mm: 274.00
    Drevtype: Stål
    Produsentinfo: BN
    Vanntett: Nei
    Oljedekkende: Nei
    Antall monteringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 92.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 45
    Prod. info BN
    Dist. 2 102.50
    Dist. 3 102.50
    Rotation CW
    Dist./back 210.00
    Dist./front 62.00
    Drive dist. 20.50
    Drive type Steel
    Gear type GR
    kW 2.2
    Terminal 50 6.30
    Voltage 12
    Total length 274.00 mm
    Waterproof No
    Dist. 145.50 mm
    Mount. hole 3 12.00 mm
    Mount. hole 2 12.00 mm
    Mount. hole 1 12.00 mm
  • Kjøretøymatching

    • OEM
      A0051511501, BF5T11001AA, cs1201, err5009, ERR5009A, F032112439, NAD10039, NAD100390, NAD500210, NNN500210, RGO 112439, 1986S00936, 0001109413, 0001109414, 0001218152, 0001218168, 0001218768, 0001218814, 0051511501

    • Konkurrentreferens
      BSO7020, CST10114, drs3084, IS9437, LES0348, lrs00728, MS12, QS1460, S0042, S0537, STR25002, STR54006, vs104, 8EA011610-101, 8EA012528-191, 25-3117, 88-16.210, 339.002.092, 339.017.092, 3677, 11264, 33091N, 33091R, 101201, 103332, 220362, 220362A, 220883, 220883A, 436052, 8212758, 11016210, 35259040, 35259400, 42016210, 944288162, 0986016210, 063522187680, 944288162100

    • NormaliseratArtNr
      a0051511501, bf5t11001aa, bso7020, cs1201, cst10114, drs3084, err5009, err5009a, f032112439, is9437, les0348, lrs00728, ms12, nad10039, nad100390, nad500210, nnn500210, qs1460, rgo112439, s0042, s0537, str25002, str54006, vs104, 8ea011610101, 8ea012528191, 1986s00936, 3677, 11264, 33091n, 33091r, 101201, 103332, 220362, 220362a, 220883, 220883a, 253117, 436052, 0001109413, 0001109414, 0001218152, 0001218168, 0001218768, 0001218814, 8212758, 8816210, 11016210, 35259040, 35259400, 42016210, 0051511501, 339002092, 339017092, 944288162, 0986016210, 063522187680, 944288162100

    • Passar modeller
      Land Rover Model: 110/127 Model series: 110/127 Model type: 4X4 Size of motor: 2.3 Brand of engine: 10H Type description: LDH From date: 01-06-1984 To date: 01-08-1987 Fuel: Petrol Approved: Yes
      Land Rover Model: Defender Model series: Defender Model type: 4WD Size of motor: 2.5 Brand of engine: 10P Type description: LD From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      Land Rover Model: Defender Model series: Defender Model type: 4WD Size of motor: 2.5 Brand of engine: 15P Type description: LD From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 10P Type description: LD Body: Convertible From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 14P Type description: LD Body: Convertible From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      Land Rover Model: Defender Model series: Defender Model type: 4WD Type of engine: TD5 Size of motor: 2.5 Brand of engine: 15P Type description: LD Body: Convertible From date: 01-06-1998 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      Land Rover Model: Defender Model series: Defender Model type: 90 Type of engine: TDi Size of motor: 2.5 Brand of engine: 11L Type description: LD Body: Convertible From date: 01-08-1990 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Land Rover Model: Defender Model series: Defender Model type: 90 Type of engine: TDi Size of motor: 2.5 Brand of engine: 16L Type description: LD Body: Convertible From date: 01-08-1990 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Land Rover Model: Defender Model series: Defender Model type: 90 Type of engine: TDi Size of motor: 2.5 Brand of engine: 23L Type description: LD Body: Convertible From date: 01-08-1990 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Land Rover Model: Defender Model series: Defender Model type: 90, 110 Type of engine: TDi Size of motor: 2.5 Brand of engine: 11L Type description: LD From date: 01-08-1990 To date: 01-12-1998 Fuel: Diesel Approved: Yes
      Land Rover Model: Defender Model series: Defender Model type: 90, 110 Type of engine: TDi Size of motor: 2.5 Brand of engine: 16L Type description: LD From date: 01-08-1990 To date: 01-12-1998 Fuel: Diesel Approved: Yes
      Land Rover Model: Defender Model series: Defender Model type: 90, 110 Type of engine: TDi Size of motor: 2.5 Brand of engine: 23L Type description: LD From date: 01-08-1990 To date: 01-12-1998 Fuel: Diesel Approved: Yes
      Land Rover Model: Defender Model series: Defender Station Wagon Model type: TD 4x4 (L316) Type of engine: TD Size of motor: 2.5 Brand of engine: 23L Type description: L316 Body: Closed Off-Road Vehicle From date: 01-08-1998 To date: 01-12-2005 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery II Model series: Discovery II Model type: 4x4 Size of motor: 2.5 Brand of engine: 10P Type description: LJ, LT From date: 01-11-1998 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Model type: D 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 19L Type description: LJ Body: Closed Off-Road Vehicle From date: 01-10-1993 To date: 01-12-1998 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Type of engine: TDi Size of motor: 2.5 Brand of engine: 12L Type description: LJ, LG From date: 01-10-1989 To date: 01-10-1998 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Type of engine: TDi Size of motor: 2.5 Brand of engine: 17L Type description: LJ, LG From date: 01-10-1989 To date: 01-10-1998 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Type of engine: TDi Size of motor: 2.5 Brand of engine: 19L Type description: LJ, LG From date: 01-10-1989 To date: 01-10-1998 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Type of engine: TDi Size of motor: 2.5 Brand of engine: 21L Type description: LJ, LG From date: 01-10-1989 To date: 01-10-1998 Fuel: Diesel Approved: Yes
      Land Rover Model: Land Rover Model series: Land Rover Type of engine: TD Size of motor: 2.5 Brand of engine: 19J Type description: DHMC From date: 01-09-1986 To date: 01-07-1990 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Type of engine: Diesel Size of motor: 2.5 Brand of engine: 256T From date: 01-07-1994 To date: 01-03-2002 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 310 D Type of engine: Diesel Size of motor: 2.5 Brand of engine: OM632.999 Type description: B903 Body: Platform/Chassis From date: 01-09-1996 To date: 01-05-2001 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 310 D Type of engine: Diesel Size of motor: 2.5 Brand of engine: OM632.999 Type description: B903 Body: Van From date: 01-09-1996 To date: 01-05-2001 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 312 D Type of engine: Diesel Size of motor: 2.5 Brand of engine: OM632.997 Type description: B903 Body: Van From date: 01-10-1999 To date: 01-05-2001 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 412 D Model type: 412 D Type of engine: Diesel Size of motor: 2.5 Brand of engine: OM632.998 Type description: B904 Body: Platform/Chassis From date: 01-10-1999 To date: 01-05-2001 Fuel: Diesel Approved: Yes
