Varenr.: F032113327

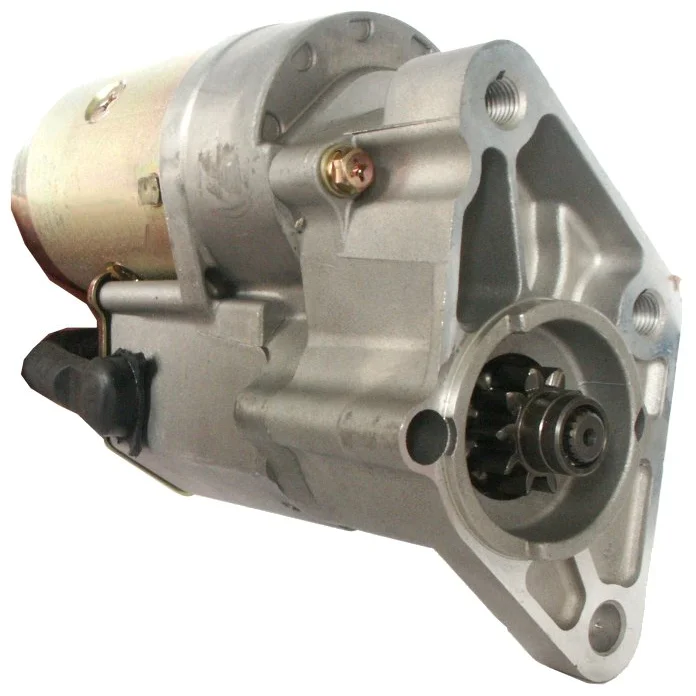

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 2.2, Ant./tenner: 10, Rotasjon: CW

Beskrivelse

Spenningskilde: 12
kW: 2.2
Monteringsflens: 64.00
Drevavstand: 4.50
Monteringshull 3 mm: M12-1.50
Monteringshull 2 mm: 13.50
Avstand/bak: 167.00
Avstand/frem: 17.00
Antall/tann: 10
B+: M8
Posisjon/50: 35
Terminal 50: 6.30
Gavl type: GR
Avstand 2: 139.50
Avstand 3: 75.00
Avstand mm: 83.50
Rotasjon: CW
Total lengde mm: 236.00
Drevtype: Stål
Prod. info: BN
Vanntett: Nei
Oljelukket: Nei
Antall/monteringshull: 3 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 64.00
Oil sealed No
No./mount. holes 3 (2)
Position/50 35
Prod. info BN
Dist. 2 139.50
Dist. 3 75.00
Rotation CW
Dist./back 167.00
Dist./front 17.00
Drive dist. 4.50
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 236.00 mm
Waterproof No
Dist. 83.50 mm
Mount. hole 3 M12-1.50 mm
Mount. hole 2 13.50 mm

  • OEM
    0K55218400, 0K55218400A, 0K5531-8-400, F032113327, js1298, OK55218400, OK55218400A, OK553-18-400, RGO 113327, 03111-4140, 36100-4X100

  • Konkurrentreferens
    CST41101, DRS3924, DRS3924N, F042S0H051, J5210300, LRS01623, PBNS3020, S6008, STR-H051, STR75000, 8EA011610-731, 8EA738042-001, 25-3150, 624.010.102, 9785, 32623N, 32623R, 105409, 201298, 220352, 220352A, 8070300, 8212931, 11040627, 11040682, 063522615, 0986022770, 063522615010, 944280703000

  • NormaliseratArtNr
    0k55218400, 0k55218400a, 0k55318400, cst41101, drs3924, drs3924n, f032113327, f042s0h051, j5210300, js1298, lrs01623, ok55218400, ok55218400a, ok55318400, pbns3020, rgo113327, s6008, str75000, strh051, 8ea011610731, 8ea738042001, 9785, 32623n, 32623r, 105409, 201298, 220352, 220352a, 253150, 361004x100, 8070300, 8212931, 11040627, 11040682, 031114140, 063522615, 624010102, 0986022770, 063522615010, 944280703000

  • Passar modeller
    Kia Model: Carnival Model series: Carnival Type of engine: CRDi Size of motor: 2.9 Brand of engine: J3 Body: MPV From date: 01-10-2001 To date: 01-06-2006 Fuel: Diesel Approved: Yes
    Kia Model: Carnival Model series: Carnival Type of engine: HPDi Size of motor: 2.9 From date: 01-10-2001 Fuel: Diesel Approved: Yes
    Kia Model: Carnival Model series: Carnival Type of engine: TD Size of motor: 2.9 Brand of engine: J3 Body: MPV From date: 01-08-1999 To date: 01-09-2007 Fuel: Diesel Approved: Yes
    Kia Model: Carnival Model series: Carnival Type of engine: TD Size of motor: 2.9 Brand of engine: J3 Type description: UP Body: MPV From date: 01-08-1999 To date: 01-10-2001 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenningskilde: 12
    kW: 2.2
    Monteringsflens: 64.00
    Drevavstand: 4.50
    Monteringshull 3 mm: M12-1.50
    Monteringshull 2 mm: 13.50
    Avstand/bak: 167.00
    Avstand/frem: 17.00
    Antall/tann: 10
    B+: M8
    Posisjon/50: 35
    Terminal 50: 6.30
    Gavl type: GR
    Avstand 2: 139.50
    Avstand 3: 75.00
    Avstand mm: 83.50
    Rotasjon: CW
    Total lengde mm: 236.00
    Drevtype: Stål
    Prod. info: BN
    Vanntett: Nei
    Oljelukket: Nei
    Antall/monteringshull: 3 (2)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 10
    Mount. flange 64.00
    Oil sealed No
    No./mount. holes 3 (2)
    Position/50 35
    Prod. info BN
    Dist. 2 139.50
    Dist. 3 75.00
    Rotation CW
    Dist./back 167.00
    Dist./front 17.00
    Drive dist. 4.50
    Drive type Steel
    Gear type GR
    kW 2.2
    Terminal 50 6.30
    Voltage 12
    Total length 236.00 mm
    Waterproof No
    Dist. 83.50 mm
    Mount. hole 3 M12-1.50 mm
    Mount. hole 2 13.50 mm
  • Kjøretøymatching

    • OEM
      0K55218400, 0K55218400A, 0K5531-8-400, F032113327, js1298, OK55218400, OK55218400A, OK553-18-400, RGO 113327, 03111-4140, 36100-4X100

    • Konkurrentreferens
      CST41101, DRS3924, DRS3924N, F042S0H051, J5210300, LRS01623, PBNS3020, S6008, STR-H051, STR75000, 8EA011610-731, 8EA738042-001, 25-3150, 624.010.102, 9785, 32623N, 32623R, 105409, 201298, 220352, 220352A, 8070300, 8212931, 11040627, 11040682, 063522615, 0986022770, 063522615010, 944280703000

    • NormaliseratArtNr
      0k55218400, 0k55218400a, 0k55318400, cst41101, drs3924, drs3924n, f032113327, f042s0h051, j5210300, js1298, lrs01623, ok55218400, ok55218400a, ok55318400, pbns3020, rgo113327, s6008, str75000, strh051, 8ea011610731, 8ea738042001, 9785, 32623n, 32623r, 105409, 201298, 220352, 220352a, 253150, 361004x100, 8070300, 8212931, 11040627, 11040682, 031114140, 063522615, 624010102, 0986022770, 063522615010, 944280703000

    • Passar modeller
      Kia Model: Carnival Model series: Carnival Type of engine: CRDi Size of motor: 2.9 Brand of engine: J3 Body: MPV From date: 01-10-2001 To date: 01-06-2006 Fuel: Diesel Approved: Yes
      Kia Model: Carnival Model series: Carnival Type of engine: HPDi Size of motor: 2.9 From date: 01-10-2001 Fuel: Diesel Approved: Yes
      Kia Model: Carnival Model series: Carnival Type of engine: TD Size of motor: 2.9 Brand of engine: J3 Body: MPV From date: 01-08-1999 To date: 01-09-2007 Fuel: Diesel Approved: Yes
      Kia Model: Carnival Model series: Carnival Type of engine: TD Size of motor: 2.9 Brand of engine: J3 Type description: UP Body: MPV From date: 01-08-1999 To date: 01-10-2001 Fuel: Diesel Approved: Yes
