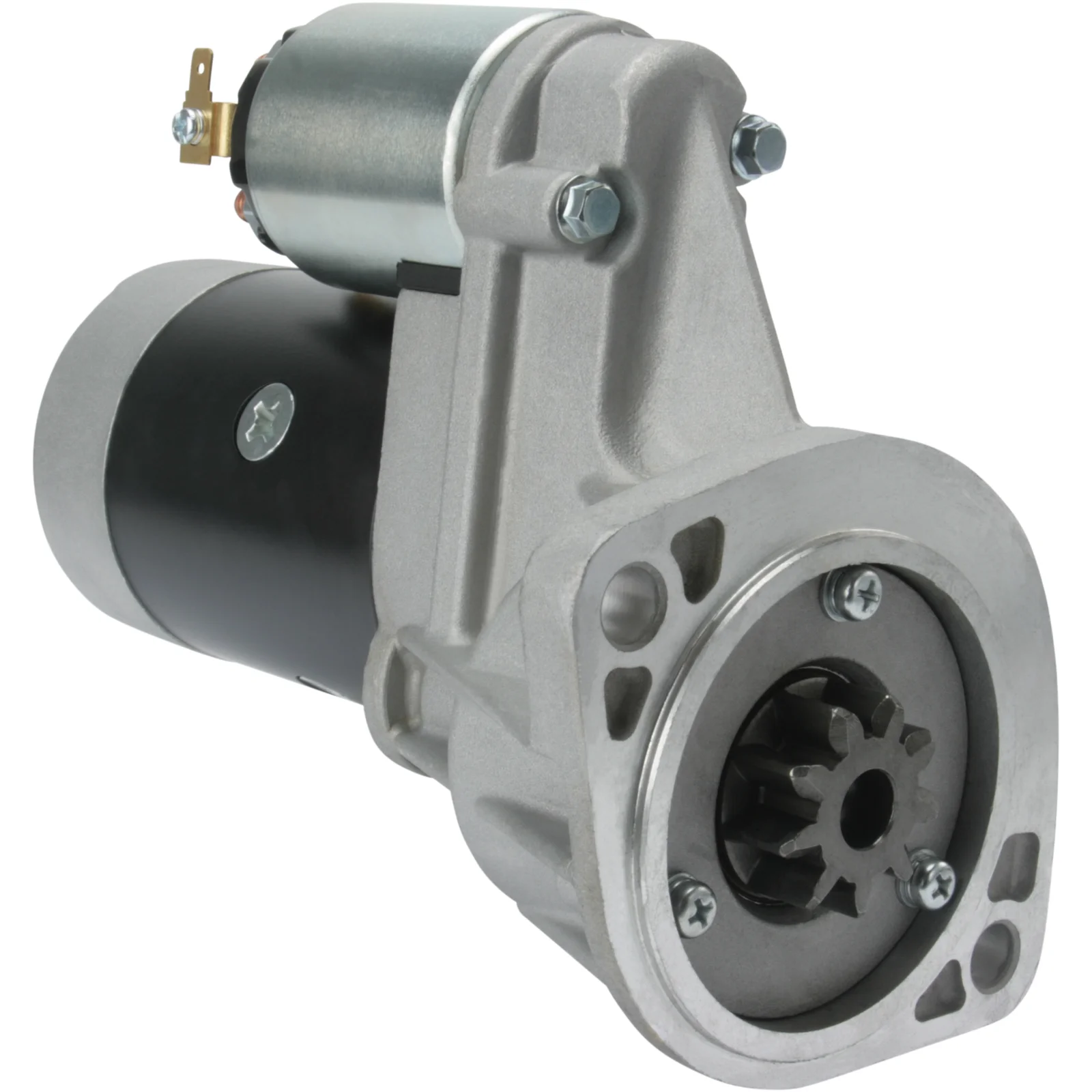

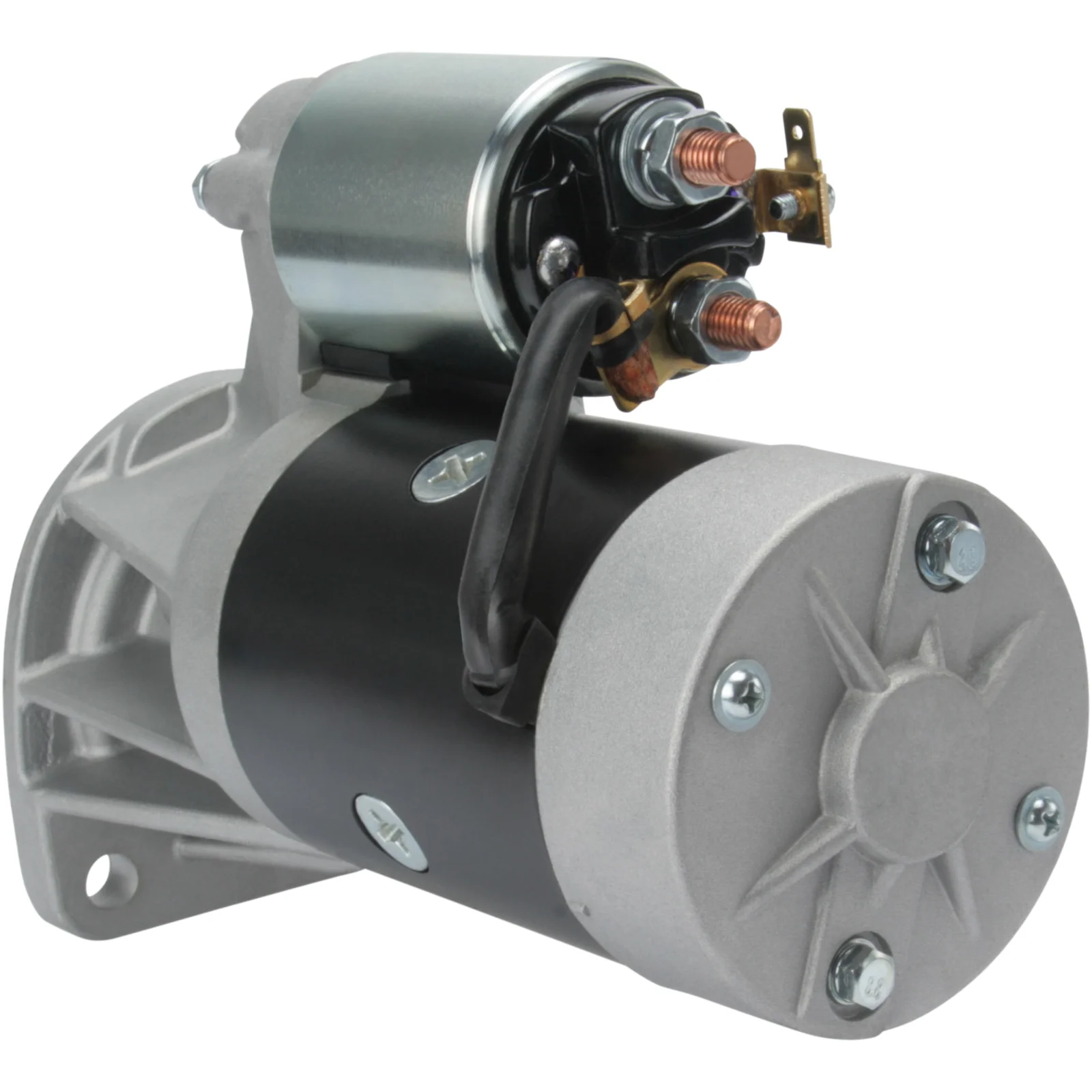

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032111445

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 2,0, Ant./tenner: 9, Rotasjon: CW

Beskrivelse

Nissan Patrol Startmotor 12V-2.0kW 12V - 2.0kW, 9 tenner 12V - 2.0kW, 9 tenner For Yourex produktbestilling 91-400-3102

Spenningsmål: 12
kW: 2.0
Monteringsflens: 82,50
Drivingsavstand: 8,00
Monteringshull 2 mm: 10,50
Monteringshull 1 mm: 10,50
Avstand/bak: 214,00
Avstand/frem: 8,00
Antall/tenner: 9
B+: M8
Posisjon/50: 15
Terminal 50: M4-6,30
Gavetypen: GR
Avstand mm: 110,00
Rotasjon: medur (med urkrets)
Total lengde mm: 231,00
Drivningstype: Stål
Prod. info: BN
Vanntett: Nei
Oljelukket: Nei
Antall/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Prod. info BN
Rotation CW
Dist./back 214.00
Dist./front 8.00
Drive dist. 8.00
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 M4-6.30
Voltage 12
Total length 231.00 mm
Waterproof No
Dist. 110.00 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    F032111445, js650, RGO 111445, S13-101, s13-101, S13-102, s13-102, S13-302, s13-302, S13-302A, s13-302a, s13-302b, S13-502, S13-502A, s13-502a, 23300-0Y000, 23300-0y000, 23300-0y001, 23300-0Y005, 23300-0y005, 23300-0Y006, 23300-V7200, 23300-v7200, 23300-V7260, 23300-v7260, 23300-VB300, 23300-vb300, 23300-vb3c0, 111445

  • Konkurrentreferens
    ads-158, CST20105, drs3168, J5211083, LRS01184, QS1464, S2046, 8ea730238-001, 25-1204, 28-52.122, 28-52.127, 327.034.092, 4227, 9557, 9558, 11754, 20650, 32182R, 104083, 220083, 220083A, 455912, 11040148, 0986017601, 943253175010, 944280521270

  • Bilmärken
    Nissan

  • NormaliseratArtNr
    ads158, cst20105, drs3168, f032111445, j5211083, js650, lrs01184, qs1464, rgo111445, s13101, s13102, s13302, s13302a, s13302b, s13502, s13502a, s2046, 8ea730238001, 4227, 9557, 9558, 11754, 20650, 23300v7200, 23300v7260, 23300vb300, 23300vb3c0, 32182r, 104083, 111445, 220083, 220083a, 233000y000, 233000y001, 233000y005, 233000y006, 251204, 455912, 2852122, 2852127, 11040148, 327034092, 0986017601, 943253175010, 944280521270

  • Passar modeller
    Nissan Model: Laurel Model series: Laurel Type of engine: Diesel Size of motor: 2.8 Brand of engine: RD28 Type description: C32 From date: 01-01-1985 To date: 01-12-1989 Fuel: Diesel Approved: Yes
    Nissan Model: Patrol Model series: Patrol Size of motor: 3.0 Brand of engine: RB30S Type description: 260 From date: 01-04-1989 To date: 01-05-1998 Fuel: Gasoline Approved: Yes
    Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 2.8 Brand of engine: RD28T From date: 01-05-1986 To date: 01-06-1990 Fuel: Diesel Approved: Yes
    Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 2.8 Brand of engine: RD28T Type description: 260 From date: 01-06-1989 To date: 01-11-1995 Fuel: Diesel Approved: Yes
    Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 2.8 Brand of engine: RD28T Type description: Y60 From date: 01-09-1988 To date: 01-06-1997 Fuel: Diesel Approved: Yes
    Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 2.8 Brand of engine: RD28Ti From date: 01-06-1997 To date: 01-05-2000 Fuel: Diesel Approved: Yes
    Nissan Series: Laurel (JC 32) Model: 2.8 D Engine volume: 2.8 Engine type: RD 28 Year: 02.87-12.89
    Nissan Series: Patrol (K/W 260) Model: 2.8 TD Engine volume: 2.8 Engine type: RD 28 T Year: 06.89-11.95
    Nissan Series: Patrol GR I (Y60) Model: 2.8 TD Engine volume: 2.8 Engine type: RD 28 T Year: 09.88-06.97
    Nissan Series: Patrol GR I (Y60) Model: 4.2 D Engine volume: 4.2 Year: 11.88-06.97
    Nissan Series: Patrol GR II (Y61) Model: 2.8 TD Engine volume: 2.8 Engine type: RD 28 TI Year: 06.97-05.00
    Toyota Model: Corolla Model series: Corolla Model type: 4WD Type of engine: i Size of motor: 1.6 Brand of engine: 4A-FE Type description: _E9_ From date: 01-10-1987 To date: 01-08-1990 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivelse
    Nissan Patrol Startmotor 12V-2.0kW 12V - 2.0kW, 9 tenner 12V - 2.0kW, 9 tenner For Yourex produktbestilling 91-400-3102

    Spenningsmål: 12
    kW: 2.0
    Monteringsflens: 82,50
    Drivingsavstand: 8,00
    Monteringshull 2 mm: 10,50
    Monteringshull 1 mm: 10,50
    Avstand/bak: 214,00
    Avstand/frem: 8,00
    Antall/tenner: 9
    B+: M8
    Posisjon/50: 15
    Terminal 50: M4-6,30
    Gavetypen: GR
    Avstand mm: 110,00
    Rotasjon: medur (med urkrets)
    Total lengde mm: 231,00
    Drivningstype: Stål
    Prod. info: BN
    Vanntett: Nei
    Oljelukket: Nei
    Antall/monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 15
    Prod. info BN
    Rotation CW
    Dist./back 214.00
    Dist./front 8.00
    Drive dist. 8.00
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 M4-6.30
    Voltage 12
    Total length 231.00 mm
    Waterproof No
    Dist. 110.00 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Kjøretøymatching

    • OEM
      F032111445, js650, RGO 111445, S13-101, s13-101, S13-102, s13-102, S13-302, s13-302, S13-302A, s13-302a, s13-302b, S13-502, S13-502A, s13-502a, 23300-0Y000, 23300-0y000, 23300-0y001, 23300-0Y005, 23300-0y005, 23300-0Y006, 23300-V7200, 23300-v7200, 23300-V7260, 23300-v7260, 23300-VB300, 23300-vb300, 23300-vb3c0, 111445

    • Konkurrentreferens
      ads-158, CST20105, drs3168, J5211083, LRS01184, QS1464, S2046, 8ea730238-001, 25-1204, 28-52.122, 28-52.127, 327.034.092, 4227, 9557, 9558, 11754, 20650, 32182R, 104083, 220083, 220083A, 455912, 11040148, 0986017601, 943253175010, 944280521270

    • Bilmärken
      Nissan

    • NormaliseratArtNr
      ads158, cst20105, drs3168, f032111445, j5211083, js650, lrs01184, qs1464, rgo111445, s13101, s13102, s13302, s13302a, s13302b, s13502, s13502a, s2046, 8ea730238001, 4227, 9557, 9558, 11754, 20650, 23300v7200, 23300v7260, 23300vb300, 23300vb3c0, 32182r, 104083, 111445, 220083, 220083a, 233000y000, 233000y001, 233000y005, 233000y006, 251204, 455912, 2852122, 2852127, 11040148, 327034092, 0986017601, 943253175010, 944280521270

    • Passar modeller
      Nissan Model: Laurel Model series: Laurel Type of engine: Diesel Size of motor: 2.8 Brand of engine: RD28 Type description: C32 From date: 01-01-1985 To date: 01-12-1989 Fuel: Diesel Approved: Yes
      Nissan Model: Patrol Model series: Patrol Size of motor: 3.0 Brand of engine: RB30S Type description: 260 From date: 01-04-1989 To date: 01-05-1998 Fuel: Gasoline Approved: Yes
      Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 2.8 Brand of engine: RD28T From date: 01-05-1986 To date: 01-06-1990 Fuel: Diesel Approved: Yes
      Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 2.8 Brand of engine: RD28T Type description: 260 From date: 01-06-1989 To date: 01-11-1995 Fuel: Diesel Approved: Yes
      Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 2.8 Brand of engine: RD28T Type description: Y60 From date: 01-09-1988 To date: 01-06-1997 Fuel: Diesel Approved: Yes
      Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 2.8 Brand of engine: RD28Ti From date: 01-06-1997 To date: 01-05-2000 Fuel: Diesel Approved: Yes
      Nissan Series: Laurel (JC 32) Model: 2.8 D Engine volume: 2.8 Engine type: RD 28 Year: 02.87-12.89
      Nissan Series: Patrol (K/W 260) Model: 2.8 TD Engine volume: 2.8 Engine type: RD 28 T Year: 06.89-11.95
      Nissan Series: Patrol GR I (Y60) Model: 2.8 TD Engine volume: 2.8 Engine type: RD 28 T Year: 09.88-06.97
      Nissan Series: Patrol GR I (Y60) Model: 4.2 D Engine volume: 4.2 Year: 11.88-06.97
      Nissan Series: Patrol GR II (Y61) Model: 2.8 TD Engine volume: 2.8 Engine type: RD 28 TI Year: 06.97-05.00
      Toyota Model: Corolla Model series: Corolla Model type: 4WD Type of engine: i Size of motor: 1.6 Brand of engine: 4A-FE Type description: _E9_ From date: 01-10-1987 To date: 01-08-1990 Fuel: Gasoline Approved: Yes
