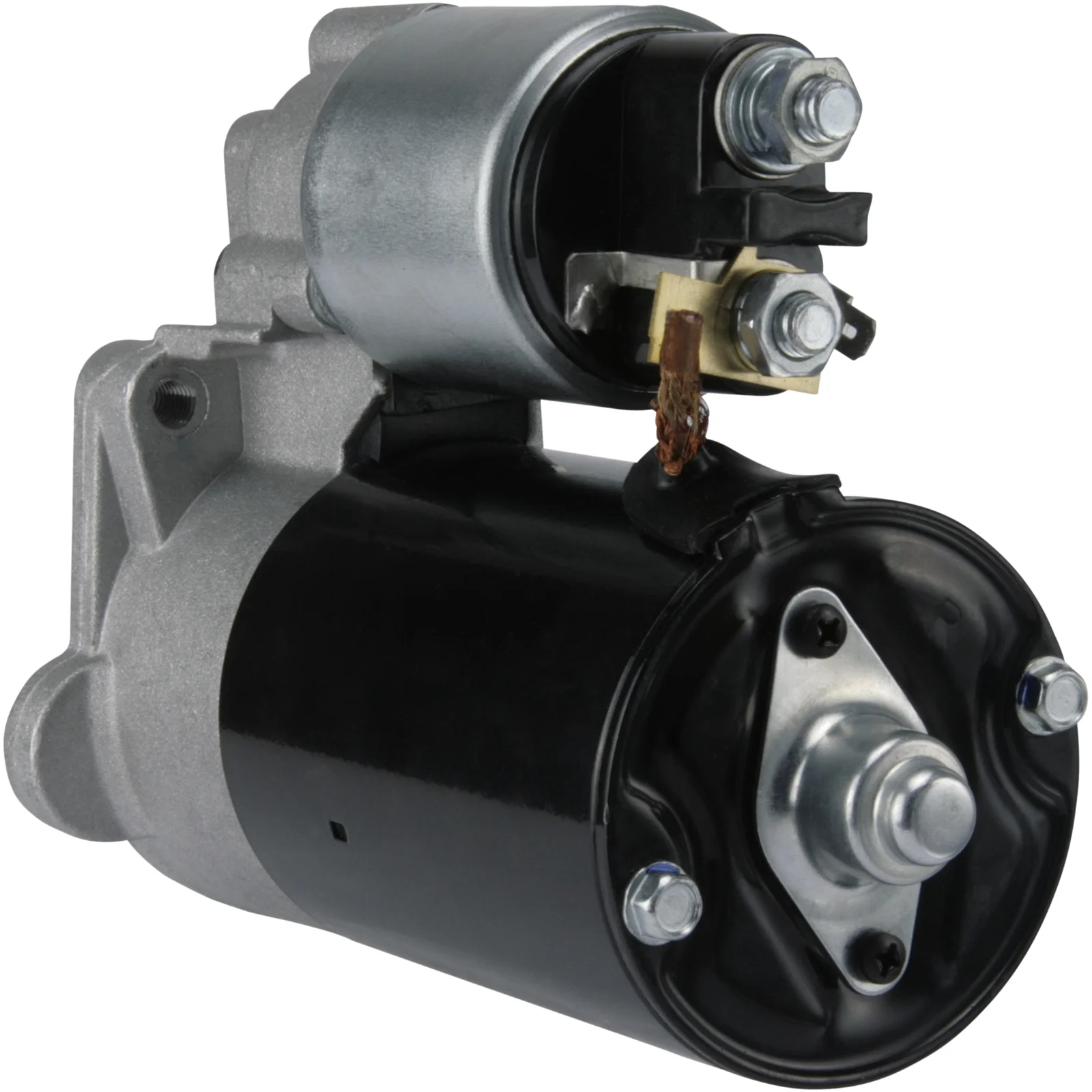

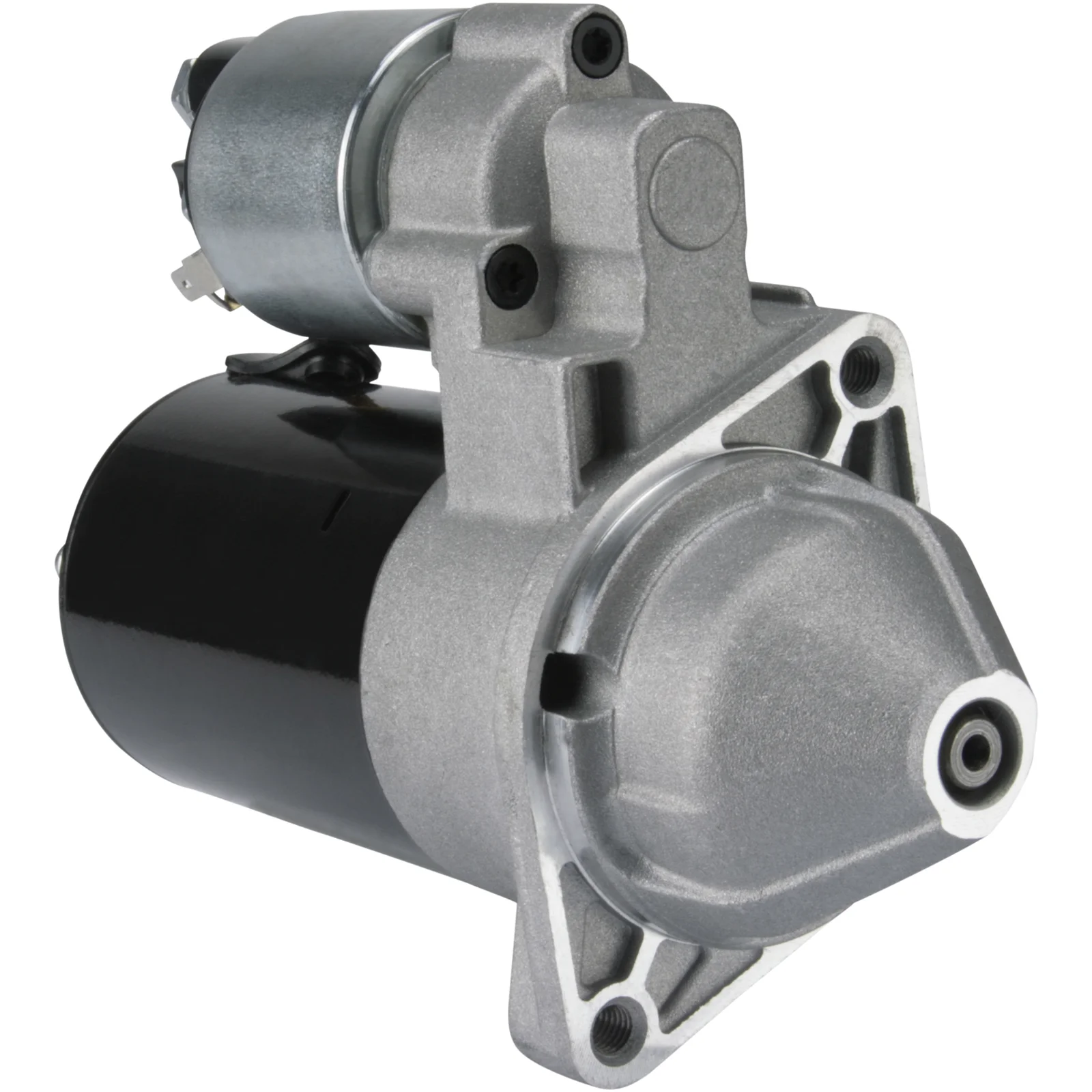

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114051

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, Kumulert effekt: 1,0 kW, Antall tennplugger/tenner: 9, Rotasjon: medur

Beskrivelse

Spenning: 12
kW: 1.0
Monteringsflens: 70.00
Drivrettesavstand: 15.00
Avstand/bak: 155.50
Avstand/frem: 48.00
Nummer/tannhjul: 9
B+: M8
Posisjon/B+: 60
Posisjon/50: 20
Terminal 50: M6-6.30
Gears type: GR
Avstand mm: 100.00
Rotasjon: med urviseren
Total lengde mm: 203.50
Drevet type: Stål
Vanntett: Nei
Oljelukket: Nei
Nummer/monteringshull: 2 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 70.00
Oil sealed No
No./mount. holes 2 (2)
Position/50 20
Position/B+ 60
Rotation CW
Dist./back 155.50
Dist./front 48.00
Drive dist. 15.00
Drive type Steel
Gear type GR
kW 1.0
Terminal 50 M6-6.30
Voltage 12
Total length 203.50 mm
Waterproof No
Dist. 100.00 mm

  • OEM
    A0001477V006, A0051513801, A005151380180, A6601510101, A660151010180, cs1241, F032114051, Q0001477V006, RGO 114051, 0001477V006, 1986S00649, 0001106014, 0001106025, 0051513801, 005151380180, 6601510101, 660151010180

  • Konkurrentreferens
    CST10194, DRS3877, F042S0H082, lrs01575, S0498, STR-H082, 8EA012527-821, 8EA737906-001, 25-3077, 325.030.092, 325.045.092, 3032, 32545N, 32580, 32580N, 32580R, 101241, 105117, 220214, 220214A, 11019940, 42019940, 063521060, 0986019940, 063521060140, 944280800960

  • NormaliseratArtNr
    a0001477v006, a0051513801, a005151380180, a6601510101, a660151010180, cs1241, cst10194, drs3877, f032114051, f042s0h082, lrs01575, q0001477v006, rgo114051, s0498, strh082, 8ea012527821, 8ea737906001, 0001477v006, 1986s00649, 3032, 32545n, 32580, 32580n, 32580r, 101241, 105117, 220214, 220214a, 253077, 0001106014, 0001106025, 11019940, 42019940, 0051513801, 063521060, 325030092, 325045092, 0986019940, 005151380180, 6601510101, 063521060140, 660151010180, 944280800960

  • Passar modeller
    Smart (MCC) Model: City Model series: City Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.940 Type description: 450.. Body: Hatchback From date: 01-11-1999 To date: 01-01-2004 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: City Model series: City Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660DE8LA Type description: 450.. Body: Hatchback From date: 01-11-1999 To date: 01-01-2004 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.940 Type description: 450.. Body: Convertible From date: 01-01-2004 To date: 01-01-2007 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.940 Type description: 450.. Body: Coupe From date: 01-01-2004 To date: 01-01-2007 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.950 Type description: 451 Body: Convertible From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.950 Type description: 451 Body: Coupe From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.951 Type description: 451 Body: Convertible From date: 01-08-2009 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.951 Type description: 451 Body: Coupe From date: 01-08-2009 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660DE8LA Type description: 450.. Body: Convertible From date: 01-01-2004 To date: 01-01-2007 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660DE8LA Type description: 450.. Body: Coupe From date: 01-01-2004 To date: 01-01-2007 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Smart Model series: Smart Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.940 Type description: 450.. Body: Convertible From date: 01-03-2001 To date: 01-01-2004 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Smart Model series: Smart Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660DE8LA Type description: 450.. Body: Convertible From date: 01-03-2001 To date: 01-01-2004 Fuel: Diesel Approved: Yes
    Smart Model: Fortwo Model series: Fortwo Coupe Type of engine: Diesel Size of motor: 0.8 Type description: 450 Body: Coupe From date: 01-09-2004 To date: 01-12-2006 Fuel: Diesel Approved: Yes
