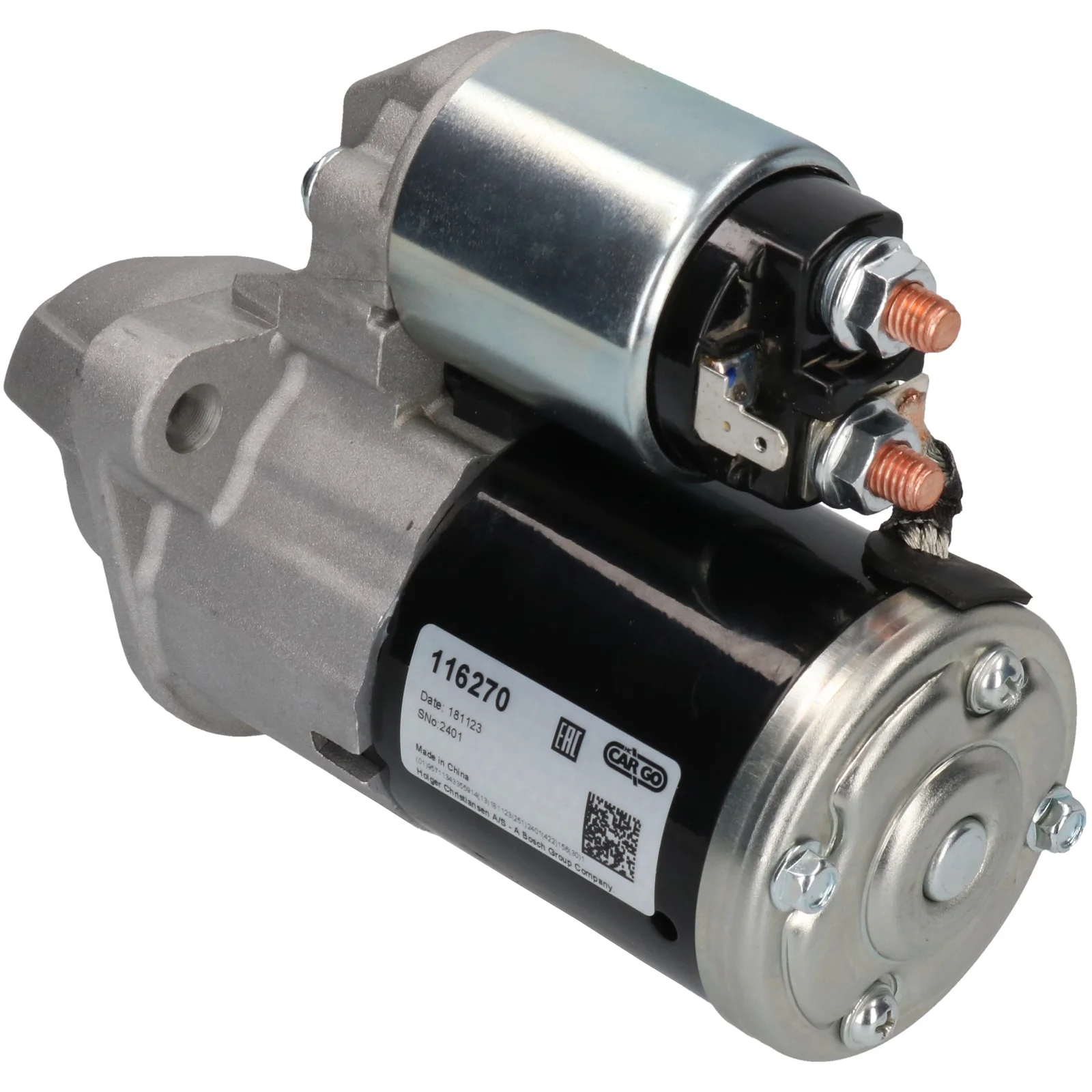

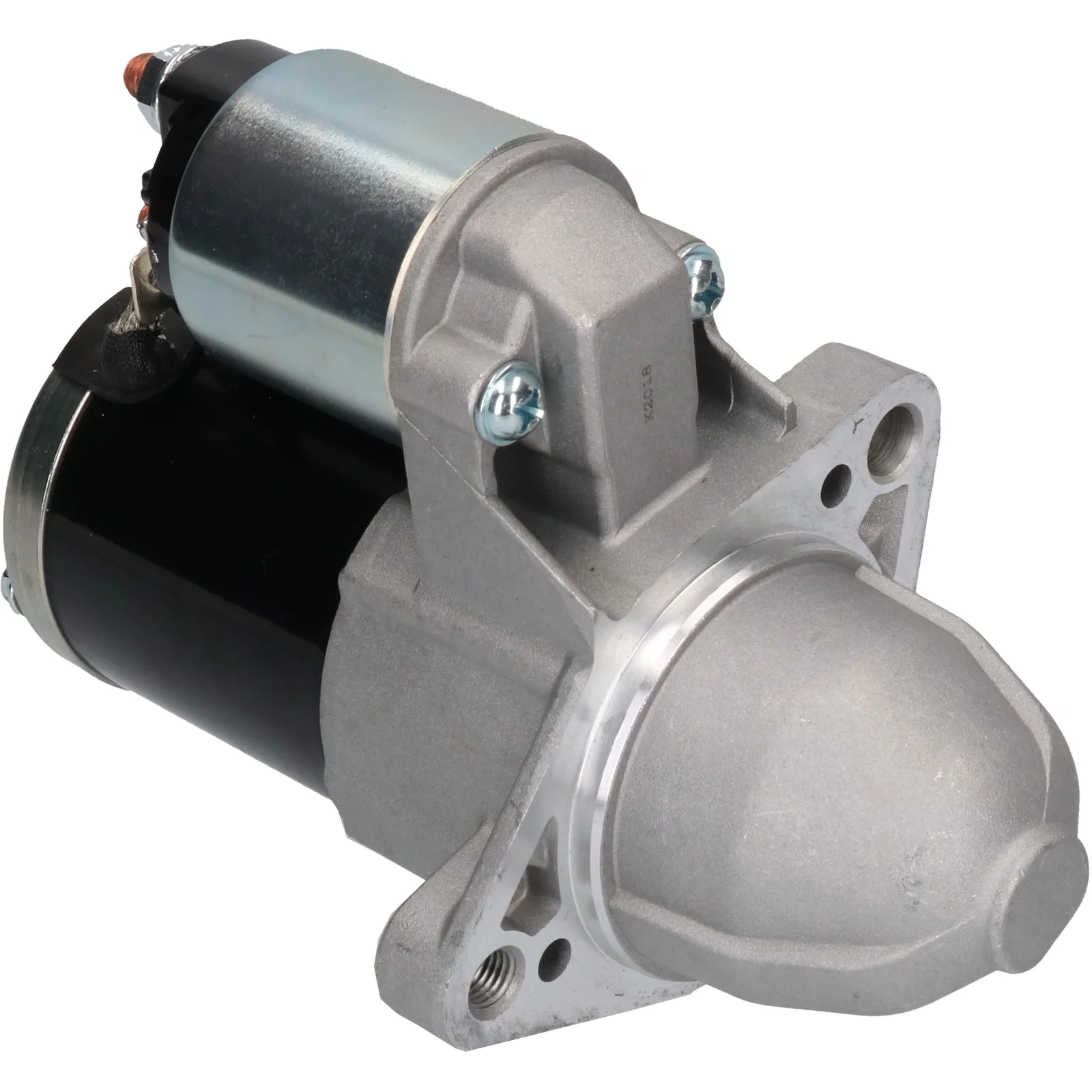

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116270

HC-Cargo Startmotor

Teknisk info:

Spenningsgiver: 12, kW: 1,2, Antall/tenner: 10, Rotasjon: CW

Beskrivelse

Spenning: 12
kW: 1.2
Monteringsflens: 70.00
Drevavstand: 28.00
Monteringshull 1 mm: 11.00
Avstand/bakside: 131.00
Avstand/framside: 60.00
Num./tenner: 10
B+: M8
Posisjon/50: 45
Terminal 50: 6.30
Gavltype: GR
Avstand mm: 101.50
Rotasjon: med uret
Total lengde mm: 193.00
Num./monteringshull: 2 (1)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 70.00
No./mount. holes 2 (1)
Position/50 45
Rotation CW
Dist./back 131.00
Dist./front 60.00
Drive dist. 28.00
Gear type GR
kW 1.2
Terminal 50 6.30
Voltage 12
Total length 193.00 mm
Dist. 101.50 mm
Mount. hole 1 11.00 mm

  • OEM
    F032116270, M000T38071, M000T38071ZE, M000TD0871ZE, M000TF0072, M000TF0073, M0T38071, m0t38071ze, M0TF0072, RGO 116270, 31100-51k10, 31100-61MA1, 31100-73k10, 95507894

  • Konkurrentreferens
    CST35356, DRS0644, LRS02561, S5288S, 8EA011611-791, 25-4233, 180.520.102, 345.030.102, 30520, 30520-OS, 11040932

  • NormaliseratArtNr
    cst35356, drs0644, f032116270, lrs02561, m000t38071, m000t38071ze, m000td0871ze, m000tf0072, m000tf0073, m0t38071, m0t38071ze, m0tf0072, rgo116270, s5288s, 8ea011611791, 30520, 30520os, 254233, 3110051k10, 3110061ma1, 3110073k10, 11040932, 95507894, 180520102, 345030102

  • Passar modeller
    Suzuki Model: Splash Model series: Splash Size of motor: 1.2 Brand of engine: K12B Body: Hatchback From date: 01-01-2008 Fuel: Gasoline Approved: Yes
    Suzuki Model: Splash Model series: Splash Size of motor: 1.2 Brand of engine: K12B Body: Hatchback From date: 01-09-2010 Fuel: Gasoline Approved: Yes
    Suzuki Model: Splash Model series: Splash Type of engine: VVT Size of motor: 1.2 Brand of engine: K12B Body: Hatchback From date: 01-06-2011 Fuel: Gasoline Approved: Yes
    Suzuki Model: Splash Model series: Splash Type of engine: VVT Size of motor: 1.2 Brand of engine: K12B Body: Hatchback From date: 01-08-2012 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Model type: 4x4 Size of motor: 1.2 Brand of engine: K12B Body: Hatchback From date: 01-10-2010 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Size of motor: 1.2 Brand of engine: K12B Body: Hatchback From date: 01-10-2010 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Size of motor: 1.2 Brand of engine: K12B Type description: AZG412 Body: Hatchback From date: 01-10-2010 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Size of motor: 1.2 Brand of engine: K12B Type description: FZ, NZ Body: Hatchback From date: 01-08-2012 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 12
    kW: 1.2
    Monteringsflens: 70.00
    Drevavstand: 28.00
    Monteringshull 1 mm: 11.00
    Avstand/bakside: 131.00
    Avstand/framside: 60.00
    Num./tenner: 10
    B+: M8
    Posisjon/50: 45
    Terminal 50: 6.30
    Gavltype: GR
    Avstand mm: 101.50
    Rotasjon: med uret
    Total lengde mm: 193.00
    Num./monteringshull: 2 (1)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 10
    Mount. flange 70.00
    No./mount. holes 2 (1)
    Position/50 45
    Rotation CW
    Dist./back 131.00
    Dist./front 60.00
    Drive dist. 28.00
    Gear type GR
    kW 1.2
    Terminal 50 6.30
    Voltage 12
    Total length 193.00 mm
    Dist. 101.50 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      F032116270, M000T38071, M000T38071ZE, M000TD0871ZE, M000TF0072, M000TF0073, M0T38071, m0t38071ze, M0TF0072, RGO 116270, 31100-51k10, 31100-61MA1, 31100-73k10, 95507894

    • Konkurrentreferens
      CST35356, DRS0644, LRS02561, S5288S, 8EA011611-791, 25-4233, 180.520.102, 345.030.102, 30520, 30520-OS, 11040932

    • NormaliseratArtNr
      cst35356, drs0644, f032116270, lrs02561, m000t38071, m000t38071ze, m000td0871ze, m000tf0072, m000tf0073, m0t38071, m0t38071ze, m0tf0072, rgo116270, s5288s, 8ea011611791, 30520, 30520os, 254233, 3110051k10, 3110061ma1, 3110073k10, 11040932, 95507894, 180520102, 345030102

    • Passar modeller
      Suzuki Model: Splash Model series: Splash Size of motor: 1.2 Brand of engine: K12B Body: Hatchback From date: 01-01-2008 Fuel: Gasoline Approved: Yes
      Suzuki Model: Splash Model series: Splash Size of motor: 1.2 Brand of engine: K12B Body: Hatchback From date: 01-09-2010 Fuel: Gasoline Approved: Yes
      Suzuki Model: Splash Model series: Splash Type of engine: VVT Size of motor: 1.2 Brand of engine: K12B Body: Hatchback From date: 01-06-2011 Fuel: Gasoline Approved: Yes
      Suzuki Model: Splash Model series: Splash Type of engine: VVT Size of motor: 1.2 Brand of engine: K12B Body: Hatchback From date: 01-08-2012 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Model type: 4x4 Size of motor: 1.2 Brand of engine: K12B Body: Hatchback From date: 01-10-2010 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Size of motor: 1.2 Brand of engine: K12B Body: Hatchback From date: 01-10-2010 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Size of motor: 1.2 Brand of engine: K12B Type description: AZG412 Body: Hatchback From date: 01-10-2010 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Size of motor: 1.2 Brand of engine: K12B Type description: FZ, NZ Body: Hatchback From date: 01-08-2012 Fuel: Gasoline Approved: Yes
