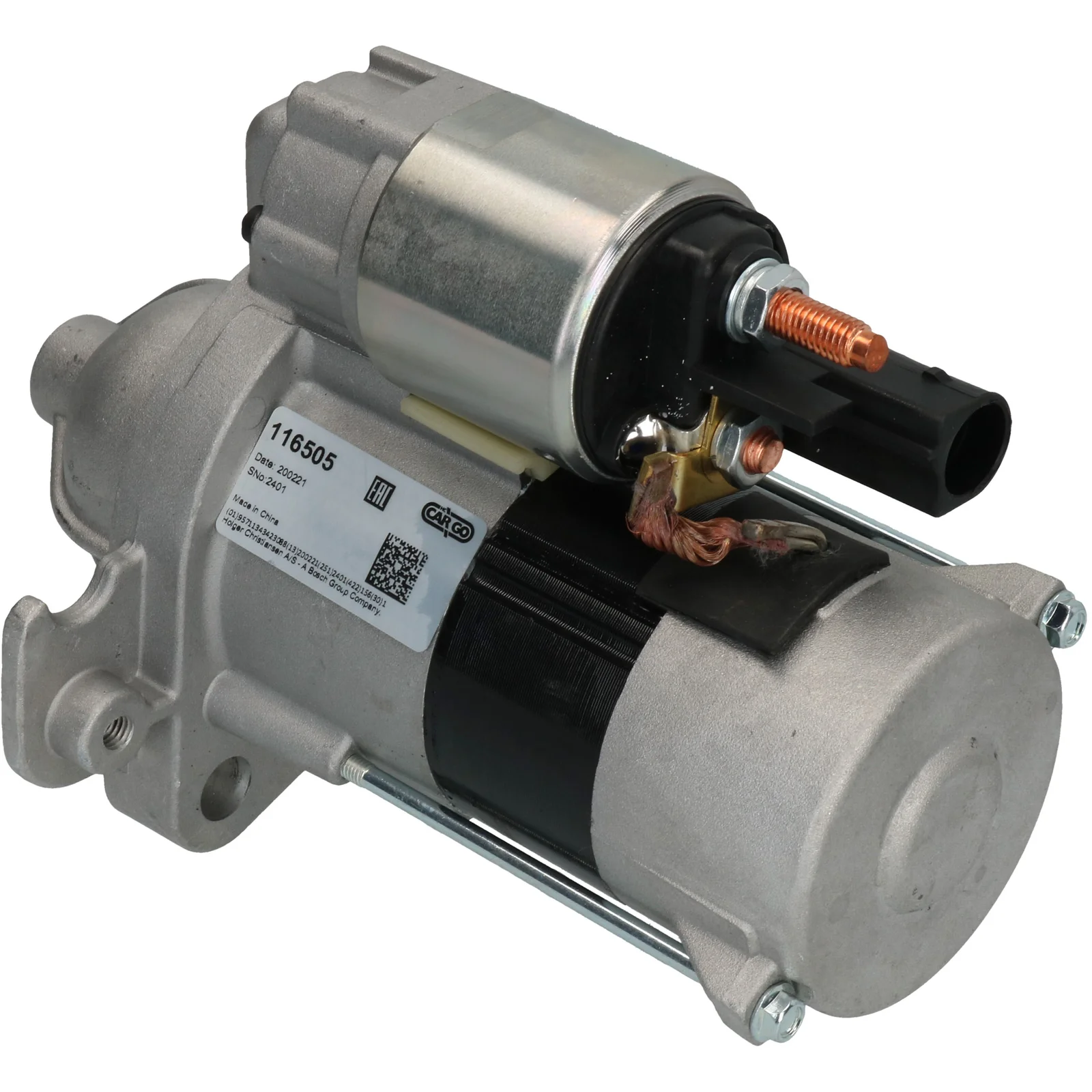

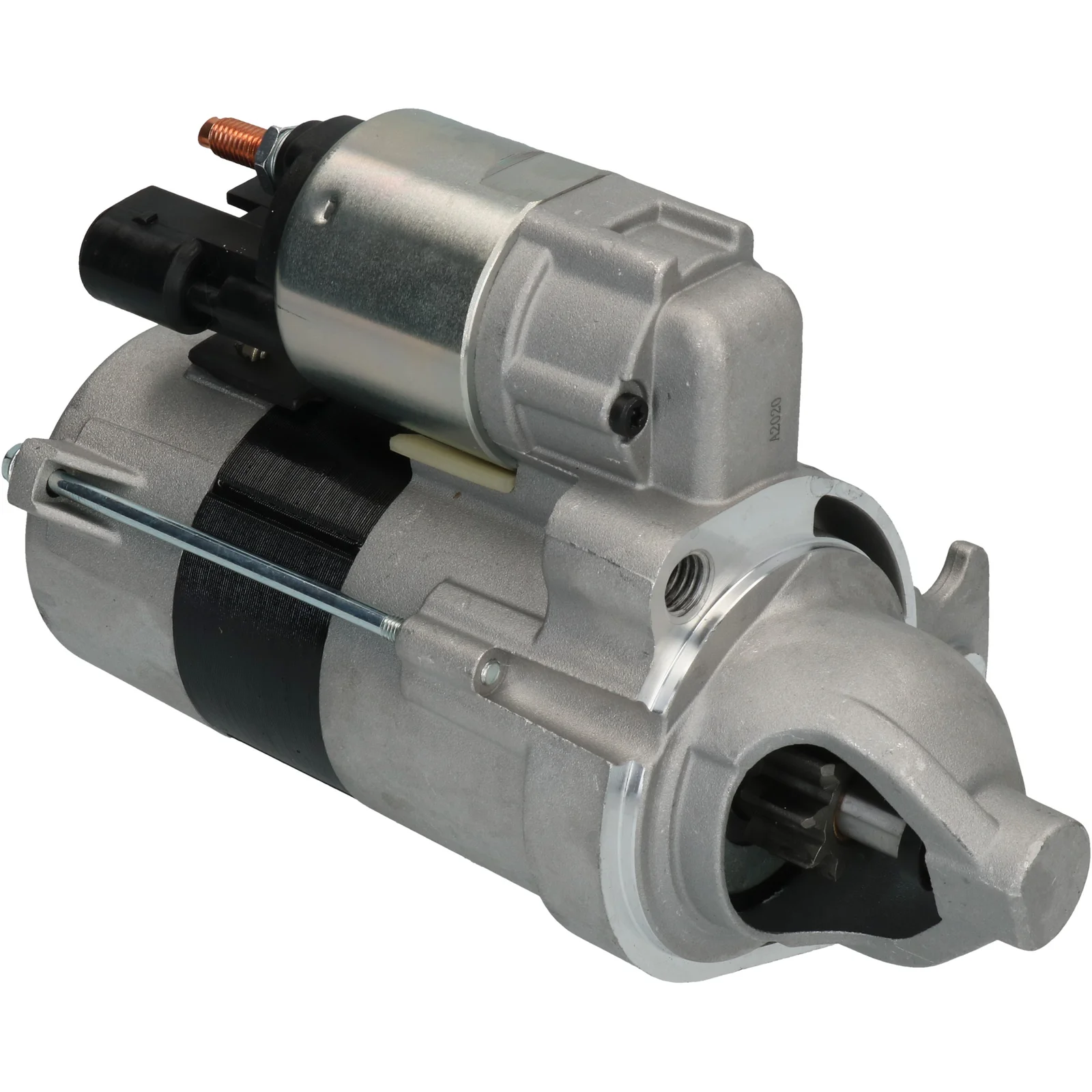

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116505

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 1.7, Antall/tenner: 9, Roteringsretning: medur

Beskrivelse

Spenning: 12
kW: 1.7
Feste flens: 76,20
Drevavstand: 22,00
Festeboring 3 mm: M12
Festeboring 2 mm: 13,00
Avstand/bak: 153,00
Avstand/frampå: 61,00
Nr./tenner: 9
B+: M8
Posisjon/B+: 60
Posisjon/50: 20
Terminal 50: Plugg
Girtype: GR
Avstand 2: 101,00
Avstand 3: 99,50
Avstand mm: 36,50
Rotasjon: medur (CW)
Total lengde mm: 214,00
Nr./festeboringer: 3 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 76.20
No./mount. holes 3 (2)
Position/50 20
Position/B+ 60
Dist. 2 101.00
Dist. 3 99.50
Rotation CW
Dist./back 153.00
Dist./front 61.00
Drive dist. 22.00
Gear type GR
kW 1.7
Terminal 50 Plug
Voltage 12
Total length 214.00 mm
Dist. 36.50 mm
Mount. hole 3 M12 mm
Mount. hole 2 13.00 mm

  • OEM
    D7G6, D7GP21, F032116505, RGO 116505, 079911023d, 079911023DX

  • Konkurrentreferens
    CST15118, DRS0398, LES0239, LRS01728, S3168(VALEO), S3168PR, S3168S, 25-3285, 311.217.092, 107276, 254890, 438161, 458181, 8080175, 11090177

  • NormaliseratArtNr
    cst15118, d7g6, d7gp21, drs0398, f032116505, les0239, lrs01728, rgo116505, s3168pr, s3168s, s3168valeo, 107276, 253285, 254890, 438161, 458181, 8080175, 11090177, 079911023d, 079911023dx, 311217092

  • Passar modeller
    Audi Model: A4 Model series: A4 B7 Model type: Quattro Size of motor: 4.2 Brand of engine: BBK,BHF Type description: 8HE Body: Convertible From date: 01-11-2005 To date: 01-03-2009 Fuel: Petrol Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Size of motor: 4.2 Brand of engine: BBK Type description: 8H7, 8HE Body: Convertible From date: 01-03-2004 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Model type: S4 Quattro Size of motor: 3.0 Brand of engine: CAKA Type description: 8K2 From date: 01-11-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Model type: S4 Quattro Size of motor: 3.0 Brand of engine: CCBA Type description: 8K2 From date: 01-11-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Model type: S4 Quattro Size of motor: 3.0 Brand of engine: CGWC Type description: 8K2 From date: 01-11-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Model type: S4 Quattro Size of motor: 3.0 Brand of engine: CGXC Type description: 8K2 From date: 01-11-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Model type: S4 Quattro Size of motor: 3.0 Brand of engine: CREC Type description: 8K2 From date: 01-11-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Model type: S4 Quattro Size of motor: 3.0 Brand of engine: CTUB Type description: 8K2 From date: 01-11-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Audi Model: A4 RS4 Model series: A4 RS4 Model type: Quattro Size of motor: 4.2 Brand of engine: BNS Type description: 8EC From date: 01-09-2005 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
    Audi Model: A4 RS4 Model series: A4 RS4 Model type: Quattro Size of motor: 4.2 Brand of engine: BNS Type description: 8ED Body: Estate From date: 01-09-2005 To date: 01-06-2008 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A4 RS4 Model series: A4 RS4 Model type: Quattro Size of motor: 4.2 Brand of engine: BNS Type description: 8H7, 8HE Body: Convertible From date: 01-06-2006 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Size of motor: 4.2 Brand of engine: BAT Type description: 4F2 From date: 01-05-2004 To date: 01-05-2006 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Size of motor: 4.2 Brand of engine: BAT Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-05-2006 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: FSi Size of motor: 4.2 Brand of engine: BVJ Type description: 4F2 From date: 01-06-2006 To date: 01-03-2011 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: FSi Size of motor: 4.2 Brand of engine: BVJ Type description: 4F5 Body: Estate From date: 01-06-2006 To date: 01-08-2011 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A8 Model series: A8 Model type: Quattro Size of motor: 3.7 Brand of engine: BFL From date: 01-10-2002 To date: 01-05-2006 Fuel: Gasoline Approved: Yes
    Audi Model: A8 Model series: A8 Model type: Quattro Size of motor: 4.2 Brand of engine: BFM Type description: 4E_ From date: 01-10-2002 To date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: FSi Size of motor: 4.2 Brand of engine: BVJ Type description: 4E From date: 01-06-2006 To date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Audi Model: S4 Model series: S4 Model type: Quattro Size of motor: 4.2 Brand of engine: BBK Body: Estate From date: 01-03-2003 To date: 01-12-2004 Fuel: Gasoline Approved: Yes Manufacture type: Avant
    Audi Model: S4 Model series: S4 Model type: Quattro Size of motor: 4.2 Brand of engine: BBK From date: 01-03-2003 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Audi Model: S4 Model series: S4 Model type: Quattro Type of engine: V8 Size of motor: 4.2 Brand of engine: BBK Type description: 8EC From date: 01-11-2004 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
    Audi Model: S4 Model series: S4 Model type: Quattro Type of engine: V8 Size of motor: 4.2 Brand of engine: BBK Type description: 8ED Body: Estate From date: 01-11-2004 To date: 01-06-2008 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: S4 Model series: S4 Model type: Quattro Type of engine: V8 Size of motor: 4.2 Brand of engine: BHF Type description: 8EC From date: 01-11-2004 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
    Faw-Audi Model: A6 Model series: A6L Model type: Quattro Type of engine: Turbo Size of motor: 4.2 Brand of engine: BVJ From date: 01-11-2006 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    1 / 5
  • Beskrivelse
    Spenning: 12
    kW: 1.7
    Feste flens: 76,20
    Drevavstand: 22,00
    Festeboring 3 mm: M12
    Festeboring 2 mm: 13,00
    Avstand/bak: 153,00
    Avstand/frampå: 61,00
    Nr./tenner: 9
    B+: M8
    Posisjon/B+: 60
    Posisjon/50: 20
    Terminal 50: Plugg
    Girtype: GR
    Avstand 2: 101,00
    Avstand 3: 99,50
    Avstand mm: 36,50
    Rotasjon: medur (CW)
    Total lengde mm: 214,00
    Nr./festeboringer: 3 (2)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 76.20
    No./mount. holes 3 (2)
    Position/50 20
    Position/B+ 60
    Dist. 2 101.00
    Dist. 3 99.50
    Rotation CW
    Dist./back 153.00
    Dist./front 61.00
    Drive dist. 22.00
    Gear type GR
    kW 1.7
    Terminal 50 Plug
    Voltage 12
    Total length 214.00 mm
    Dist. 36.50 mm
    Mount. hole 3 M12 mm
    Mount. hole 2 13.00 mm
  • Kjøretøymatching

    • OEM
      D7G6, D7GP21, F032116505, RGO 116505, 079911023d, 079911023DX

    • Konkurrentreferens
      CST15118, DRS0398, LES0239, LRS01728, S3168(VALEO), S3168PR, S3168S, 25-3285, 311.217.092, 107276, 254890, 438161, 458181, 8080175, 11090177

    • NormaliseratArtNr
      cst15118, d7g6, d7gp21, drs0398, f032116505, les0239, lrs01728, rgo116505, s3168pr, s3168s, s3168valeo, 107276, 253285, 254890, 438161, 458181, 8080175, 11090177, 079911023d, 079911023dx, 311217092

    • Passar modeller
      Audi Model: A4 Model series: A4 B7 Model type: Quattro Size of motor: 4.2 Brand of engine: BBK,BHF Type description: 8HE Body: Convertible From date: 01-11-2005 To date: 01-03-2009 Fuel: Petrol Approved: Yes
      Audi Model: A4 Model series: A4 Model type: Quattro Size of motor: 4.2 Brand of engine: BBK Type description: 8H7, 8HE Body: Convertible From date: 01-03-2004 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
      Audi Model: A4 Model series: A4 Model type: S4 Quattro Size of motor: 3.0 Brand of engine: CAKA Type description: 8K2 From date: 01-11-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Audi Model: A4 Model series: A4 Model type: S4 Quattro Size of motor: 3.0 Brand of engine: CCBA Type description: 8K2 From date: 01-11-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Audi Model: A4 Model series: A4 Model type: S4 Quattro Size of motor: 3.0 Brand of engine: CGWC Type description: 8K2 From date: 01-11-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Audi Model: A4 Model series: A4 Model type: S4 Quattro Size of motor: 3.0 Brand of engine: CGXC Type description: 8K2 From date: 01-11-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Audi Model: A4 Model series: A4 Model type: S4 Quattro Size of motor: 3.0 Brand of engine: CREC Type description: 8K2 From date: 01-11-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Audi Model: A4 Model series: A4 Model type: S4 Quattro Size of motor: 3.0 Brand of engine: CTUB Type description: 8K2 From date: 01-11-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Audi Model: A4 RS4 Model series: A4 RS4 Model type: Quattro Size of motor: 4.2 Brand of engine: BNS Type description: 8EC From date: 01-09-2005 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
      Audi Model: A4 RS4 Model series: A4 RS4 Model type: Quattro Size of motor: 4.2 Brand of engine: BNS Type description: 8ED Body: Estate From date: 01-09-2005 To date: 01-06-2008 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
      Audi Model: A4 RS4 Model series: A4 RS4 Model type: Quattro Size of motor: 4.2 Brand of engine: BNS Type description: 8H7, 8HE Body: Convertible From date: 01-06-2006 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Quattro Size of motor: 4.2 Brand of engine: BAT Type description: 4F2 From date: 01-05-2004 To date: 01-05-2006 Fuel: Gasoline Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Quattro Size of motor: 4.2 Brand of engine: BAT Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-05-2006 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: FSi Size of motor: 4.2 Brand of engine: BVJ Type description: 4F2 From date: 01-06-2006 To date: 01-03-2011 Fuel: Gasoline Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: FSi Size of motor: 4.2 Brand of engine: BVJ Type description: 4F5 Body: Estate From date: 01-06-2006 To date: 01-08-2011 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
      Audi Model: A8 Model series: A8 Model type: Quattro Size of motor: 3.7 Brand of engine: BFL From date: 01-10-2002 To date: 01-05-2006 Fuel: Gasoline Approved: Yes
      Audi Model: A8 Model series: A8 Model type: Quattro Size of motor: 4.2 Brand of engine: BFM Type description: 4E_ From date: 01-10-2002 To date: 01-07-2010 Fuel: Gasoline Approved: Yes
      Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: FSi Size of motor: 4.2 Brand of engine: BVJ Type description: 4E From date: 01-06-2006 To date: 01-07-2010 Fuel: Gasoline Approved: Yes
      Audi Model: S4 Model series: S4 Model type: Quattro Size of motor: 4.2 Brand of engine: BBK Body: Estate From date: 01-03-2003 To date: 01-12-2004 Fuel: Gasoline Approved: Yes Manufacture type: Avant
      Audi Model: S4 Model series: S4 Model type: Quattro Size of motor: 4.2 Brand of engine: BBK From date: 01-03-2003 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Audi Model: S4 Model series: S4 Model type: Quattro Type of engine: V8 Size of motor: 4.2 Brand of engine: BBK Type description: 8EC From date: 01-11-2004 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
      Audi Model: S4 Model series: S4 Model type: Quattro Type of engine: V8 Size of motor: 4.2 Brand of engine: BBK Type description: 8ED Body: Estate From date: 01-11-2004 To date: 01-06-2008 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
      Audi Model: S4 Model series: S4 Model type: Quattro Type of engine: V8 Size of motor: 4.2 Brand of engine: BHF Type description: 8EC From date: 01-11-2004 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
      Faw-Audi Model: A6 Model series: A6L Model type: Quattro Type of engine: Turbo Size of motor: 4.2 Brand of engine: BVJ From date: 01-11-2006 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      1 / 5
