Varenr.: F032112173

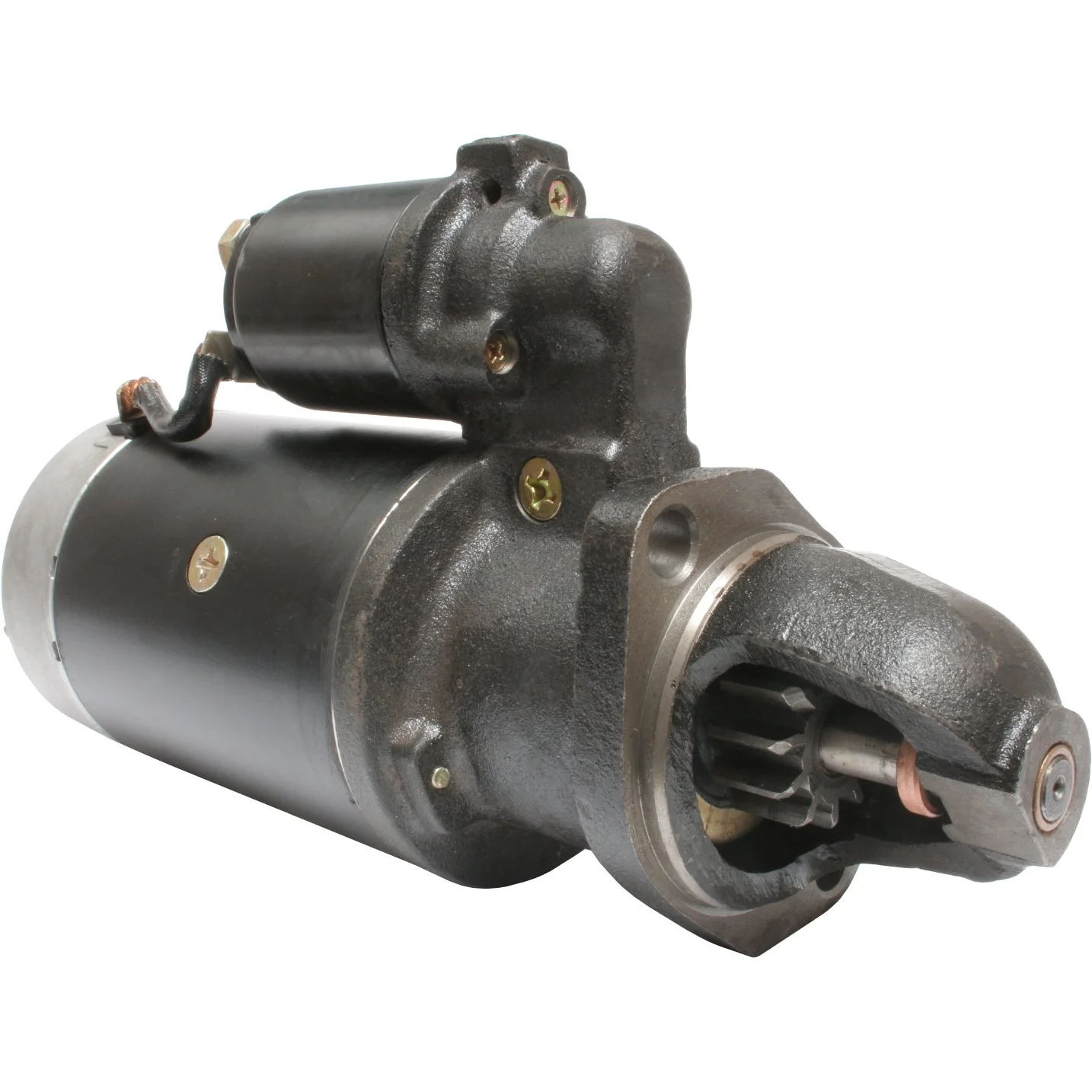

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 2,7, No./tenner: 11, Rotasjon: medurssving

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 2.7
Monteringsflens: 82.50
Driveavstand: 20.00
Monteringshull 2 mm: 13.50
Monteringshull 1 mm: 13.50
Avstand/bak: 273.50
Avstand/frem: 65.00
Nummer/tænder: 11
B+: M10
Posisjon/50: 45
Terminal 50: M4
Geartype: DD
Avstand mm: 104.50
Rotasjon: med uret
Total lengde mm: 342.50
Kobletype: Tørr
Drevtype: Stål
Prod. info: BN
Værbestandig: Nei
Oljepakket: Nei
Nummer/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 11
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 45
Clutch type Dry
Prod. info BN
Rotation CW
Dist./back 273.50
Dist./front 65.00
Drive dist. 20.00
Drive type Steel
Gear type DD
kW 2.7
Terminal 50 M4
Voltage 12
Total length 342.50 mm
Waterproof No
Dist. 104.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    azj3554, F032112173, MT41A, 11.130.250, 0001354029, 0001354108, 0001367008, 035530058A, 35530058A, 35530061, 40000700, 40000900, 605720100059

  • Konkurrentreferens
    BSO7084, BSO7176, CST21180, is0250, LRS01123, LRS01154, MS393, S0579, S9218S, STR22040, STR22058, 2-2042-BO, 25-1059, 25-1132, 680.002.112, 680.004.112, 680.011.112, 730.009.112, 730.507.112, 8546, 18236, 18943, 33700, 101073, 220186, 220186A, 254767

  • NormaliseratArtNr
    azj3554, bso7084, bso7176, cst21180, f032112173, is0250, lrs01123, lrs01154, ms393, mt41a, s0579, s9218s, str22040, str22058, 8546, 18236, 18943, 22042bo, 33700, 101073, 220186, 220186a, 251059, 251132, 254767, 0001354029, 0001354108, 0001367008, 11130250, 035530058a, 35530058a, 35530061, 40000700, 40000900, 680002112, 680004112, 680011112, 730009112, 730507112, 605720100059

  • Passar modeller
    Bertolini Model: Various Models Model series: Various Models Approved: Yes
    BMW Model: Various Models Model series: Various Models Approved: Yes
    Hatz Model: Stationnares Model series: Stationnares Model type: 50 Size of motor: 2.8 Brand of engine: 4L30C From date: 01-03-1977 To date: 01-02-1989 Fuel: Diesel Approved: Yes
    Hatz Model: Stationnares Model series: Stationnares Model type: 51 Size of motor: 2.8 Brand of engine: 4L30S From date: 01-03-1977 To date: 01-02-1989 Fuel: Diesel Approved: Yes
    Hatz Model: Stationnares Model series: Stationnares Size of motor: 1.4 Brand of engine: 2L30. From date: 01-03-1977 To date: 01-12-1989 Fuel: Diesel Approved: Yes
    Hatz Model: Various Models Model series: Various Models Approved: Yes
    VM (Stabilimenti Mec) Model: Stationnares Model series: Stationnares Model type: 235 Size of motor: 2.1 Brand of engine: HR494.. From date: 01-04-1985 Fuel: Diesel Approved: Yes
    VM (Stabilimenti Mec) Model: Stationnares Model series: Stationnares Model type: 279 Size of motor: 2.8 Brand of engine: HR494.. From date: 01-01-1986 Fuel: Diesel Approved: Yes
    VM (Stabilimenti Mec) Model: Stationnares Model series: Stationnares Model type: 282 Size of motor: 2.8 Brand of engine: HR494.. From date: 01-09-1989 Fuel: Diesel Approved: Yes
    VM (Stabilimenti Mec) Model: Stationnares Model series: Stationnares Size of motor: 3.5 Brand of engine: HR594.. From date: 01-01-1984 To date: 01-12-1990 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 12
    kW: 2.7
    Monteringsflens: 82.50
    Driveavstand: 20.00
    Monteringshull 2 mm: 13.50
    Monteringshull 1 mm: 13.50
    Avstand/bak: 273.50
    Avstand/frem: 65.00
    Nummer/tænder: 11
    B+: M10
    Posisjon/50: 45
    Terminal 50: M4
    Geartype: DD
    Avstand mm: 104.50
    Rotasjon: med uret
    Total lengde mm: 342.50
    Kobletype: Tørr
    Drevtype: Stål
    Prod. info: BN
    Værbestandig: Nei
    Oljepakket: Nei
    Nummer/monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 11
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 45
    Clutch type Dry
    Prod. info BN
    Rotation CW
    Dist./back 273.50
    Dist./front 65.00
    Drive dist. 20.00
    Drive type Steel
    Gear type DD
    kW 2.7
    Terminal 50 M4
    Voltage 12
    Total length 342.50 mm
    Waterproof No
    Dist. 104.50 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Kjøretøymatching

    • OEM
      azj3554, F032112173, MT41A, 11.130.250, 0001354029, 0001354108, 0001367008, 035530058A, 35530058A, 35530061, 40000700, 40000900, 605720100059

    • Konkurrentreferens
      BSO7084, BSO7176, CST21180, is0250, LRS01123, LRS01154, MS393, S0579, S9218S, STR22040, STR22058, 2-2042-BO, 25-1059, 25-1132, 680.002.112, 680.004.112, 680.011.112, 730.009.112, 730.507.112, 8546, 18236, 18943, 33700, 101073, 220186, 220186A, 254767

    • NormaliseratArtNr
      azj3554, bso7084, bso7176, cst21180, f032112173, is0250, lrs01123, lrs01154, ms393, mt41a, s0579, s9218s, str22040, str22058, 8546, 18236, 18943, 22042bo, 33700, 101073, 220186, 220186a, 251059, 251132, 254767, 0001354029, 0001354108, 0001367008, 11130250, 035530058a, 35530058a, 35530061, 40000700, 40000900, 680002112, 680004112, 680011112, 730009112, 730507112, 605720100059

    • Passar modeller
      Bertolini Model: Various Models Model series: Various Models Approved: Yes
      BMW Model: Various Models Model series: Various Models Approved: Yes
      Hatz Model: Stationnares Model series: Stationnares Model type: 50 Size of motor: 2.8 Brand of engine: 4L30C From date: 01-03-1977 To date: 01-02-1989 Fuel: Diesel Approved: Yes
      Hatz Model: Stationnares Model series: Stationnares Model type: 51 Size of motor: 2.8 Brand of engine: 4L30S From date: 01-03-1977 To date: 01-02-1989 Fuel: Diesel Approved: Yes
      Hatz Model: Stationnares Model series: Stationnares Size of motor: 1.4 Brand of engine: 2L30. From date: 01-03-1977 To date: 01-12-1989 Fuel: Diesel Approved: Yes
      Hatz Model: Various Models Model series: Various Models Approved: Yes
      VM (Stabilimenti Mec) Model: Stationnares Model series: Stationnares Model type: 235 Size of motor: 2.1 Brand of engine: HR494.. From date: 01-04-1985 Fuel: Diesel Approved: Yes
      VM (Stabilimenti Mec) Model: Stationnares Model series: Stationnares Model type: 279 Size of motor: 2.8 Brand of engine: HR494.. From date: 01-01-1986 Fuel: Diesel Approved: Yes
      VM (Stabilimenti Mec) Model: Stationnares Model series: Stationnares Model type: 282 Size of motor: 2.8 Brand of engine: HR494.. From date: 01-09-1989 Fuel: Diesel Approved: Yes
      VM (Stabilimenti Mec) Model: Stationnares Model series: Stationnares Size of motor: 3.5 Brand of engine: HR594.. From date: 01-01-1984 To date: 01-12-1990 Fuel: Diesel Approved: Yes
      1 / 2
