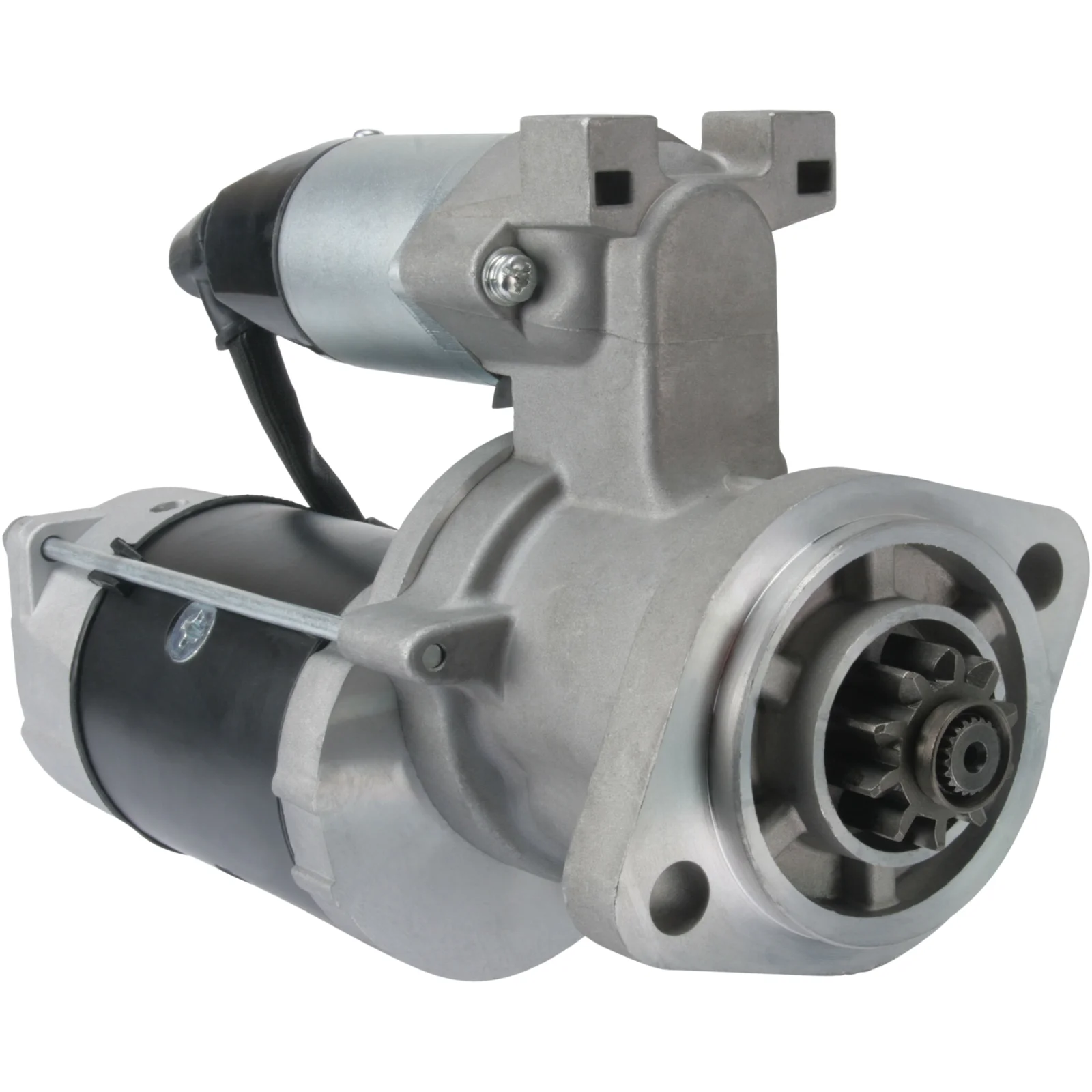

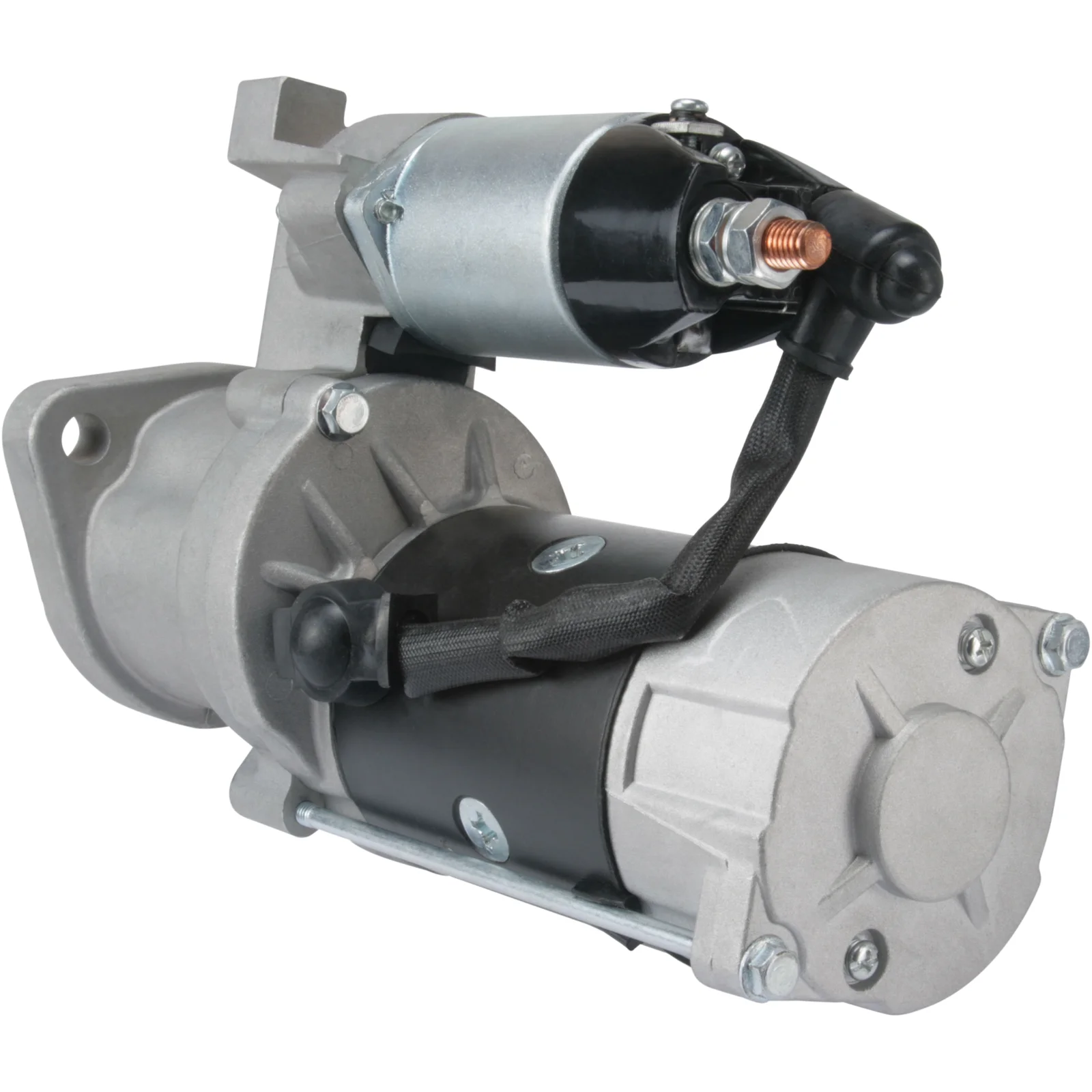

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032112323

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 24, kW: 5.0, No./tenner: 10, Rotasjon: CW

Beskrivelse

Spennings: 24
kW: 5.0
Monteringsflens: 82.00
Driveavstand: 23.00
Monteringshull 2 mm: 13.50
Monteringshull 1 mm: 13.50
Avstand/bak: 258.50
Avstand/frem: 32.50
Nummer/tannhjul: 10
B+: M10
Posisjon/50: 15
Terminal 50: M5
Geventype: GR
Avstand mm: 105.00
Rotasjon: med urviseren
Total lengde mm: 292.00
Koplingstype: Tørr
Drivavtype: Stål
Prod. info: BN
Vannavvisende: Nei
Oljetett: Ja
Nummer/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 10
Mount. flange 82.00
Oil sealed Yes
No./mount. holes 2 (0)
Position/50 15
Clutch type Dry
Prod. info BN
Rotation CW
Dist./back 258.50
Dist./front 32.50
Drive dist. 23.00
Drive type Steel
Gear type GR
kW 5.0
Terminal 50 M5
Voltage 24
Total length 292.00 mm
Waterproof No
Dist. 105.00 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    F032112323, M003T56174, M003T56181, M003T56182, M003T56183, m3t56172, m3t56174, m3t56181, m3t56182, m3t56183, 34766-10903, 34766-20900

  • Konkurrentreferens
    CST35602, DRS0425, DRS4161, LRS01889, LRS01928, S5196, sm-00232r, STR28015, 2-2087-mi, 2-2087-MI-1, 45-2090, 45-2445, 91-27-3205, 626.018.104, 18239, 18239N, 11040347

  • NormaliseratArtNr
    cst35602, drs0425, drs4161, f032112323, lrs01889, lrs01928, m003t56174, m003t56181, m003t56182, m003t56183, m3t56172, m3t56174, m3t56181, m3t56182, m3t56183, s5196, sm00232r, str28015, 18239, 18239n, 22087mi, 22087mi1, 452090, 452445, 11040347, 91273205, 626018104, 3476610903, 3476620900

  • Passar modeller
    Caterpillar Model: Excavator Model series: Various Models From date: 01-01-1983 Approved: Yes
    Mitsubishi Model: FD Model series: FD20 From date: 01-01-1983 Approved: Yes
    Mitsubishi Model: FD Model series: FD25 From date: 01-01-1983 To date: 01-01-1991 Approved: Yes
    Mitsubishi Model: FD Model series: FD30 From date: 01-01-1983 Approved: Yes
    Mitsubishi Model: FD Model series: FD35 Approved: Yes
    Mitsubishi Model: Various Models Model series: Various Models Approved: Yes
    1 / 2
  • Beskrivelse
    Spennings: 24
    kW: 5.0
    Monteringsflens: 82.00
    Driveavstand: 23.00
    Monteringshull 2 mm: 13.50
    Monteringshull 1 mm: 13.50
    Avstand/bak: 258.50
    Avstand/frem: 32.50
    Nummer/tannhjul: 10
    B+: M10
    Posisjon/50: 15
    Terminal 50: M5
    Geventype: GR
    Avstand mm: 105.00
    Rotasjon: med urviseren
    Total lengde mm: 292.00
    Koplingstype: Tørr
    Drivavtype: Stål
    Prod. info: BN
    Vannavvisende: Nei
    Oljetett: Ja
    Nummer/monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 10
    Mount. flange 82.00
    Oil sealed Yes
    No./mount. holes 2 (0)
    Position/50 15
    Clutch type Dry
    Prod. info BN
    Rotation CW
    Dist./back 258.50
    Dist./front 32.50
    Drive dist. 23.00
    Drive type Steel
    Gear type GR
    kW 5.0
    Terminal 50 M5
    Voltage 24
    Total length 292.00 mm
    Waterproof No
    Dist. 105.00 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Kjøretøymatching

    • OEM
      F032112323, M003T56174, M003T56181, M003T56182, M003T56183, m3t56172, m3t56174, m3t56181, m3t56182, m3t56183, 34766-10903, 34766-20900

    • Konkurrentreferens
      CST35602, DRS0425, DRS4161, LRS01889, LRS01928, S5196, sm-00232r, STR28015, 2-2087-mi, 2-2087-MI-1, 45-2090, 45-2445, 91-27-3205, 626.018.104, 18239, 18239N, 11040347

    • NormaliseratArtNr
      cst35602, drs0425, drs4161, f032112323, lrs01889, lrs01928, m003t56174, m003t56181, m003t56182, m003t56183, m3t56172, m3t56174, m3t56181, m3t56182, m3t56183, s5196, sm00232r, str28015, 18239, 18239n, 22087mi, 22087mi1, 452090, 452445, 11040347, 91273205, 626018104, 3476610903, 3476620900

    • Passar modeller
      Caterpillar Model: Excavator Model series: Various Models From date: 01-01-1983 Approved: Yes
      Mitsubishi Model: FD Model series: FD20 From date: 01-01-1983 Approved: Yes
      Mitsubishi Model: FD Model series: FD25 From date: 01-01-1983 To date: 01-01-1991 Approved: Yes
      Mitsubishi Model: FD Model series: FD30 From date: 01-01-1983 Approved: Yes
      Mitsubishi Model: FD Model series: FD35 Approved: Yes
      Mitsubishi Model: Various Models Model series: Various Models Approved: Yes
      1 / 2
