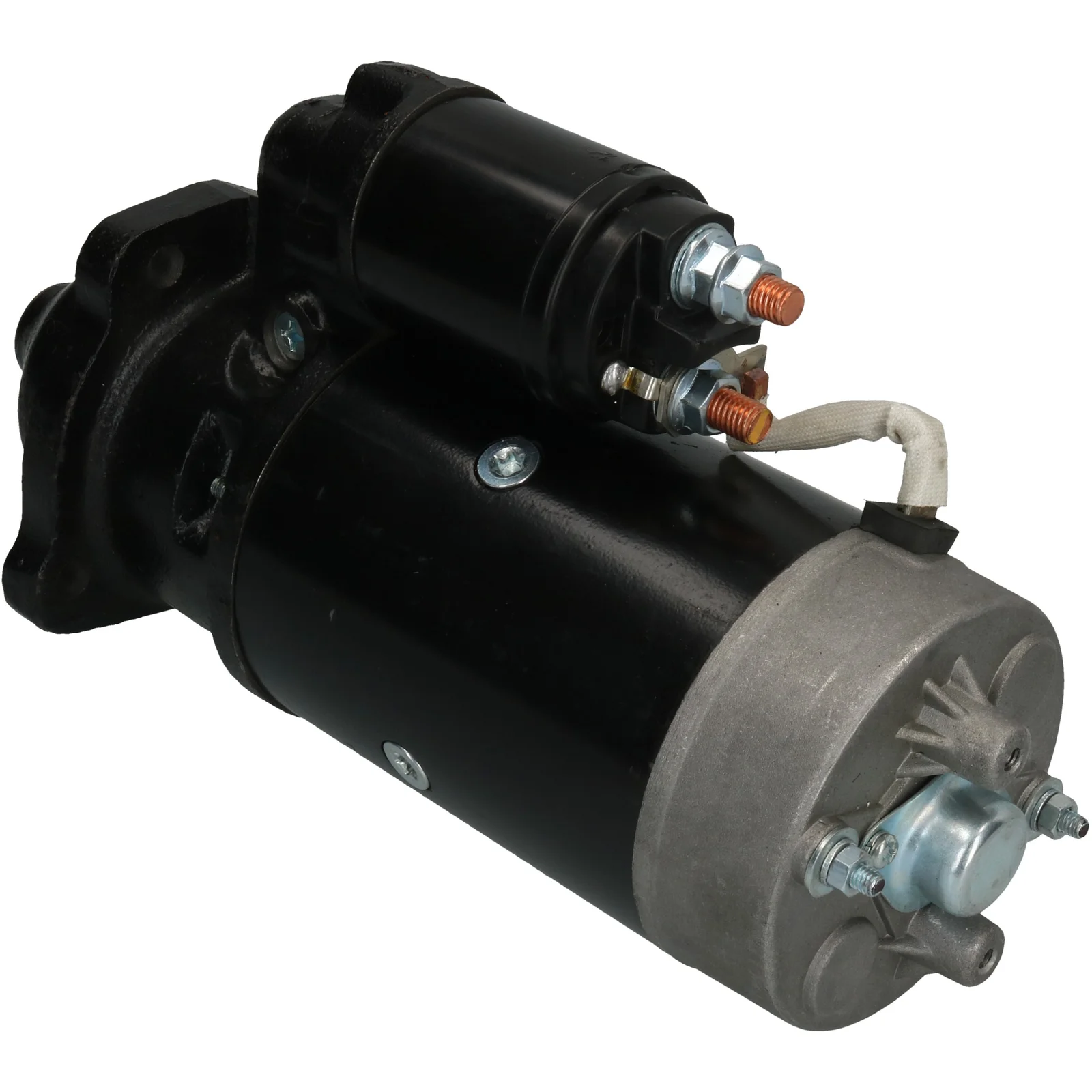

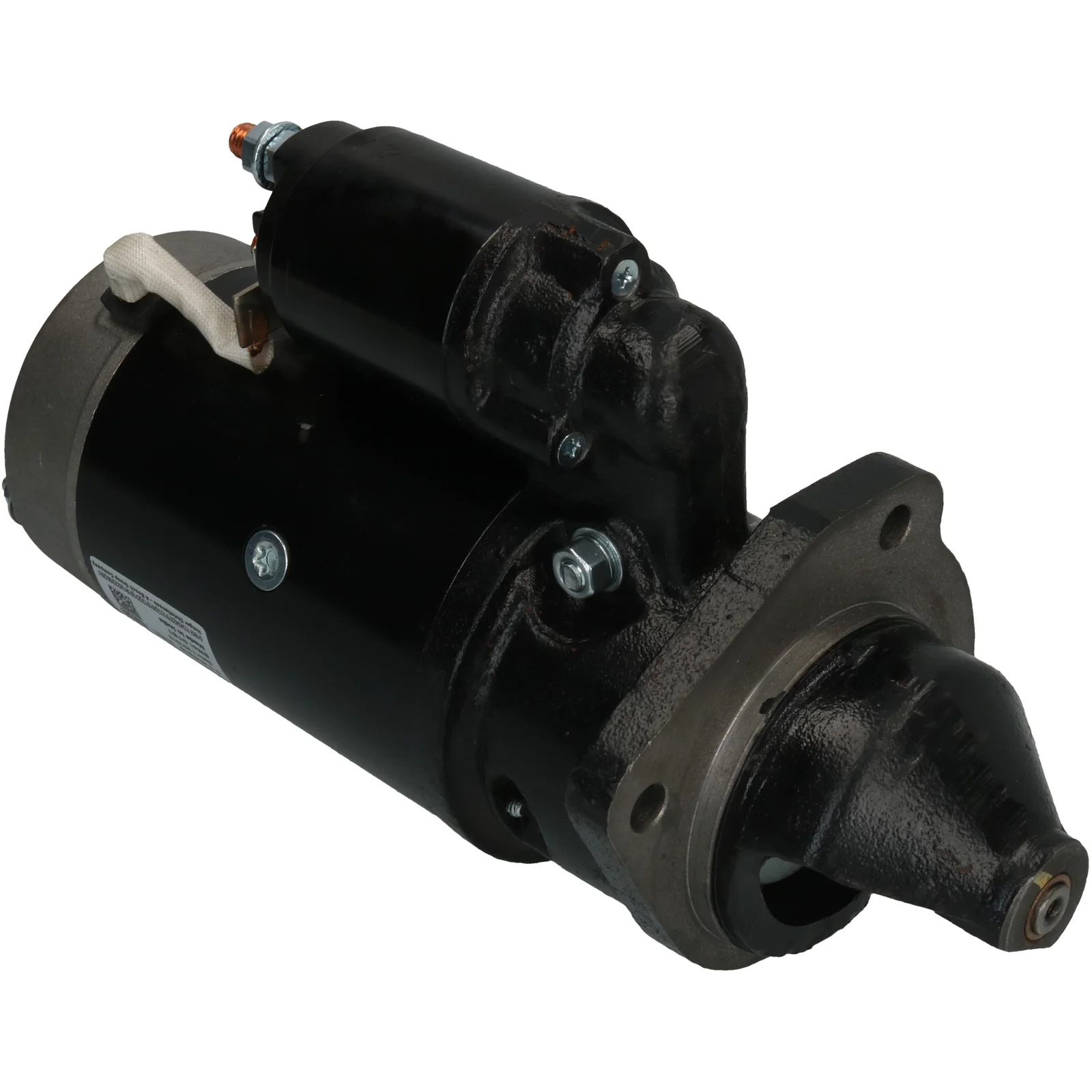

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116496

HC-Cargo Startmotor

Teknisk info:

Spenningsgiver: 12, kW: 3.0, Nr./tenner: 9, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 3.0
Monteringsflens: 89.00
Drevavstand: 21.00
Monteringshull 3 mm: 11.50
Monteringshull 2 mm: 11.50
Monteringshull 1 mm: 11.50
Avstand/bak: 273.00
Avstand/frem: 70.00
Nr./tenner: 9
B+: M10
Posisjon/B+: 60
Posisjon/50: 15
Terminal 50: M4
Gevertype: DD
Avstand 2: 127.00
Avstand 3: 90.00
Avstand mm: 90.00
Rotasjon: medurs
Total lengde mm: 343.00
Nr./monteringshull: 3 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 9
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 15
Position/B+ 60
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 273.00
Dist./front 70.00
Drive dist. 21.00
Gear type DD
kW 3.0
Terminal 50 M4
Voltage 12
Total length 343.00 mm
Dist. 90.00 mm
Mount. hole 3 11.50 mm
Mount. hole 2 11.50 mm
Mount. hole 1 11.50 mm

  • OEM
    F032116496, 0001367007, 605720100083

  • Konkurrentreferens
    CST10240, DRS1210, IS0670, LRS00566, LRS01069, MRS740, S0469, 25-0337, 88-11.210, 500.562.093, 681.007.092, 33445, 8811210, 42011210, 42369017, 943252282, 0986011210

  • NormaliseratArtNr
    cst10240, drs1210, f032116496, is0670, lrs00566, lrs01069, mrs740, s0469, 33445, 250337, 0001367007, 8811210, 42011210, 42369017, 500562093, 681007092, 943252282, 0986011210, 605720100083

  • Passar modeller
    Case IH Model: CS78 Model series: CS78 Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
    Case IH Model: CS86 Model series: CS86 Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
    Case IH Model: CS94 Model series: CS94 Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
    Fendt Model: Farmer Model series: 105 S Size of motor: 3.4 Brand of engine: D225-4 Body: Tractor From date: 01-01-1972 To date: 01-12-1996 Fuel: Diesel Approved: Yes
    Fendt Model: Farmer Model series: 106 S Size of motor: 3.4 Brand of engine: D225-4 Body: Tractor From date: 01-01-1972 To date: 01-12-1996 Fuel: Diesel Approved: Yes
    Fendt Model: Farmer Model series: 108 S Size of motor: 4.2 Brand of engine: D226-4 Body: Tractor From date: 01-01-1975 To date: 01-12-1996 Fuel: Diesel Approved: Yes
    Renault Model: 103-54 Model series: 103-54 Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
    Steyr Model: M9078 Model series: M9078 Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
    Steyr Model: M9078A Model series: M9078A Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
    Steyr Model: M9086A Model series: M9086A Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
    Steyr Model: M9094A Model series: M9094A Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
    1 / 3
  • Beskrivelse
    Spenning: 12
    kW: 3.0
    Monteringsflens: 89.00
    Drevavstand: 21.00
    Monteringshull 3 mm: 11.50
    Monteringshull 2 mm: 11.50
    Monteringshull 1 mm: 11.50
    Avstand/bak: 273.00
    Avstand/frem: 70.00
    Nr./tenner: 9
    B+: M10
    Posisjon/B+: 60
    Posisjon/50: 15
    Terminal 50: M4
    Gevertype: DD
    Avstand 2: 127.00
    Avstand 3: 90.00
    Avstand mm: 90.00
    Rotasjon: medurs
    Total lengde mm: 343.00
    Nr./monteringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 9
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 15
    Position/B+ 60
    Dist. 2 127.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 273.00
    Dist./front 70.00
    Drive dist. 21.00
    Gear type DD
    kW 3.0
    Terminal 50 M4
    Voltage 12
    Total length 343.00 mm
    Dist. 90.00 mm
    Mount. hole 3 11.50 mm
    Mount. hole 2 11.50 mm
    Mount. hole 1 11.50 mm
  • Kjøretøymatching

    • OEM
      F032116496, 0001367007, 605720100083

    • Konkurrentreferens
      CST10240, DRS1210, IS0670, LRS00566, LRS01069, MRS740, S0469, 25-0337, 88-11.210, 500.562.093, 681.007.092, 33445, 8811210, 42011210, 42369017, 943252282, 0986011210

    • NormaliseratArtNr
      cst10240, drs1210, f032116496, is0670, lrs00566, lrs01069, mrs740, s0469, 33445, 250337, 0001367007, 8811210, 42011210, 42369017, 500562093, 681007092, 943252282, 0986011210, 605720100083

    • Passar modeller
      Case IH Model: CS78 Model series: CS78 Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
      Case IH Model: CS86 Model series: CS86 Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
      Case IH Model: CS94 Model series: CS94 Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
      Fendt Model: Farmer Model series: 105 S Size of motor: 3.4 Brand of engine: D225-4 Body: Tractor From date: 01-01-1972 To date: 01-12-1996 Fuel: Diesel Approved: Yes
      Fendt Model: Farmer Model series: 106 S Size of motor: 3.4 Brand of engine: D225-4 Body: Tractor From date: 01-01-1972 To date: 01-12-1996 Fuel: Diesel Approved: Yes
      Fendt Model: Farmer Model series: 108 S Size of motor: 4.2 Brand of engine: D226-4 Body: Tractor From date: 01-01-1975 To date: 01-12-1996 Fuel: Diesel Approved: Yes
      Renault Model: 103-54 Model series: 103-54 Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
      Steyr Model: M9078 Model series: M9078 Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
      Steyr Model: M9078A Model series: M9078A Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
      Steyr Model: M9086A Model series: M9086A Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
      Steyr Model: M9094A Model series: M9094A Model type: Ag Tractors Brand of engine: TD226-4 Approved: Yes
