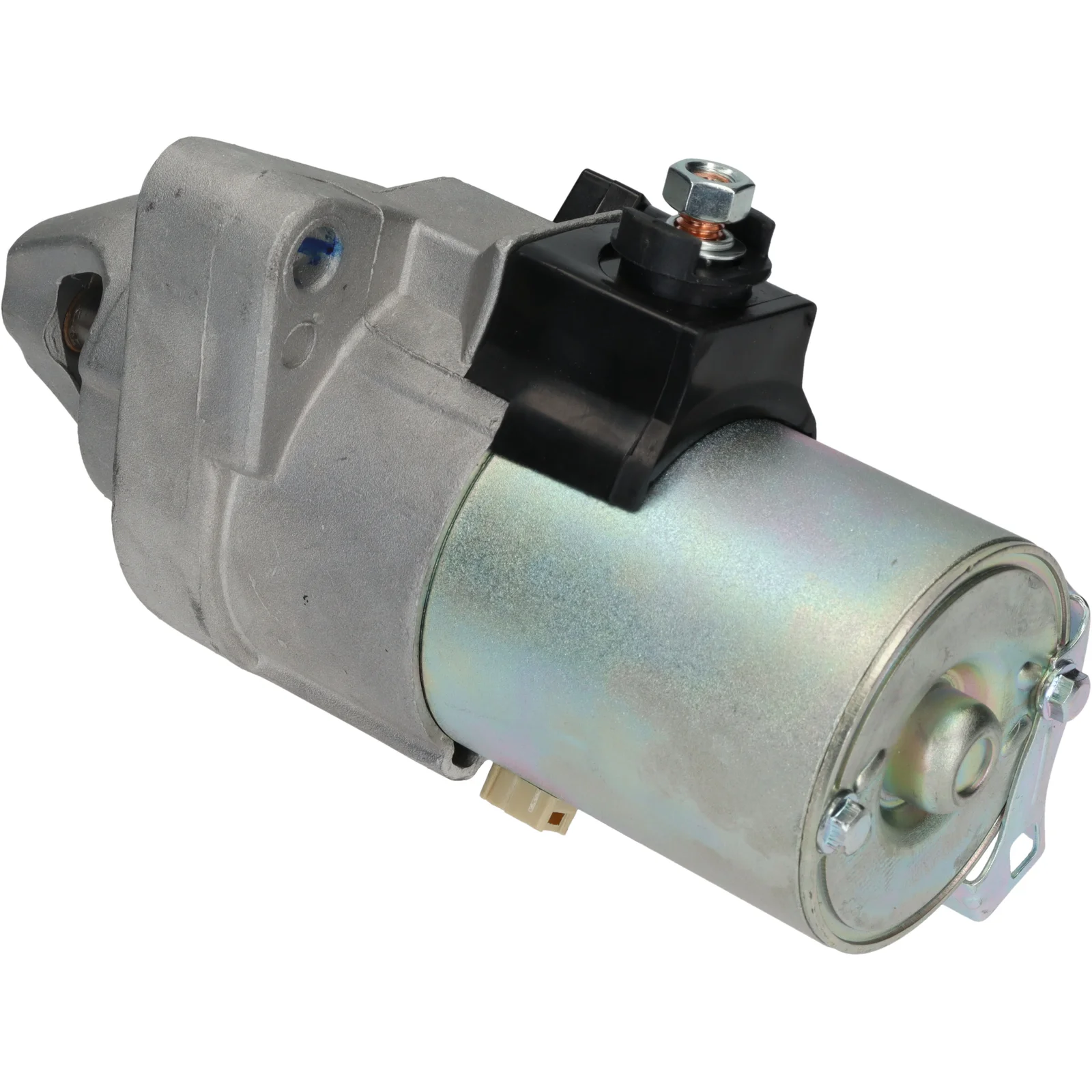

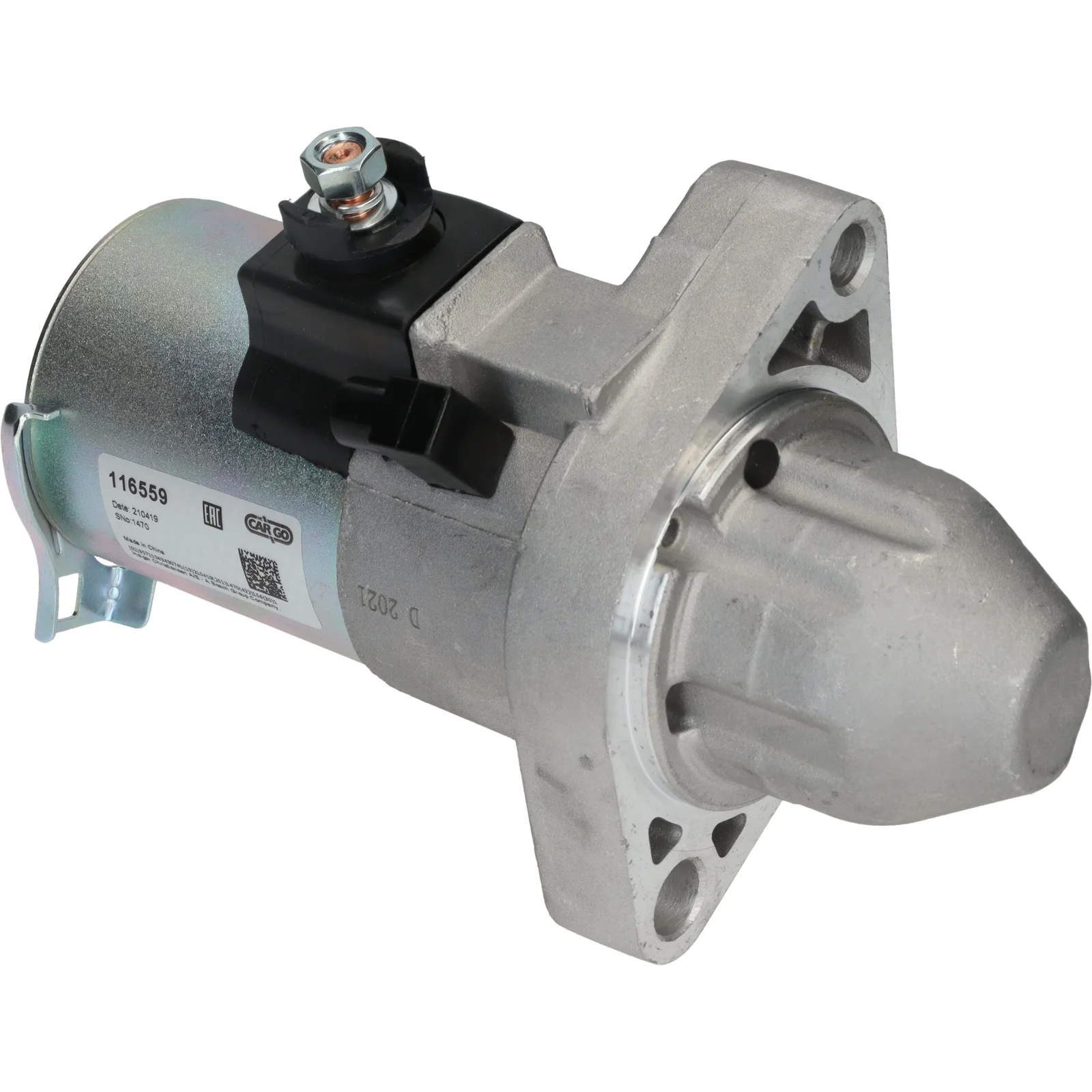

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116559

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 1.2, No./tenner: 9, Rotasjon: CW

Beskrivelse

Spenning: 12
kW: 1,2
Monteringsflens: 75,00
Monteringshull 2 mm: 13,50
Monteringshull 1 mm: 11,00
Antall/tænder: 9
B+: M8
Posisjon/B+: 60
Posisjon/50: 5
Kontakt 50: Plugg
Graftype: GR
Avstand mm: 115,50
Rotasjon: med urviseren
Total lengde mm: 209,50
Antall/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 75.00
No./mount. holes 2 (0)
Position/50 5
Position/B+ 60
Rotation CW
Gear type GR
kW 1.2
Terminal 50 Plug
Voltage 12
Total length 209.50 mm
Dist. 115.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 11.00 mm

  • OEM
    F032116559, PND3J, sm612-05, sm612-10, 31200-PND-505, 31200-PND-A01, 31200-PND-A02, 31200-PND-A03, 31200-PND-A04, 31200-RAD-004, 31200-RAD-114, 31200-RTB-014

  • Konkurrentreferens
    CST33126, LRS02719, SR1332X, 25-4392, 120.558.092, 0986JR1555, 17816, 17816N, 11040886

  • NormaliseratArtNr
    cst33126, f032116559, lrs02719, pnd3j, sm61205, sm61210, sr1332x, 0986jr1555, 17816, 17816n, 31200pnd505, 31200pnda01, 31200pnda02, 31200pnda03, 31200pnda04, 31200rad004, 31200rad114, 31200rtb014, 254392, 11040886, 120558092

  • Passar modeller
    Honda Model: Accord Model series: Accord Model type: E Type of engine: VTEC Size of motor: 2.4 Brand of engine: K24A2 Type description: CL_, CM_ From date: 01-09-2002 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Model type: T Type of engine: VTEC Size of motor: 2.4 Brand of engine: K24A1 Type description: CM_ Body: Estate From date: 01-09-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: F20B Type description: CL From date: 01-01-2006 To date: 01-03-2008 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24A Type description: CL_, CM_ From date: 01-02-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24A Type description: CM_ Body: Estate From date: 01-04-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes Manufacture type: TOURER
    Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24A3 Type description: CL_, CM_ From date: 01-02-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Size of motor: 3.0 Brand of engine: J30A4 Type description: CL_, CM_ From date: 01-05-2003 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Size of motor: 3.0 Brand of engine: J30A5 Type description: CL_, CM_ From date: 01-04-2006 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
    Honda Model: CR-V Model series: CR-V Model type: 4WD (RD7) Size of motor: 2.4 Brand of engine: K24A1 Type description: RD_ Body: SUV Fuel: Petrol Approved: Yes
    Honda Model: Elysion Model series: Elysion Model type: i-VTEC 4WD (RR2) Size of motor: 2.4 Brand of engine: K24A1 Type description: RR Body: MPV Fuel: Petrol Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 12
    kW: 1,2
    Monteringsflens: 75,00
    Monteringshull 2 mm: 13,50
    Monteringshull 1 mm: 11,00
    Antall/tænder: 9
    B+: M8
    Posisjon/B+: 60
    Posisjon/50: 5
    Kontakt 50: Plugg
    Graftype: GR
    Avstand mm: 115,50
    Rotasjon: med urviseren
    Total lengde mm: 209,50
    Antall/monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 75.00
    No./mount. holes 2 (0)
    Position/50 5
    Position/B+ 60
    Rotation CW
    Gear type GR
    kW 1.2
    Terminal 50 Plug
    Voltage 12
    Total length 209.50 mm
    Dist. 115.50 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      F032116559, PND3J, sm612-05, sm612-10, 31200-PND-505, 31200-PND-A01, 31200-PND-A02, 31200-PND-A03, 31200-PND-A04, 31200-RAD-004, 31200-RAD-114, 31200-RTB-014

    • Konkurrentreferens
      CST33126, LRS02719, SR1332X, 25-4392, 120.558.092, 0986JR1555, 17816, 17816N, 11040886

    • NormaliseratArtNr
      cst33126, f032116559, lrs02719, pnd3j, sm61205, sm61210, sr1332x, 0986jr1555, 17816, 17816n, 31200pnd505, 31200pnda01, 31200pnda02, 31200pnda03, 31200pnda04, 31200rad004, 31200rad114, 31200rtb014, 254392, 11040886, 120558092

    • Passar modeller
      Honda Model: Accord Model series: Accord Model type: E Type of engine: VTEC Size of motor: 2.4 Brand of engine: K24A2 Type description: CL_, CM_ From date: 01-09-2002 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Model type: T Type of engine: VTEC Size of motor: 2.4 Brand of engine: K24A1 Type description: CM_ Body: Estate From date: 01-09-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: F20B Type description: CL From date: 01-01-2006 To date: 01-03-2008 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24A Type description: CL_, CM_ From date: 01-02-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24A Type description: CM_ Body: Estate From date: 01-04-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes Manufacture type: TOURER
      Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24A3 Type description: CL_, CM_ From date: 01-02-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Size of motor: 3.0 Brand of engine: J30A4 Type description: CL_, CM_ From date: 01-05-2003 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Size of motor: 3.0 Brand of engine: J30A5 Type description: CL_, CM_ From date: 01-04-2006 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
      Honda Model: CR-V Model series: CR-V Model type: 4WD (RD7) Size of motor: 2.4 Brand of engine: K24A1 Type description: RD_ Body: SUV Fuel: Petrol Approved: Yes
      Honda Model: Elysion Model series: Elysion Model type: i-VTEC 4WD (RR2) Size of motor: 2.4 Brand of engine: K24A1 Type description: RR Body: MPV Fuel: Petrol Approved: Yes
      1 / 2
