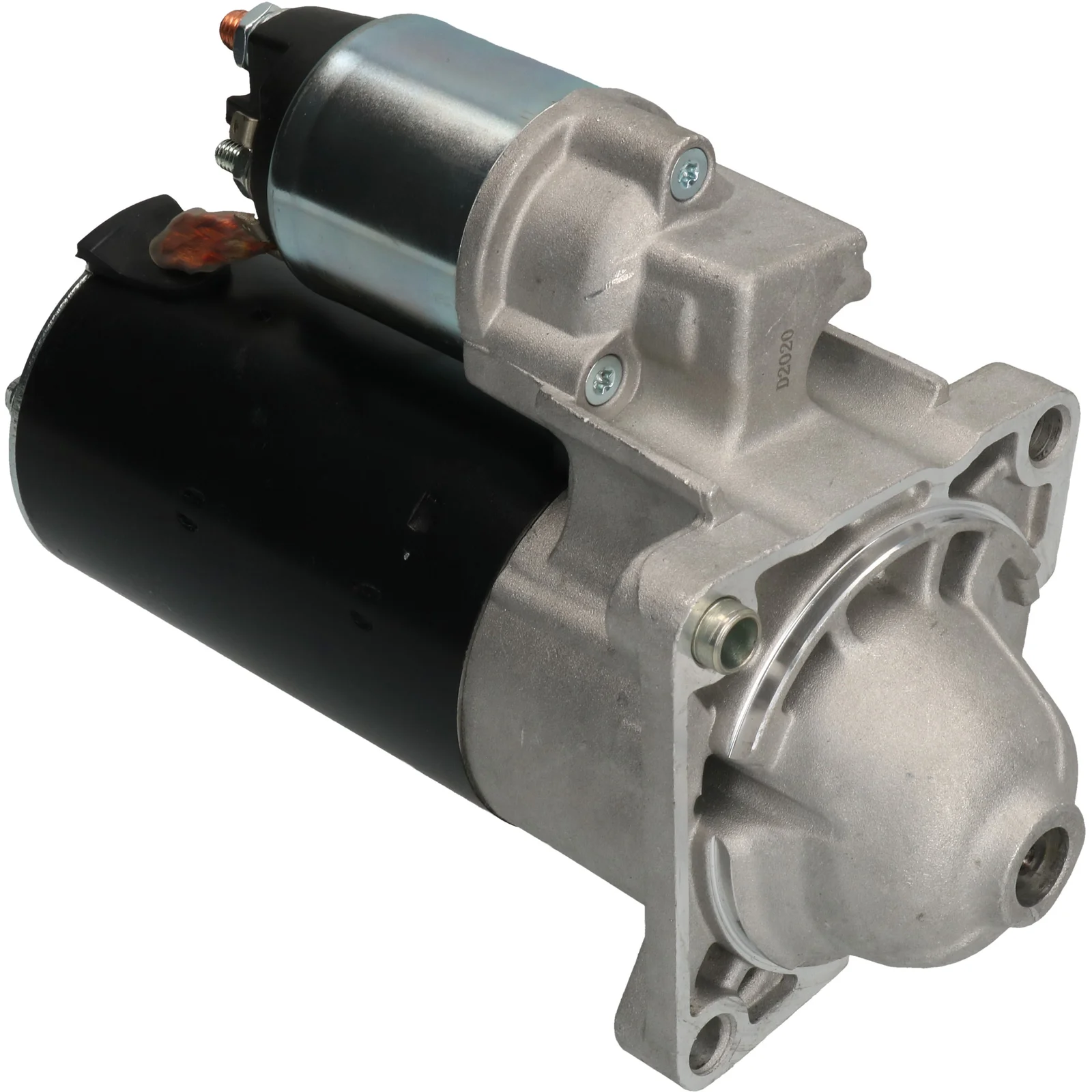

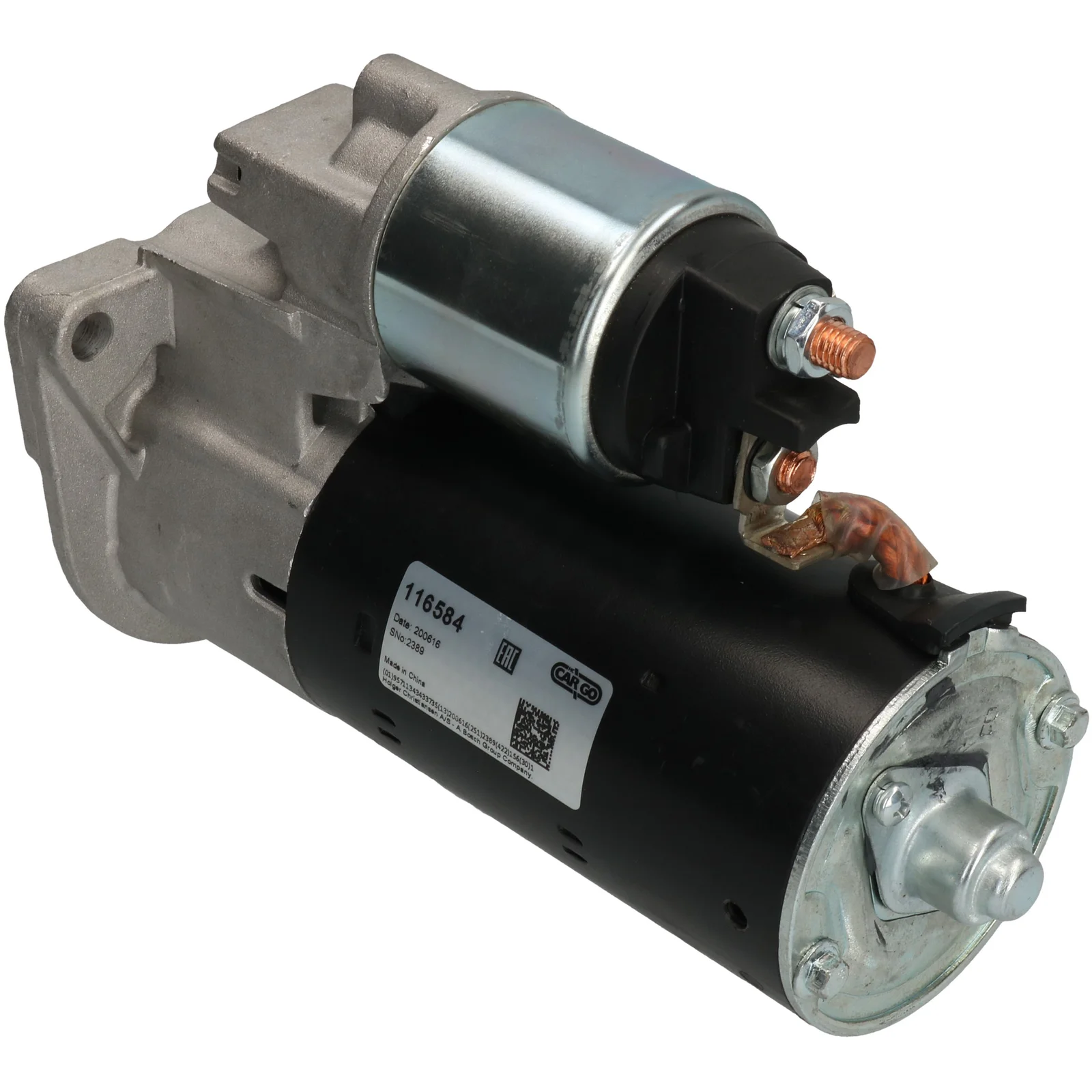

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116584

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 2,2, Nr./tenner: 11, Rotasjon: CW

Beskrivelse

HC-Cargo Startmotor 12V - 2,2kW, 11

Spenning: 12
kW: 2,2
Festebrenn. flens: 82,00
Drive avstand: 4,50
Festeb. hull 3 mm: 8,40
Festeb. hull 2 mm: 9,50
Festeb. hull 1 mm: 9,50
Avstand/tilbake: 197,50
Avstand/frem: 39,50
Nummer/tands: 11
B+: M8
Posisjon/B+: 60
Posisjon/50: 15
Terminal 50: M6
Geværtype: GR
Avstand 2: 82,50
Avstand 3: 82,50
Avstand mm: 116,00
Rotasjon: CW
Total lengde mm: 237,00
Nummer/festeb. hull: 3 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 11
Mount. flange 82.00
No./mount. holes 3 (0)
Position/50 15
Position/B+ 60
Dist. 2 82.50
Dist. 3 82.50
Rotation CW
Dist./back 197.50
Dist./front 39.50
Drive dist. 4.50
Gear type GR
kW 2.2
Terminal 50 M6
Voltage 12
Total length 237.00 mm
Dist. 116.00 mm
Mount. hole 3 8.40 mm
Mount. hole 2 9.50 mm
Mount. hole 1 9.50 mm

  • OEM
    F032116584, 0001 148 003, 0001 148 004, 1986S00860, 116584, 0001148003, 0001148004, 1202216, 55572065

  • Konkurrentreferens
    CST10534, DRS0549, LRS02591, S0621S, 25-4263, 130.563.113, 328.071.112, 19241N, 220806, 220806A, 255278, 438573, 11090192, 42025550, 0986025550

  • Bilmärken
    Opel

  • NormaliseratArtNr
    cst10534, drs0549, f032116584, lrs02591, s0621s, 1986s00860, 19241n, 116584, 220806, 220806a, 254263, 255278, 438573, 0001148003, 0001148004, 1202216, 11090192, 42025550, 55572065, 130563113, 328071112, 0986025550

  • Passar modeller
    Opel Model: Astra Model series: Astra J GTC Model type: CDTI (08) Type of engine: Diesel Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: CDTi Type of engine: Diesel Size of motor: 2.0 Brand of engine: A20DTH Type description: P10 Body: Hatchback Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-08-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Astra Model series: Astra J Model type: Sports tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P10 Body: Estate From date: 01-01-2014 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports tou
    Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P10 Body: Box Body / Estate From date: 01-10-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Country Tourer Model type: 4x4 Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: G09 Body: Estate From date: 01-09-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Country Tourer Model type: 4x4 Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: G09 Body: Estate From date: 01-09-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Country Tourer Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DT Type description: G09 Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Country Tourer Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTE Type description: G09 Body: Estate From date: 01-03-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Country Tourer Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: G09 Body: Estate From date: 01-07-2014 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Country Tourer Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTJ Type description: G09 Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTE Body: Estate From date: 01-07-2013 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports tou
    Opel Model: Insignia Model series: Insignia Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTE Body: Estate From date: 01-03-2012 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTE Body: Hatchback From date: 01-03-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTE From date: 01-03-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Tourer C Van Model series: Zafira Tourer C Van Model type: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DT,Z20DTJ,Y20DTJ Type description: P12 Body: Van From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Tourer C Van Model series: Zafira Tourer C Van Model type: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P12 Body: Van From date: 01-01-2013 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Tourer C Van Model series: Zafira Tourer C Van Model type: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL Type description: P12 Body: Van From date: 01-01-2013 Fuel: Diesel Approved: Yes
    Opel Series: Astra Sports Tourer Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 20 DTH Year: 08.11-10.15
    Opel Series: ASTRA J GTC Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 20 DTH Year: 01.12-10.15
    Opel Series: ASTRA J Skåp / kombi Model: 2.0 CDTi Engine volume: 2.0 Engine type: A 20 DTH Year: 10.12-10.15
    Opel Series: ASTRA J Sports Toure Model: 2.0 CDTI (35) Engine volume: 2.0 Engine type: A 20 DTH Year: 01.14-10.15
    Opel Series: INSIGNIA A Country Model: 2.0 CDTi 4x4 Engine volume: 2.0 Engine type: A 20 DTH Year: 09.13-03.17
    Opel Series: INSIGNIA A Country Model: 2.0 CDTi 4x4 Engine volume: 2.0 Engine type: A 20 DTR Year: 09.13-03.17
    Opel Series: INSIGNIA A Country Model: 2.0 CDTi Engine volume: 2.0 Engine type: A 20 DT/A 20 DTJ Year: 07.08-03.17
    Opel Series: INSIGNIA A Country Model: 2.0 CDTi Engine volume: 2.0 Engine type: A 20 DTE Year: 03.12-03.17
    Opel Series: INSIGNIA A Country Model: 2.0 CDTi Engine volume: 2.0 Engine type: A 20 DTH Year: 07.14-03.17
    Opel Series: INSIGNIA A Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 20 DTE Year: 03.12-03.17
    Opel Series: INSIGNIA A SEDAN Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 20 DTE Year: 03.12-03.17
    Opel Series: INSIGNIA A Sprt Tour Model: 2.0 CDTI (35) Engine volume: 2.0 Engine type: A 20 DTE Year: 03.12-06.15
    Opel Series: Insignia Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 20 DTH Year: 07.13-03.17
    Opel Series: Insignia Sports Tour Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 20 DTE Year: 07.13-06.15
    Opel Series: ZAFIRA TOURER C VAN Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 13 DTH Year: 01.13-
    Opel Series: Zafira Tourer C VAN Model: 2.0 CDTI Engine volume: 2.0 Engine type: A 20 DTL Year: 01.13-
    Opel Series: ZAFIRA TOURER C VAN Model: 2.0 CDTi Engine volume: 2.0 Engine type: A20DT/Y20DTJ/Z20DTJ Year: 01.12-
    Vauxhall Model: Insignia Model series: Insignia MK I Model type: 4x4 Type of engine: Biturbo Size of motor: 2.0 Brand of engine: A20DTR Type description: A G09 Body: Estate From date: 01-09-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Vauxhall Model: Insignia Model series: Insignia MK I Model type: 4x4 Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: A G09 Body: Estate From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Vauxhall Model: Insignia Model series: Insignia MK I Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: A G09 Body: Estate From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Vauxhall Model: Insignia Model series: Insignia Model type: Sports tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTE Body: Estate From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sports tou
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTE Body: Hatchback From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    1 / 9
