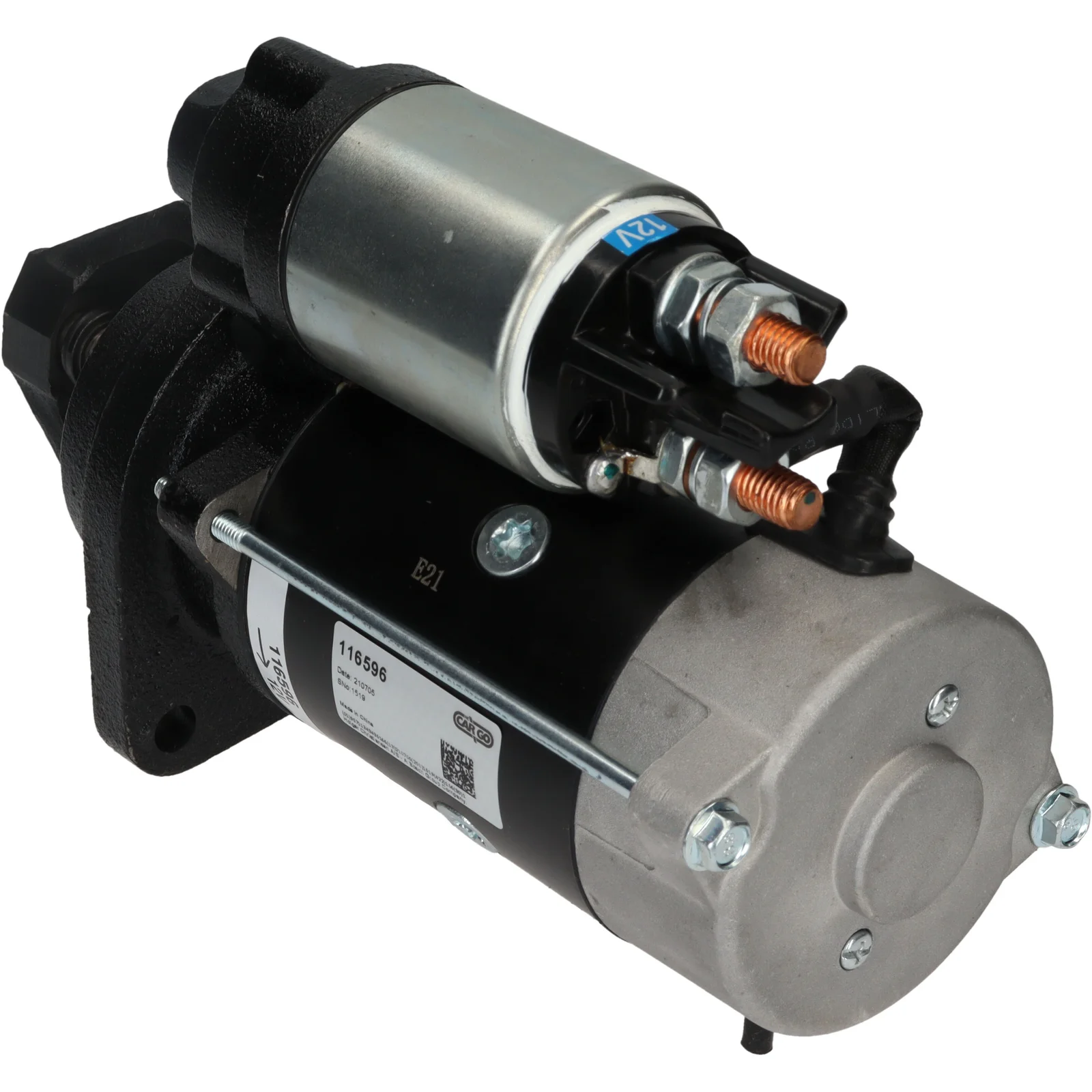

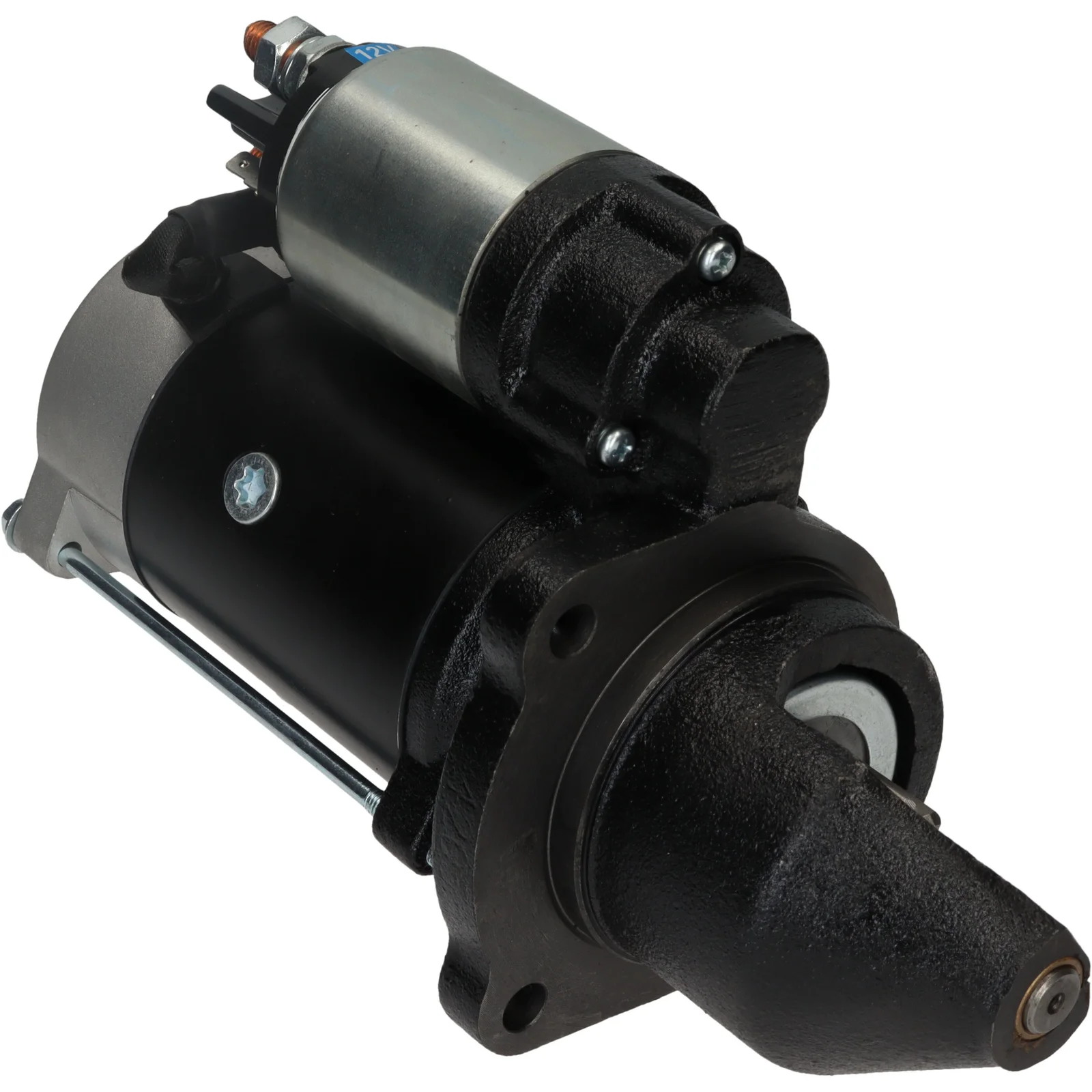

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116596

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, Kullbørstesett: 3.2, Antall tann: 9, Rotasjon: CW

Beskrivelse

Spenningsverdi: 12
kW: 3.2
monteringsflens: 89.00
Dreiingsavstand: 48.00
Montering hull 3 mm: 11.00
Montering hull 2 mm: 11.00
Montering hull 1 mm: 11.00
Avstand/bak: 193.00
Avstand/frem: 92.00
Antall/tannhjul: 9
B+: M10
Posisjon/B+: 60
Posisjon/50: 15
Terminal 50: M4
Girkasse type: GR
Avstand 2: 90.00
Avstand 3: 127.00
Avstand mm: 90.00
Rotasjon: CW
Total lengde mm: 285.00
Antall/monteringshull: 3 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 9
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 15
Position/B+ 60
Dist. 2 90.00
Dist. 3 127.00
Rotation CW
Dist./back 193.00
Dist./front 92.00
Drive dist. 48.00
Gear type GR
kW 3.2
Terminal 50 M4
Voltage 12
Total length 285.00 mm
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZE4205, F032116596, MN16359124, 11.131.957, 9142763, 9144763, 16359124, 78350925, 450115114763

  • Konkurrentreferens
    CST21182, IS1297, MS34, 580.502.092

  • NormaliseratArtNr
    aze4205, cst21182, f032116596, is1297, mn16359124, ms34, 9142763, 9144763, 11131957, 16359124, 78350925, 580502092, 450115114763

  • Passar modeller
    Zetor Model: Forterra Model series: 8641 Size of motor: 4.2 Brand of engine: Z1203 Body: Tractor From date: 01-10-2001 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Zetor Model: Major Model series: 80 Size of motor: 4.2 Brand of engine: Z1105 Body: Tractor From date: 01-10-2012 Fuel: Diesel Approved: Yes
    Zetor Model: Proxima Model series: 90, 100 Size of motor: 4.2 Body: Tractor From date: 01-10-2013 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenningsverdi: 12
    kW: 3.2
    monteringsflens: 89.00
    Dreiingsavstand: 48.00
    Montering hull 3 mm: 11.00
    Montering hull 2 mm: 11.00
    Montering hull 1 mm: 11.00
    Avstand/bak: 193.00
    Avstand/frem: 92.00
    Antall/tannhjul: 9
    B+: M10
    Posisjon/B+: 60
    Posisjon/50: 15
    Terminal 50: M4
    Girkasse type: GR
    Avstand 2: 90.00
    Avstand 3: 127.00
    Avstand mm: 90.00
    Rotasjon: CW
    Total lengde mm: 285.00
    Antall/monteringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 9
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 15
    Position/B+ 60
    Dist. 2 90.00
    Dist. 3 127.00
    Rotation CW
    Dist./back 193.00
    Dist./front 92.00
    Drive dist. 48.00
    Gear type GR
    kW 3.2
    Terminal 50 M4
    Voltage 12
    Total length 285.00 mm
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      AZE4205, F032116596, MN16359124, 11.131.957, 9142763, 9144763, 16359124, 78350925, 450115114763

    • Konkurrentreferens
      CST21182, IS1297, MS34, 580.502.092

    • NormaliseratArtNr
      aze4205, cst21182, f032116596, is1297, mn16359124, ms34, 9142763, 9144763, 11131957, 16359124, 78350925, 580502092, 450115114763

    • Passar modeller
      Zetor Model: Forterra Model series: 8641 Size of motor: 4.2 Brand of engine: Z1203 Body: Tractor From date: 01-10-2001 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Zetor Model: Major Model series: 80 Size of motor: 4.2 Brand of engine: Z1105 Body: Tractor From date: 01-10-2012 Fuel: Diesel Approved: Yes
      Zetor Model: Proxima Model series: 90, 100 Size of motor: 4.2 Body: Tractor From date: 01-10-2013 Fuel: Diesel Approved: Yes
