HC-Cargo Startmotor

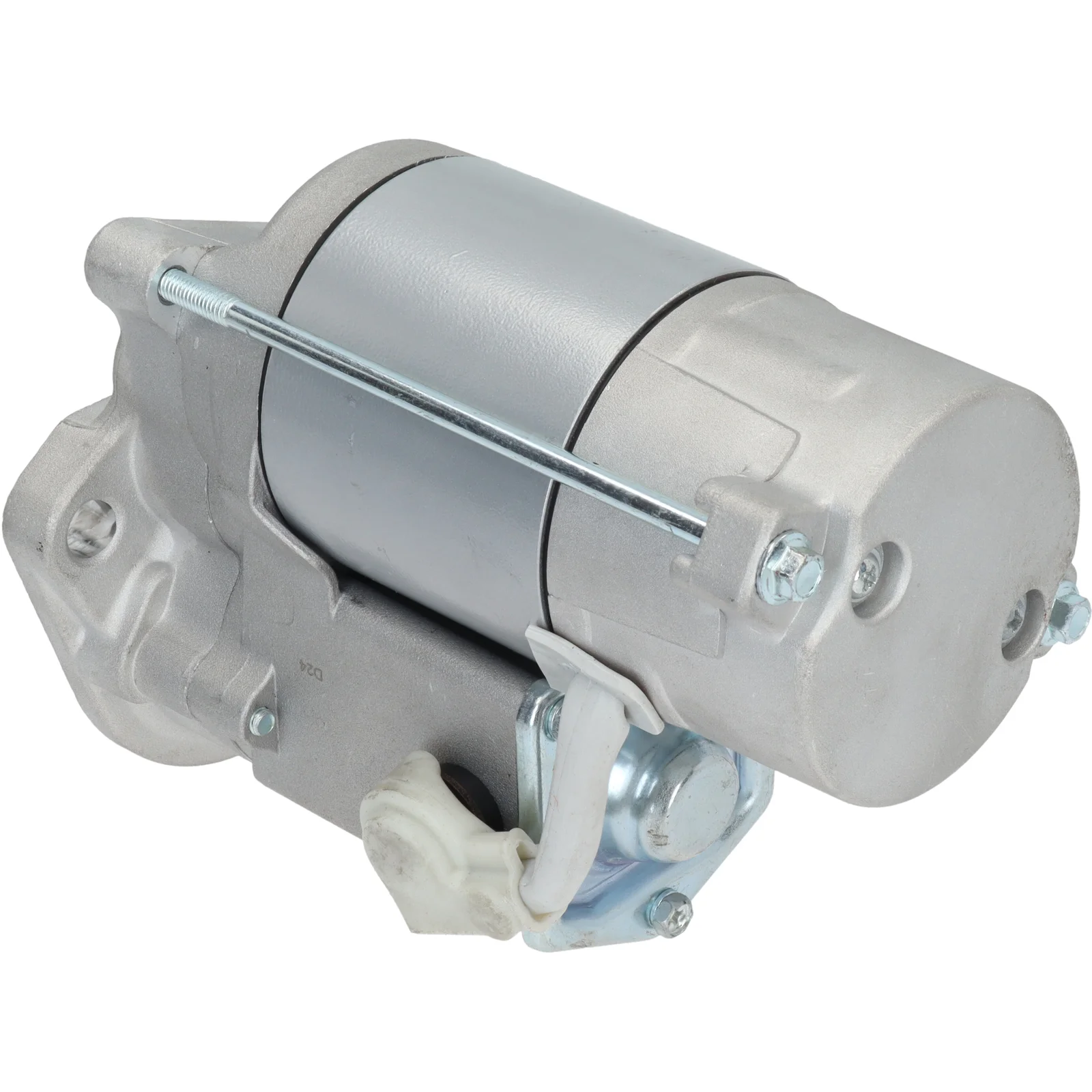

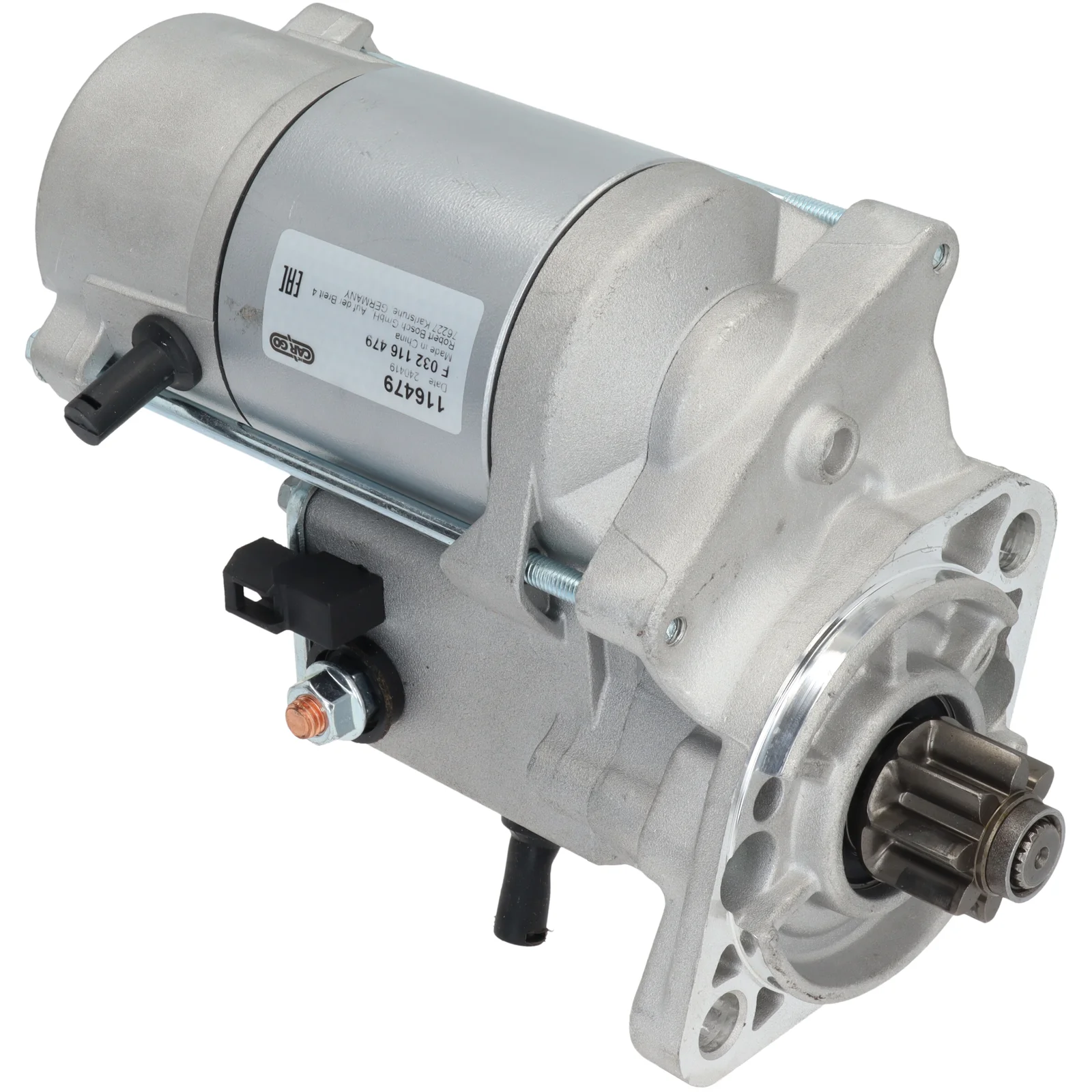

HC-Cargo Startmotor
Varenr.: F032116479

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 2.0, No./tenner: 8, Rotasjon: CW

Beskrivelse

Spenningsspenning: 12
kW: 2.0
Festerflens: 82.50
Drevavstand: 29.50
Festerhull 2 mm: 11.00
Festerhull 1 mm: 11.00
Avstand/forside: 37.00
Antall/tannhjul: 8
B+: M8
Terminal 50: 6.30
Girtype: GR
Avstand mm: 105.00
Rotasjon: Bortsett fra klokka
Total lengde mm: 219.00
Antall/festerhull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 8
Mount. flange 82.50
No./mount. holes 2 (0)
Rotation CW
Dist./front 37.00
Drive dist. 29.50
Gear type GR
kW 2.0
Terminal 50 6.30
Voltage 12
Total length 219.00 mm
Dist. 105.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032116479, 1J730-63010, 1J730-63011, 428000-6940, 428080-6940

  • Konkurrentreferens
    DSN2124, 690.558.082, 30579, 255367

  • NormaliseratArtNr
    dsn2124, f032116479, 1j73063010, 1j73063011, 30579, 255367, 690558082, 4280006940, 4280806940

  • Passar modeller
    Kubota Model: KX057-4 Model series: KX057-4 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: KX57-6 Model series: KX57-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: U40-6 Model series: U40-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: U48-4 Model series: U48-4 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: U55 Model series: U55 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
    Kubota Model: U55-6 Model series: U55-6 Model type: Excavators Brand of engine: V2607-DI Approved: Yes
