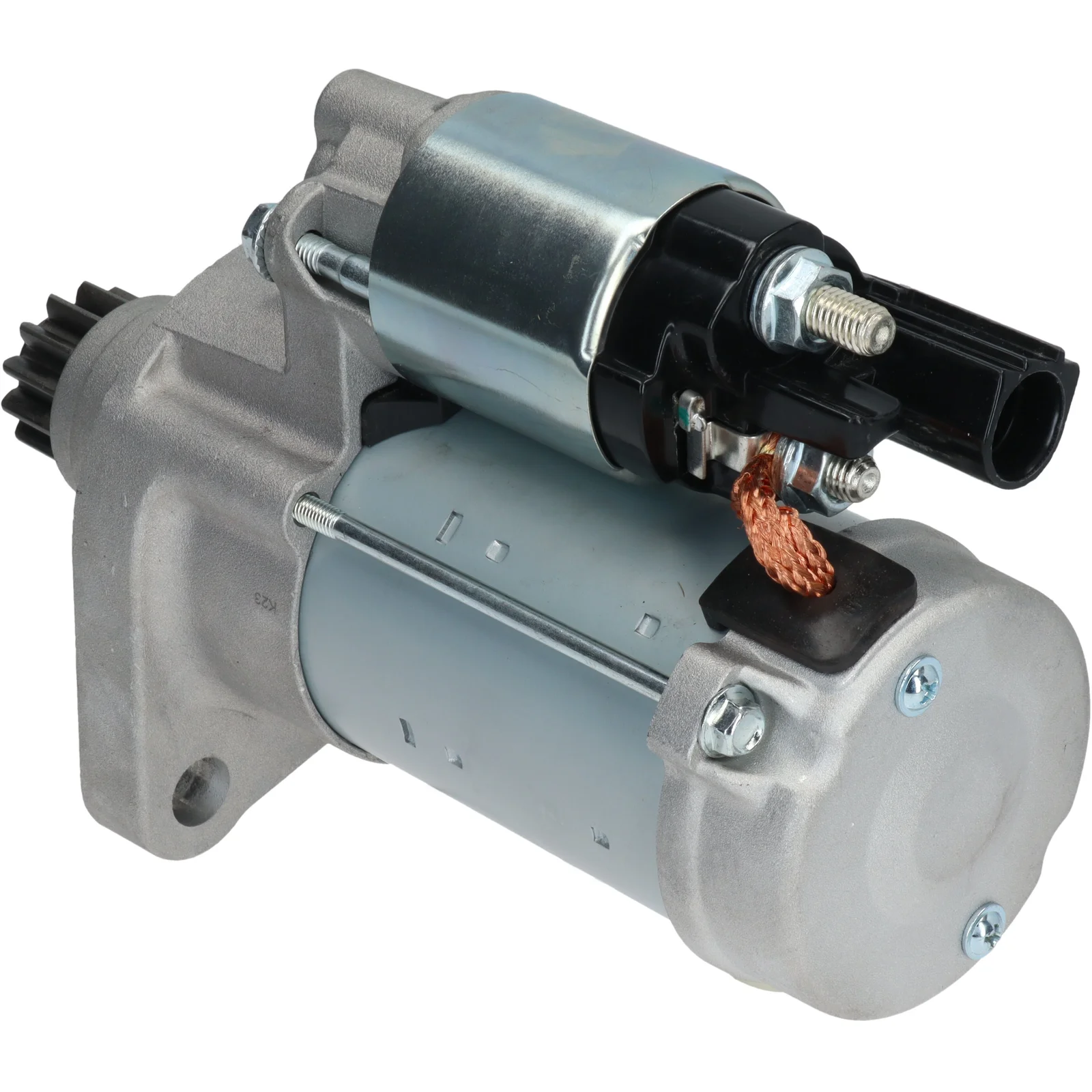

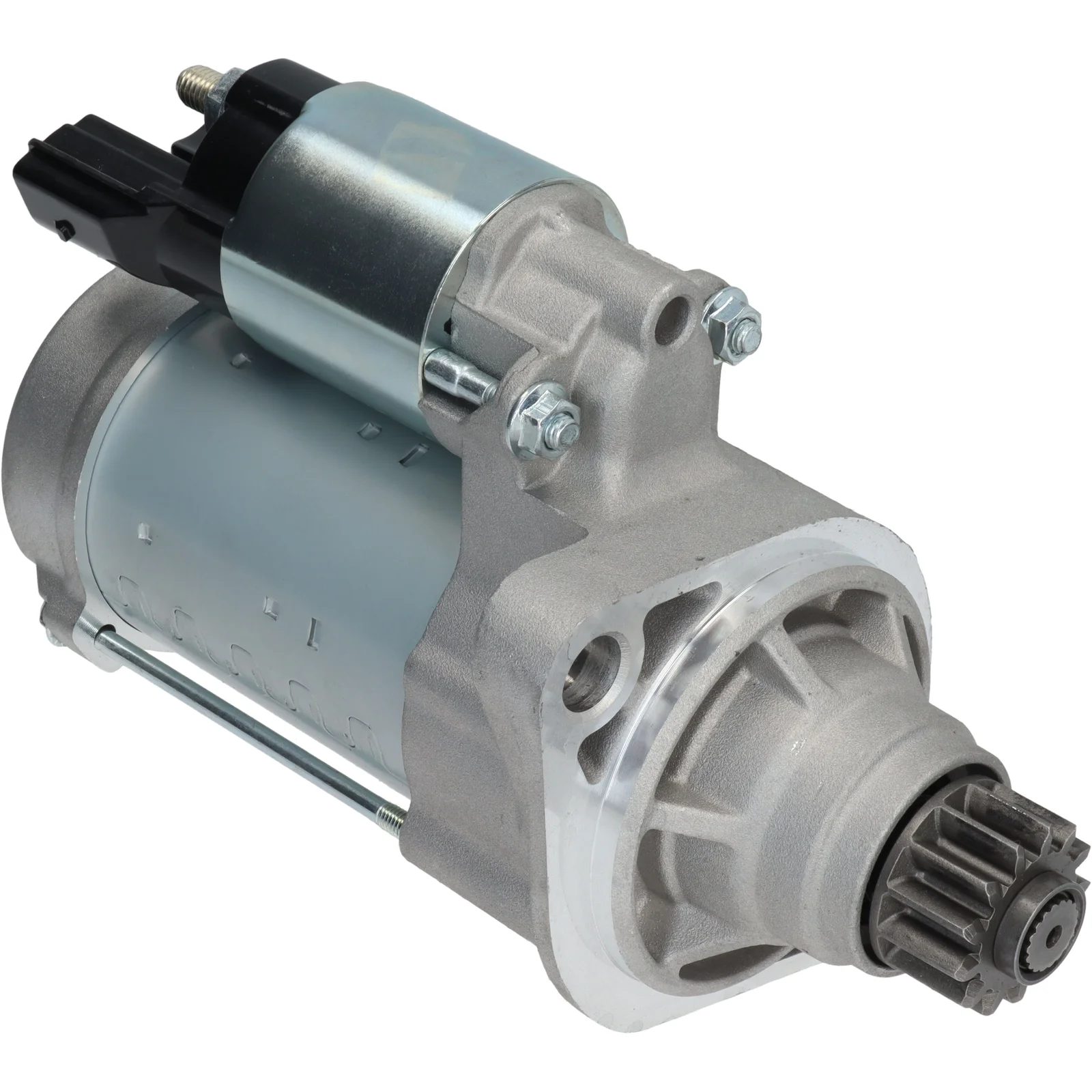

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116756

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 1,5, Antall!/tenner: 13, Rotasjon: moturs

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 1.5
Monteringsflens: 79.00
Drev avstand: 56.00
Monteringshull 2 mm: 12.50
Monteringshull 1 mm: 12.50
Avstand/bakside: 159.00
Avstand/forside: 61.00
Antall/tannhjul: 13
B+: M8
Posisjon/B+: 60
Terminal 50: 4.80
Geværtype: GR
Avstand mm: 111.00
Rotasjon: CCW
Total lengde mm: 220.00
Antall/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 13
Mount. flange 79.00
No./mount. holes 2 (0)
Position/B+ 60
Rotation CCW
Dist./back 159.00
Dist./front 61.00
Drive dist. 56.00
Gear type GR
kW 1.5
Terminal 50 4.80
Voltage 12
Total length 220.00 mm
Dist. 111.00 mm
Mount. hole 2 12.50 mm
Mount. hole 1 12.50 mm

  • OEM
    0AH 911 023J, 0AH911023J, 0AH911023JX, F032116756, 0001 179 530, 0001 179 531, 1986 S01 048, 1986S01048, 0001179530, 0001179531

  • Konkurrentreferens
    LRS04094, 25-5257, 438569, 42000007

  • NormaliseratArtNr
    0ah911023j, 0ah911023jx, f032116756, lrs04094, 1986s01048, 255257, 438569, 0001179530, 0001179531, 42000007

  • Passar modeller
    VW Model: Caddy Model series: Caddy Alltrack Type of engine: TSI Size of motor: 1.2 Brand of engine: CYVC Type description: SAA Body: Van From date: 01-06-2015 Fuel: Gasoline Approved: Yes
    VW Model: Caddy Model series: Caddy Alltrack Type of engine: TSI Size of motor: 1.2 Brand of engine: CYVC Type description: SAB Body: Estate From date: 01-06-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    VW Model: Caddy Model series: Caddy Type of engine: TSi Size of motor: 1.2 Brand of engine: CYVC Type description: SAA, SAH Body: Van From date: 01-06-2015 Fuel: Gasoline Approved: Yes
    VW Model: Caddy Model series: Caddy Type of engine: TSi Size of motor: 1.2 Brand of engine: CYVC Type description: SAB, SAJ Body: Estate From date: 01-06-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    VW Model: Golf Model series: Golf Sportsvan Type of engine: TSI Size of motor: 1.2 Brand of engine: CYVB Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf VII Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZA Body: Estate From date: 01-05-2013 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Golf Model series: Golf VII Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZA Body: Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf VII Type of engine: TSI Size of motor: 1.2 Brand of engine: CYVB Type description: BA5 Body: Estate From date: 01-04-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Golf Model series: Golf VII Van Model type: BlueMotion Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZA Type description: 5G1 Body: Box Body / Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
    VW Model: Touran Model series: Touran Type of engine: TSi Size of motor: 1.2 Brand of engine: CYVB Type description: 5T1 Body: MPV From date: 01-05-2015 Fuel: Gasoline Approved: Yes
