HC-Cargo Startmotor

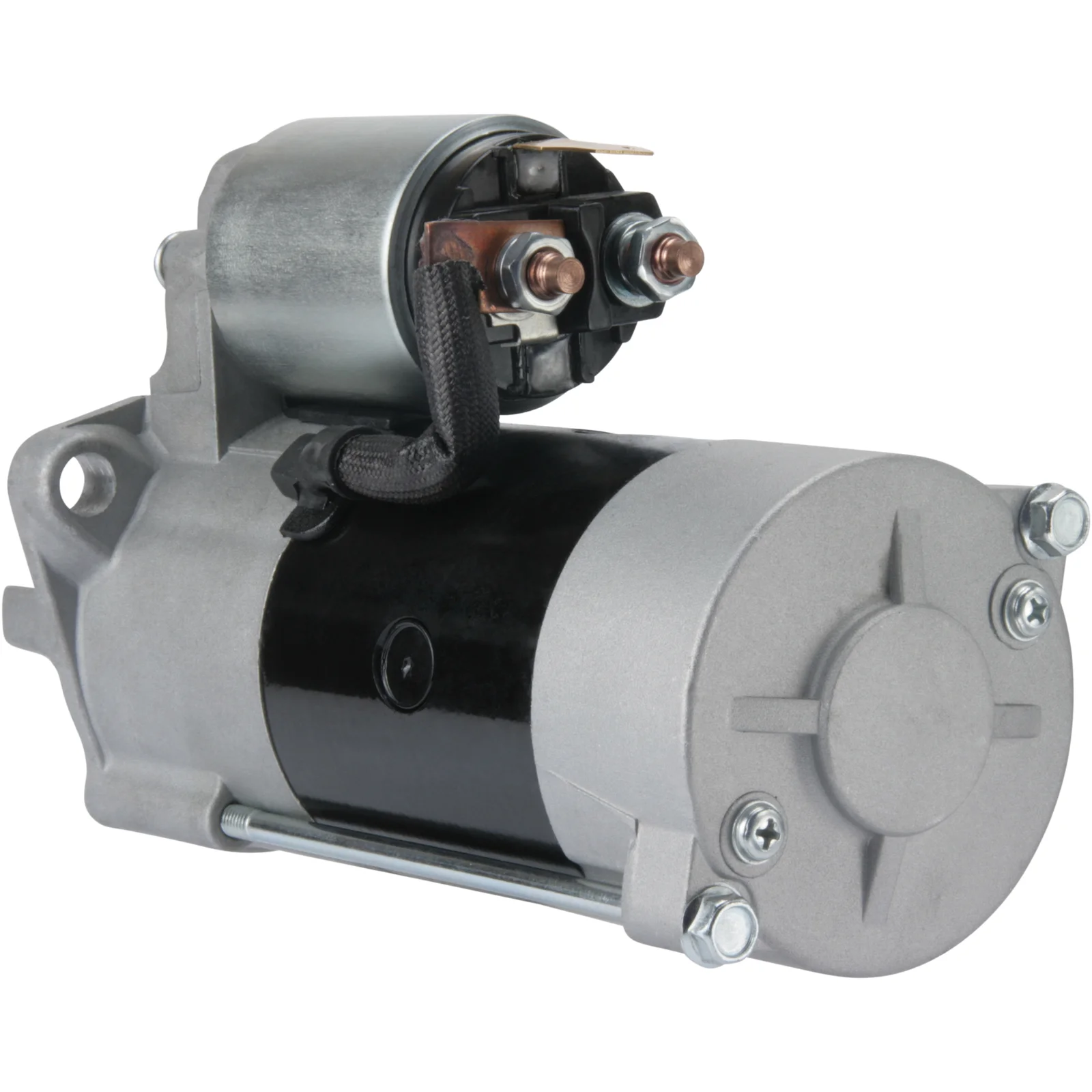

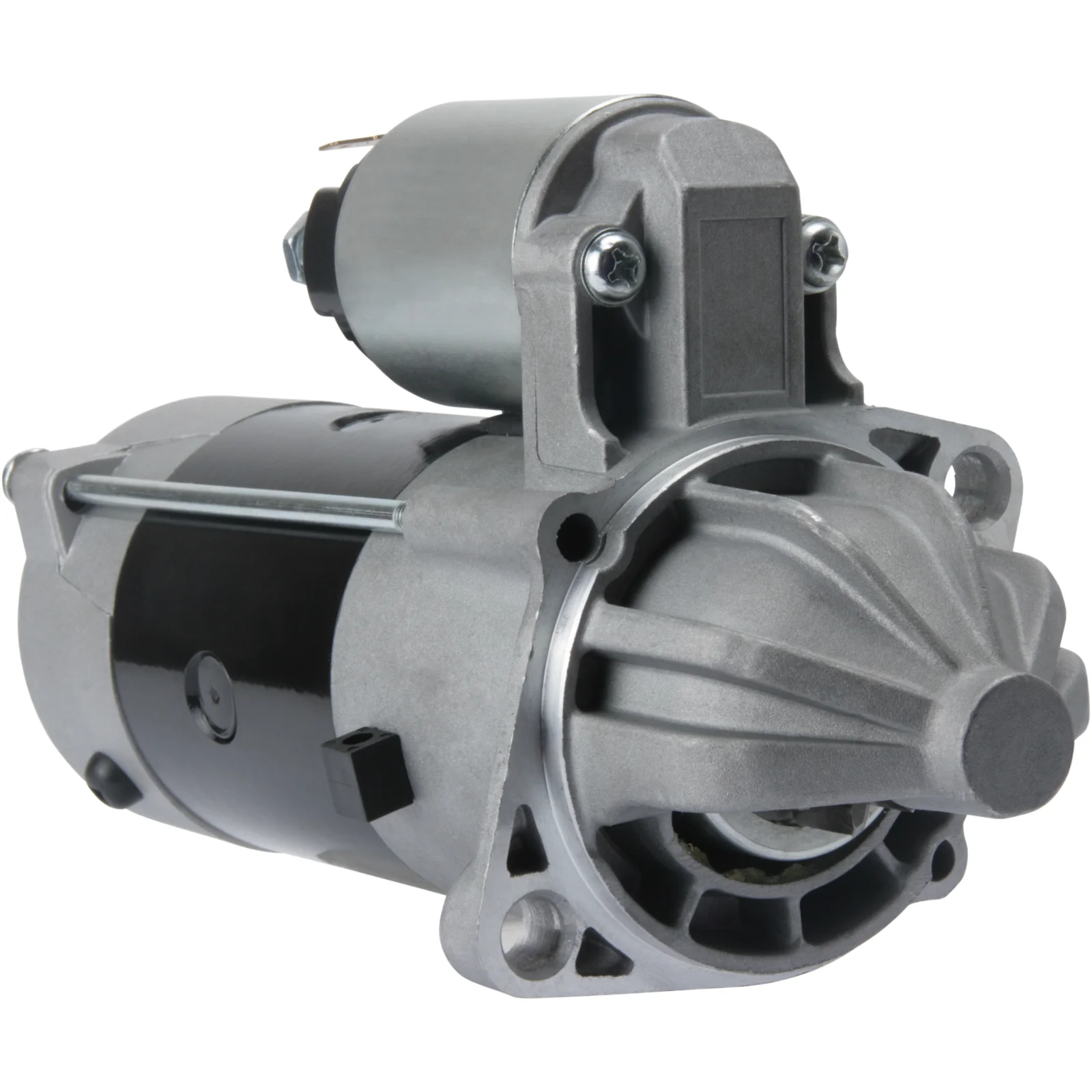

HC-Cargo Startmotor
Varenr.: F032110245

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 1.7, Antall/tenner: 9, Roteringsretning: medur

Beskrivelse

Spenning: 12
kW: 1,7
Monteringsflens: 82,50
Drivingsavstand: 26,00
Monteringshull 2 mm: 11,00
Monteringshull 1 mm: 11,00
Avstand/bak: 162,00
Avstand/forside: 37,00
Nr./tannhjul: 9
B+: M8
Posisjon/50: 15
Terminal 50: 6,30
Geværtype: GR
Avstand mm: 103,00
Rotasjon: medur
Total lengde mm: 196,00
Dreietype: Stål
Prod. info: BN
Vannavvisende: Nei
Oljetett: Nei
Nr./monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Prod. info BN
Rotation CW
Dist./back 162.00
Dist./front 37.00
Drive dist. 26.00
Drive type Steel
Gear type GR
kW 1.7
Terminal 50 6.30
Voltage 12
Total length 196.00 mm
Waterproof No
Dist. 103.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    E5500-6301, F032110245, M40237, mg117559, MG120559, TM000A07101, 155-016-3011, 15221-63010, 15221-63014, 15221-63015, 15221-63016, 15221-63017, 15221-63018, 15321-63015, 15321-63016, 15321-63017, 15435-63012, 15501-63010, 15501-63011, 15501-63012, 15501-63013, 15501-63014, 15707-63011, 17311-63010, 17311-63011, 17311-63012, 17331-63010, 17331-63011, 17331-63012, 028000-3360, 028000-3361, 028000-7480, 028000-7481, 028000-8430, 028000-8431, 028000-8432, 028000-8434, 128000-6620, 128000-6621, 128000-6840, 128000-6841, 128000-6843

  • Konkurrentreferens
    CST32140, CST40184, CST40250, CST40329, drs3225, E5500-6314, LRS01012, PBNS3040, S9367S, SMG117559, SMN0006, STR70117, 2-1929-ND, 8ea730263-001, 8ea737133-001, 25-0104, 25-1084, 25-5240, 683.014.092, 683.015.092, 4246, 4344, 16583, 17355, 17363, 17868N, 18146N, 19601, 19601N, 20675, 20932, 254649, 600350, 20513040

  • NormaliseratArtNr
    cst32140, cst40184, cst40250, cst40329, drs3225, e55006301, e55006314, f032110245, lrs01012, m40237, mg117559, mg120559, pbns3040, s9367s, smg117559, smn0006, str70117, tm000a07101, 8ea730263001, 8ea737133001, 4246, 4344, 16583, 17355, 17363, 17868n, 18146n, 19601, 19601n, 20675, 20932, 21929nd, 250104, 251084, 254649, 255240, 600350, 20513040, 0280003360, 0280003361, 0280007480, 0280007481, 0280008430, 0280008431, 0280008432, 0280008434, 683014092, 683015092, 1280006620, 1280006621, 1280006840, 1280006841, 1280006843, 1522163010, 1522163014, 1522163015, 1522163016, 1522163017, 1522163018, 1532163015, 1532163016, 1532163017, 1543563012, 1550163010, 1550163011, 1550163012, 1550163013, 1550163014, 1570763011, 1731163010, 1731163011, 1731163012, 1733163010, 1733163011, 1733163012

  • Passar modeller
    Kubota Model: Engine Model series: Engine Brand of engine: D1302 From date: 01-01-1986 Fuel: Diesel Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
  • Beskrivelse
    Spenning: 12
    kW: 1,7
    Monteringsflens: 82,50
    Drivingsavstand: 26,00
    Monteringshull 2 mm: 11,00
    Monteringshull 1 mm: 11,00
    Avstand/bak: 162,00
    Avstand/forside: 37,00
    Nr./tannhjul: 9
    B+: M8
    Posisjon/50: 15
    Terminal 50: 6,30
    Geværtype: GR
    Avstand mm: 103,00
    Rotasjon: medur
    Total lengde mm: 196,00
    Dreietype: Stål
    Prod. info: BN
    Vannavvisende: Nei
    Oljetett: Nei
    Nr./monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 15
    Prod. info BN
    Rotation CW
    Dist./back 162.00
    Dist./front 37.00
    Drive dist. 26.00
    Drive type Steel
    Gear type GR
    kW 1.7
    Terminal 50 6.30
    Voltage 12
    Total length 196.00 mm
    Waterproof No
    Dist. 103.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      E5500-6301, F032110245, M40237, mg117559, MG120559, TM000A07101, 155-016-3011, 15221-63010, 15221-63014, 15221-63015, 15221-63016, 15221-63017, 15221-63018, 15321-63015, 15321-63016, 15321-63017, 15435-63012, 15501-63010, 15501-63011, 15501-63012, 15501-63013, 15501-63014, 15707-63011, 17311-63010, 17311-63011, 17311-63012, 17331-63010, 17331-63011, 17331-63012, 028000-3360, 028000-3361, 028000-7480, 028000-7481, 028000-8430, 028000-8431, 028000-8432, 028000-8434, 128000-6620, 128000-6621, 128000-6840, 128000-6841, 128000-6843

    • Konkurrentreferens
      CST32140, CST40184, CST40250, CST40329, drs3225, E5500-6314, LRS01012, PBNS3040, S9367S, SMG117559, SMN0006, STR70117, 2-1929-ND, 8ea730263-001, 8ea737133-001, 25-0104, 25-1084, 25-5240, 683.014.092, 683.015.092, 4246, 4344, 16583, 17355, 17363, 17868N, 18146N, 19601, 19601N, 20675, 20932, 254649, 600350, 20513040

    • NormaliseratArtNr
      cst32140, cst40184, cst40250, cst40329, drs3225, e55006301, e55006314, f032110245, lrs01012, m40237, mg117559, mg120559, pbns3040, s9367s, smg117559, smn0006, str70117, tm000a07101, 8ea730263001, 8ea737133001, 4246, 4344, 16583, 17355, 17363, 17868n, 18146n, 19601, 19601n, 20675, 20932, 21929nd, 250104, 251084, 254649, 255240, 600350, 20513040, 0280003360, 0280003361, 0280007480, 0280007481, 0280008430, 0280008431, 0280008432, 0280008434, 683014092, 683015092, 1280006620, 1280006621, 1280006840, 1280006841, 1280006843, 1522163010, 1522163014, 1522163015, 1522163016, 1522163017, 1522163018, 1532163015, 1532163016, 1532163017, 1543563012, 1550163010, 1550163011, 1550163012, 1550163013, 1550163014, 1570763011, 1731163010, 1731163011, 1731163012, 1733163010, 1733163011, 1733163012

    • Passar modeller
      Kubota Model: Engine Model series: Engine Brand of engine: D1302 From date: 01-01-1986 Fuel: Diesel Approved: Yes
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
