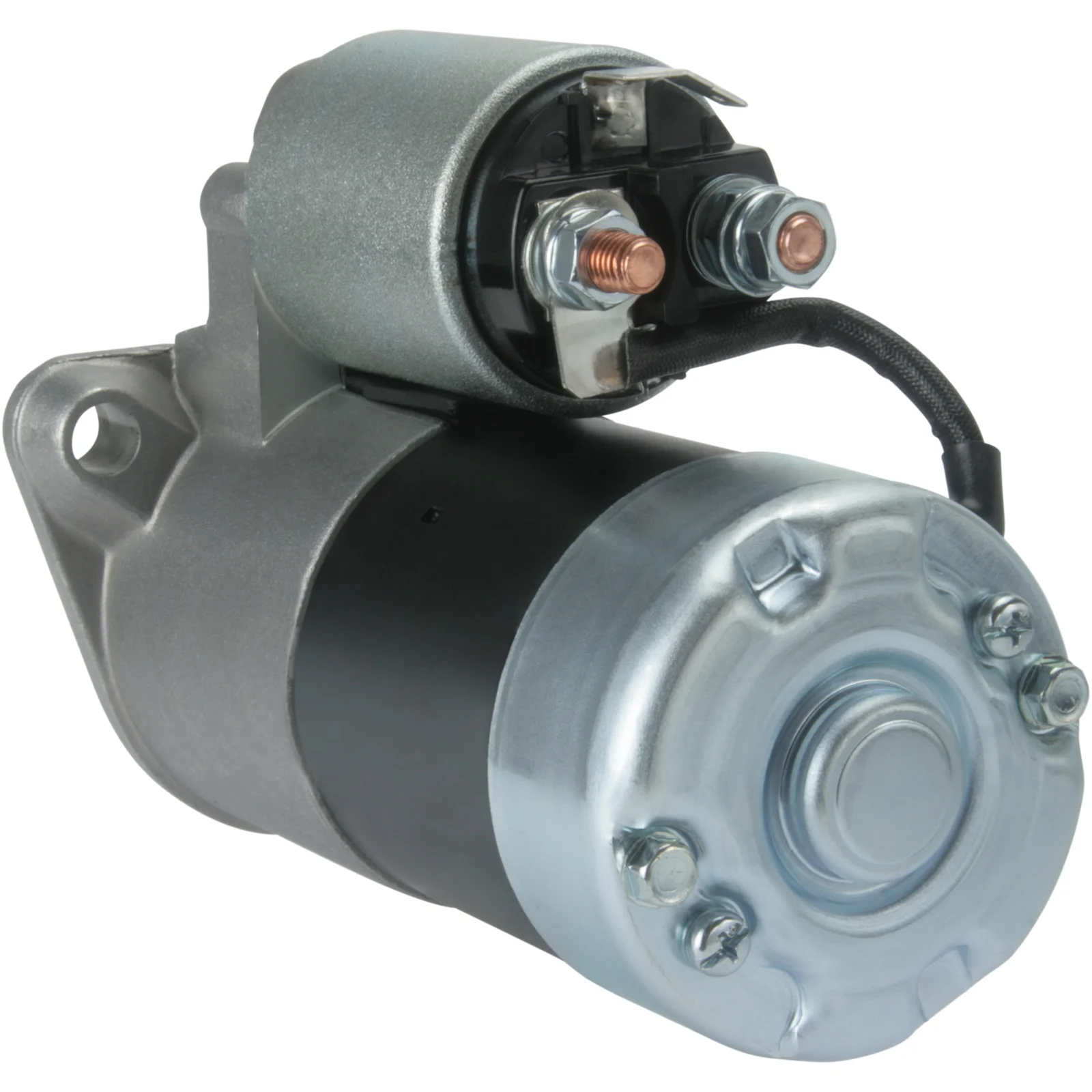

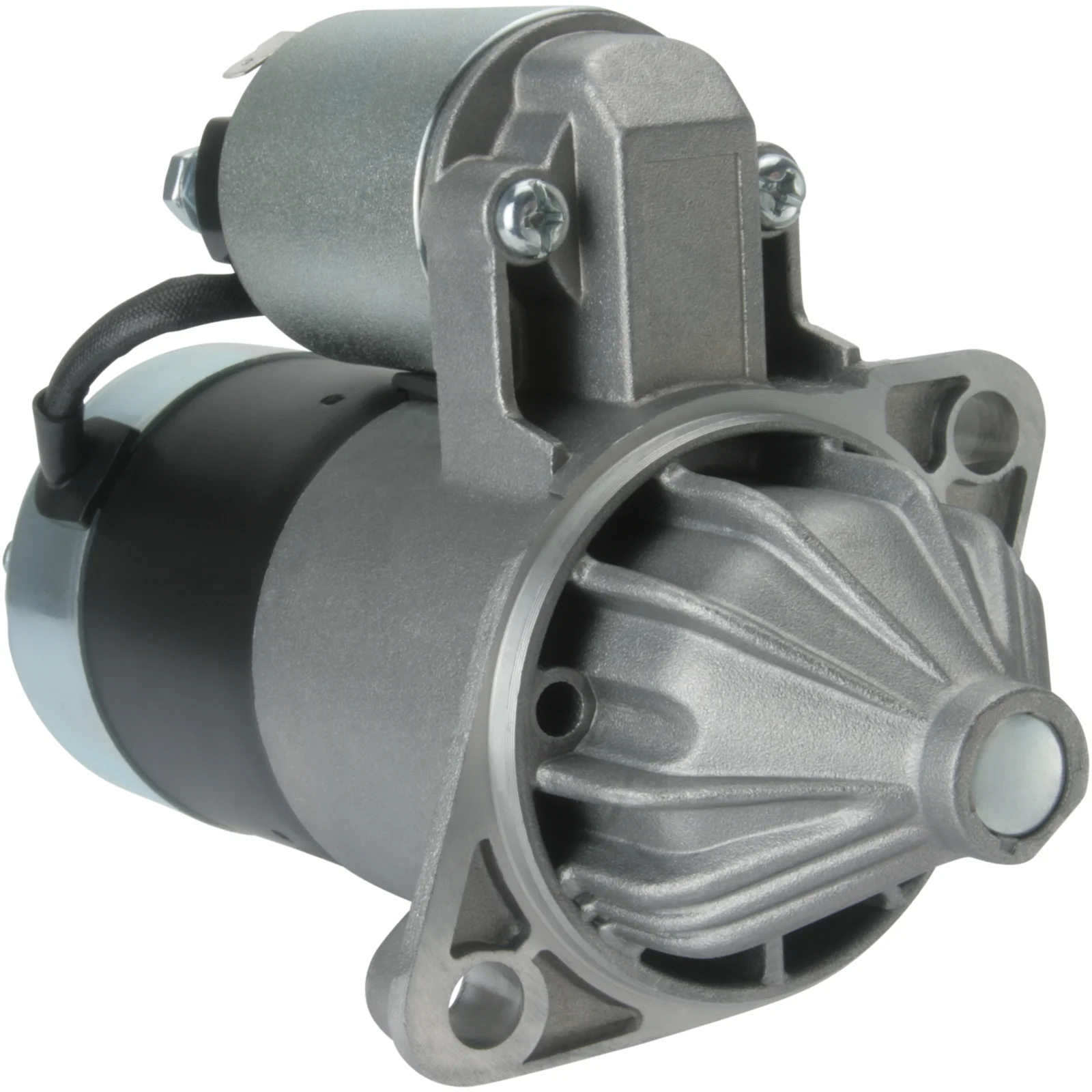

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032110292

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 1,1, Ant./tenner: 8, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spennings=$("#12 Volt").
kW: 1.1
Montasjeringsflens: 77.00
Drivingsavstand: 19.00
Monteringshull 2 mm: 11.00
Monteringshull 1 mm: 11.00
Avstand/bak: 149.50
Avstand/frampå: 53.00
Antall/tænder: 8
B+: M8
Posisjon/B+: 15
Posisjon/50: 7
Terminal 50: 6.30
Gavltype: DD/GR
Avstand mm: 105.00
Rotasjon: CW
Total lengde mm: 207.00
Drevtype: Stål
Prod. info: BN
Vannavvisende: Nei
Oljedekket: Nei
Antall/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 8
Mount. flange 77.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 7
Position/B+ 15
Prod. info BN
Rotation CW
Dist./back 149.50
Dist./front 53.00
Drive dist. 19.00
Drive type Steel
Gear type DD/GR
kW 1.1
Terminal 50 6.30
Voltage 12
Total length 207.00 mm
Waterproof No
Dist. 105.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032110292, js362, M003T15791, M003T15971, M003T22681, M003T24917, M003T25981, M003T32681, M003T42881, m3t15791, m3t15971, m3t15972, m3t22681, m3t24917, m3t25981, m3t32681, m3t42881, md115514, md189054, 115513, 115514, 115517

  • Konkurrentreferens
    acs-114, drs4151, F042001144, F042S01144, J5215018, LRS01020, LRS01140, LRS01143, PBNSF101, S5021, SR5038X, STR-3593, STR3593, 2-1727-MI, 8ea726453-001, 25-0138, 25-1103, 25-1107, 25-2242, 27-52.516, 27-52.518, 326.010.082, 626.010.082, 626.011.092, 626.037.082, 4190, 16793, 16793N, 33694, 33880, 103509, 220595, 220595A, 8052516, 11040339, 66925301, 66925325, 66925342, 0986014151

  • NormaliseratArtNr
    acs114, drs4151, f032110292, f042001144, f042s01144, j5215018, js362, lrs01020, lrs01140, lrs01143, m003t15791, m003t15971, m003t22681, m003t24917, m003t25981, m003t32681, m003t42881, m3t15791, m3t15971, m3t15972, m3t22681, m3t24917, m3t25981, m3t32681, m3t42881, md115514, md189054, pbnsf101, s5021, sr5038x, str3593, 8ea726453001, 4190, 16793, 16793n, 21727mi, 33694, 33880, 103509, 115513, 115514, 115517, 220595, 220595a, 250138, 251103, 251107, 252242, 2752516, 2752518, 8052516, 11040339, 66925301, 66925325, 66925342, 326010082, 626010082, 626011092, 626037082, 0986014151

  • Passar modeller
    Mitsubishi Model: FG Model series: FG10 From date: 01-01-1990 Approved: Yes
    Mitsubishi Model: FG Model series: FG20 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
    Mitsubishi Model: FG Model series: FG25 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
    Mitsubishi Model: FG Model series: FG30 Size of motor: 2.4 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
  • Beskrivelse
    Spennings=$("#12 Volt").
    kW: 1.1
    Montasjeringsflens: 77.00
    Drivingsavstand: 19.00
    Monteringshull 2 mm: 11.00
    Monteringshull 1 mm: 11.00
    Avstand/bak: 149.50
    Avstand/frampå: 53.00
    Antall/tænder: 8
    B+: M8
    Posisjon/B+: 15
    Posisjon/50: 7
    Terminal 50: 6.30
    Gavltype: DD/GR
    Avstand mm: 105.00
    Rotasjon: CW
    Total lengde mm: 207.00
    Drevtype: Stål
    Prod. info: BN
    Vannavvisende: Nei
    Oljedekket: Nei
    Antall/monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 8
    Mount. flange 77.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 7
    Position/B+ 15
    Prod. info BN
    Rotation CW
    Dist./back 149.50
    Dist./front 53.00
    Drive dist. 19.00
    Drive type Steel
    Gear type DD/GR
    kW 1.1
    Terminal 50 6.30
    Voltage 12
    Total length 207.00 mm
    Waterproof No
    Dist. 105.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      F032110292, js362, M003T15791, M003T15971, M003T22681, M003T24917, M003T25981, M003T32681, M003T42881, m3t15791, m3t15971, m3t15972, m3t22681, m3t24917, m3t25981, m3t32681, m3t42881, md115514, md189054, 115513, 115514, 115517

    • Konkurrentreferens
      acs-114, drs4151, F042001144, F042S01144, J5215018, LRS01020, LRS01140, LRS01143, PBNSF101, S5021, SR5038X, STR-3593, STR3593, 2-1727-MI, 8ea726453-001, 25-0138, 25-1103, 25-1107, 25-2242, 27-52.516, 27-52.518, 326.010.082, 626.010.082, 626.011.092, 626.037.082, 4190, 16793, 16793N, 33694, 33880, 103509, 220595, 220595A, 8052516, 11040339, 66925301, 66925325, 66925342, 0986014151

    • NormaliseratArtNr
      acs114, drs4151, f032110292, f042001144, f042s01144, j5215018, js362, lrs01020, lrs01140, lrs01143, m003t15791, m003t15971, m003t22681, m003t24917, m003t25981, m003t32681, m003t42881, m3t15791, m3t15971, m3t15972, m3t22681, m3t24917, m3t25981, m3t32681, m3t42881, md115514, md189054, pbnsf101, s5021, sr5038x, str3593, 8ea726453001, 4190, 16793, 16793n, 21727mi, 33694, 33880, 103509, 115513, 115514, 115517, 220595, 220595a, 250138, 251103, 251107, 252242, 2752516, 2752518, 8052516, 11040339, 66925301, 66925325, 66925342, 326010082, 626010082, 626011092, 626037082, 0986014151

    • Passar modeller
      Mitsubishi Model: FG Model series: FG10 From date: 01-01-1990 Approved: Yes
      Mitsubishi Model: FG Model series: FG20 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
      Mitsubishi Model: FG Model series: FG25 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
      Mitsubishi Model: FG Model series: FG30 Size of motor: 2.4 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
