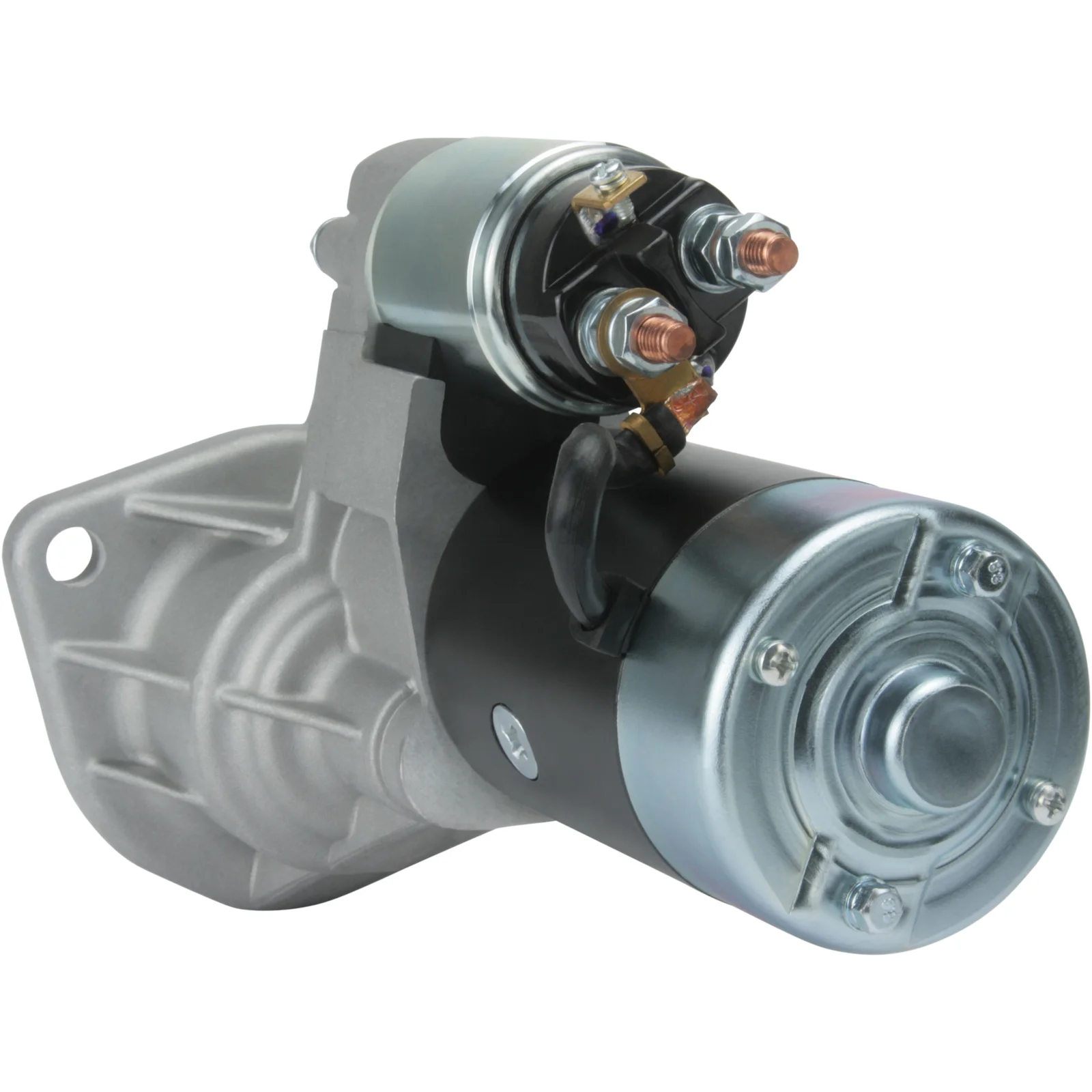

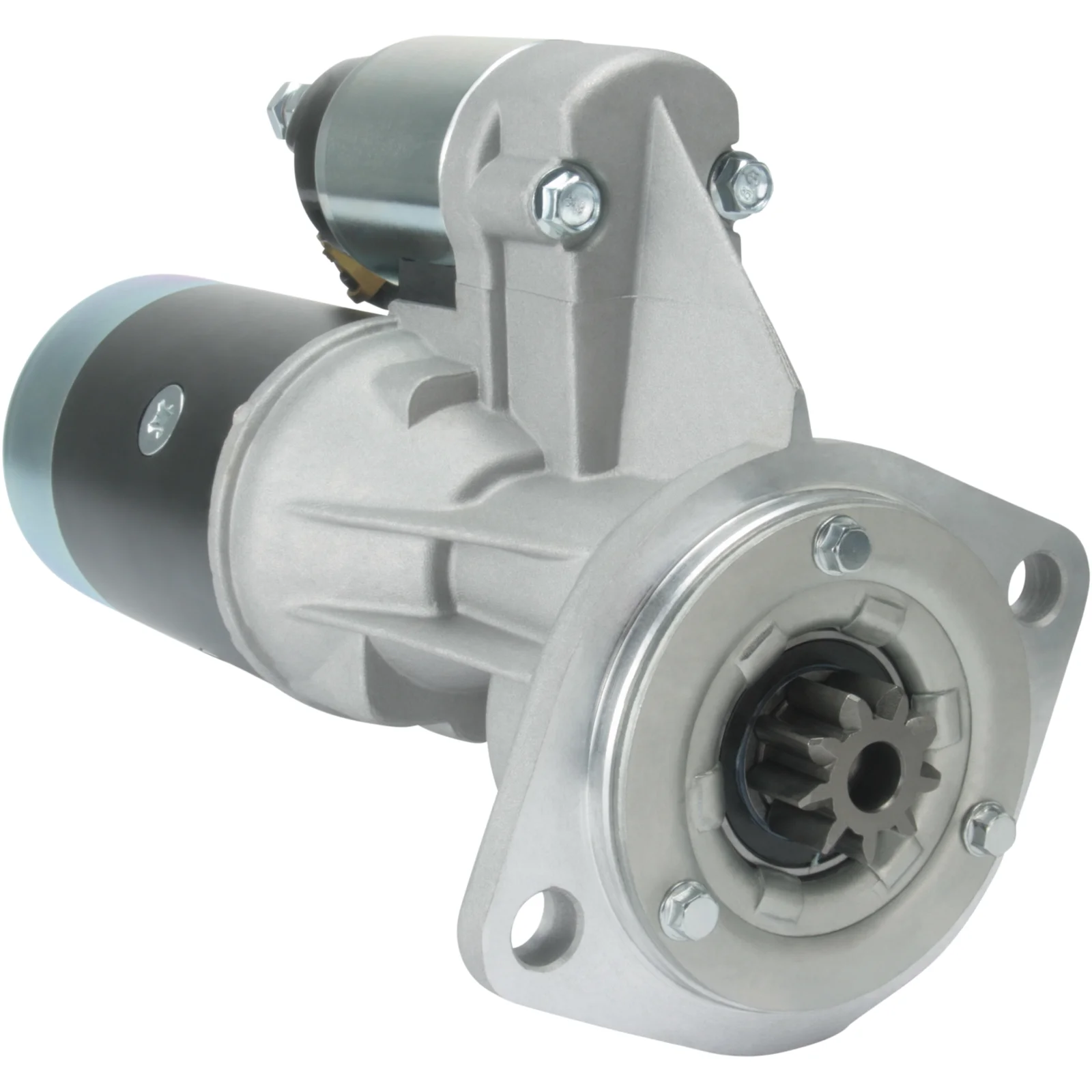

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032110412

HC-Cargo Startmotor

Teknisk info:

Spenningsgiver: 12, kW: 2.2, Antall/tann: 9, Rotasjon: medurs

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

HC-Cargo Startmotor

Spenning: 12
kW: 2,2
Festebladingsflens: 95,00
Drivingsavstand: 20,50
Festebore 2 mm: 13,00
Festebore 1 mm: 13,00
Avstand/bak: 221,00
Avstand/frem: 21,00
Nummer/tænder: 9
B+: M8
Posisjon/50: 55
Terminal 50: M4
Girtype: DD/GR
Avstand mm: 120,00
Roter: med klokka
Total lengde mm: 246,00
Drevtype: Stål
Prod. info: BN
Vanntett: Nei
Oljetett: Nei
Nummer/montasjeborer: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 95.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 55
Prod. info BN
Rotation CW
Dist./back 221.00
Dist./front 21.00
Drive dist. 20.50
Drive type Steel
Gear type DD/GR
kW 2.2
Terminal 50 M4
Voltage 12
Total length 246.00 mm
Waterproof No
Dist. 120.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    0-21000-3730, 0-21000-4230, 0-21000-4231, 0-21000-5230, 0-21000-5231, F032110412, js679, s13-06, s13-06a, s13-111, S13-123, s13-25, s13-27, S13-27A, s13-28, S13-33, s13-33a, s13-33b, 5811000800, 5811000801, 5811001111, 5811001112, 5811001331, 8941365070, 8944104090

  • Konkurrentreferens
    aus-108, CST20114, CST20233, drs3218, GA22001, LRS01076, LRS01105, s-8314, S2052, s9606, sj-00221r, sj-0087r, STR23003, 2-2006-hi, 8ea730267-001, 25-0476, 25-1151, 50-8104-9, 91-25-1085, 343.002.092, 643.007.092, 643.021.092, 4250, 18064, 18291, 18299, 18299N, 103938, 254824, 8212554, 11040284

  • NormaliseratArtNr
    aus108, cst20114, cst20233, drs3218, f032110412, ga22001, js679, lrs01076, lrs01105, s1306, s1306a, s13111, s13123, s1325, s1327, s1327a, s1328, s1333, s1333a, s1333b, s2052, s8314, s9606, sj00221r, sj0087r, str23003, 8ea730267001, 4250, 18064, 18291, 18299, 18299n, 22006hi, 103938, 250476, 251151, 254824, 5081049, 8212554, 11040284, 91251085, 0210003730, 0210004230, 0210004231, 0210005230, 0210005231, 343002092, 643007092, 643021092, 5811000800, 5811000801, 5811001111, 5811001112, 5811001331, 8941365070, 8944104090

  • Passar modeller
    Isuzu Model: KBD Model series: 26 Type of engine: Diesel Size of motor: 2.0 From date: 01-01-1981 To date: 01-01-1995 Fuel: Diesel Approved: Yes
    Isuzu Model: KBD Model series: 41 Type of engine: Diesel Size of motor: 2.0 From date: 01-01-1981 To date: 01-01-1985 Fuel: Diesel Approved: Yes
    Isuzu Model: Various Models Model series: Various Models Approved: Yes
    John Deere Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    TCM Model: FT Model series: FT 25 Approved: Yes
  • Beskrivelse
    HC-Cargo Startmotor

    Spenning: 12
    kW: 2,2
    Festebladingsflens: 95,00
    Drivingsavstand: 20,50
    Festebore 2 mm: 13,00
    Festebore 1 mm: 13,00
    Avstand/bak: 221,00
    Avstand/frem: 21,00
    Nummer/tænder: 9
    B+: M8
    Posisjon/50: 55
    Terminal 50: M4
    Girtype: DD/GR
    Avstand mm: 120,00
    Roter: med klokka
    Total lengde mm: 246,00
    Drevtype: Stål
    Prod. info: BN
    Vanntett: Nei
    Oljetett: Nei
    Nummer/montasjeborer: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 95.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 55
    Prod. info BN
    Rotation CW
    Dist./back 221.00
    Dist./front 21.00
    Drive dist. 20.50
    Drive type Steel
    Gear type DD/GR
    kW 2.2
    Terminal 50 M4
    Voltage 12
    Total length 246.00 mm
    Waterproof No
    Dist. 120.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Kjøretøymatching

    • OEM
      0-21000-3730, 0-21000-4230, 0-21000-4231, 0-21000-5230, 0-21000-5231, F032110412, js679, s13-06, s13-06a, s13-111, S13-123, s13-25, s13-27, S13-27A, s13-28, S13-33, s13-33a, s13-33b, 5811000800, 5811000801, 5811001111, 5811001112, 5811001331, 8941365070, 8944104090

    • Konkurrentreferens
      aus-108, CST20114, CST20233, drs3218, GA22001, LRS01076, LRS01105, s-8314, S2052, s9606, sj-00221r, sj-0087r, STR23003, 2-2006-hi, 8ea730267-001, 25-0476, 25-1151, 50-8104-9, 91-25-1085, 343.002.092, 643.007.092, 643.021.092, 4250, 18064, 18291, 18299, 18299N, 103938, 254824, 8212554, 11040284

    • NormaliseratArtNr
      aus108, cst20114, cst20233, drs3218, f032110412, ga22001, js679, lrs01076, lrs01105, s1306, s1306a, s13111, s13123, s1325, s1327, s1327a, s1328, s1333, s1333a, s1333b, s2052, s8314, s9606, sj00221r, sj0087r, str23003, 8ea730267001, 4250, 18064, 18291, 18299, 18299n, 22006hi, 103938, 250476, 251151, 254824, 5081049, 8212554, 11040284, 91251085, 0210003730, 0210004230, 0210004231, 0210005230, 0210005231, 343002092, 643007092, 643021092, 5811000800, 5811000801, 5811001111, 5811001112, 5811001331, 8941365070, 8944104090

    • Passar modeller
      Isuzu Model: KBD Model series: 26 Type of engine: Diesel Size of motor: 2.0 From date: 01-01-1981 To date: 01-01-1995 Fuel: Diesel Approved: Yes
      Isuzu Model: KBD Model series: 41 Type of engine: Diesel Size of motor: 2.0 From date: 01-01-1981 To date: 01-01-1985 Fuel: Diesel Approved: Yes
      Isuzu Model: Various Models Model series: Various Models Approved: Yes
      John Deere Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
      TCM Model: FT Model series: FT 25 Approved: Yes
