- Startmotor
-

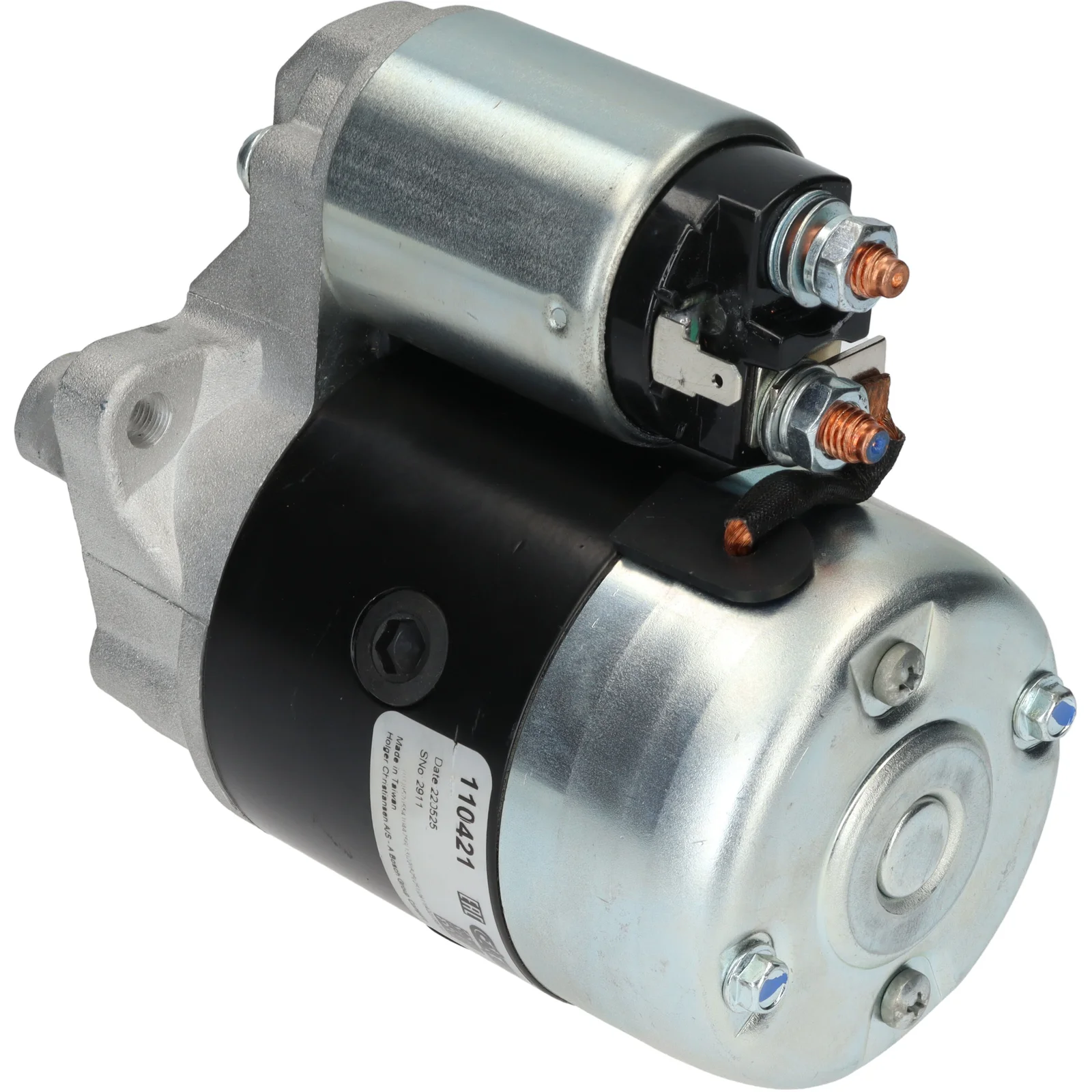

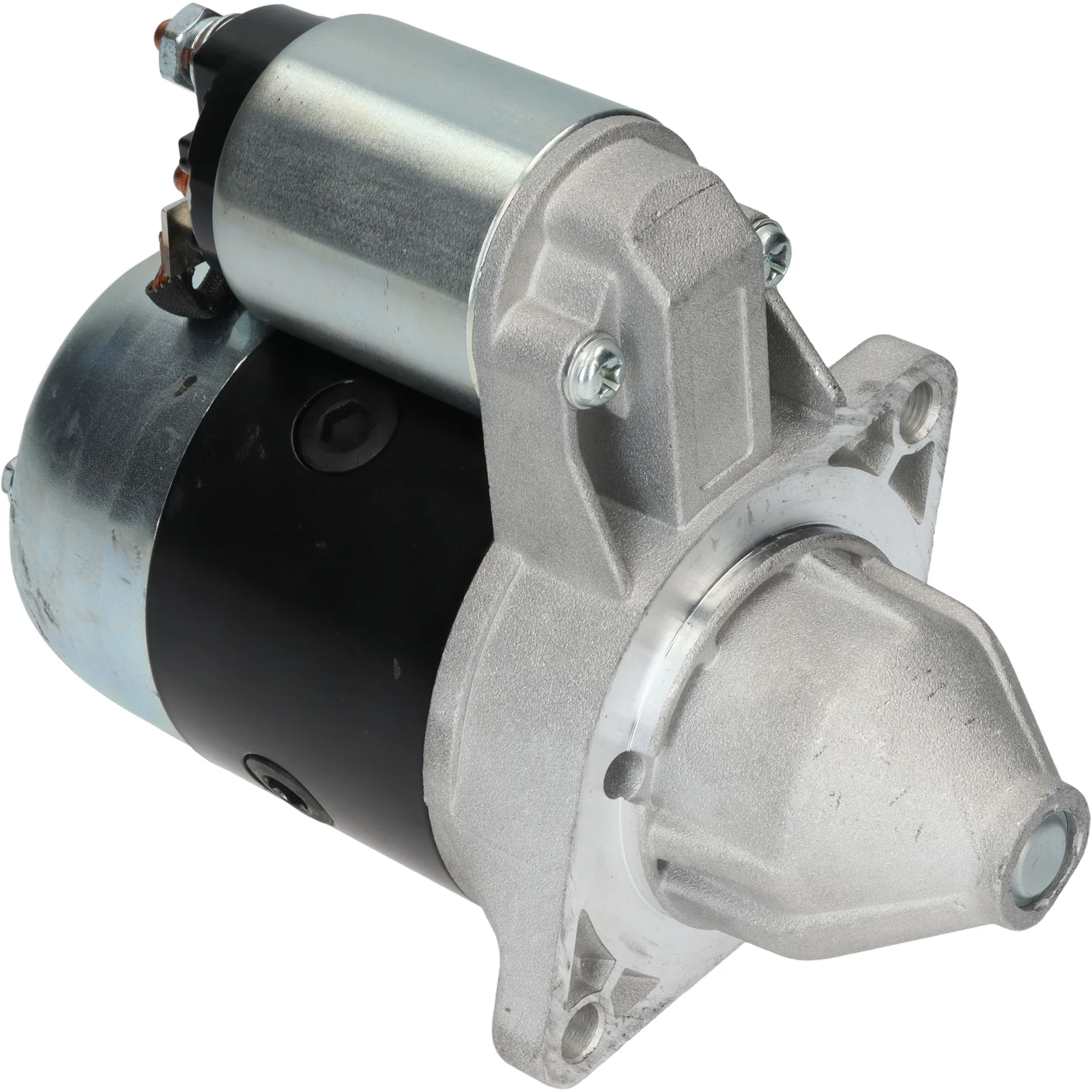

HC-Cargo Startmotor
- Startmotor
-
HC-Cargo Startmotor
Varenr.: F032110421
HC-Cargo Startmotor
Spenningsregulator: 12, kW: 0.8, Ant./tenner: 8, Rotasjon: CW
Beskrivelse
Spenning: 12
kW: 0.8
Monteringsflens: 66.00
Drive avstand: 16.00
Monteringshull 2 mm: 10.00
Avstand/bak: 141.50
Avstand/framp: 51.00
Nr./tenner: 8
B+: M8
Posisjon/50: 45
Terminal 50: 6.30
Geværtype: DD/GR
Avstand mm: 110.00
Rotasjon: CW
Total lengde mm: 194.00
Drive-type: Stål
Prod. info: BN
Vanntett: Nei
Oljetett: Nei
Nr./monteringshull: 2 (0)
kW: 0.8
Monteringsflens: 66.00
Drive avstand: 16.00
Monteringshull 2 mm: 10.00
Avstand/bak: 141.50
Avstand/framp: 51.00
Nr./tenner: 8
B+: M8
Posisjon/50: 45
Terminal 50: 6.30
Geværtype: DD/GR
Avstand mm: 110.00
Rotasjon: CW
Total lengde mm: 194.00
Drive-type: Stål
Prod. info: BN
Vanntett: Nei
Oljetett: Nei
Nr./monteringshull: 2 (0)
Filer
Spesifikasjon
| B+ | M8 |
|---|---|
| No./teeth | 8 |
| Mount. flange | 66.00 |
| Oil sealed | No |
| No./mount. holes | 2 (0) |
| Position/50 | 45 |
| Prod. info | BN |
| Rotation | CW |
| Dist./back | 141.50 |
| Dist./front | 51.00 |
| Drive dist. | 16.00 |
| Drive type | Steel |
| Gear type | DD/GR |
| kW | 0.8 |
| Terminal 50 | 6.30 |
| Voltage | 12 |
| Total length | 194.00 mm |
| Waterproof | No |
| Dist. | 110.00 mm |
| Mount. hole 2 | 10.00 mm |
-
OEM
e7199-63010, F032110421, js673, M003T29681, M003T33181, M003T33481, M003T49981, M003T49982, m3t29681, m3t33181, m3t33481, m3t49981, M3T49982, 160-976-1361, 15213-63013, 15231-03012, 15231-63010, 15231-63011, 15231-63012, 15231-63013, 15231-63014, 15231-63015, 15231-63016, 16225-63010, 16225-63012, 16225-63013, 19007-63011, 19293-63011, 19637-63013, 19837-63010, 19837-63011, 19837-63012, 19837-63013, 19837-63014, 028000-1850, 028000-1851, 028000-2150, 028000-2151, 028000-2240, 028000-2241, 028000-2692, 028000-3500, 028000-3501, 028000-3800, 028000-3801, 028000-3830, 028000-5290, 028000-5740, 028000-7460, 028000-7461, 028000-7462, 028000-7470, 028000-7471, 028000-8890, 028000-9570, 28100-12012, 28100-12030, 28100-12040, 28100-22010, 28100-22011, 28100-22012, 28100-22020, 28100-22021, 28100-22022, 31000-80X51, 31000-80X51-000, 31100-73010, 31100-73030, 31100-73071, 31100-73090, 31100-80X51-000, 31100-82C11, 31100-A7303, 70000-65424, 70000-76500, 888919, 26925240A -
Konkurrentreferens
ats-170, ats-174, azs-210-1, BSO7130, CST35212, CST40138, CST44102, drs1981, drs2881, drs3224, ds16215, ds16258, F042001129, F042S01129, lrs00217, lrs00490, LRS01133, LRS01443, QS1429, s-8147, s-8397, s172, S5413S, s9042, sm-00258r, sn-0007r, sn-0043r, sn-0054r, snd0242, st-0001r, st-0020r, STR-3571, STR28002, STR30033, STR3566, STR3571, STR70060, STR71018, vs224, 2-1421-nd, 2-1930-ND, 2-2090-mi, 8ea726424-001, 8ea730261-001, 25-0119, 25-1087, 25-1201, 25-2368, 26-1116, 35-2085, 36-1082, 37-52.800, 39-52.200, 39-52.207, 44-4476, 91-27-3147, 91-29-5112, 335.001.092, 345.001.082, 345.021.082, 683.005.092, 683.008.092, 683.021.092, 1227, 4244, 9690, 9753, 11370, 11381, 16215, 16215R, 16216, 16258, 16637, 16637R, 16791N, 17354, 18162N, 20330, 20673, 31308, 33726, 103760, 104129, 8052200, 11040214, 11040295, 11040309, 11040520, 11040521, 0986011981, 0986011991, 0986012881, 0986014671 -
NormaliseratArtNr
ats170, ats174, azs2101, bso7130, cst35212, cst40138, cst44102, drs1981, drs2881, drs3224, ds16215, ds16258, e719963010, f032110421, f042001129, f042s01129, js673, lrs00217, lrs00490, lrs01133, lrs01443, m003t29681, m003t33181, m003t33481, m003t49981, m003t49982, m3t29681, m3t33181, m3t33481, m3t49981, m3t49982, qs1429, s172, s5413s, s8147, s8397, s9042, sm00258r, sn0007r, sn0043r, sn0054r, snd0242, st0001r, st0020r, str28002, str30033, str3566, str3571, str70060, str71018, vs224, 8ea726424001, 8ea730261001, 1227, 4244, 9690, 9753, 11370, 11381, 16215, 16215r, 16216, 16258, 16637, 16637r, 16791n, 17354, 18162n, 20330, 20673, 21421nd, 21930nd, 22090mi, 31100a7303, 31308, 33726, 103760, 104129, 250119, 251087, 251201, 252368, 261116, 352085, 361082, 444476, 888919, 3100080x51, 3100080x51000, 3110080x51000, 3110082c11, 3752800, 3952200, 3952207, 8052200, 11040214, 11040295, 11040309, 11040520, 11040521, 26925240a, 91273147, 91295112, 0280001850, 0280001851, 0280002150, 0280002151, 0280002240, 0280002241, 0280002692, 0280003500, 0280003501, 0280003800, 0280003801, 0280003830, 0280005290, 0280005740, 0280007460, 0280007461, 0280007462, 0280007470, 0280007471, 0280008890, 0280009570, 335001092, 345001082, 345021082, 683005092, 683008092, 683021092, 0986011981, 0986011991, 0986012881, 0986014671, 1521363013, 1523103012, 1523163010, 1523163011, 1523163012, 1523163013, 1523163014, 1523163015, 1523163016, 1609761361, 1622563010, 1622563012, 1622563013, 1900763011, 1929363011, 1963763013, 1983763010, 1983763011, 1983763012, 1983763013, 1983763014, 2810012012, 2810012030, 2810012040, 2810022010, 2810022011, 2810022012, 2810022020, 2810022021, 2810022022, 3110073010, 3110073030, 3110073071, 3110073090, 7000065424, 7000076500 -
Passar modeller
Daihatsu Model: Charmant Model series: 1200 Size of motor: 1.2 Brand of engine: 3K From date: 01-11-1974 To date: 01-02-1978 Fuel: Gasoline Approved: Yes Kubota Model: Engine Model series: Engine Brand of engine: D950 Approved: Yes Kubota Model: Engine Model series: Engine Brand of engine: D950 From date: 01-01-1981 Fuel: Diesel Approved: Yes Kubota Model: Engine Model series: Engine Brand of engine: Z600.. From date: 01-01-1981 Fuel: Diesel Approved: Yes Suzuki Model: LJ Model series: LJ 80 Model type: 4WD Size of motor: 0.8 Brand of engine: F8A Body: Convertible From date: 01-01-1980 To date: 01-01-1984 Fuel: Gasoline Approved: Yes Suzuki Model: Samurai Model series: Samurai Size of motor: 1.0 Brand of engine: F10A Type description: SJ410 From date: 01-11-1988 To date: 01-12-2004 Fuel: Gasoline Approved: Yes Suzuki Model: SJ Model series: SJ 410 Model type: 4WD Size of motor: 1.0 Brand of engine: F10A Type description: SJ410 Body: Convertible From date: 01-09-1981 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Suzuki Model: SJ Model series: SJ 410 Model type: 4WD Size of motor: 1.0 Brand of engine: F10A Type description: SJ410 From date: 01-09-1981 To date: 01-12-1988 Fuel: Gasoline Approved: Yes Toyota Model: Corolla Model series: Corolla Size of motor: 1.2 Brand of engine: 3K-C From date: 01-01-1969 Fuel: Gasoline Approved: Yes Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes 1 / 2
-
Beskrivelse
Spenning: 12
kW: 0.8
Monteringsflens: 66.00
Drive avstand: 16.00
Monteringshull 2 mm: 10.00
Avstand/bak: 141.50
Avstand/framp: 51.00
Nr./tenner: 8
B+: M8
Posisjon/50: 45
Terminal 50: 6.30
Geværtype: DD/GR
Avstand mm: 110.00
Rotasjon: CW
Total lengde mm: 194.00
Drive-type: Stål
Prod. info: BN
Vanntett: Nei
Oljetett: Nei
Nr./monteringshull: 2 (0)Filer
-
Spesifikasjon
B+ M8 No./teeth 8 Mount. flange 66.00 Oil sealed No No./mount. holes 2 (0) Position/50 45 Prod. info BN Rotation CW Dist./back 141.50 Dist./front 51.00 Drive dist. 16.00 Drive type Steel Gear type DD/GR kW 0.8 Terminal 50 6.30 Voltage 12 Total length 194.00 mm Waterproof No Dist. 110.00 mm Mount. hole 2 10.00 mm -
Kjøretøymatching
-
OEM
e7199-63010, F032110421, js673, M003T29681, M003T33181, M003T33481, M003T49981, M003T49982, m3t29681, m3t33181, m3t33481, m3t49981, M3T49982, 160-976-1361, 15213-63013, 15231-03012, 15231-63010, 15231-63011, 15231-63012, 15231-63013, 15231-63014, 15231-63015, 15231-63016, 16225-63010, 16225-63012, 16225-63013, 19007-63011, 19293-63011, 19637-63013, 19837-63010, 19837-63011, 19837-63012, 19837-63013, 19837-63014, 028000-1850, 028000-1851, 028000-2150, 028000-2151, 028000-2240, 028000-2241, 028000-2692, 028000-3500, 028000-3501, 028000-3800, 028000-3801, 028000-3830, 028000-5290, 028000-5740, 028000-7460, 028000-7461, 028000-7462, 028000-7470, 028000-7471, 028000-8890, 028000-9570, 28100-12012, 28100-12030, 28100-12040, 28100-22010, 28100-22011, 28100-22012, 28100-22020, 28100-22021, 28100-22022, 31000-80X51, 31000-80X51-000, 31100-73010, 31100-73030, 31100-73071, 31100-73090, 31100-80X51-000, 31100-82C11, 31100-A7303, 70000-65424, 70000-76500, 888919, 26925240A -
Konkurrentreferens
ats-170, ats-174, azs-210-1, BSO7130, CST35212, CST40138, CST44102, drs1981, drs2881, drs3224, ds16215, ds16258, F042001129, F042S01129, lrs00217, lrs00490, LRS01133, LRS01443, QS1429, s-8147, s-8397, s172, S5413S, s9042, sm-00258r, sn-0007r, sn-0043r, sn-0054r, snd0242, st-0001r, st-0020r, STR-3571, STR28002, STR30033, STR3566, STR3571, STR70060, STR71018, vs224, 2-1421-nd, 2-1930-ND, 2-2090-mi, 8ea726424-001, 8ea730261-001, 25-0119, 25-1087, 25-1201, 25-2368, 26-1116, 35-2085, 36-1082, 37-52.800, 39-52.200, 39-52.207, 44-4476, 91-27-3147, 91-29-5112, 335.001.092, 345.001.082, 345.021.082, 683.005.092, 683.008.092, 683.021.092, 1227, 4244, 9690, 9753, 11370, 11381, 16215, 16215R, 16216, 16258, 16637, 16637R, 16791N, 17354, 18162N, 20330, 20673, 31308, 33726, 103760, 104129, 8052200, 11040214, 11040295, 11040309, 11040520, 11040521, 0986011981, 0986011991, 0986012881, 0986014671 -
NormaliseratArtNr
ats170, ats174, azs2101, bso7130, cst35212, cst40138, cst44102, drs1981, drs2881, drs3224, ds16215, ds16258, e719963010, f032110421, f042001129, f042s01129, js673, lrs00217, lrs00490, lrs01133, lrs01443, m003t29681, m003t33181, m003t33481, m003t49981, m003t49982, m3t29681, m3t33181, m3t33481, m3t49981, m3t49982, qs1429, s172, s5413s, s8147, s8397, s9042, sm00258r, sn0007r, sn0043r, sn0054r, snd0242, st0001r, st0020r, str28002, str30033, str3566, str3571, str70060, str71018, vs224, 8ea726424001, 8ea730261001, 1227, 4244, 9690, 9753, 11370, 11381, 16215, 16215r, 16216, 16258, 16637, 16637r, 16791n, 17354, 18162n, 20330, 20673, 21421nd, 21930nd, 22090mi, 31100a7303, 31308, 33726, 103760, 104129, 250119, 251087, 251201, 252368, 261116, 352085, 361082, 444476, 888919, 3100080x51, 3100080x51000, 3110080x51000, 3110082c11, 3752800, 3952200, 3952207, 8052200, 11040214, 11040295, 11040309, 11040520, 11040521, 26925240a, 91273147, 91295112, 0280001850, 0280001851, 0280002150, 0280002151, 0280002240, 0280002241, 0280002692, 0280003500, 0280003501, 0280003800, 0280003801, 0280003830, 0280005290, 0280005740, 0280007460, 0280007461, 0280007462, 0280007470, 0280007471, 0280008890, 0280009570, 335001092, 345001082, 345021082, 683005092, 683008092, 683021092, 0986011981, 0986011991, 0986012881, 0986014671, 1521363013, 1523103012, 1523163010, 1523163011, 1523163012, 1523163013, 1523163014, 1523163015, 1523163016, 1609761361, 1622563010, 1622563012, 1622563013, 1900763011, 1929363011, 1963763013, 1983763010, 1983763011, 1983763012, 1983763013, 1983763014, 2810012012, 2810012030, 2810012040, 2810022010, 2810022011, 2810022012, 2810022020, 2810022021, 2810022022, 3110073010, 3110073030, 3110073071, 3110073090, 7000065424, 7000076500 -
Passar modeller
Daihatsu Model: Charmant Model series: 1200 Size of motor: 1.2 Brand of engine: 3K From date: 01-11-1974 To date: 01-02-1978 Fuel: Gasoline Approved: Yes Kubota Model: Engine Model series: Engine Brand of engine: D950 Approved: Yes Kubota Model: Engine Model series: Engine Brand of engine: D950 From date: 01-01-1981 Fuel: Diesel Approved: Yes Kubota Model: Engine Model series: Engine Brand of engine: Z600.. From date: 01-01-1981 Fuel: Diesel Approved: Yes Suzuki Model: LJ Model series: LJ 80 Model type: 4WD Size of motor: 0.8 Brand of engine: F8A Body: Convertible From date: 01-01-1980 To date: 01-01-1984 Fuel: Gasoline Approved: Yes Suzuki Model: Samurai Model series: Samurai Size of motor: 1.0 Brand of engine: F10A Type description: SJ410 From date: 01-11-1988 To date: 01-12-2004 Fuel: Gasoline Approved: Yes Suzuki Model: SJ Model series: SJ 410 Model type: 4WD Size of motor: 1.0 Brand of engine: F10A Type description: SJ410 Body: Convertible From date: 01-09-1981 To date: 01-07-1991 Fuel: Gasoline Approved: Yes Suzuki Model: SJ Model series: SJ 410 Model type: 4WD Size of motor: 1.0 Brand of engine: F10A Type description: SJ410 From date: 01-09-1981 To date: 01-12-1988 Fuel: Gasoline Approved: Yes Toyota Model: Corolla Model series: Corolla Size of motor: 1.2 Brand of engine: 3K-C From date: 01-01-1969 Fuel: Gasoline Approved: Yes Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes 1 / 2
-
