Varenr.: F032110438

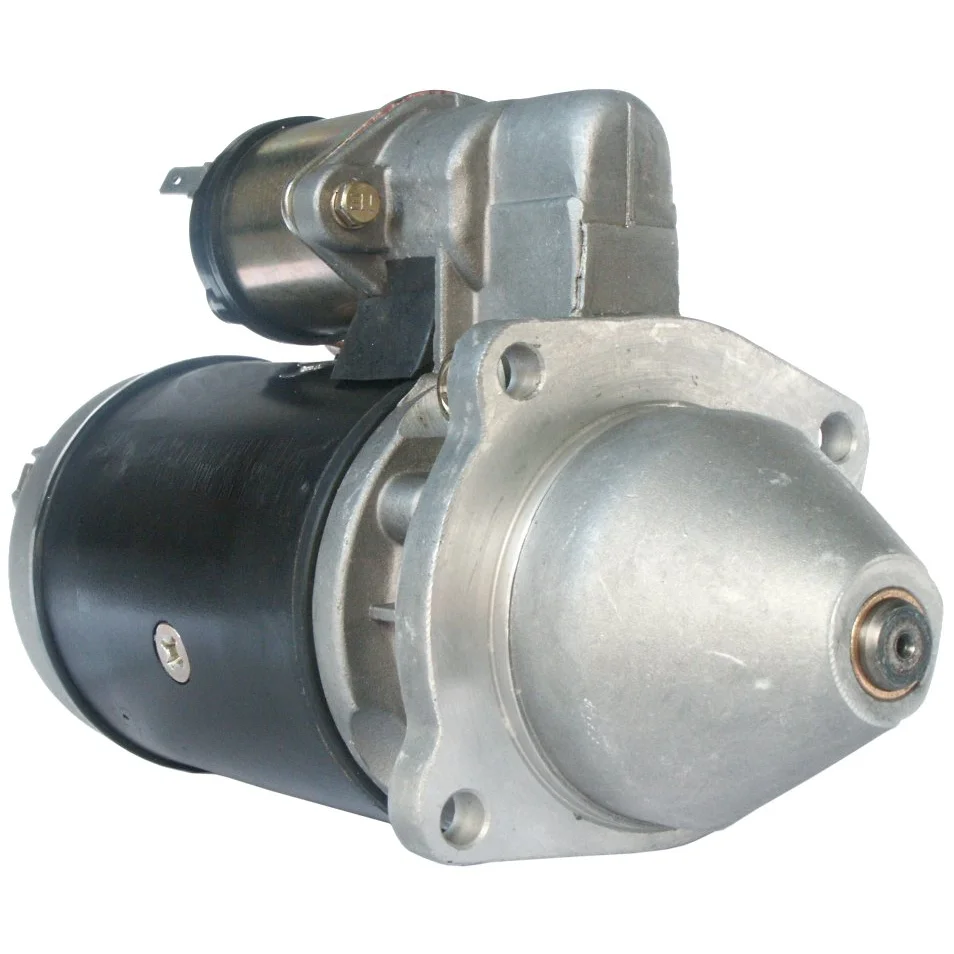

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 2.1, Ant./tenner: 10, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 2,1
Feste flens: 89,00
Dreiedistanse: 19,50
Feste hull 3 mm: 10,50
Feste hull 2 mm: 10,50
Feste hull 1 mm: 10,50
Distanse/bakhjul: 225,50
Distanse/fremhjul: 66,00
Antall./tenner: 10
B+: M8
Posisjon/50: 10
Terminal 50: 9,50
Girtype: DD
Distanse 2: 90,50
Distanse 3: 90,50
Distanse mm: 126,50
Rotasjon: CW
Total lengde mm: 309,00
Dreiety: Stål
Prod. info: BN
Vanntett: Nei
Oljetett: Nei
Antall./feste hull: 3 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 10
Prod. info BN
Dist. 2 90.50
Dist. 3 90.50
Rotation CW
Dist./back 225.50
Dist./front 66.00
Drive dist. 19.50
Drive type Steel
Gear type DD
kW 2.1
Terminal 50 9.50
Voltage 12
Total length 309.00 mm
Waterproof No
Dist. 126.50 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    F032110438, 26193, 26193a, 26193d, 26288, 26288a, 26288e, 26288f, 27420, 27420a, 27420b, 26925188A, 26925188d

  • Konkurrentreferens
    BSO7033, CST25104, drs3396, lrs00172, LRS01008, STR25011, 2-2038-LU, 25-0076, 25-1119, 685.002.102, 685.030.102, 16660, 16660N, 17660, 33393, 8213601

  • NormaliseratArtNr
    bso7033, cst25104, drs3396, f032110438, lrs00172, lrs01008, str25011, 16660, 16660n, 17660, 22038lu, 26193, 26193a, 26193d, 26288, 26288a, 26288e, 26288f, 27420, 27420a, 27420b, 33393, 250076, 251119, 8213601, 26925188a, 26925188d, 685002102, 685030102

  • Passar modeller
    Case Model: 200 Series Model series: 250 From date: 01-01-1957 Approved: Yes
    Case Model: 200 Series Model series: 275 From date: 01-01-1959 Approved: Yes
    Case Model: 200 Series Model series: 276 From date: 01-01-1969 Approved: Yes
    Case Model: 400 Series Model series: 414 From date: 01-01-1961 Approved: Yes
    Case Model: 400 Series Model series: 434 From date: 01-01-1969 Approved: Yes
    Case Model: 400 Series Model series: 444 From date: 01-01-1972 Approved: Yes
    Case Model: Various Models Model series: Various Models Approved: Yes
    Payloader Model: Various Models Model series: Various Models From date: 01-01-1969 Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 12
    kW: 2,1
    Feste flens: 89,00
    Dreiedistanse: 19,50
    Feste hull 3 mm: 10,50
    Feste hull 2 mm: 10,50
    Feste hull 1 mm: 10,50
    Distanse/bakhjul: 225,50
    Distanse/fremhjul: 66,00
    Antall./tenner: 10
    B+: M8
    Posisjon/50: 10
    Terminal 50: 9,50
    Girtype: DD
    Distanse 2: 90,50
    Distanse 3: 90,50
    Distanse mm: 126,50
    Rotasjon: CW
    Total lengde mm: 309,00
    Dreiety: Stål
    Prod. info: BN
    Vanntett: Nei
    Oljetett: Nei
    Antall./feste hull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 10
    Prod. info BN
    Dist. 2 90.50
    Dist. 3 90.50
    Rotation CW
    Dist./back 225.50
    Dist./front 66.00
    Drive dist. 19.50
    Drive type Steel
    Gear type DD
    kW 2.1
    Terminal 50 9.50
    Voltage 12
    Total length 309.00 mm
    Waterproof No
    Dist. 126.50 mm
    Mount. hole 3 10.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Kjøretøymatching

    • OEM
      F032110438, 26193, 26193a, 26193d, 26288, 26288a, 26288e, 26288f, 27420, 27420a, 27420b, 26925188A, 26925188d

    • Konkurrentreferens
      BSO7033, CST25104, drs3396, lrs00172, LRS01008, STR25011, 2-2038-LU, 25-0076, 25-1119, 685.002.102, 685.030.102, 16660, 16660N, 17660, 33393, 8213601

    • NormaliseratArtNr
      bso7033, cst25104, drs3396, f032110438, lrs00172, lrs01008, str25011, 16660, 16660n, 17660, 22038lu, 26193, 26193a, 26193d, 26288, 26288a, 26288e, 26288f, 27420, 27420a, 27420b, 33393, 250076, 251119, 8213601, 26925188a, 26925188d, 685002102, 685030102

    • Passar modeller
      Case Model: 200 Series Model series: 250 From date: 01-01-1957 Approved: Yes
      Case Model: 200 Series Model series: 275 From date: 01-01-1959 Approved: Yes
      Case Model: 200 Series Model series: 276 From date: 01-01-1969 Approved: Yes
      Case Model: 400 Series Model series: 414 From date: 01-01-1961 Approved: Yes
      Case Model: 400 Series Model series: 434 From date: 01-01-1969 Approved: Yes
      Case Model: 400 Series Model series: 444 From date: 01-01-1972 Approved: Yes
      Case Model: Various Models Model series: Various Models Approved: Yes
      Payloader Model: Various Models Model series: Various Models From date: 01-01-1969 Approved: Yes
