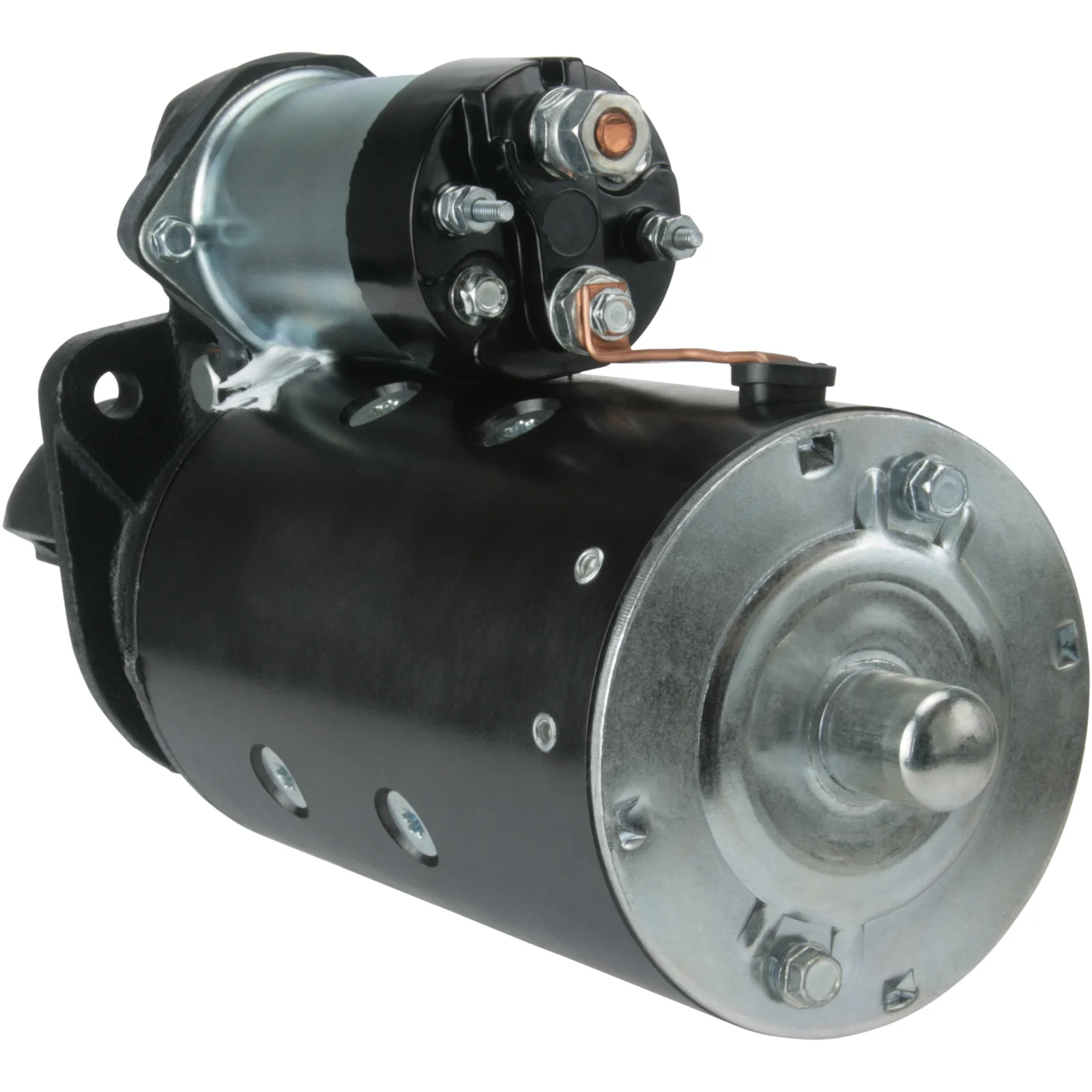

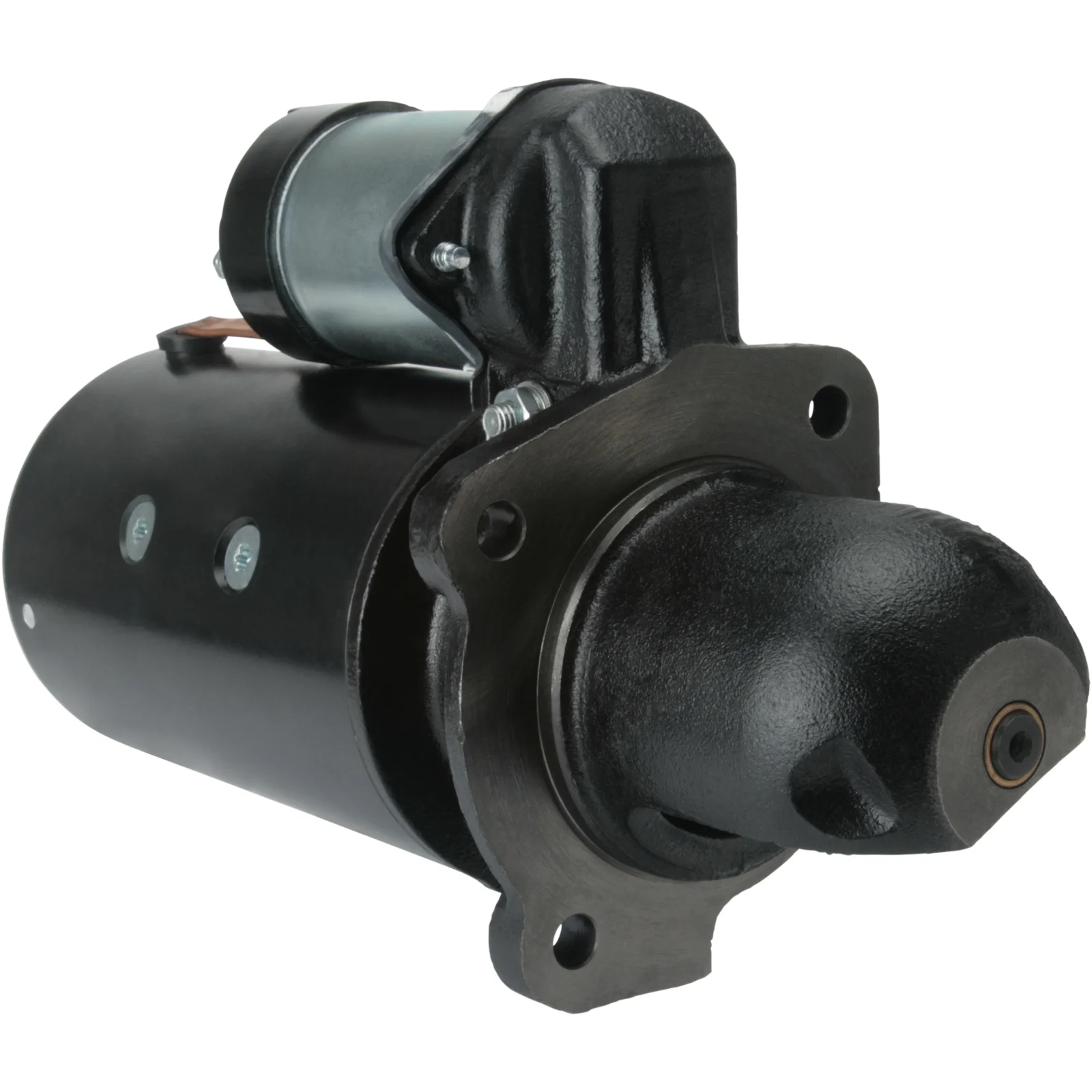

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032110472

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 2.5, Tannantall: 10, Rotasjon: Høyre (CW)

Beskrivelse

Spenning: 12
kW: 2.5
Monteringsflens: 89.00
Drevavstand: 47.50
Monteringshull 3 mm: 10.50
Monteringshull 2 mm: 10.50
Monteringshull 1 mm: 10.50
Avstand/bak: 235.00
Avstand/forside: 88.50
Antall/tannhjul: 10
B+: 3/8" UNC
Posisjon/15a: 50
Terminal 15a: M4
Posisjon/50: 20
Terminal 50: M4
Girtype: DD
Avstand 2: 91.00
Avstand 3: 91.00
Avstand mm: 127.50
Rotasjon: CW
Total lengde mm: 346.00
Koblingstype: Våt
Drevet type: Stål
Prod. info: BN
Vanntett: Nei
Oljetett: Ja
Merknader: Erstatter: 20MT.
Antall/monteringshull: 3 (0)

Filer

Spesifikasjon

B+ 3/8" UNC
No./teeth 10
Mount. flange 89.00
Oil sealed Yes
No./mount. holes 3 (0)
Position/15a 50
Position/50 20
Clutch type Wet
Prod. info BN
Dist. 2 91.00
Remarks Replacing: 20MT.
Dist. 3 91.00
Rotation CW
Dist./back 235.00
Dist./front 88.50
Drive dist. 47.50
Drive type Steel
Gear type DD
kW 2.5
Terminal 50 M4
Voltage 12
Total length 346.00 mm
Waterproof No
Dist. 127.50 mm
Terminal 15A M4 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    F032110472, us835, 1107557, 1107582, 1998337

  • Konkurrentreferens
    BSO7308, BSX1440013, CST60147, drz5125, LRS01188, STR20009, 8ea730313-001, 25-1223, 692.018.102, 4376, 4398, 8536R, 33626, 60835

  • NormaliseratArtNr
    bso7308, bsx1440013, cst60147, drz5125, f032110472, lrs01188, str20009, us835, 8ea730313001, 4376, 4398, 8536r, 33626, 60835, 251223, 1107557, 1107582, 1998337, 692018102

  • Passar modeller
    Hyster Model: H Model series: 30, 40, 50 Brand of engine: 4.203 From date: 01-01-1971 To date: 01-12-1978 Fuel: Diesel Approved: Yes
    Hyster Model: H Model series: 60, 70, 80, 90 Brand of engine: 4.203 From date: 01-01-1969 To date: 01-12-1978 Fuel: Diesel Approved: Yes
    Hyster Model: S Model series: 60, 70, 80, 100 Brand of engine: 4.203 From date: 01-01-1969 To date: 01-12-1976 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenning: 12
    kW: 2.5
    Monteringsflens: 89.00
    Drevavstand: 47.50
    Monteringshull 3 mm: 10.50
    Monteringshull 2 mm: 10.50
    Monteringshull 1 mm: 10.50
    Avstand/bak: 235.00
    Avstand/forside: 88.50
    Antall/tannhjul: 10
    B+: 3/8" UNC
    Posisjon/15a: 50
    Terminal 15a: M4
    Posisjon/50: 20
    Terminal 50: M4
    Girtype: DD
    Avstand 2: 91.00
    Avstand 3: 91.00
    Avstand mm: 127.50
    Rotasjon: CW
    Total lengde mm: 346.00
    Koblingstype: Våt
    Drevet type: Stål
    Prod. info: BN
    Vanntett: Nei
    Oljetett: Ja
    Merknader: Erstatter: 20MT.
    Antall/monteringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ 3/8" UNC
    No./teeth 10
    Mount. flange 89.00
    Oil sealed Yes
    No./mount. holes 3 (0)
    Position/15a 50
    Position/50 20
    Clutch type Wet
    Prod. info BN
    Dist. 2 91.00
    Remarks Replacing: 20MT.
    Dist. 3 91.00
    Rotation CW
    Dist./back 235.00
    Dist./front 88.50
    Drive dist. 47.50
    Drive type Steel
    Gear type DD
    kW 2.5
    Terminal 50 M4
    Voltage 12
    Total length 346.00 mm
    Waterproof No
    Dist. 127.50 mm
    Terminal 15A M4 mm
    Mount. hole 3 10.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Kjøretøymatching

    • OEM
      F032110472, us835, 1107557, 1107582, 1998337

    • Konkurrentreferens
      BSO7308, BSX1440013, CST60147, drz5125, LRS01188, STR20009, 8ea730313-001, 25-1223, 692.018.102, 4376, 4398, 8536R, 33626, 60835

    • NormaliseratArtNr
      bso7308, bsx1440013, cst60147, drz5125, f032110472, lrs01188, str20009, us835, 8ea730313001, 4376, 4398, 8536r, 33626, 60835, 251223, 1107557, 1107582, 1998337, 692018102

    • Passar modeller
      Hyster Model: H Model series: 30, 40, 50 Brand of engine: 4.203 From date: 01-01-1971 To date: 01-12-1978 Fuel: Diesel Approved: Yes
      Hyster Model: H Model series: 60, 70, 80, 90 Brand of engine: 4.203 From date: 01-01-1969 To date: 01-12-1978 Fuel: Diesel Approved: Yes
      Hyster Model: S Model series: 60, 70, 80, 100 Brand of engine: 4.203 From date: 01-01-1969 To date: 01-12-1976 Fuel: Diesel Approved: Yes
