Varenr.: F032110506

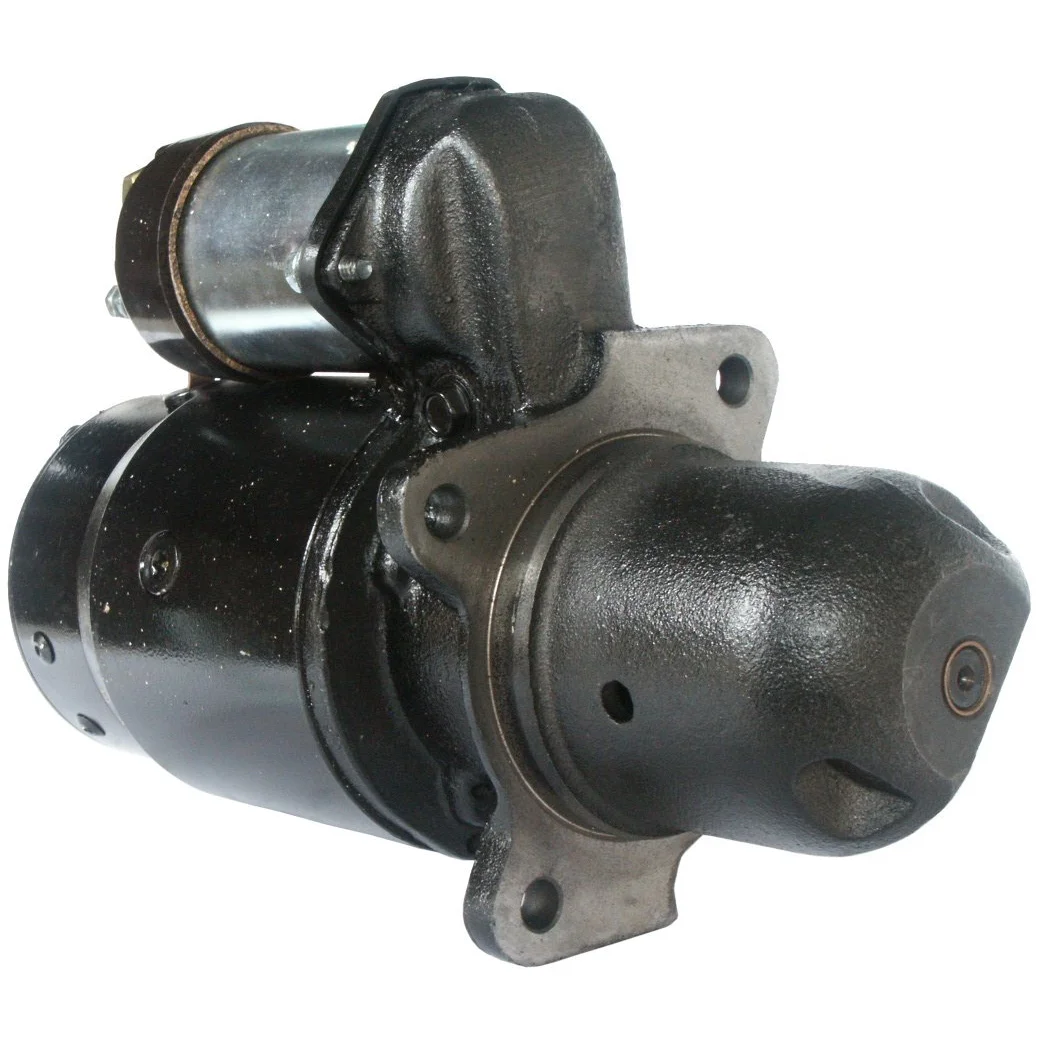

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, Tannhjul: 9, Rotasjon: CW, Monteringsflens: 89.00

Beskrivelse

Spenning: 12
Feste flange: 89.00
Drivingsdist.: 47.00
Festeringshull 3 mm: 10.50
Festeringshull 2 mm: 10.50
Festeringshull 1 mm: 10.50
Dist./bak: 191.00
Dist./front: 89.50
Num./tenner: 9
B+: M10
Posisjon/15a: 15
Terminal 15a: M4
Posisjon/50: 40
Terminal 50: M4
Garlås type: DD
Dist. 2: 89.50
Dist. 3: 89.50
Dist. mm: 127.00
Rotasjon: CW
Total lengde mm: 305.00
Koblingstype: Våt
Drivningstype: Stål
Prod. info: BN
Vannmotstandig: Nei
Oljetett: Ja
Merknader: Erstatter: 10MT.
Num./festeringshull: 3 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 9
Mount. flange 89.00
Oil sealed Yes
No./mount. holes 3 (0)
Position/15a 15
Position/50 40
Clutch type Wet
Prod. info BN
Dist. 2 89.50
Remarks Replacing: 10MT.
Dist. 3 89.50
Rotation CW
Dist./back 191.00
Dist./front 89.50
Drive dist. 47.00
Drive type Steel
Gear type DD
Terminal 50 M4
Voltage 12
Total length 305.00 mm
Waterproof No
Dist. 127.00 mm
Terminal 15A M4 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    F032110506, 1107194, 1107204, 1107205, 1107287, 1107295, 1108422, 1108423, 1109095, 1998271

  • Konkurrentreferens
    BSX1440017, drz5129, LRS01122, STR80027, 8ea730317-001, 25-1056, 540.014.093, 692.114.092, 4337, 4337N, 4337R, 4380, 4383, 60839

  • NormaliseratArtNr
    bsx1440017, drz5129, f032110506, lrs01122, str80027, 8ea730317001, 4337, 4337n, 4337r, 4380, 4383, 60839, 251056, 1107194, 1107204, 1107205, 1107287, 1107295, 1108422, 1108423, 1109095, 1998271, 540014093, 692114092

  • Passar modeller
    Hyster Model: H Model series: 20, 25, 30 Brand of engine: 4.107 From date: 01-01-1969 To date: 01-12-1976 Fuel: Diesel Approved: Yes
    Hyster Model: H Model series: 20, 25, 30 Brand of engine: 4.108 From date: 01-01-1973 To date: 01-12-1976 Fuel: Diesel Approved: Yes
    Hyster Model: P Model series: 40, 60 Brand of engine: 4.154 From date: 01-01-1972 To date: 01-12-1978 Fuel: Diesel Approved: Yes
    Hyster Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenning: 12
    Feste flange: 89.00
    Drivingsdist.: 47.00
    Festeringshull 3 mm: 10.50
    Festeringshull 2 mm: 10.50
    Festeringshull 1 mm: 10.50
    Dist./bak: 191.00
    Dist./front: 89.50
    Num./tenner: 9
    B+: M10
    Posisjon/15a: 15
    Terminal 15a: M4
    Posisjon/50: 40
    Terminal 50: M4
    Garlås type: DD
    Dist. 2: 89.50
    Dist. 3: 89.50
    Dist. mm: 127.00
    Rotasjon: CW
    Total lengde mm: 305.00
    Koblingstype: Våt
    Drivningstype: Stål
    Prod. info: BN
    Vannmotstandig: Nei
    Oljetett: Ja
    Merknader: Erstatter: 10MT.
    Num./festeringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 9
    Mount. flange 89.00
    Oil sealed Yes
    No./mount. holes 3 (0)
    Position/15a 15
    Position/50 40
    Clutch type Wet
    Prod. info BN
    Dist. 2 89.50
    Remarks Replacing: 10MT.
    Dist. 3 89.50
    Rotation CW
    Dist./back 191.00
    Dist./front 89.50
    Drive dist. 47.00
    Drive type Steel
    Gear type DD
    Terminal 50 M4
    Voltage 12
    Total length 305.00 mm
    Waterproof No
    Dist. 127.00 mm
    Terminal 15A M4 mm
    Mount. hole 3 10.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Kjøretøymatching

    • OEM
      F032110506, 1107194, 1107204, 1107205, 1107287, 1107295, 1108422, 1108423, 1109095, 1998271

    • Konkurrentreferens
      BSX1440017, drz5129, LRS01122, STR80027, 8ea730317-001, 25-1056, 540.014.093, 692.114.092, 4337, 4337N, 4337R, 4380, 4383, 60839

    • NormaliseratArtNr
      bsx1440017, drz5129, f032110506, lrs01122, str80027, 8ea730317001, 4337, 4337n, 4337r, 4380, 4383, 60839, 251056, 1107194, 1107204, 1107205, 1107287, 1107295, 1108422, 1108423, 1109095, 1998271, 540014093, 692114092

    • Passar modeller
      Hyster Model: H Model series: 20, 25, 30 Brand of engine: 4.107 From date: 01-01-1969 To date: 01-12-1976 Fuel: Diesel Approved: Yes
      Hyster Model: H Model series: 20, 25, 30 Brand of engine: 4.108 From date: 01-01-1973 To date: 01-12-1976 Fuel: Diesel Approved: Yes
      Hyster Model: P Model series: 40, 60 Brand of engine: 4.154 From date: 01-01-1972 To date: 01-12-1978 Fuel: Diesel Approved: Yes
      Hyster Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
