Varenr.: F032110538

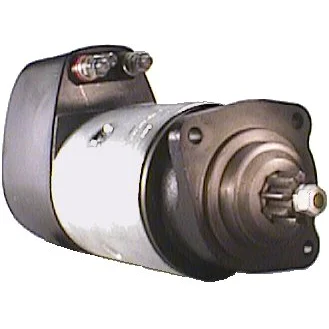

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 3.6, No./tenner: 9, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Start 12V-3.6kW passer Penta 12V - 3.6kW, 9k, Isolert 24V-variant er 91-605-6028 For Yourex produkt bestilling 91-605-8009

Spenningsspenning: 12
kW: 3.6
Isolert retur: Ja
Feste-flens: 89.00
Drivningsavstand: 47.00
Feste hull 3 mm: 11.00
Feste hull 2 mm: 11.00
Feste hull 1 mm: 11.00
Avstand/bak: 318.50
Avstand/frem: 62.00
Antall./tenner: 9
B+: M10
Posisjon/B+: 60
Posisjon/50: 60
Terminall 50: M6
Girtype: DD
Avstand 2: 127.00
Avstand 3: 90.00
Avstand mm: 90.00
Rotasjon: CW
Posisjon/b-: 60
B-: M10
Total lengde mm: 384.00
Drivningstype: Stål
Produktinfo: BN
Vanntett: Nei
Oljeforseglet: Nei
Antall./feste hull: 3 (0)

Filer

Spesifikasjon

B+ M10
B- M10
No./teeth 9
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 60
Position/b- 60
Position/B+ 60
Prod. info BN
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 318.50
Dist./front 62.00
Drive dist. 47.00
Drive type Steel
Gear type DD
Insulated return Yes
kW 3.6
Terminal 50 M6
Voltage 12
Total length 384.00 mm
Waterproof No
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    bng4/12cr238, F032110538, 0001 401 023, 0001 401 060, 0001 413 004, 0001 418 009, 409, 22804, 233991, 240501, 837924, 842775, 843511, 847306, 860542, 881681, 0001401023, 0001401060, 0001413004, 0001418009, 19024005

  • Konkurrentreferens
    CST10175, LRS01204, MS570, MS704, S0837S, S0856S, 8ea737247-001, 25-1270, 638.021.092, 810.101.093, 4455, 18221, 33655, 33737, 101030, 220244, 220244A, 254022

  • Bilmärken
    Volvo Penta

  • NormaliseratArtNr
    bng412cr238, cst10175, f032110538, lrs01204, ms570, ms704, s0837s, s0856s, 8ea737247001, 409, 4455, 18221, 22804, 33655, 33737, 101030, 220244, 220244a, 233991, 240501, 251270, 254022, 837924, 842775, 843511, 847306, 860542, 881681, 0001401023, 0001401060, 0001413004, 0001418009, 19024005, 638021092, 810101093

  • Passar modeller
    Volvo Penta Model: Engine Model series: Engine Size of motor: 5.5 Brand of engine: TAMD60 From date: 01-10-1976 Fuel: Diesel Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 6.7 Brand of engine: AQD70 From date: 01-03-1971 Fuel: Diesel Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 6.7 Brand of engine: TMD70 From date: 01-12-1972 Fuel: Diesel Approved: Yes
    Volvo Penta Series: Industri Model: D 42 A, A-PP (12V)
    Volvo Penta Series: Industri Model: TAD 730 G / P / VE (12V)
    Volvo Penta Series: Industri Model: TD 60 B (12V-3.6kW)
    Volvo Penta Series: Industri Model: TD 73 ES Engine type: 12V
    Volvo Penta Series: Marin Model: AQD 70 B Engine volume: 6.7 Year: 03.71-12-74
    Volvo Penta Series: Marin Model: AQD 70 BL Engine volume: 6.7 Year: 01.73-12.74
    Volvo Penta Series: Marin Model: AQD 70 C, CL Engine volume: 6.7 Year: 01.75-06.79
    Volvo Penta Series: Marin Model: MD 42 A Engine volume: 4.2 Year: 08.70-06.79
    Volvo Penta Series: Marin Model: MD 70 B Engine volume: 6.7 Year: 12.70-07.79
    Volvo Penta Series: Marin Model: TAMD 60 B Engine volume: 5.5 Year: 10.78-04.83
    Volvo Penta Series: Marin Model: TAMD 61 A (12V)
    Volvo Penta Series: Marin Model: TAMD 63 L-A, P-A (12V)
    Volvo Penta Series: Marin Model: TAMD 70 B, C, D Engine volume: 6.7 Year: 03.71-12.79
    Volvo Penta Series: Marin Model: TAMD 71 B Engine type: 12V - 3.6kW
    Volvo Penta Series: Marin Model: TAMD 73 P-A, WJ-A Engine type: 12V - 3.6kW
    Volvo Penta Series: Marin Model: TAMD 74..., 75... 12V
    Volvo Penta Series: Marin Model: THAMD 70 B Engine volume: 6.7 Year: 01.73-12.74
    Volvo Penta Series: Marin Model: TM 70 B Engine volume: 6.7 Year: 12.70-12.78
    Volvo Penta Series: Marin Model: TMD 70 B Engine volume: 6.7 Year: 12.72-07.79
