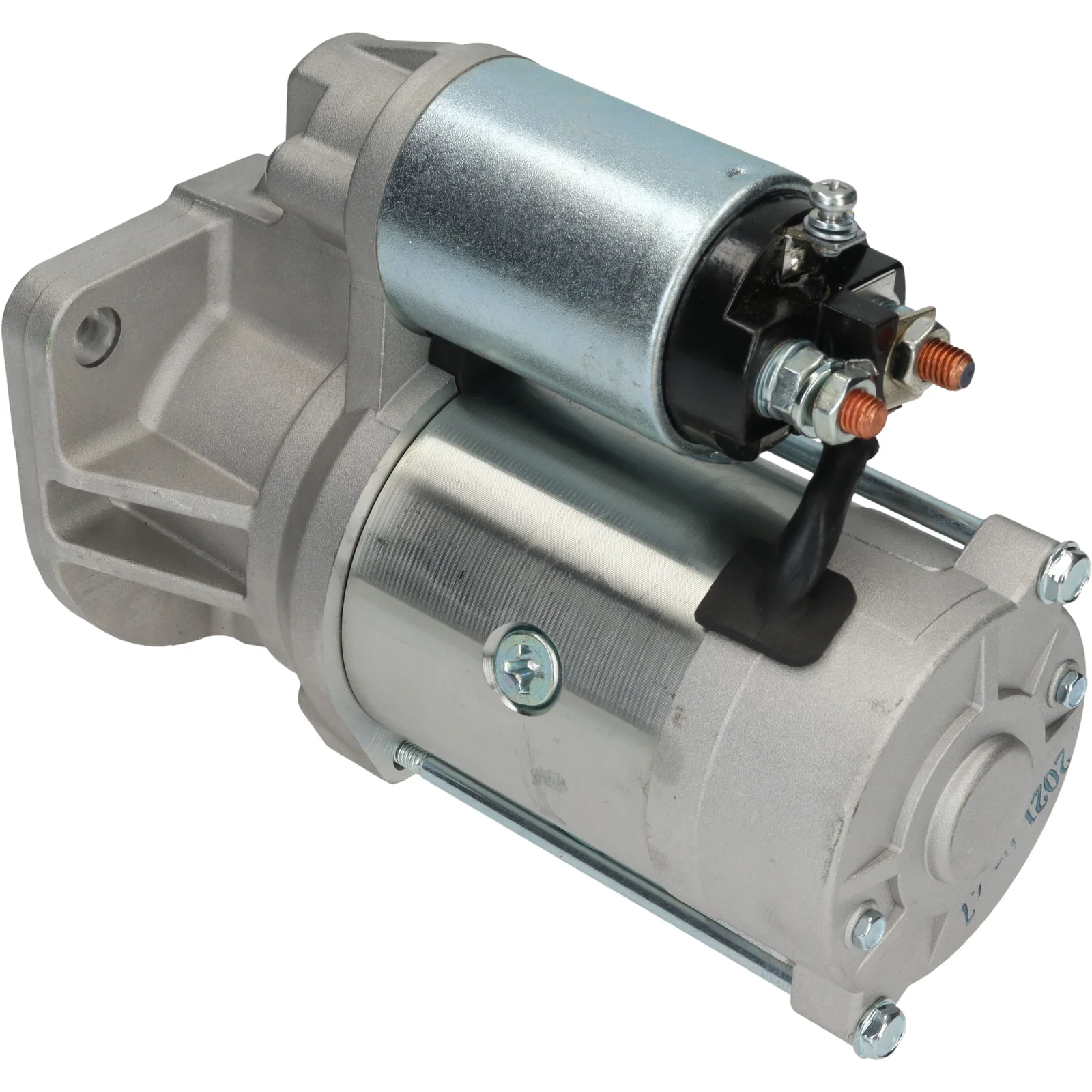

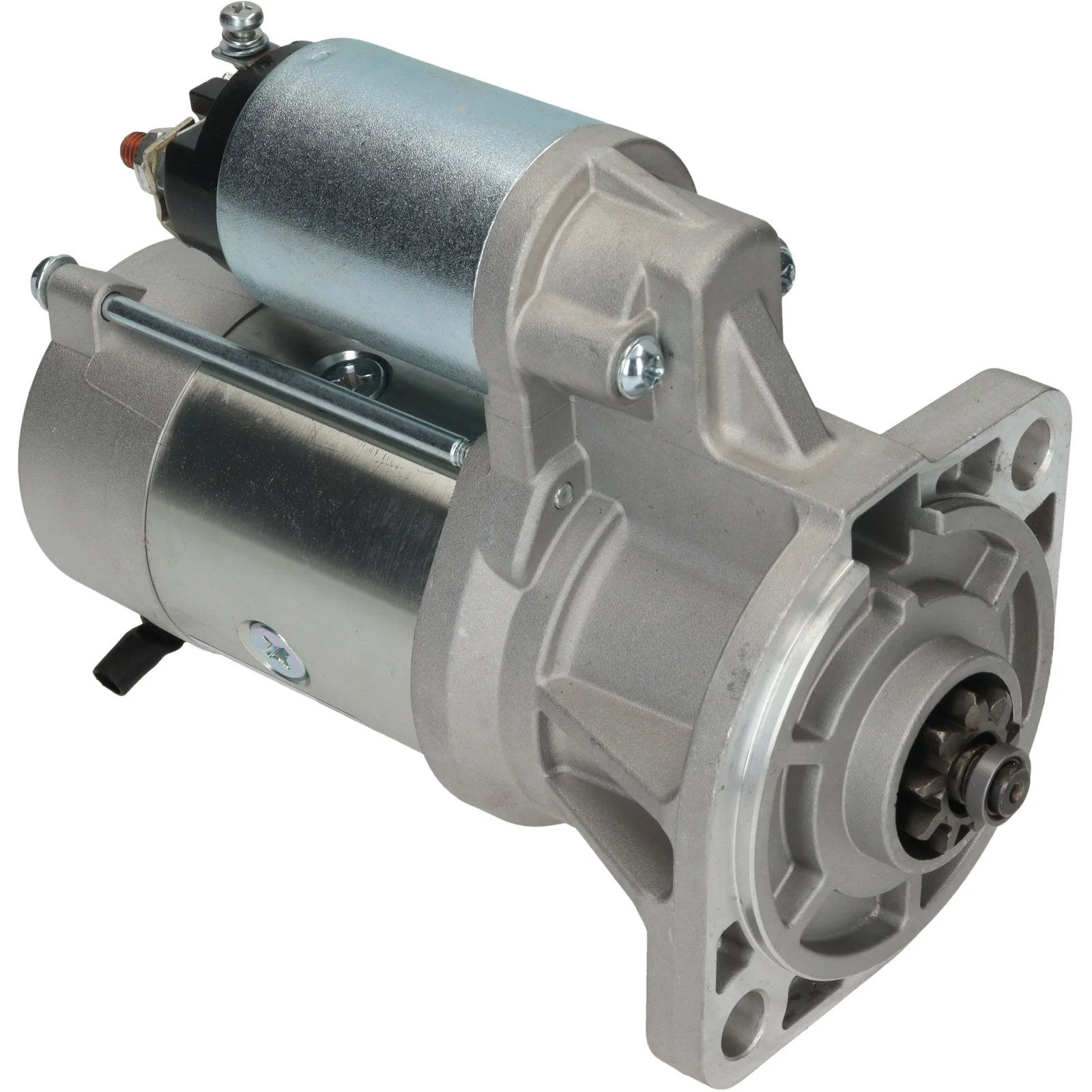

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032110573

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 2,0, Ant./tenner: 9, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 2.0
Festeplatefeste_flense: 95.00
Dreven avstand: 22.00
Festehull 2 mm: 13.00
Festehull 1 mm: 13.00
Avstand/bak: 202.00
Avstand/forside: 27.00
Nr./tenner: 9
B+: M8
Trådslengde mm: 21.00
Posisjon/50: 11
Terminal 50: M5
Gavl type: GR
Avstand mm: 119.00
Rotasjon: CW
Total lengde mm: 234.00
Drev type: Stål
Prod. info: BN
Vannavvisende: Nei
Oljeisolert: Nei
Nr./festehull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 95.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 11
Prod. info BN
Rotation CW
Dist./back 202.00
Dist./front 27.00
Drive dist. 22.00
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 M5
Voltage 12
Total length 234.00 mm
Waterproof No
Dist. 119.00 mm
Thread length 21.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    F032110573, s12-48, s12-58, s13-120a, s13-120b, s13-75, s13-82, s13-82a, s13-82b, 5-81100-099-1, 600-813-1750, 028000-6440, 028000-6441, 128000-2880, 128000-3100, 128000-3101, 228000-9690, 3675152RX, 5811000571, 5811000990, 5811001550, 5811002140, 5811210140, 8941364000, 8941364001, 8944532120, 8970489650, 62811000072

  • Konkurrentreferens
    aus-103, BSO7120, CST20180, drs3038, drs4071, F042004015, F042S04015, les0322, LRS01078, LRS01115, s-1193-hi, s-8152-1, shi0068, sj-00254r, sj-0044r, STR-6000, STR23003, STR6000, 2-1193-HI, 25-0388, 25-1010, 91-25-1078, 130.412.092, 130.598.092, 343.001.092, 343.002.092, 643.016.092, 643.024.092, 11593, 16739N, 16739R, 18050, 18050N, 18293, 18298, 20679, 254997

  • NormaliseratArtNr
    aus103, bso7120, cst20180, drs3038, drs4071, f032110573, f042004015, f042s04015, les0322, lrs01078, lrs01115, s1193hi, s1248, s1258, s13120a, s13120b, s1375, s1382, s1382a, s1382b, s81521, shi0068, sj00254r, sj0044r, str23003, str6000, 11593, 16739n, 16739r, 18050, 18050n, 18293, 18298, 20679, 21193hi, 250388, 251010, 254997, 3675152rx, 91251078, 130412092, 130598092, 0280006440, 0280006441, 343001092, 343002092, 643016092, 643024092, 1280002880, 1280003100, 1280003101, 2280009690, 5811000571, 5811000990, 5811000991, 5811001550, 5811002140, 5811210140, 6008131750, 8941364000, 8941364001, 8944532120, 8970489650, 62811000072

  • Passar modeller
    Daewoo Model: Various Models Model series: Various Models Approved: Yes
    Hyster Model: P Model series: 40, 60 Brand of engine: 4.154 From date: 01-01-1972 To date: 01-12-1978 Fuel: Diesel Approved: Yes
    Hyster Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    Isuzu Model: Aska Model series: Aska Type of engine: Diesel Size of motor: 2.0 Brand of engine: 4FC1 From date: 01-04-1983 To date: 01-06-1989 Fuel: Diesel Approved: Yes
    Isuzu Model: KBD Model series: 41 Type of engine: Diesel Size of motor: 2.0 From date: 01-01-1981 To date: 01-01-1985 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenning: 12
    kW: 2.0
    Festeplatefeste_flense: 95.00
    Dreven avstand: 22.00
    Festehull 2 mm: 13.00
    Festehull 1 mm: 13.00
    Avstand/bak: 202.00
    Avstand/forside: 27.00
    Nr./tenner: 9
    B+: M8
    Trådslengde mm: 21.00
    Posisjon/50: 11
    Terminal 50: M5
    Gavl type: GR
    Avstand mm: 119.00
    Rotasjon: CW
    Total lengde mm: 234.00
    Drev type: Stål
    Prod. info: BN
    Vannavvisende: Nei
    Oljeisolert: Nei
    Nr./festehull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 95.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 11
    Prod. info BN
    Rotation CW
    Dist./back 202.00
    Dist./front 27.00
    Drive dist. 22.00
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 M5
    Voltage 12
    Total length 234.00 mm
    Waterproof No
    Dist. 119.00 mm
    Thread length 21.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Kjøretøymatching

    • OEM
      F032110573, s12-48, s12-58, s13-120a, s13-120b, s13-75, s13-82, s13-82a, s13-82b, 5-81100-099-1, 600-813-1750, 028000-6440, 028000-6441, 128000-2880, 128000-3100, 128000-3101, 228000-9690, 3675152RX, 5811000571, 5811000990, 5811001550, 5811002140, 5811210140, 8941364000, 8941364001, 8944532120, 8970489650, 62811000072

    • Konkurrentreferens
      aus-103, BSO7120, CST20180, drs3038, drs4071, F042004015, F042S04015, les0322, LRS01078, LRS01115, s-1193-hi, s-8152-1, shi0068, sj-00254r, sj-0044r, STR-6000, STR23003, STR6000, 2-1193-HI, 25-0388, 25-1010, 91-25-1078, 130.412.092, 130.598.092, 343.001.092, 343.002.092, 643.016.092, 643.024.092, 11593, 16739N, 16739R, 18050, 18050N, 18293, 18298, 20679, 254997

    • NormaliseratArtNr
      aus103, bso7120, cst20180, drs3038, drs4071, f032110573, f042004015, f042s04015, les0322, lrs01078, lrs01115, s1193hi, s1248, s1258, s13120a, s13120b, s1375, s1382, s1382a, s1382b, s81521, shi0068, sj00254r, sj0044r, str23003, str6000, 11593, 16739n, 16739r, 18050, 18050n, 18293, 18298, 20679, 21193hi, 250388, 251010, 254997, 3675152rx, 91251078, 130412092, 130598092, 0280006440, 0280006441, 343001092, 343002092, 643016092, 643024092, 1280002880, 1280003100, 1280003101, 2280009690, 5811000571, 5811000990, 5811000991, 5811001550, 5811002140, 5811210140, 6008131750, 8941364000, 8941364001, 8944532120, 8970489650, 62811000072

    • Passar modeller
      Daewoo Model: Various Models Model series: Various Models Approved: Yes
      Hyster Model: P Model series: 40, 60 Brand of engine: 4.154 From date: 01-01-1972 To date: 01-12-1978 Fuel: Diesel Approved: Yes
      Hyster Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
      Isuzu Model: Aska Model series: Aska Type of engine: Diesel Size of motor: 2.0 Brand of engine: 4FC1 From date: 01-04-1983 To date: 01-06-1989 Fuel: Diesel Approved: Yes
      Isuzu Model: KBD Model series: 41 Type of engine: Diesel Size of motor: 2.0 From date: 01-01-1981 To date: 01-01-1985 Fuel: Diesel Approved: Yes
