Varenr.: F032110590

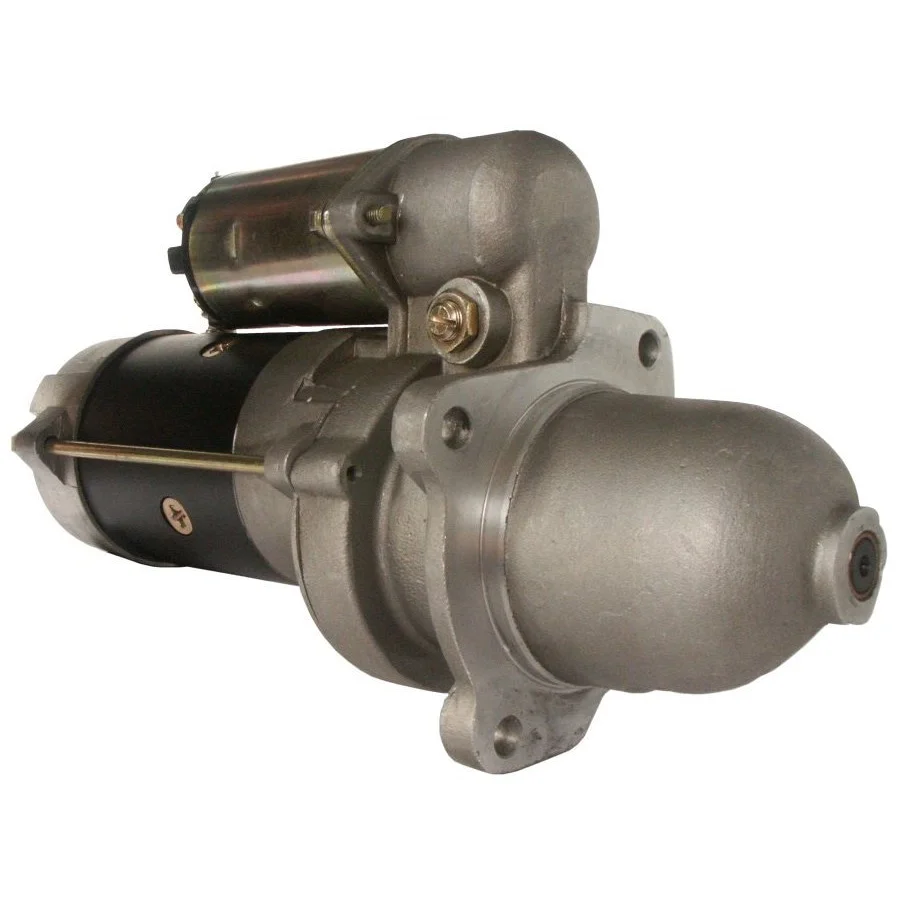

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 2.8, No./tenner: 10, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 2.8
Monteringsflens: 89.00
Driveavstand: 46.00
Monteringhull 3 mm: 10.50
Monteringhull 2 mm: 10.50
Monteringhull 1 mm: 10.50
Avstand/tilbaketrekning: 251.00
Avstand/fremre: 88.00
Nr./tenner: 10
B+: M10
Posisjon/50: 4
Terminal 50: M5
Gjennomgangstype: GR
Avstand 2: 89.00
Avstand 3: 89.00
Avstand mm: 127.50
Rotasjon: CW
Total lengde mm: 339.00
Koblingstype: Tørr
Drevtype: Stål
Prod. info: BN
Vanntett: Ja
Olje forseglet: Nei
Merkninger: Erstattes: 22MT
Nr./monteringshull: 3 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 4
Clutch type Dry
Prod. info BN
Dist. 2 89.00
Remarks Replacing: 22MT
Dist. 3 89.00
Rotation CW
Dist./back 251.00
Dist./front 88.00
Drive dist. 46.00
Drive type Steel
Gear type GR
kW 2.8
Terminal 50 M5
Voltage 12
Total length 339.00 mm
Waterproof Yes
Dist. 127.50 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    0-23000-1860, 0-23000-1900, F032110590, m0014502me, RE105298, RE501766, RE501767, RE505744, RE507639, RE508322, RE509903, RE540136, s2830, us843, 44-4731, 44-4751, 3185c37g01, 347198, 450732R91, 501850, 502631, 517533M93, 579937M91, 596493R92, 646218, 1107514, 1107539, 1107872, 1109192, 1109253, 1109261, 1109263, 1113281, 1113282, 1903103M91, 1903117M91, 1998330, 1998335, 1998342, 1998359, 1998376, 1998480, 3042511, 6630180, 6651210, 6651258, 6651664, 10461450, 10465049, 10465050

  • Konkurrentreferens
    BSO7212R, BSO7225, BSX1440024, BSX1440042, CST10400, CST11107, CST50109, CST50113, CST60108, drz5132, F042003090, F042003104, F042S03090, F042S03104, LRS01230, MS94, S1052, S1192S, S9070, STR-7053, STR-7071, STR7053, STR7073, 8ea730320-001, 25-1219, 25-1371, 50-8404, 600.028.102, 640.539.103, 692.009.102, 692.010.102, 4196, 4274, 4383, 4963, 6179, 6576, 6576N, 6576R, 6578N, 6578R, 8556, 18483N, 33787, 33810, 201162

  • NormaliseratArtNr
    bso7212r, bso7225, bsx1440024, bsx1440042, cst10400, cst11107, cst50109, cst50113, cst60108, drz5132, f032110590, f042003090, f042003104, f042s03090, f042s03104, lrs01230, m0014502me, ms94, re105298, re501766, re501767, re505744, re507639, re508322, re509903, re540136, s1052, s1192s, s2830, s9070, str7053, str7071, str7073, us843, 8ea730320001, 3185c37g01, 4196, 4274, 4383, 4963, 6179, 6576, 6576n, 6576r, 6578n, 6578r, 8556, 18483n, 33787, 33810, 201162, 251219, 251371, 347198, 444731, 444751, 450732r91, 501850, 502631, 508404, 517533m93, 579937m91, 596493r92, 646218, 1107514, 1107539, 1107872, 1109192, 1109253, 1109261, 1109263, 1113281, 1113282, 1903103m91, 1903117m91, 1998330, 1998335, 1998342, 1998359, 1998376, 1998480, 3042511, 6630180, 6651210, 6651258, 6651664, 10461450, 10465049, 10465050, 0230001860, 0230001900, 600028102, 640539103, 692009102, 692010102

  • Passar modeller
    Bobcat Model: 2000 Model series: 2000 From date: 01-01-1989 Approved: Yes
    Bobcat Model: 600 Model series: 641 Brand of engine: F2L511 From date: 01-01-1982 Approved: Yes
    Bobcat Model: 600 Model series: 671 Approved: Yes
    Bobcat Model: 700 Model series: 741 Brand of engine: F2L511 From date: 01-01-1982 Approved: Yes
    Bobcat Model: 900 Model series: 943 From date: 01-01-1988 Approved: Yes
    Bobcat Model: 900 Model series: 974 From date: 01-01-1989 Approved: Yes
    Bobcat Model: 900 Model series: 975 From date: 01-01-1989 Approved: Yes
    Bobcat Model: Various Models Model series: Various Models Approved: Yes
    Perkins Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 12
    kW: 2.8
    Monteringsflens: 89.00
    Driveavstand: 46.00
    Monteringhull 3 mm: 10.50
    Monteringhull 2 mm: 10.50
    Monteringhull 1 mm: 10.50
    Avstand/tilbaketrekning: 251.00
    Avstand/fremre: 88.00
    Nr./tenner: 10
    B+: M10
    Posisjon/50: 4
    Terminal 50: M5
    Gjennomgangstype: GR
    Avstand 2: 89.00
    Avstand 3: 89.00
    Avstand mm: 127.50
    Rotasjon: CW
    Total lengde mm: 339.00
    Koblingstype: Tørr
    Drevtype: Stål
    Prod. info: BN
    Vanntett: Ja
    Olje forseglet: Nei
    Merkninger: Erstattes: 22MT
    Nr./monteringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 4
    Clutch type Dry
    Prod. info BN
    Dist. 2 89.00
    Remarks Replacing: 22MT
    Dist. 3 89.00
    Rotation CW
    Dist./back 251.00
    Dist./front 88.00
    Drive dist. 46.00
    Drive type Steel
    Gear type GR
    kW 2.8
    Terminal 50 M5
    Voltage 12
    Total length 339.00 mm
    Waterproof Yes
    Dist. 127.50 mm
    Mount. hole 3 10.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Kjøretøymatching

    • OEM
      0-23000-1860, 0-23000-1900, F032110590, m0014502me, RE105298, RE501766, RE501767, RE505744, RE507639, RE508322, RE509903, RE540136, s2830, us843, 44-4731, 44-4751, 3185c37g01, 347198, 450732R91, 501850, 502631, 517533M93, 579937M91, 596493R92, 646218, 1107514, 1107539, 1107872, 1109192, 1109253, 1109261, 1109263, 1113281, 1113282, 1903103M91, 1903117M91, 1998330, 1998335, 1998342, 1998359, 1998376, 1998480, 3042511, 6630180, 6651210, 6651258, 6651664, 10461450, 10465049, 10465050

    • Konkurrentreferens
      BSO7212R, BSO7225, BSX1440024, BSX1440042, CST10400, CST11107, CST50109, CST50113, CST60108, drz5132, F042003090, F042003104, F042S03090, F042S03104, LRS01230, MS94, S1052, S1192S, S9070, STR-7053, STR-7071, STR7053, STR7073, 8ea730320-001, 25-1219, 25-1371, 50-8404, 600.028.102, 640.539.103, 692.009.102, 692.010.102, 4196, 4274, 4383, 4963, 6179, 6576, 6576N, 6576R, 6578N, 6578R, 8556, 18483N, 33787, 33810, 201162

    • NormaliseratArtNr
      bso7212r, bso7225, bsx1440024, bsx1440042, cst10400, cst11107, cst50109, cst50113, cst60108, drz5132, f032110590, f042003090, f042003104, f042s03090, f042s03104, lrs01230, m0014502me, ms94, re105298, re501766, re501767, re505744, re507639, re508322, re509903, re540136, s1052, s1192s, s2830, s9070, str7053, str7071, str7073, us843, 8ea730320001, 3185c37g01, 4196, 4274, 4383, 4963, 6179, 6576, 6576n, 6576r, 6578n, 6578r, 8556, 18483n, 33787, 33810, 201162, 251219, 251371, 347198, 444731, 444751, 450732r91, 501850, 502631, 508404, 517533m93, 579937m91, 596493r92, 646218, 1107514, 1107539, 1107872, 1109192, 1109253, 1109261, 1109263, 1113281, 1113282, 1903103m91, 1903117m91, 1998330, 1998335, 1998342, 1998359, 1998376, 1998480, 3042511, 6630180, 6651210, 6651258, 6651664, 10461450, 10465049, 10465050, 0230001860, 0230001900, 600028102, 640539103, 692009102, 692010102

    • Passar modeller
      Bobcat Model: 2000 Model series: 2000 From date: 01-01-1989 Approved: Yes
      Bobcat Model: 600 Model series: 641 Brand of engine: F2L511 From date: 01-01-1982 Approved: Yes
      Bobcat Model: 600 Model series: 671 Approved: Yes
      Bobcat Model: 700 Model series: 741 Brand of engine: F2L511 From date: 01-01-1982 Approved: Yes
      Bobcat Model: 900 Model series: 943 From date: 01-01-1988 Approved: Yes
      Bobcat Model: 900 Model series: 974 From date: 01-01-1989 Approved: Yes
      Bobcat Model: 900 Model series: 975 From date: 01-01-1989 Approved: Yes
      Bobcat Model: Various Models Model series: Various Models Approved: Yes
      Perkins Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
      1 / 2
