Varenr.: F032110602

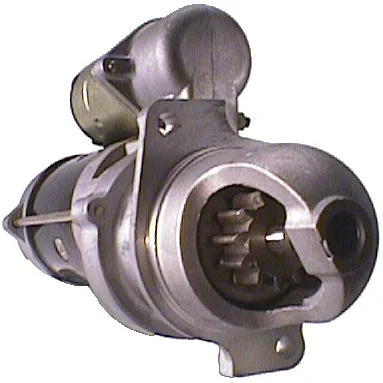

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 2,8, Nr./tenner: 12, Rotasjon: H):

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 2,8
Festeblanke: 89,00
Drevavstand: 46,00
Festebokning 3 mm: 10,50
Festebokning 2 mm: 10,50
Festebokning 1 mm: 10,50
Avstand/bak: 250,00
Avstand/forside: 88,50
Antall/plater: 12
B+: M10
Posisjon/50: 50
Terminal 50: M5
Grovtype: GR
Avstand 2: 127,00
Avstand 3: 90,00
Avstand mm: 90,00
Rotasjon: medurs
Total lengde mm: 339,00
Kopplingsype: Tørkoppling
Drevtype: Stål
Prod. info: BN
Vanntett: Nei
Oljetett: Ja
Anmerkninger: Bytte ut: 22MT
Antall/festebokninger: 3 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 12
Mount. flange 89.00
Oil sealed Yes
No./mount. holes 3 (0)
Position/50 50
Clutch type Dry
Prod. info BN
Dist. 2 127.00
Remarks Replacing: 22MT
Dist. 3 90.00
Rotation CW
Dist./back 250.00
Dist./front 88.50
Drive dist. 46.00
Drive type Steel
Gear type GR
kW 2.8
Terminal 50 M5
Voltage 12
Total length 339.00 mm
Waterproof No
Dist. 90.00 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    0-23000-1840, 0-23000-2160, F032110602, s2820, us844, 1107588, 1108692, 1113273, 1998339, 6630182, 6649676, 6660797, 6714082, 10465058, 10465348, 10465420, 10479613

  • Konkurrentreferens
    BSO7198R, BSO7201R, BSX1440014, CST50108, CST50112, CST60104, CST60126, drz5116, drz5133, drz5165, F042003089, F042003096, F042S03089, F042S03096, LRS01274, LRS01384, OMS123, S1056, STR-7052, STR20002, STR7052, STR7060, STR80037, 8ea730321-001, 8ea732683-001, 25-1170, 25-1482, 25-2255, 26-1002, 50-8403, 50-8426, 50-8426-1, 91-01-4257, 600.033.122, 600.050.122, 683.033.122, 692.016.122, 4280, 4384, 4399, 6157, 6571, 6571N, 6571R, 6586, 6586N, 6586R, 33753, 33842, 60824, 60844, 60860, 20513074, 35259000, 35259670

  • NormaliseratArtNr
    bso7198r, bso7201r, bsx1440014, cst50108, cst50112, cst60104, cst60126, drz5116, drz5133, drz5165, f032110602, f042003089, f042003096, f042s03089, f042s03096, lrs01274, lrs01384, oms123, s1056, s2820, str20002, str7052, str7060, str80037, us844, 8ea730321001, 8ea732683001, 4280, 4384, 4399, 6157, 6571, 6571n, 6571r, 6586, 6586n, 6586r, 33753, 33842, 60824, 60844, 60860, 251170, 251482, 252255, 261002, 508403, 508426, 1107588, 1108692, 1113273, 1998339, 5084261, 6630182, 6649676, 6660797, 6714082, 10465058, 10465348, 10465420, 10479613, 20513074, 35259000, 35259670, 91014257, 0230001840, 0230002160, 600033122, 600050122, 683033122, 692016122

  • Passar modeller
    Bobcat Model: 1000 Model series: 1600 From date: 01-01-1989 Approved: Yes
    Bobcat Model: 600 Model series: 611 Brand of engine: Deutz Approved: Yes
    Bobcat Model: 600 Model series: 621 Brand of engine: Deutz Approved: Yes
    Bobcat Model: 600 Model series: 643 From date: 01-01-1982 To date: 01-01-1989 Approved: Yes
    Bobcat Model: 700 Model series: 721 Brand of engine: Deutz Approved: Yes
    Bobcat Model: 700 Model series: 733 Brand of engine: Deutz Approved: Yes
    Bobcat Model: 700 Model series: 743 From date: 01-01-1982 Approved: Yes
    Bobcat Model: 700 Model series: 753 From date: 01-01-1990 To date: 01-01-1993 Approved: Yes
    Bobcat Model: 800 Model series: 825 Brand of engine: Perkins Approved: Yes
    Bobcat Model: 800 Model series: 833 Brand of engine: Perkins Approved: Yes
    Bobcat Model: 800 Model series: 843 Brand of engine: Perkins Approved: Yes
    Clark Model: Various Models Model series: Various Models From date: 01-01-1968 Approved: Yes
    Perkins Model: 4 Model series: 4-108 From date: 01-01-1989 Fuel: Diesel Approved: Yes
    Perkins Model: 4 Model series: 4-154 From date: 01-01-1989 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Spenning: 12
    kW: 2,8
    Festeblanke: 89,00
    Drevavstand: 46,00
    Festebokning 3 mm: 10,50
    Festebokning 2 mm: 10,50
    Festebokning 1 mm: 10,50
    Avstand/bak: 250,00
    Avstand/forside: 88,50
    Antall/plater: 12
    B+: M10
    Posisjon/50: 50
    Terminal 50: M5
    Grovtype: GR
    Avstand 2: 127,00
    Avstand 3: 90,00
    Avstand mm: 90,00
    Rotasjon: medurs
    Total lengde mm: 339,00
    Kopplingsype: Tørkoppling
    Drevtype: Stål
    Prod. info: BN
    Vanntett: Nei
    Oljetett: Ja
    Anmerkninger: Bytte ut: 22MT
    Antall/festebokninger: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 12
    Mount. flange 89.00
    Oil sealed Yes
    No./mount. holes 3 (0)
    Position/50 50
    Clutch type Dry
    Prod. info BN
    Dist. 2 127.00
    Remarks Replacing: 22MT
    Dist. 3 90.00
    Rotation CW
    Dist./back 250.00
    Dist./front 88.50
    Drive dist. 46.00
    Drive type Steel
    Gear type GR
    kW 2.8
    Terminal 50 M5
    Voltage 12
    Total length 339.00 mm
    Waterproof No
    Dist. 90.00 mm
    Mount. hole 3 10.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Kjøretøymatching

    • OEM
      0-23000-1840, 0-23000-2160, F032110602, s2820, us844, 1107588, 1108692, 1113273, 1998339, 6630182, 6649676, 6660797, 6714082, 10465058, 10465348, 10465420, 10479613

    • Konkurrentreferens
      BSO7198R, BSO7201R, BSX1440014, CST50108, CST50112, CST60104, CST60126, drz5116, drz5133, drz5165, F042003089, F042003096, F042S03089, F042S03096, LRS01274, LRS01384, OMS123, S1056, STR-7052, STR20002, STR7052, STR7060, STR80037, 8ea730321-001, 8ea732683-001, 25-1170, 25-1482, 25-2255, 26-1002, 50-8403, 50-8426, 50-8426-1, 91-01-4257, 600.033.122, 600.050.122, 683.033.122, 692.016.122, 4280, 4384, 4399, 6157, 6571, 6571N, 6571R, 6586, 6586N, 6586R, 33753, 33842, 60824, 60844, 60860, 20513074, 35259000, 35259670

    • NormaliseratArtNr
      bso7198r, bso7201r, bsx1440014, cst50108, cst50112, cst60104, cst60126, drz5116, drz5133, drz5165, f032110602, f042003089, f042003096, f042s03089, f042s03096, lrs01274, lrs01384, oms123, s1056, s2820, str20002, str7052, str7060, str80037, us844, 8ea730321001, 8ea732683001, 4280, 4384, 4399, 6157, 6571, 6571n, 6571r, 6586, 6586n, 6586r, 33753, 33842, 60824, 60844, 60860, 251170, 251482, 252255, 261002, 508403, 508426, 1107588, 1108692, 1113273, 1998339, 5084261, 6630182, 6649676, 6660797, 6714082, 10465058, 10465348, 10465420, 10479613, 20513074, 35259000, 35259670, 91014257, 0230001840, 0230002160, 600033122, 600050122, 683033122, 692016122

    • Passar modeller
      Bobcat Model: 1000 Model series: 1600 From date: 01-01-1989 Approved: Yes
      Bobcat Model: 600 Model series: 611 Brand of engine: Deutz Approved: Yes
      Bobcat Model: 600 Model series: 621 Brand of engine: Deutz Approved: Yes
      Bobcat Model: 600 Model series: 643 From date: 01-01-1982 To date: 01-01-1989 Approved: Yes
      Bobcat Model: 700 Model series: 721 Brand of engine: Deutz Approved: Yes
      Bobcat Model: 700 Model series: 733 Brand of engine: Deutz Approved: Yes
      Bobcat Model: 700 Model series: 743 From date: 01-01-1982 Approved: Yes
      Bobcat Model: 700 Model series: 753 From date: 01-01-1990 To date: 01-01-1993 Approved: Yes
      Bobcat Model: 800 Model series: 825 Brand of engine: Perkins Approved: Yes
      Bobcat Model: 800 Model series: 833 Brand of engine: Perkins Approved: Yes
      Bobcat Model: 800 Model series: 843 Brand of engine: Perkins Approved: Yes
      Clark Model: Various Models Model series: Various Models From date: 01-01-1968 Approved: Yes
      Perkins Model: 4 Model series: 4-108 From date: 01-01-1989 Fuel: Diesel Approved: Yes
      Perkins Model: 4 Model series: 4-154 From date: 01-01-1989 Fuel: Diesel Approved: Yes
      1 / 3
