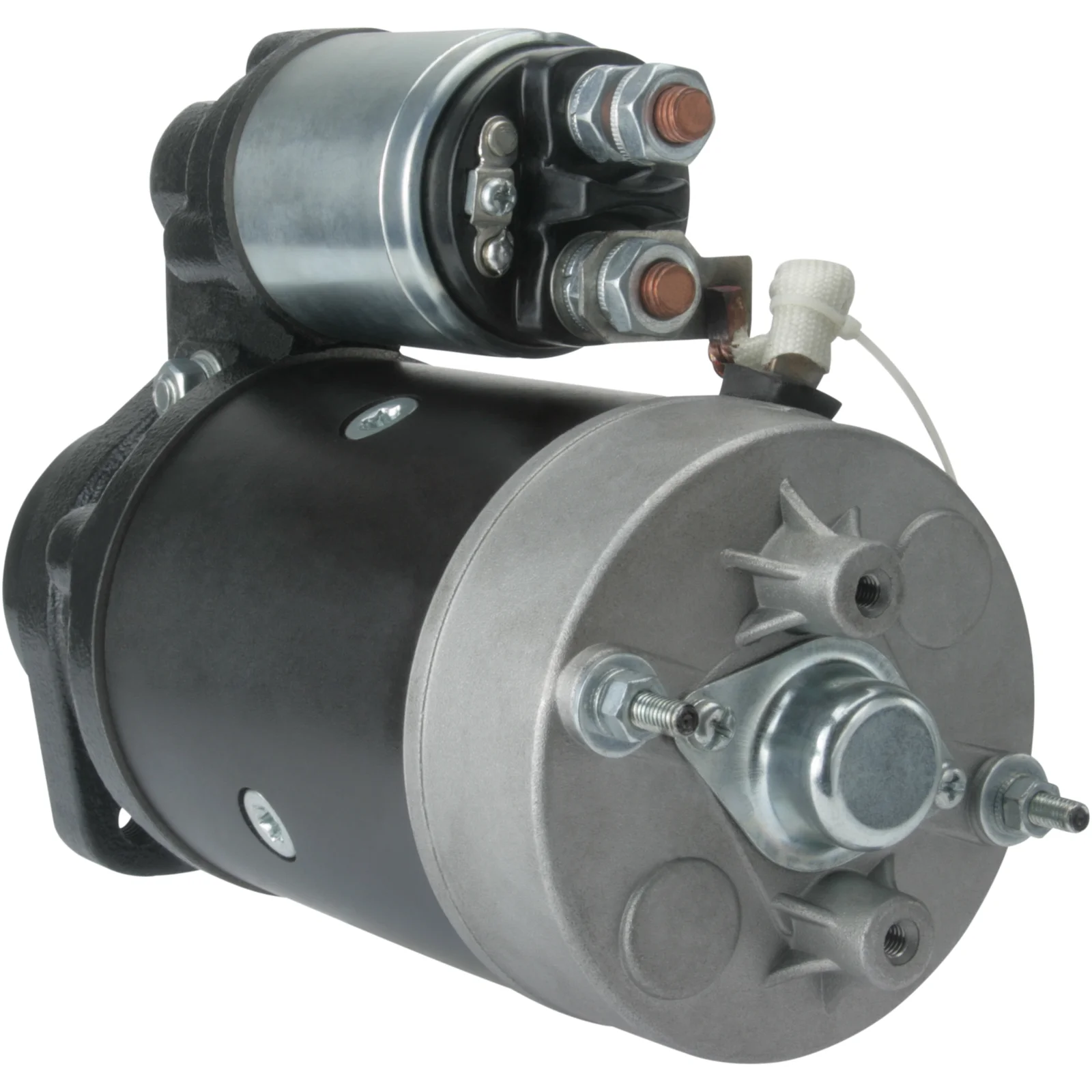

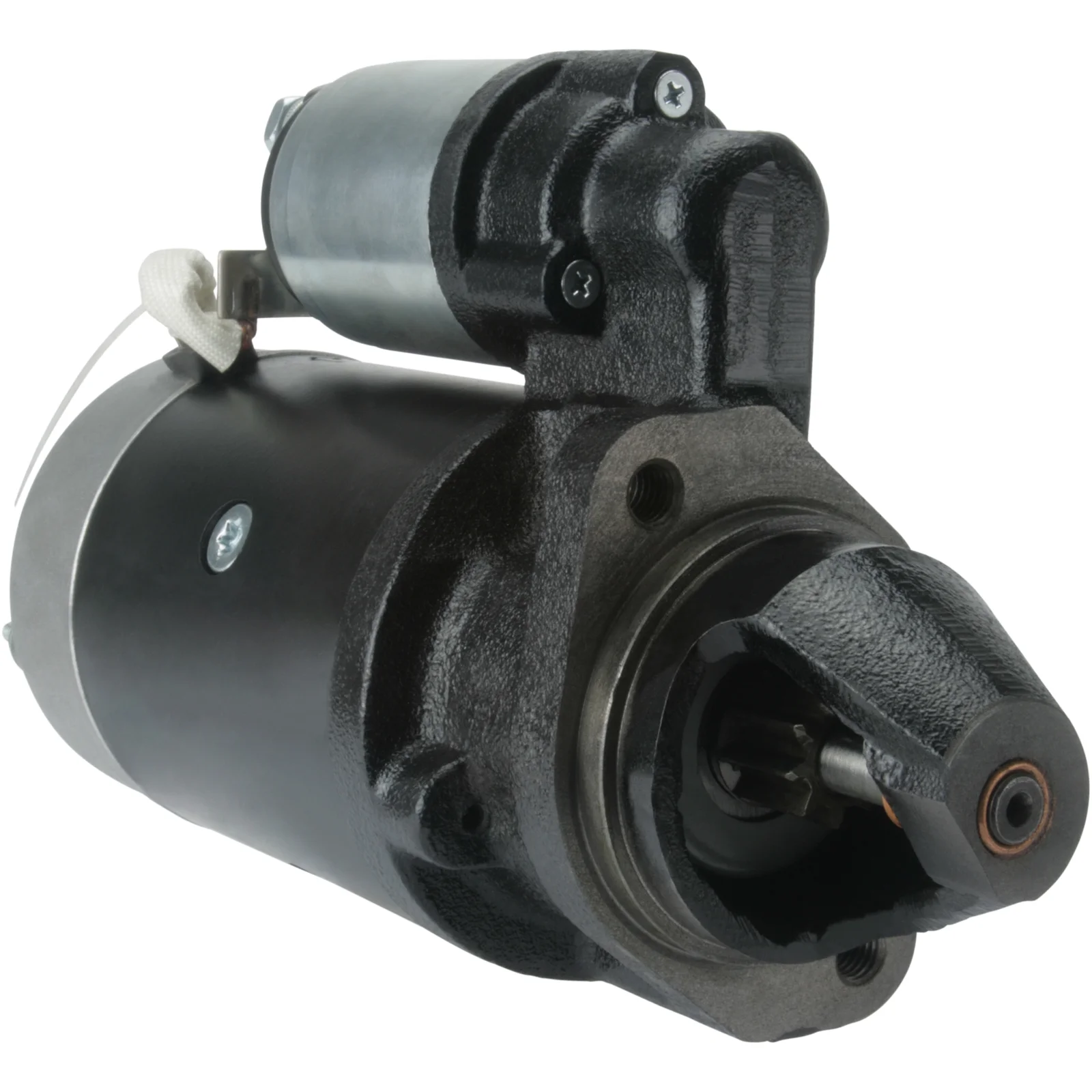

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032110775

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 1.8, Nr./tenner: 9, Rotasjon: HØYRERUNN

Beskrivelse

Spenning: 12
kW: 1.8
Fester for montering: 83.00
Drivningsavstand: 20.00
Monteringshull 2 mm: 12.50
Monteringshull 1 mm: 12.50
Avstand/baak: 226.00
Avstand/foran: 61.50
Nummer/tannhjul: 9
B+: M10
Posisjon/50: 48
Terminal 50: M4
Gettingyp: DD
Avstand mm: 103.50
Rotasjon: CW
Total lengde mm: 288.00
Koblingstype: Vått
Drivningstype: Stål
Prod. info: BN
Vanntett: Nei
Oljeforseglet: Nei
Nummer/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 9
Mount. flange 83.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 48
Clutch type Wet
Prod. info BN
Rotation CW
Dist./back 226.00
Dist./front 61.50
Drive dist. 20.00
Drive type Steel
Gear type DD
kW 1.8
Terminal 50 M4
Voltage 12
Total length 288.00 mm
Waterproof No
Dist. 103.50 mm
Mount. hole 2 12.50 mm
Mount. hole 1 12.50 mm

  • OEM
    A0011516401, A0021512601, A002151260180, A0021516401, A002151640180, cs113, F000AL0313, F032110775, 016158, 0001203003, 0001206006, 0001208006, 0001208017, 0001362003, 0001362004, 0001362027, 0001362028, 0001362038, 1516666R, 05710902, 0011516401, 0021512601, 0021516401, 113911023, 311911023, 592936702, 002151260180, 002151640180, 9000082046

  • Konkurrentreferens
    drs1000, lrs00920, QS2694, S0219, 8ea725966-001, 25-0073, 25-11.000, 300.008.092, 1508, 7429R, 10113, 33401, 103423, 433295, 11011000, 943252122, 0986011000, 0986011003

  • NormaliseratArtNr
    a0011516401, a0021512601, a002151260180, a0021516401, a002151640180, cs113, drs1000, f000al0313, f032110775, lrs00920, qs2694, s0219, 8ea725966001, 1508, 7429r, 10113, 016158, 33401, 103423, 250073, 433295, 0001203003, 0001206006, 0001208006, 0001208017, 0001362003, 0001362004, 0001362027, 0001362028, 0001362038, 1516666r, 2511000, 05710902, 11011000, 0011516401, 0021512601, 0021516401, 113911023, 300008092, 311911023, 592936702, 943252122, 0986011000, 0986011003, 002151260180, 002151640180, 9000082046

  • Passar modeller
    Claas Model: Various Models Model series: Various Models Approved: Yes
    Mercedes-Benz Model: 206 Model series: 206 Type of engine: Diesel Size of motor: 2.2 Brand of engine: OM615.939 Type description: 601 Body: Bus From date: 01-02-1973 To date: 01-12-1977 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 4t Model series: 405 Type of engine: Diesel Size of motor: 2.2 Brand of engine: OM615 Type description: T2/L Body: Platform / Chassis From date: 01-01-1972 To date: 01-12-1980 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 4t Model series: 405 Type of engine: Diesel Size of motor: 2.2 Brand of engine: OM621 Type description: T2/L Body: Platform / Chassis From date: 01-01-1972 To date: 01-12-1980 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 4t Model series: 406 Type of engine: Diesel Size of motor: 2.2 Brand of engine: OM615.910 Type description: T2/L Body: Twin Cab From date: 01-01-1968 To date: 01-12-1974 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 4t Model series: 406F Type of engine: Diesel Size of motor: 2.2 Brand of engine: OM615.910 Type description: T2/L Body: Platform / Chassis From date: 01-01-1968 To date: 01-12-1974 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 4t Model series: 407 Type of engine: Diesel Size of motor: 2.4 Brand of engine: OM616.910 Type description: T2/L Body: Platform / Chassis From date: 01-01-1975 To date: 01-12-1988 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 4t Model series: 407 Type of engine: Diesel Size of motor: 2.4 Brand of engine: OM616.910 Type description: T2/L Body: Twin Cab From date: 01-01-1975 To date: 01-12-1988 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: O 309 Model series: O 309 D Size of motor: 2.2 Brand of engine: OM615.910 Body: Bus From date: 01-01-1968 To date: 01-12-1974 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: O 309 Model series: O 309 D Size of motor: 2.4 Brand of engine: OM616.910 Body: Bus From date: 01-01-1975 To date: 01-12-1988 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 12
    kW: 1.8
    Fester for montering: 83.00
    Drivningsavstand: 20.00
    Monteringshull 2 mm: 12.50
    Monteringshull 1 mm: 12.50
    Avstand/baak: 226.00
    Avstand/foran: 61.50
    Nummer/tannhjul: 9
    B+: M10
    Posisjon/50: 48
    Terminal 50: M4
    Gettingyp: DD
    Avstand mm: 103.50
    Rotasjon: CW
    Total lengde mm: 288.00
    Koblingstype: Vått
    Drivningstype: Stål
    Prod. info: BN
    Vanntett: Nei
    Oljeforseglet: Nei
    Nummer/monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 9
    Mount. flange 83.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 48
    Clutch type Wet
    Prod. info BN
    Rotation CW
    Dist./back 226.00
    Dist./front 61.50
    Drive dist. 20.00
    Drive type Steel
    Gear type DD
    kW 1.8
    Terminal 50 M4
    Voltage 12
    Total length 288.00 mm
    Waterproof No
    Dist. 103.50 mm
    Mount. hole 2 12.50 mm
    Mount. hole 1 12.50 mm
  • Kjøretøymatching

    • OEM
      A0011516401, A0021512601, A002151260180, A0021516401, A002151640180, cs113, F000AL0313, F032110775, 016158, 0001203003, 0001206006, 0001208006, 0001208017, 0001362003, 0001362004, 0001362027, 0001362028, 0001362038, 1516666R, 05710902, 0011516401, 0021512601, 0021516401, 113911023, 311911023, 592936702, 002151260180, 002151640180, 9000082046

    • Konkurrentreferens
      drs1000, lrs00920, QS2694, S0219, 8ea725966-001, 25-0073, 25-11.000, 300.008.092, 1508, 7429R, 10113, 33401, 103423, 433295, 11011000, 943252122, 0986011000, 0986011003

    • NormaliseratArtNr
      a0011516401, a0021512601, a002151260180, a0021516401, a002151640180, cs113, drs1000, f000al0313, f032110775, lrs00920, qs2694, s0219, 8ea725966001, 1508, 7429r, 10113, 016158, 33401, 103423, 250073, 433295, 0001203003, 0001206006, 0001208006, 0001208017, 0001362003, 0001362004, 0001362027, 0001362028, 0001362038, 1516666r, 2511000, 05710902, 11011000, 0011516401, 0021512601, 0021516401, 113911023, 300008092, 311911023, 592936702, 943252122, 0986011000, 0986011003, 002151260180, 002151640180, 9000082046

    • Passar modeller
      Claas Model: Various Models Model series: Various Models Approved: Yes
      Mercedes-Benz Model: 206 Model series: 206 Type of engine: Diesel Size of motor: 2.2 Brand of engine: OM615.939 Type description: 601 Body: Bus From date: 01-02-1973 To date: 01-12-1977 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 4t Model series: 405 Type of engine: Diesel Size of motor: 2.2 Brand of engine: OM615 Type description: T2/L Body: Platform / Chassis From date: 01-01-1972 To date: 01-12-1980 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 4t Model series: 405 Type of engine: Diesel Size of motor: 2.2 Brand of engine: OM621 Type description: T2/L Body: Platform / Chassis From date: 01-01-1972 To date: 01-12-1980 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 4t Model series: 406 Type of engine: Diesel Size of motor: 2.2 Brand of engine: OM615.910 Type description: T2/L Body: Twin Cab From date: 01-01-1968 To date: 01-12-1974 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 4t Model series: 406F Type of engine: Diesel Size of motor: 2.2 Brand of engine: OM615.910 Type description: T2/L Body: Platform / Chassis From date: 01-01-1968 To date: 01-12-1974 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 4t Model series: 407 Type of engine: Diesel Size of motor: 2.4 Brand of engine: OM616.910 Type description: T2/L Body: Platform / Chassis From date: 01-01-1975 To date: 01-12-1988 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 4t Model series: 407 Type of engine: Diesel Size of motor: 2.4 Brand of engine: OM616.910 Type description: T2/L Body: Twin Cab From date: 01-01-1975 To date: 01-12-1988 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: O 309 Model series: O 309 D Size of motor: 2.2 Brand of engine: OM615.910 Body: Bus From date: 01-01-1968 To date: 01-12-1974 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: O 309 Model series: O 309 D Size of motor: 2.4 Brand of engine: OM616.910 Body: Bus From date: 01-01-1975 To date: 01-12-1988 Fuel: Diesel Approved: Yes
      1 / 2
