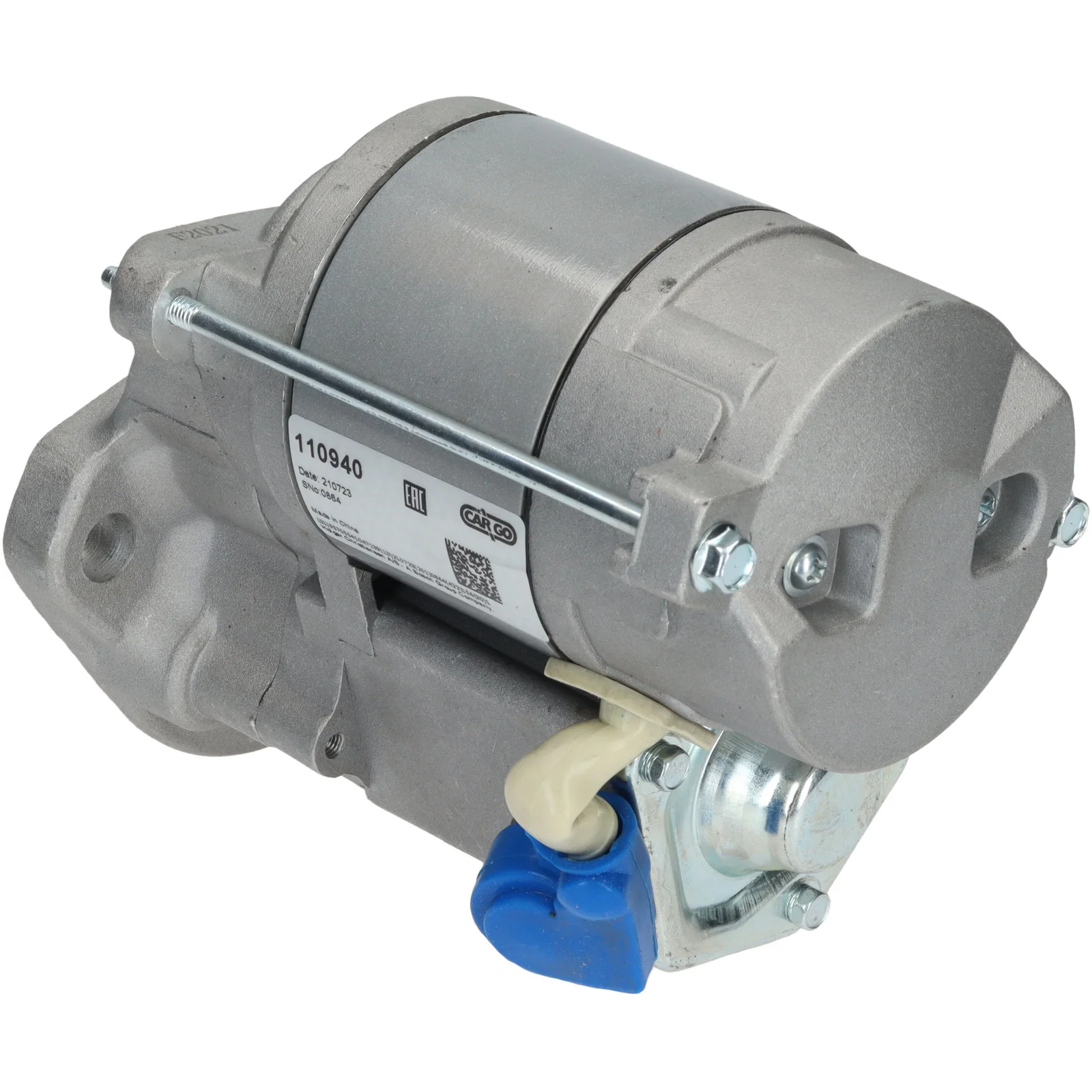

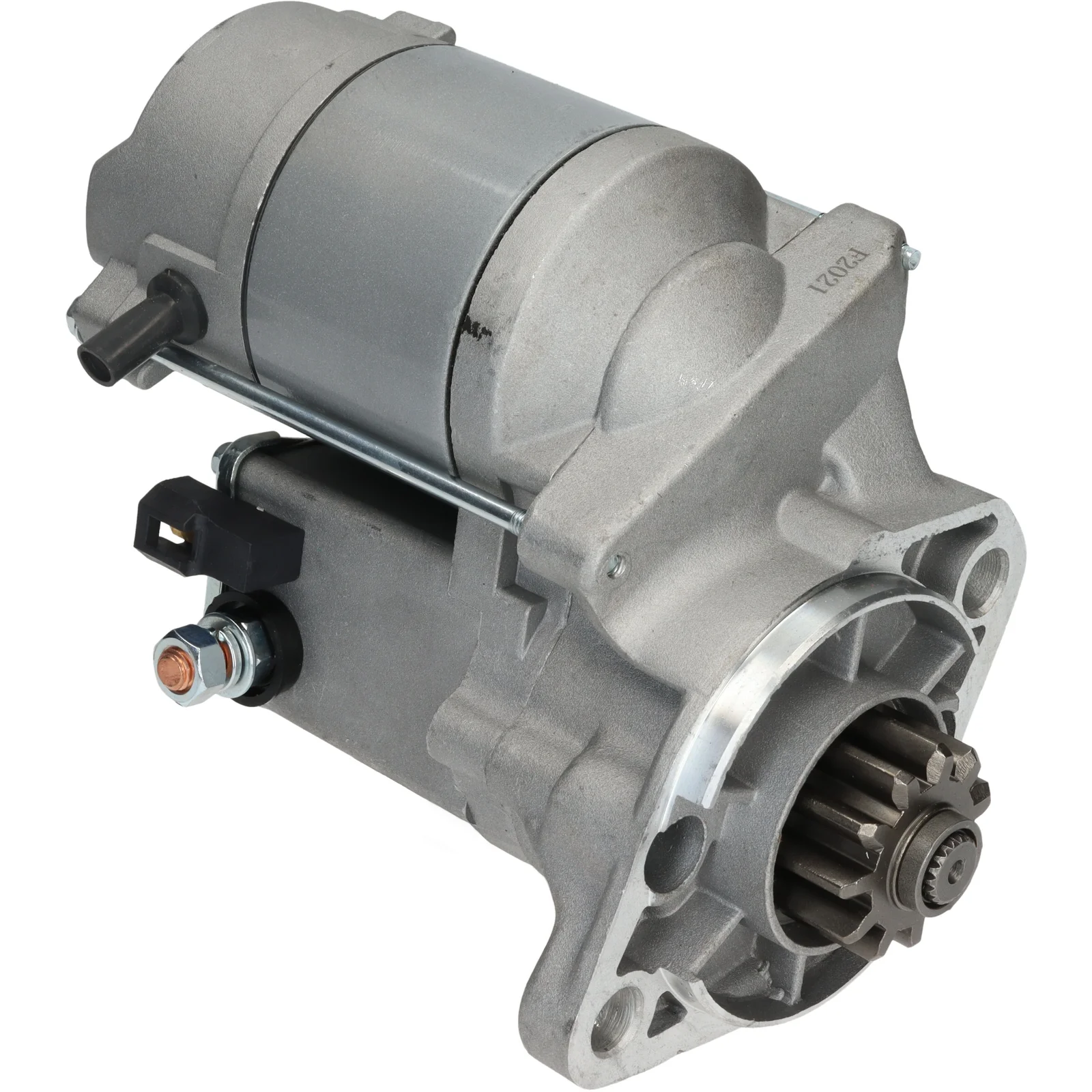

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032110940

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, Kjel: 1.4, S/n/t: 11, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 1,4
Festerflens: 82,00
Drevavstand: 25,00
Monteringshull 2 mm: 11,40
Monteringshull 1 mm: 11,40
Avstand/bak: 123,00
Avstand/forside: 31,50
Antall./tenner: 11
B+: M8
Posisjon/50: 10
Terminal 50: 6,30
Gavltype: GR
Avstand mm: 105,00
Rotasjon: CW
Total lengde mm: 188,00
Drevtype: Staal
Produsentinfo: BN
Vanntett: Nei
Olieforseglet: Nei
Antall./monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 11
Mount. flange 82.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 10
Prod. info BN
Rotation CW
Dist./back 123.00
Dist./front 31.50
Drive dist. 25.00
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 6.30
Voltage 12
Total length 188.00 mm
Waterproof No
Dist. 105.00 mm
Mount. hole 2 11.40 mm
Mount. hole 1 11.40 mm

  • OEM
    F032110940, js897, 15425-63016, 15601-63010, 15601-63011, 15601-63012, 15621-63010, 15621-63011, 15621-63012, 15621-63013, 15621-63014, 15621-63015, 17381-63014, 17381-63015, 19013-63011, 19013-63012, 028000-4730, 028000-6250, 70000-73490, 128000-0070, 128000-0071, 128000-1160, 128000-1161, 128000-1470, 128000-6280, 228000-1000, 228000-1001, 228000-1002, 228000-1040, 228000-1041, 228000-1070, 228000-1071, 228000-6250

  • Konkurrentreferens
    CST40181, CST40295, drs3133, drs3228, DSN2085, F042000196, F042S00196, LRS01318, LRS01547, S6329(DENSO), S6439S, SND0312, STR-8111, STR30007, 2-1960-ND, 8ea732673-001, 25-2089, 25-3036, 683.007.112, 683.013.112, 683.029.112, 690.544.112, 690.552.112, 4309, 16647, 17115, 17619, 18141N, 18142, 18142N, 18175, 18175N, 20897, 33870, 11040511

  • NormaliseratArtNr
    cst40181, cst40295, drs3133, drs3228, dsn2085, f032110940, f042000196, f042s00196, js897, lrs01318, lrs01547, s6329denso, s6439s, snd0312, str30007, str8111, 8ea732673001, 4309, 16647, 17115, 17619, 18141n, 18142, 18142n, 18175, 18175n, 20897, 21960nd, 33870, 252089, 253036, 11040511, 0280004730, 0280006250, 683007112, 683013112, 683029112, 690544112, 690552112, 1280000070, 1280000071, 1280001160, 1280001161, 1280001470, 1280006280, 1542563016, 1560163010, 1560163011, 1560163012, 1562163010, 1562163011, 1562163012, 1562163013, 1562163014, 1562163015, 1738163014, 1738163015, 1901363011, 1901363012, 2280001000, 2280001001, 2280001002, 2280001040, 2280001041, 2280001070, 2280001071, 2280006250, 7000073490

  • Passar modeller
    Carrier Transicold Model: T-Bird Model series: 500 Brand of engine: CT4-114 Approved: Yes
    Kubota Model: Engine Model series: Various Models Brand of engine: CT4-114 Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
  • Beskrivelse
    Spenning: 12
    kW: 1,4
    Festerflens: 82,00
    Drevavstand: 25,00
    Monteringshull 2 mm: 11,40
    Monteringshull 1 mm: 11,40
    Avstand/bak: 123,00
    Avstand/forside: 31,50
    Antall./tenner: 11
    B+: M8
    Posisjon/50: 10
    Terminal 50: 6,30
    Gavltype: GR
    Avstand mm: 105,00
    Rotasjon: CW
    Total lengde mm: 188,00
    Drevtype: Staal
    Produsentinfo: BN
    Vanntett: Nei
    Olieforseglet: Nei
    Antall./monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 11
    Mount. flange 82.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 10
    Prod. info BN
    Rotation CW
    Dist./back 123.00
    Dist./front 31.50
    Drive dist. 25.00
    Drive type Steel
    Gear type GR
    kW 1.4
    Terminal 50 6.30
    Voltage 12
    Total length 188.00 mm
    Waterproof No
    Dist. 105.00 mm
    Mount. hole 2 11.40 mm
    Mount. hole 1 11.40 mm
  • Kjøretøymatching

    • OEM
      F032110940, js897, 15425-63016, 15601-63010, 15601-63011, 15601-63012, 15621-63010, 15621-63011, 15621-63012, 15621-63013, 15621-63014, 15621-63015, 17381-63014, 17381-63015, 19013-63011, 19013-63012, 028000-4730, 028000-6250, 70000-73490, 128000-0070, 128000-0071, 128000-1160, 128000-1161, 128000-1470, 128000-6280, 228000-1000, 228000-1001, 228000-1002, 228000-1040, 228000-1041, 228000-1070, 228000-1071, 228000-6250

    • Konkurrentreferens
      CST40181, CST40295, drs3133, drs3228, DSN2085, F042000196, F042S00196, LRS01318, LRS01547, S6329(DENSO), S6439S, SND0312, STR-8111, STR30007, 2-1960-ND, 8ea732673-001, 25-2089, 25-3036, 683.007.112, 683.013.112, 683.029.112, 690.544.112, 690.552.112, 4309, 16647, 17115, 17619, 18141N, 18142, 18142N, 18175, 18175N, 20897, 33870, 11040511

    • NormaliseratArtNr
      cst40181, cst40295, drs3133, drs3228, dsn2085, f032110940, f042000196, f042s00196, js897, lrs01318, lrs01547, s6329denso, s6439s, snd0312, str30007, str8111, 8ea732673001, 4309, 16647, 17115, 17619, 18141n, 18142, 18142n, 18175, 18175n, 20897, 21960nd, 33870, 252089, 253036, 11040511, 0280004730, 0280006250, 683007112, 683013112, 683029112, 690544112, 690552112, 1280000070, 1280000071, 1280001160, 1280001161, 1280001470, 1280006280, 1542563016, 1560163010, 1560163011, 1560163012, 1562163010, 1562163011, 1562163012, 1562163013, 1562163014, 1562163015, 1738163014, 1738163015, 1901363011, 1901363012, 2280001000, 2280001001, 2280001002, 2280001040, 2280001041, 2280001070, 2280001071, 2280006250, 7000073490

    • Passar modeller
      Carrier Transicold Model: T-Bird Model series: 500 Brand of engine: CT4-114 Approved: Yes
      Kubota Model: Engine Model series: Various Models Brand of engine: CT4-114 Approved: Yes
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
