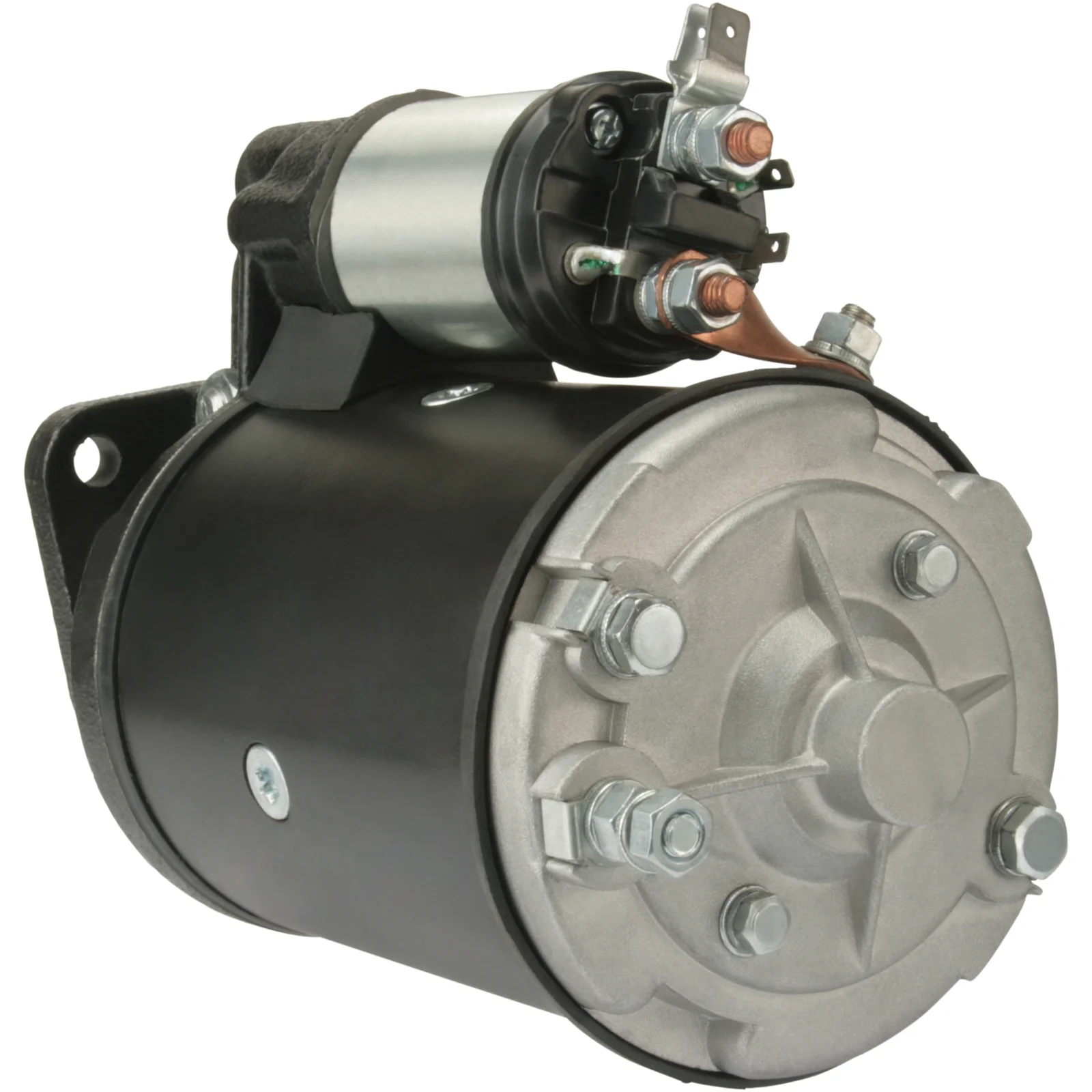

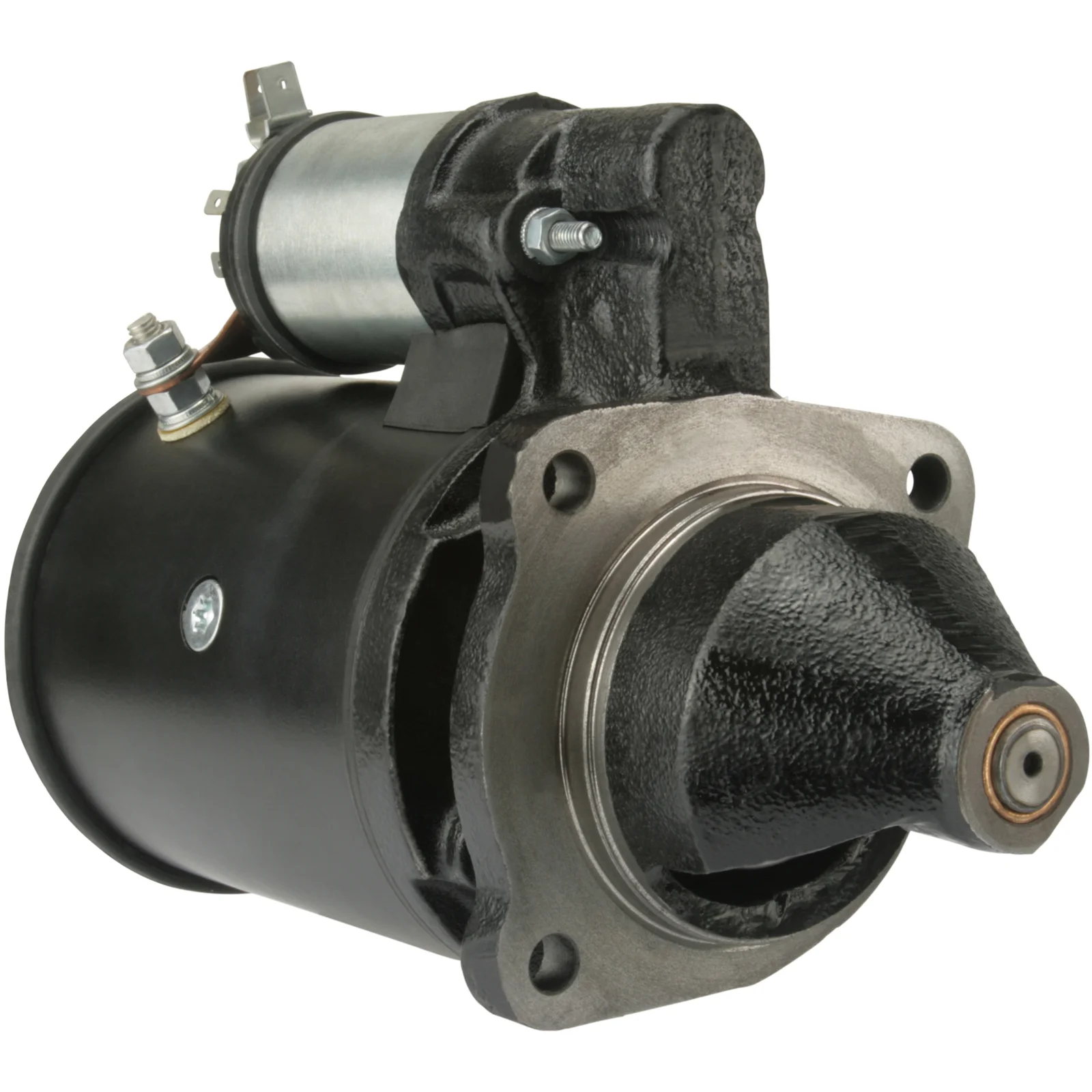

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032111346

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 2.8, No./tenner: 10, Rotasjon: CW

Beskrivelse

Spenningsverdi: 12
kW: 2.8
Feste flens: 89.00
Drivingsavstand: 29.50
Festeboring 3 mm: 11.00
Festeboring 2 mm: 11.00
Festeboring 1 mm: 11.00
Avstand/bak: 217.00
Avstand/framon: 77.00
Antall/tenner: 10
B+: M8
Posisjon/50: 15
Terminal 50: 6.30
Gaffeltype: DD
Avstand 2: 89.50
Avstand 3: 89.50
Avstand mm: 126.50
Rotasjon: medurs
Total lengde mm: 308.00
Koplingstype: Tørr
Drevetype: Stål
Produsjonsinfo: BN
Vanntett: Nei
Oljetett: Nei
Antall/festehull: 3 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 15
Clutch type Dry
Prod. info BN
Dist. 2 89.50
Dist. 3 89.50
Rotation CW
Dist./back 217.00
Dist./front 77.00
Drive dist. 29.50
Drive type Steel
Gear type DD
kW 2.8
Terminal 50 6.30
Voltage 12
Total length 308.00 mm
Waterproof No
Dist. 126.50 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    cs994, F032111346, 714-14300, 714-29500, 714-40005, 1873a054, 1873a055, 2873A029, 2873A031, 2873b072, 2873b073, 26298d, 26414, 26414a, 26414e, 26414r, 27541, 27541a, 27541d, 27547, 27565, 27565b, 27565d, 27568, 27568a, 27589, 27590, 27598, 27602, 27608, 27610, 27620, 27626, 27627, 27627B, 27629, 745309, 2873006, 3763362M94, 26925196a, 63227479, 63227541, 63227565, 63227568, 63227590, 63227598, 63227599, 9004475061

  • Konkurrentreferens
    BSO7018, CST25132, drs3287, DRS3769, is0629, LES0041, lrs00969, S4019, STR25000, 8EA012527-161, 8ea737243-001, 25-0041, 25-1030, 25-2402, 644.002.102, 685.028.102, 4451, 10994, 16670N, 17652, 17652N, 18482N, 33473, 104087, 104306, 11022680, 20500969, 0986022680

  • NormaliseratArtNr
    bso7018, cs994, cst25132, drs3287, drs3769, f032111346, is0629, les0041, lrs00969, s4019, str25000, 8ea012527161, 8ea737243001, 1873a054, 1873a055, 2873a029, 2873a031, 2873b072, 2873b073, 4451, 10994, 16670n, 17652, 17652n, 18482n, 26298d, 26414, 26414a, 26414e, 26414r, 27541, 27541a, 27541d, 27547, 27565, 27565b, 27565d, 27568, 27568a, 27589, 27590, 27598, 27602, 27608, 27610, 27620, 27626, 27627, 27627b, 27629, 33473, 104087, 104306, 250041, 251030, 252402, 745309, 2873006, 3763362m94, 11022680, 20500969, 26925196a, 63227479, 63227541, 63227565, 63227568, 63227590, 63227598, 63227599, 71414300, 71429500, 71440005, 644002102, 685028102, 0986022680, 9004475061

  • Passar modeller
    Massey Ferguson Model: MF 100 Model series: 184 From date: 01-01-1973 To date: 01-01-1989 Approved: Yes
    Massey Ferguson Model: MF 1000 Model series: 1250 From date: 01-01-1979 Approved: Yes
    Massey Ferguson Model: MF 200 Model series: 285 From date: 01-01-1975 To date: 01-12-1988 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 200 Model series: 298 From date: 01-01-1980 Approved: Yes
    Massey Ferguson Model: MF 300 Model series: 365 From date: 01-01-1986 To date: 01-01-1990 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 300 Model series: 375 From date: 01-01-1986 To date: 01-01-1997 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 300 Model series: 383 From date: 01-01-1983 Approved: Yes
    Massey Ferguson Model: MF 300 Model series: 390 From date: 01-01-1986 To date: 01-01-1997 Approved: Yes
    Massey Ferguson Model: MF 300 Model series: 390 T From date: 01-01-1991 To date: 01-01-1997 Approved: Yes
    Massey Ferguson Model: MF 300 Model series: 398 From date: 01-01-1983 To date: 01-01-1984 Approved: Yes
    Massey Ferguson Model: MF 300 Model series: 399 From date: 01-01-1986 To date: 01-01-1990 Approved: Yes
    Massey Ferguson Model: MF 4000 Model series: 4255 From date: 01-01-1997 To date: 01-01-2000 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 600 Model series: 698 From date: 01-01-1983 Approved: Yes
    Massey Ferguson Model: MF 600 Model series: 699 From date: 01-01-1983 Approved: Yes
    Massey Ferguson Model: Various Models Model series: Various Models From date: 01-01-1951 Approved: Yes
